Lightware DVI-OPT-TX110 Small DVI Fiber Optical Extender - 91510001

Product Overview

The Lightware DVI-OPT-TX110 is a compact DVI fiber optic extender transmitter designed for single-link DVI-D signal transport over multimode or single-mode optical fiber. It supports resolutions up to 1920x1200 (WUXGA) and is built for installations where copper cable runs are impractical due to distance, EMI, or ground-loop isolation requirements. The DVI-OPT-TX110 pairs with a compatible fiber receiver to deliver lossless digital video in broadcast, medical imaging, and long-distance AV distribution environments.

Product Description

The Lightware DVI-OPT-TX110 transmitter converts single-link DVI-D signals into optical signals for transmission over fiber optic cable, eliminating the distance and interference constraints of copper-based DVI runs. It accepts resolutions from standard definition through WUXGA at 1920x1200, with pixel clock support up to 165 MHz. The unit is housed in a compact, fanless enclosure suitable for rack-shelf or surface mounting, and draws power via an external supply. HDCP 1.x pass-through is supported, making the DVI-OPT-TX110 compatible with content-protected source signals from Blu-ray players, encrypted presentation systems, and secure display environments.

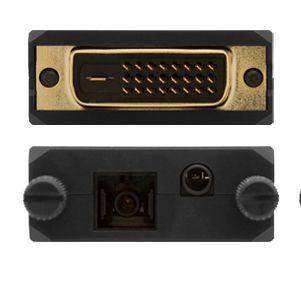

Installation is straightforward: the transmitter connects to any DVI-D source via a standard DVI cable and outputs to LC-terminated fiber. Signal integrity is maintained over fiber runs from 300 meters on multimode to several kilometers on single-mode fiber, depending on the paired receiver and fiber type. The compact form factor and passive cooling make it suitable for enclosed spaces, lecterns, and behind-display installations where heat and noise budgets are tight.

Key Features

• Single-link DVI-D fiber transmission — converts DVI-D to optical for long-distance, interference-free signal transport
• Up to 1920x1200 (WUXGA) resolution — supports all standard resolutions through WUXGA at 60 Hz
• 165 MHz pixel clock — handles high-bandwidth DVI sources without signal degradation
• HDCP 1.x compliant — passes through content-protected signals transparently
• Multimode and single-mode fiber support — flexible fiber type selection for short or long runs
• Compact fanless enclosure — passive cooling eliminates noise and mechanical failure points
• LC fiber connector interface — industry-standard termination compatible with standard fiber infrastructure
• Ground-loop isolation via optical fiber — eliminates hum and interference caused by ground potential differences

Typical Applications

• Medical imaging and surgical display installations requiring EMI isolation
• Broadcast studios routing DVI sources over existing fiber plant
• University lecture halls and auditoriums with long cable runs between source and display
• Security and surveillance control rooms extending DVI workstation signals
• Government and defense facilities requiring electrical isolation between devices
• Corporate headquarters with inter-floor or inter-building DVI distribution

Technical Specifications

Competitor Comparison

Frequently Asked Questions

What fiber type does the DVI-OPT-TX110 require?

The DVI-OPT-TX110 supports both multimode (OM1, OM2, OM3) and single-mode fiber via LC connectors. Maximum reach depends on fiber grade and the paired receiver model — multimode runs extend to approximately 300 m on OM3, while single-mode can reach several kilometers.

Does the DVI-OPT-TX110 support HDCP?

Yes. The unit passes HDCP 1.x-encrypted content transparently, making it compatible with Blu-ray players, encrypted presentation systems, and other HDCP-protected sources.

What receiver pairs with the DVI-OPT-TX110?

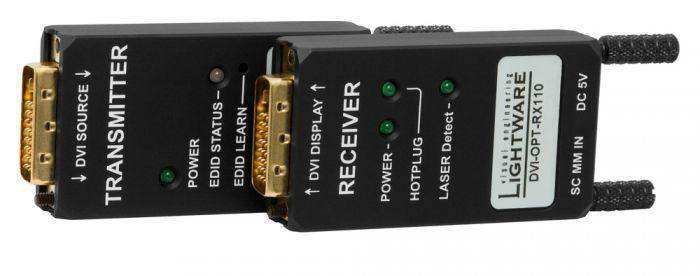

The DVI-OPT-TX110 is the transmitter half of the Lightware DVI fiber extender system. It pairs with the corresponding Lightware DVI fiber receiver. Contact Creation Networks at creationnetworks.net to confirm compatible receiver models for your specific installation.

Can the DVI-OPT-TX110 handle dual-link DVI?

No. This unit supports single-link DVI-D only, with a maximum pixel clock of 165 MHz and a maximum resolution of 1920x1200. Dual-link DVI (required for resolutions above WUXGA or at very high refresh rates) is not supported.

Is any configuration or software required?

No software or configuration is required. The DVI-OPT-TX110 operates as a plug-and-play device. Connect the DVI source, connect the LC fiber cable, and the signal is transmitted automatically.

What are the power requirements?

The unit is powered by an external DC power adapter included in the box. It does not support Power over Fiber or PoE — a local power outlet is required at the transmitter location.

Where can I purchase the DVI-OPT-TX110 and get technical support?

The Lightware DVI-OPT-TX110 is available directly from Creation Networks at creationnetworks.net. Our team provides pre-sales technical consultation and post-sale support for all Lightware products.
