Lightware DVI-OPT-RX110 Small DVI Fiber Optical Extender - 91510002

LightWare SKU: 91510002
No reviews

Price:
Sale price$850.00

Description

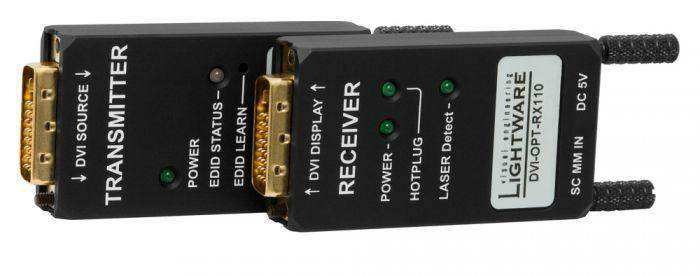

Small DVI Fiber Optical Extender

The DVI‑OPT‑RX110 is a DVI to fiber extender pair transmitting up to a range of 2500 m. The new, redesigned housing and ports of these units further enhances operation safety and security.

Highlighted features

  • Extends DVI signals over one multimode fiber cable
  • Single Fiber Technology
  • DVI connector sized form factor

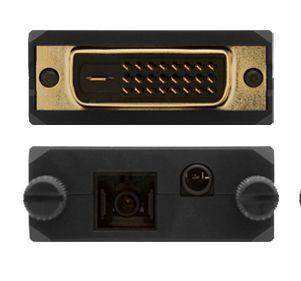

Connectors
TX input , RX output: 24 pole DVI-D plug
DC Power: 1.35/3.5 mm barrel receptacle
Fiber: SC simplex



Specifications
Data rate: 1.65 Gbps per color
Max Resolution: 1920x1200 or 2048x1080 pixels
Video Delay: 0 frames
HDCP pass through: no
EDID emulation: yes, EDID learning by button
EDID memory: 1 user programmable EDID in transmitter
EDID support: 256 byte Extended EDID v1.3
Front panel control: EDID learn button
LED indicators: power, laser detect, signal present, monitor connected
RS-232 pass through: no
Fiber: 50/125 SC Multimode
Laser wavelenghts:

4ch. CWDM: 778; 800; 825; 850 nm (high speed)

Laser class specification

Class 3

Transmitter output OMA*: -6.25 dBm (worst case)
Receiver OMA* sensitivity: -14.25 dBm (worst case)
Optical loss budget: 8 dB (worst case)
Transmission distance (using Om3e type fiber): 2500 meters
Power supply: External power adaptor
(100 to 240V AC, 50/60Hz)(5V DC, 1A)
Power consumption: 0.8 W
Enclosure: Solid Aluminum
Dimensions: 39W x 87,5D x 15,4H mm
Net weight: 95 gramms
Compliance: CE
Warranty: 3 years
OMA*:Optical Modulation Amplitude



Maximum extension distances
  OM1 OM2 OM3 OM4
  (62,5/125) (50/125) (50/125) (50/125)
1080p@60Hz 24 bpp 250 m 600 m 1200 m 2500 m
