Lightware DP-OPT-TX100 Fiber Optical DisplayPort Extender - 91510016

Product Overview

The Lightware DP-OPT-TX100 is the transmitter unit in a DisplayPort 1.1a fiber extension pair, sending uncompressed DP video and embedded audio over a single multimode fiber strand to the DP-OPT-RX100 receiver. It supports Dual-mode DisplayPort with HDCP 1.1 encryption and achieves zero frame latency by performing optical conversion without buffering. Using Single Fiber Technology, both the high-bandwidth video stream and the low-speed bidirectional signaling required for DP Link Training and HDCP authentication travel over the same fiber core, eliminating the need for a separate control cable. Extension distances reach up to 1100 meters on OM4 multimode fiber at 2560x1600@60Hz.

Product Description

The DP-OPT-TX100 connects to the source via a standard DisplayPort gold-plated connector and outputs onto SC multimode fiber. It accepts DP 1.1a signals at up to 10.8 Gbps total bandwidth (4 lanes at 2.7 Gbps each). Resolutions supported include 2560x1600@60Hz, 4096x2160@30Hz, 3840x2160@30Hz, and 1920x1080@120Hz. Color depths of 24, 30, 36, and 48 bits are all supported.

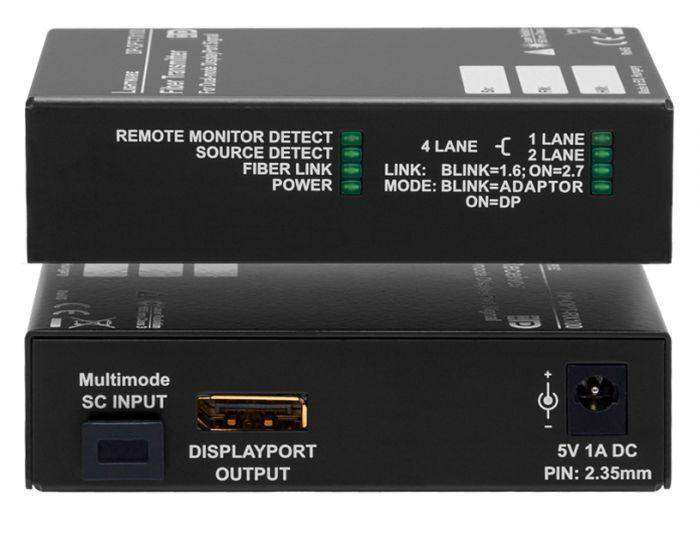

The unit operates on 5V DC (1A) from an included universal adaptor. The enclosure is 1mm metal measuring 100.4 x 67.6 x 26mm and weighs 200 grams. LED indicators on the unit provide real-time status for power, fiber link, source detection, monitor detection, link lane count, link speed, and whether the unit is operating in DisplayPort or DVI/HDMI adaptor mode. Galvanic isolation through the fiber medium eliminates ground loops between the source and display locations.

Key Features

• DisplayPort 1.1a fiber transmitter — connects to DP source; transmits signal over SC multimode fiber to DP-OPT-RX100
• Up to 1100m extension — OM4 fiber at 2560x1600@60Hz; 800m OM3; 350m OM2; 150m OM1
• Single fiber technology — Link Training and HDCP bidirectional signaling on same fiber core as video
• Zero frame delay — optical conversion introduces no latency; video path is frame-synchronous
• Galvanic isolation — fiber eliminates ground loops and hum between source and display
• Dual-mode DisplayPort — supports DVI and HDMI display adaptors from the DP graphic card output
• HDCP 1.1 compliant — end-to-end content protection through the fiber link
• 10.8 Gbps total bandwidth — 4 lanes at 1.62 or 2.7 Gbps each
• Deep color — 24, 30, 36, 48-bit color depth
• Apple Cinema Display compatible — DP Link Training supported for Apple LED Cinema Display connection
• LED status indicators — power, fiber link, source detect, monitor detect, lane count, link speed, DP/DVI-HDMI mode

Typical Applications

• Long-distance DisplayPort signal distribution in broadcast facilities, post-production suites, and editing bays
• Inter-floor or inter-building DP extension in design studios using Apple Cinema Displays
• Ground loop elimination in audio-visual production environments with separate source and display electrical grounds
• Government or secure facilities requiring EMI-immune fiber cabling between source computers and display walls
• Conference center systems where a fiber backbone connects a central AV rack to remote display locations

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the DP-OPT-TX100 require a specific receiver?

Yes. It is designed to work exclusively with the Lightware DP-OPT-RX100 receiver. The Single Fiber Technology and proprietary DP Link Training implementation are specific to this pair and are not interoperable with generic optical extenders or other manufacturers' DP fiber products.

What is the maximum bandwidth, and does it support 4K60?

The DP-OPT-TX100 supports DisplayPort 1.1a at 10.8 Gbps total bandwidth (4 lanes x 2.7 Gbps). At 60Hz, the maximum supported resolution is 2560x1600. 4K (3840x2160 and 4096x2160) is supported at up to 30Hz only. For 4K60 over fiber, the Lightware HDMI-OPTX-TX200AU2K/RX100AU2K SDVoE pair is the appropriate solution.

What fiber cable is required?

The preferred fiber type is 50/125 multimode SC-terminated cable (OM3 or OM4). OM4 gives the maximum 1100m reach. OM1 (62.5/125) is supported but limited to 150m. Both fiber cores at each SC connector must be functioning; the Single Fiber Technology uses wavelength-division multiplexing on a single strand.

Can the transmitter power the receiver?

No. Power over fiber is not supported. Both the DP-OPT-TX100 and DP-OPT-RX100 require their own independent 5V DC power supplies from the included adaptors.

Is the unit compatible with Thunderbolt ports on Mac computers?

Thunderbolt 1 and 2 ports are electrically DisplayPort compatible and will work with the DP-OPT-TX100 using a Thunderbolt-to-DisplayPort adaptor. Thunderbolt 3/4 (USB-C) requires a USB-C to DisplayPort adaptor and is subject to the display link capabilities of the specific Mac model.

Where can I purchase and get support for this product?

The DP-OPT-TX100 is available at creationnetworks.net. Our team can assist with fiber plant compatibility verification, distance planning, and system commissioning support.
