Product Overview
The Lightware DP-OPT-RX150 is a DisplayPort 1.1a fiber optic extender receiver that extends high-resolution video and USB HID signals over a single multimode fiber cable at distances up to 1100 m. It receives the signal from a DP-OPT-TX150 transmitter and outputs Dual-mode DisplayPort, supporting resolutions up to 2560x1600@60Hz and 4K at 30Hz. Integrated USB HID emulation provides transparent keyboard and mouse extension without drivers, making it suitable for long-distance KVM installations in control rooms, broadcast facilities, and data centers.
Product Description
The DP-OPT-RX150 operates as the display-end unit in the Lightware DP-OPT extender pair. Using Single Fiber Technology, all signals — including high-speed DisplayPort lanes, HDCP handshaking, DisplayPort Link Training, and USB HID transfer — travel over a single fiber core, eliminating the need for a second fiber or copper control cable. This simplifies infrastructure in installations where conduit space or fiber count is constrained.

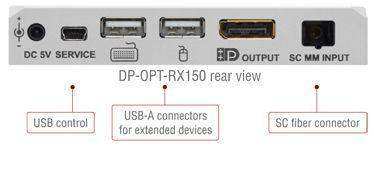

The receiver provides two USB-A ports for HID device connection (keyboard, mouse) at the display end. HID devices are emulated intelligently — the computer sees them as directly connected, requiring no drivers. Dual-mode DisplayPort allows connection to DVI or HDMI displays through a standard adaptor cable, and the unit is compatible with Thunderbolt-equipped Mac computers. The DP-OPT-RX150 connects to 50/125 SC multimode fiber and achieves up to 1100 m on OM3 or OM4 fiber.
Key Features
- Single fiber transport — all DisplayPort, HDCP, and USB HID signals over one SC multimode fiber core
- Max resolution 2560x1600@60Hz — 10.8 Gbps DisplayPort 1.1a bandwidth with HDCP 1.1 support
- 4K support at 30Hz — handles 4096x2160 and 3840x2160 at 30 Hz; 1920x1080@120Hz also supported
- USB HID emulation — keyboard and mouse transparent extension, no drivers required
- Dual-mode DisplayPort — supports DVI and HDMI display connection via adaptor cable
- Thunderbolt compatible — works with Mac computers and devices with Thunderbolt ports
- Apple LED Cinema Display compatible — verified with Apple Cinema displays
- Up to 1100 m on OM4 fiber — confirmed distances: 150 m OM1, 350 m OM2, 800 m OM3, 1100 m OM4
Typical Applications
- Broadcast control rooms with operator workstations remote from server racks
- Data center KVM installations requiring secure keyboard and mouse access at distance
- Medical imaging suites with displays physically separated from computing equipment
- Trading floors and command centers with high-resolution display extensions
- University AV systems connecting source equipment rooms to lecture display endpoints
Technical Specifications
| Parameter | Value |
|---|---|
| Product Type | DisplayPort 1.1a Fiber Receiver with KVM |
| Interface Standard | Dual-mode DisplayPort 1.1a |
| Data Rate | 1.62 / 2.7 Gbps/lane, max 10.8 Gbps total |
| Max Resolution @ 60Hz | 2560x1600 |
| Max Resolution @ 30Hz | 4096x2400 (4Kx2K) |
| Other Resolutions | 4096x2160@30Hz, 3840x2160@30Hz, 1920x1080@120Hz |
| Color Depth | 24, 30, 36, 48 bits |
| HDCP | HDCP 1.1 pass-through |
| Fiber Type | 50/125 SC multimode (preferred), 62.5/125 SC multimode |
| Max Distance (OM4) | 1100 m |
| Max Distance (OM3) | 800 m |
| Laser Class | Class 3R |
| USB HID Ports (RX) | 2x USB-A female |
| USB Control | Mini USB-B female |
| Power Supply | 5V DC, 2A external adaptor (100–240V AC) |
| Dimensions | 110 W x 95 D x 18 H mm |
| Weight | 300 g |
| Enclosure | Solid aluminum |
| Compliance | CE |
| Warranty | 3 years |
Competitor Comparison
| Criterion | Lightware DP-OPT-RX150 | Extron DTP2 DP 330 RX | Kramer DP-OPTC-R50 | Gefen EXT-DP-FM1000 RX |
|---|---|---|---|---|
| Max Distance | 1100 m (OM4 fiber) | 100 m (CATx, not fiber) | 500 m (MM fiber) | 1000 m (SM fiber) |
| Signal Transport | Single SC multimode fiber core | CAT copper | LC multimode fiber | LC fiber |
| USB KVM | Yes — 2x USB-A HID, no drivers | No | No | No |
| Max Resolution @ 60Hz | 2560x1600 | 4K60 (HDMI) | 1920x1200 | 2560x1600 |
| 4K Support | Yes — at 30Hz | Yes — at 60Hz | No | Yes — at 30Hz |
| Thunderbolt Compatible | Yes | No | No | No |
| Dual-mode DP (DVI/HDMI via adaptor) | Yes | N/A — HDMI native | No | Yes |
Frequently Asked Questions
- Does the DP-OPT-RX150 require the DP-OPT-TX150 transmitter?
- Yes. The RX150 is designed to work with the DP-OPT-TX150 as a matched pair. The proprietary Single Fiber Technology requires both units from the same product family.
- Can I connect a standard HDMI monitor to the RX150 output?
- Yes, using a Dual-mode DisplayPort to HDMI adaptor cable. Dual-mode DisplayPort is compatible with HDMI and DVI displays via passive or active adaptor cables.
- What fiber connector type is required?
- The DP-OPT-RX150 uses SC receptacles. Ensure your fiber patch cables use SC connectors, or use SC adaptor panels as required.
- How many USB HID devices can be connected at the receiver?
- Two USB-A ports on the RX150 accept HID devices such as keyboard and mouse. For additional USB devices, the transmitter (TX150) provides 2 additional USB-A ports with a built-in USB hub.
- Is the extension distance affected by resolution?
- Yes. Higher resolutions require more bandwidth per lane, which may reduce maximum achievable distance. The 1100 m figure applies to 2560x1600@60Hz 24bpp on OM4 fiber. Lower resolutions extend further.
- Is the DP-OPT-RX150 compatible with Thunderbolt 1 or 2 sources?
- Yes. Lightware DisplayPort extenders support Thunderbolt sources. The extender pair must be placed at the end of the Thunderbolt chain. Apple Thunderbolt Display is not supported.
- Where can I purchase the DP-OPT-RX150?
- Available from Creation Networks, an authorized Lightware distributor for commercial AV integrators.
