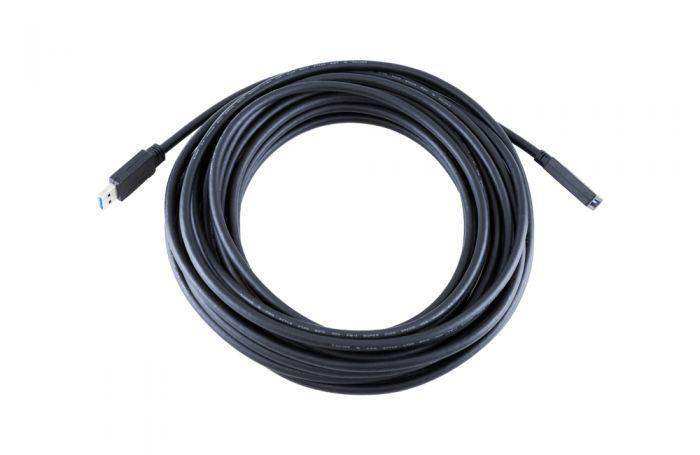

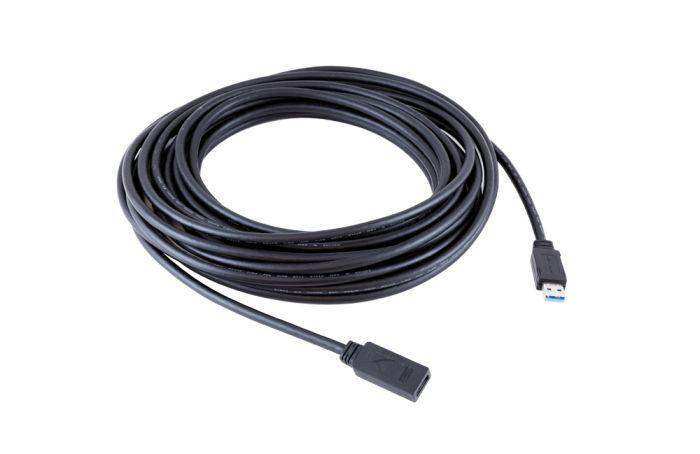

Lightware CAB-USB-AMAF-T1000A 10m long USB 3.1 Gen1 SuperSpeed Active Extension Cable TypeA/male to TypeA/female - 13740021

Product Overview

The Lightware CAB-USB-AMAF-T1000A is a 10-meter USB 3.1 Gen 1 SuperSpeed active extension cable with a Type-A male connector on one end and a Type-A female connector on the other. It is designed for extending USB 3.1 Gen 1 (5 Gbps) connections beyond the passive cable distance limit, and is used in AV, broadcasting, and control room environments where USB peripherals such as cameras, capture devices, and control interfaces must be located at distances impractical for standard passive USB cables. The active repeater circuitry built into the cable maintains signal integrity across the full 10-meter span without requiring external power in most configurations.

Product Description

Standard passive USB 3.1 Gen 1 cables are limited to approximately 3 meters before signal degradation causes reliability issues. The Lightware CAB-USB-AMAF-T1000A resolves this constraint with an active repeater built into the cable assembly, extending the reliable operating range to 10 meters while maintaining USB 3.1 Gen 1 SuperSpeed performance at up to 5 Gbps data throughput.

The cable uses a standard USB Type-A male connector at the host end and a USB Type-A female connector at the device end, making it a transparent extension for any USB Type-A peripheral: webcams, PTZ cameras, USB capture cards, USB-controlled AV devices, conference room soundbars, and control interfaces. The cable is compatible with USB 2.0 and USB 1.1 devices and hosts as well, providing backward compatibility across the USB specification range. No driver installation is required — the active circuitry is transparent to both the host and the connected device. The cable can be daisy-chained with other active USB cables in some configurations to extend reach further, subject to USB specification limits on hub and repeater chain length.

Key Features

• 10-meter active extension — extends USB 3.1 Gen 1 beyond the passive cable limit using built-in active repeater circuitry
• USB 3.1 Gen 1 SuperSpeed (5 Gbps) — maintains full 5 Gbps throughput for high-bandwidth USB devices including cameras and capture cards
• Type-A male to Type-A female — transparent extension for any USB Type-A peripheral or device
• USB 2.0 and 1.1 backward compatible — works with any USB device regardless of generation
• No driver or software required — plug-and-play active repeater, fully transparent to host and device
• Bus-powered active circuitry — draws power from the USB host port, no external power supply required in most applications
• Daisy-chain capable — can be extended with additional active cable segments within USB specification limits
• Commercial AV-grade construction — built to Lightware quality standards for reliable use in permanent and rental installations

Typical Applications

• Conference room PTZ camera connections to codec or PC at extended distances
• Control room USB peripheral extension for keyboards, mice, and control surfaces
• Broadcast studio USB capture card connections to remote camera or source locations
• Collaboration room USB speakerphone and soundbar connections from under-table PC to device
• Education AV installations extending USB webcam or document camera to a distant PC
• AV-over-IP and KVM systems supplementing USB extension with a dedicated active cable run

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does the CAB-USB-AMAF-T1000A require external power?

In most configurations, the active repeater circuitry is powered by the USB host port (bus-powered), and no external power supply is required. For host ports with low current output or when the connected device draws significant power, a USB micro-B supplemental power connection may be needed. Check the cable specifications for power draw details.

Is this cable compatible with USB 2.0 devices?

Yes. The CAB-USB-AMAF-T1000A is backward compatible with USB 2.0 and USB 1.1 devices and hosts. It will operate at the highest speed supported by both the host and the connected device.

Can multiple CAB-USB-AMAF-T1000A cables be daisy-chained?

Active USB cables can be chained in some configurations, but USB specification limits the total number of hubs and repeaters in a chain. For runs beyond 10 meters, a USB extender over Cat cable (such as the Icron range) may be a more reliable solution. Contact Creation Networks at creationnetworks.net for application-specific guidance.

What USB devices work with this cable?

The cable is compatible with any USB Type-A peripheral: PTZ cameras, webcams, USB capture cards, keyboards, mice, control surfaces, USB soundbars, storage devices, and USB-controlled AV equipment. It is commonly used in conference rooms, control rooms, and broadcast environments.

Does directionality matter when connecting this cable?

Yes. Active USB extension cables are directional. The Type-A male end must connect to the USB host (PC, codec, or hub), and the Type-A female end faces toward the USB peripheral or device. Reversing the connection will prevent the cable from functioning.

Will this cable work with USB 3.1 Gen 2 (10 Gbps) devices?

The CAB-USB-AMAF-T1000A is specified for USB 3.1 Gen 1 at up to 5 Gbps. When used with USB 3.1 Gen 2 (10 Gbps) hosts or devices, the connection will fall back to 5 Gbps. For 10 Gbps applications, a Gen 2-rated active cable or fiber-based USB extender is required.
