Liberty AV Universal HDMI Adapter Ring 2.0 with 3 Cable Adapters - DL-AR2804

Product Overview

The Liberty AV DL-AR2804 Universal HDMI Adapter Ring 2.0 is a patented BYOD connection solution that attaches to the room's HDMI cable and keeps multiple video source adapters organized and accessible at the conference table. Designed for commercial meeting rooms, it provides a DisplayPort and Mini-DisplayPort to HDMI adapter set that presenters can connect to without hunting for loose adapters, while the locking aluminum clamp mechanism keeps the ring securely attached to the installed HDMI cable. The Adapter Ring 2.0 design supports both ring and line installation formats, accommodating a range of conference table and wall plate mounting configurations used in commercial AV integration.

Product Description

The DL-AR2804 is Liberty AV's Adapter Ring 2.0, covered by US Patent No. 9,784,338, and designed specifically to address the lost-adapter problem in BYOD conference room deployments. In a typical meeting room, loose display adapters are frequently misplaced, leaving presenters unable to connect their laptops. The Adapter Ring solves this by securing adapters directly to the room's permanent HDMI cable using a robust aluminum clamp and security cable, so adapters are always where they need to be.

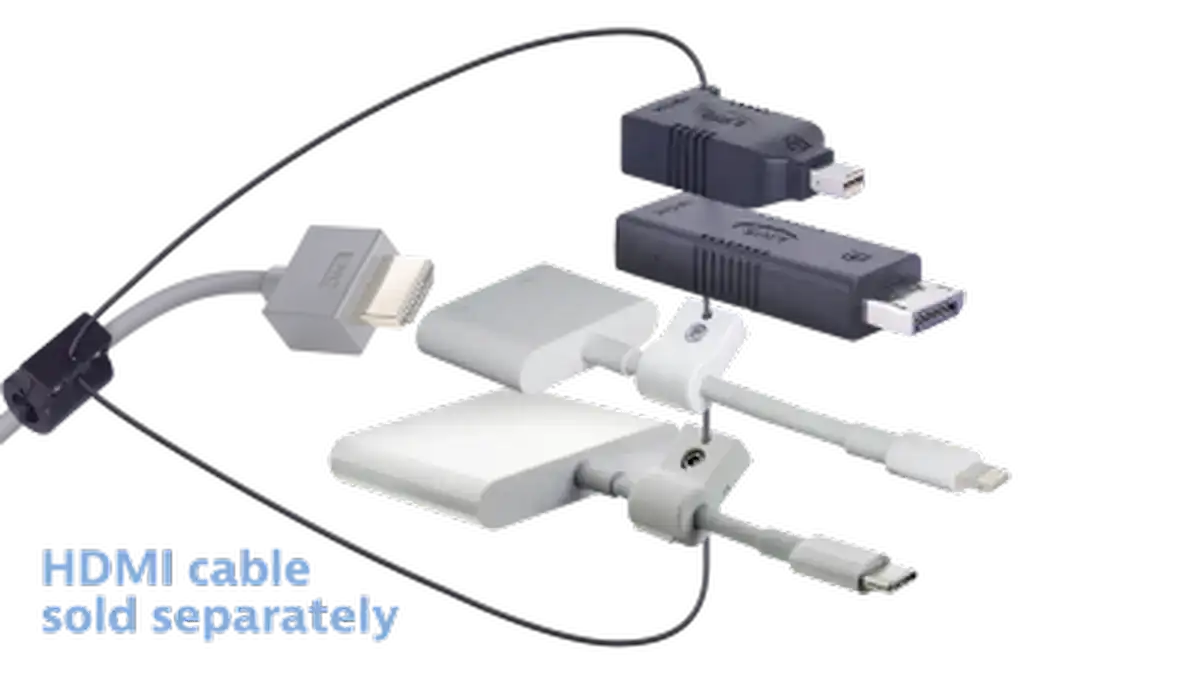

The DL-AR2804 includes one full-size DisplayPort Male to HDMI Female adapter (ARDPHD) and one Mini-DisplayPort Male to HDMI Female adapter (ARMDPHD), covering the most common non-HDMI laptop video outputs found in commercial environments alongside the room's native HDMI connection. Two security clamps (DL-AP2) are included for attaching Apple or third-party cable adapters that users supply, and one adapter line clamp and security cable (DL-CL2) completes the assembly hardware. The Adapter Ring 2.0 aluminum clamp features threaded screw holes and eliminates the need for nuts, simplifying installation compared to the original design. The clamp accommodates HDMI cables from 4mm to 11mm diameter, covering the range used in commercial AV installations. Assembly and adapter swapping requires only a Torx T-10 pin driver and a 1.5mm hex key wrench. Signal integrity is maintained through all included adapters with no signal loss. The ring can be configured in either a ring format (adapters loop around the cable) or a line format (adapters hang linearly), providing flexibility for different conference table and wall plate mounting orientations. The HDMI Adapter Ring Selector tool on the Liberty AV website allows custom-configured ring assemblies for AV integrators needing non-standard adapter combinations.

Key Features

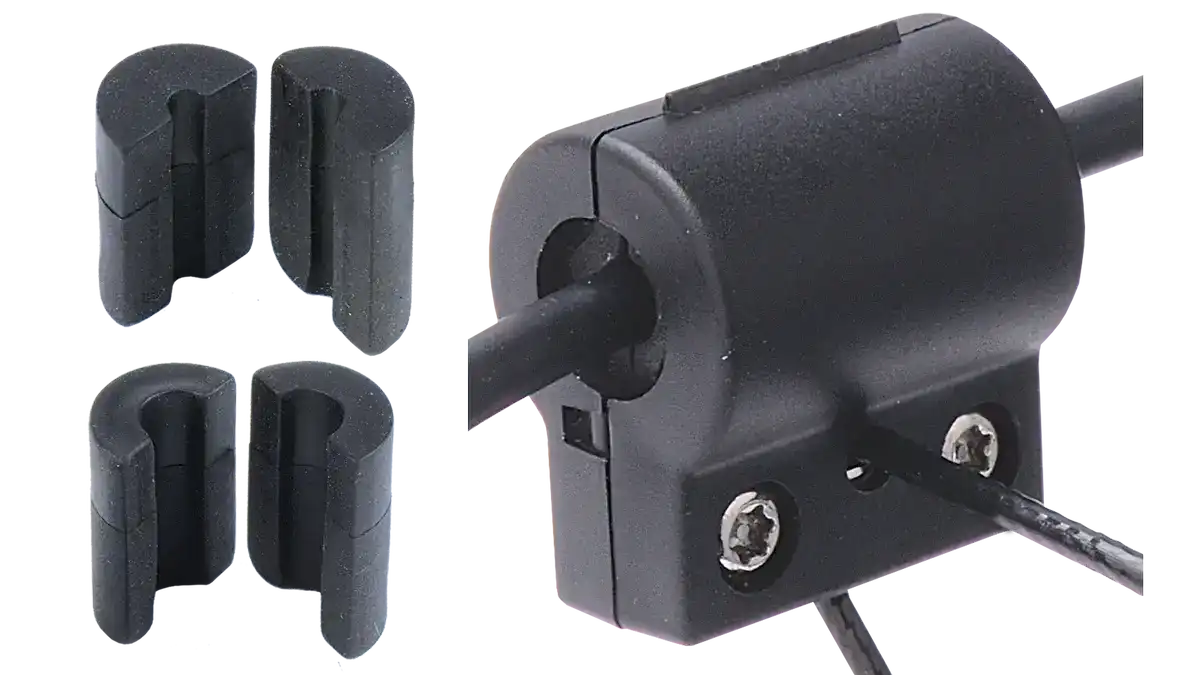

• Patented Adapter Ring 2.0 Design — US Patent No. 9,784,338 aluminum clamp with threaded holes locks securely to HDMI cables from 4mm to 11mm diameter, no nuts required.
• Includes DisplayPort to HDMI Adapter (ARDPHD) — Full-size DisplayPort Male to HDMI Female adapter for laptops with standard DP output.
• Includes Mini-DisplayPort to HDMI Adapter (ARMDPHD) — Mini-DisplayPort Male to HDMI Female adapter for Thunderbolt and Mini-DP equipped laptops.
• Security Clamps for Apple/Third-Party Adapters — Two DL-AP2 security clamps allow AV integrators to add Apple-certified or other cable adapters (not included) to the ring assembly.

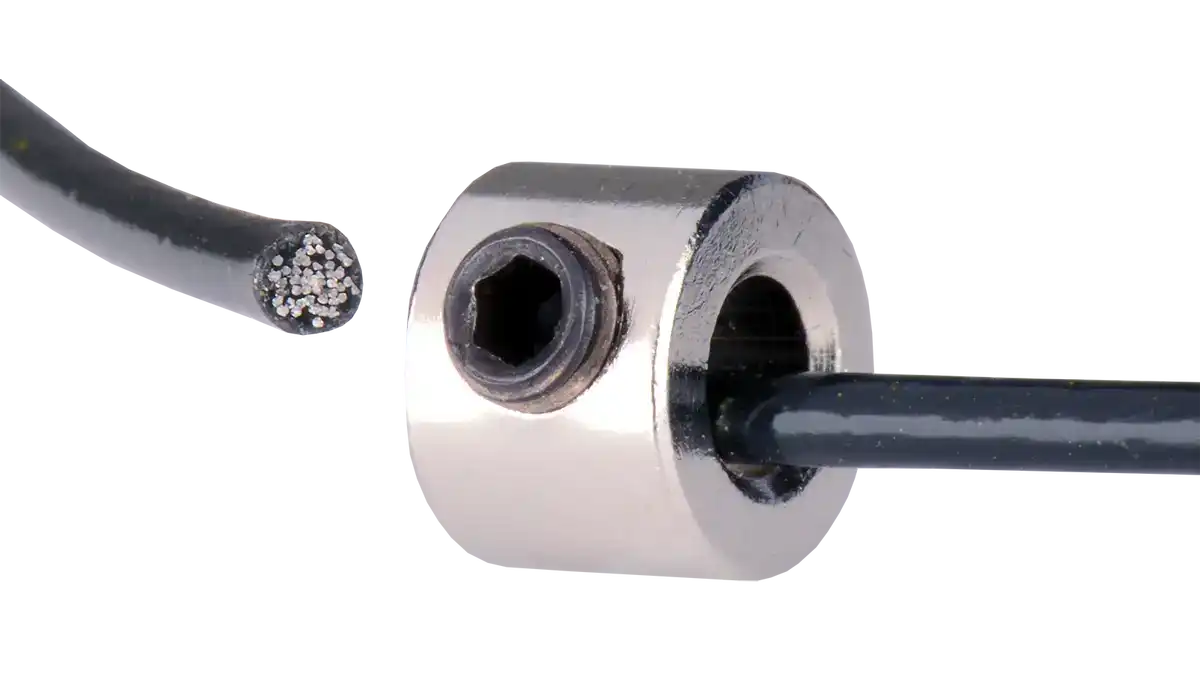

• Adapter Line Clamp and Security Cable Included — DL-CL2 hardware provides an alternative line-format mounting option and secures the ring to the installed HDMI cable.
• Ring or Line Configuration — Assembly can be set up in ring or line format to suit different conference table, wall plate, or surface mount installations.
• No Signal Loss — All included adapters maintain full signal integrity with no degradation of picture quality.
• Single-Tool Assembly — Installation and adapter changes require only a Torx T-10 pin driver and a 1.5mm hex key; no specialized tools needed.
