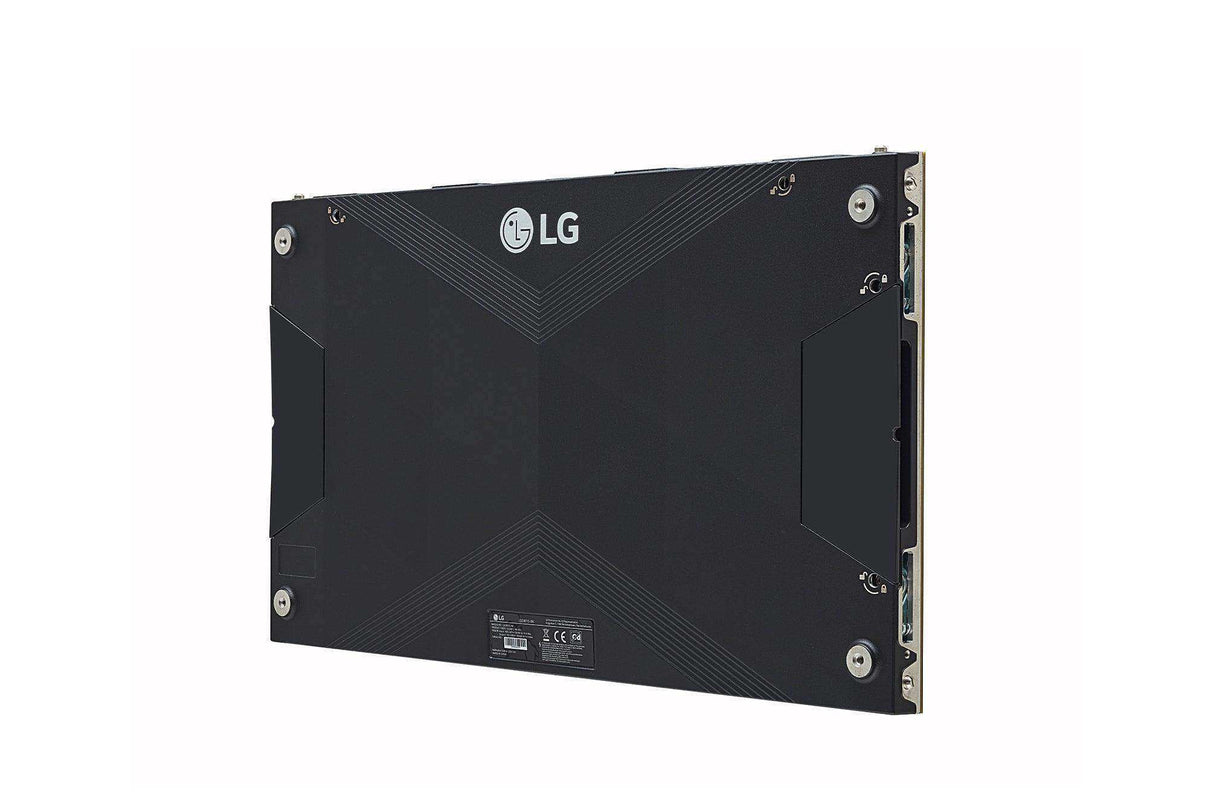

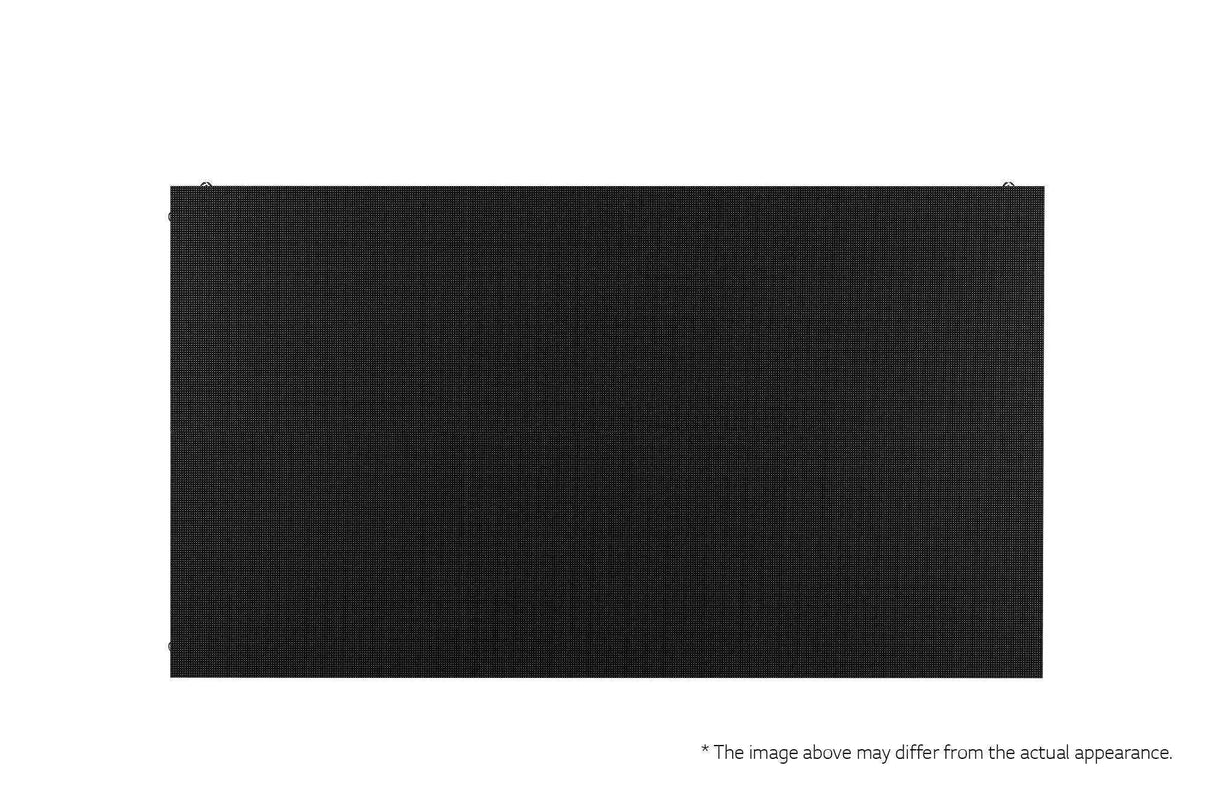

LG LSCB015-GKR Ultra Slim Digital Signage Display - LCD - LED - 800 Nit

Product Overview

The LG LSCB015-GKR is a 1.5 mm pixel-pitch Ultra Slim indoor LED signage cabinet with an 800-nit brightness, designed as a building block for fine-pitch video walls. Its standout feature is a 40.8 mm ultra-slim edge thickness that lets the wall sit close to the mounting surface. The series installs and services from the front and uses a 16:9 cabinet aspect ratio matched to FHD and UHD content. It is compatible with LG software solutions via the CVCA system controller.

Product Description

This LSCB-series cabinet carries a 1.5 mm pixel pitch (61.4 mil) on an LCD-class LED panel rated at 800 nits, weighing approximately 10 lb. The ultra-slim 40.8 mm depth helps the wall blend into interiors, and front-side installation means no rear maintenance clearance is required; LED modules detach with a suction tool. Each cabinet uses a 16:9 aspect ratio, so existing FHD and UHD content runs without re-editing, and an optional 90-degree corner design lets the wall wrap into corners. When connected to LG's CVCA system controller, the LSCB series works with LG SuperSign CMS, LED Assistant, and ConnectedCare for content management and remote monitoring. Detailed electrical and dimensional values vary by overall wall configuration and should be confirmed with Creation Networks. ConnectedCare availability differs by region and is purchased separately.

Key Features

• 1.5 mm pixel pitch — very fine resolution for short-distance indoor viewing.

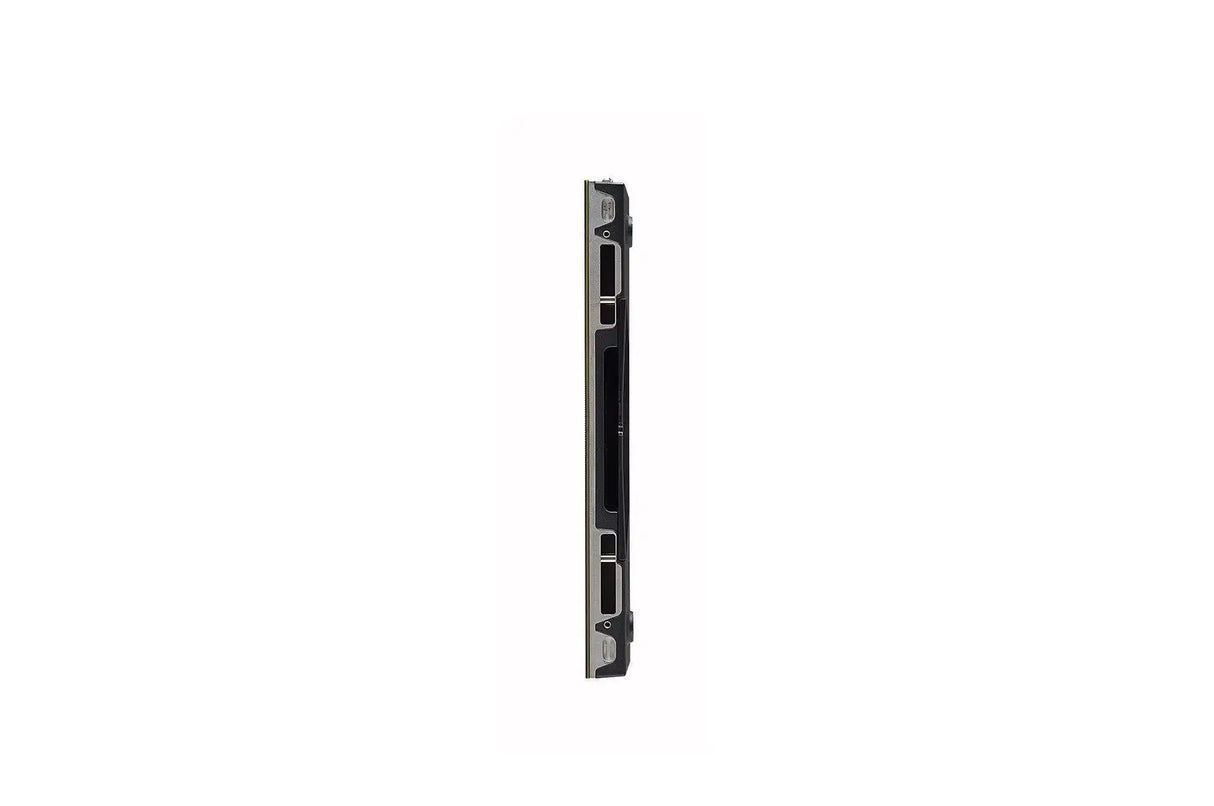

• 40.8 mm ultra-slim depth — sits close to the wall to blend into interiors.
• 800-nit brightness — matched to controlled indoor lighting.
• Front installation and service — no rear clearance needed; suction-tool module access.
• 16:9 cabinet ratio — runs existing FHD/UHD content without re-editing.
• 90° corner option — wraps the wall into corners for space-fitting layouts.
• LG software compatible — SuperSign CMS, LED Assistant, ConnectedCare via CVCA controller.
• ~10 lb cabinet — manageable weight for wall assembly.

Typical Applications

The LSCB015-GKR is a building block for indoor fine-pitch LED video walls in corporate lobbies, retail interiors, control rooms, and conference spaces where a slim profile and short viewing distance matter. The 90-degree corner option suits column wraps and corner features, while the 16:9 ratio fits standard content workflows. It is well suited to reception walls and branded interior displays.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

How slim is the cabinet?
The edge thickness is 40.8 mm, letting the wall sit close to the mounting surface.

Do I need clearance behind the wall for service?
No. The LSCB series installs and services from the front, so no rear maintenance space is required.

Can it turn a corner?
Yes. An optional 90-degree corner design lets the wall wrap into corners.

What software does it work with?
Connected to LG's CVCA controller, it supports SuperSign CMS, LED Assistant, and ConnectedCare (sold separately, regional availability varies).
