LG Ultra Light GSCD100-GN4 Digital Signage Display 10.41MM 5000NIT 500X500X85.1MM
LG Ultra Light GSCD100-GN4 Digital Signage Display 10.41MM 5000NIT 500X500X85.1MM is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG Ultra Light GSCD100-GN4 Digital Signage Display 10.41MM 5000NIT ...
Product Overview

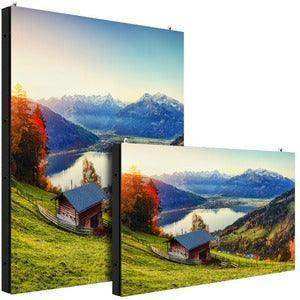

The LG GSCD100-GN4 is an Ultra Light outdoor direct-view LED cabinet in LG's GSCD Essential series, pairing a 10.41 mm pixel pitch with a 5,000-nit brightness rating. It uses an LED-backlit single-SMD design in a compact half-height/half-width 500 x 500 mm cabinet and runs LG webOS 4.0. The lightweight build minimizes structural load. It is built for large-format outdoor signage viewed at longer distances.
Product Description
The Ultra Light cabinet measures roughly 500 x 500 mm at an 85.1 mm depth and weighs about 14.33 lb, easing rooftop and facade installations. The 10.41 mm pitch is tuned for long viewing distances typical of large outdoor displays, while the 5,000-nit output competes with ambient daylight. The display is HDR10 capable with 16-bit color depth, a 48 x 48 module resolution, and a 6,000:1 dynamic contrast ratio. It runs webOS 4.0 and provides HDMI, USB, and Ethernet connectivity. A modular control unit (PDU) attaches or detaches for maintenance, and the product offers a choice of front or rear serviceability. Both the front and back of the cabinet are IP65 certified, and an optional 90-degree corner design supports right-angled installs. The series is compatible with LG SuperSign CMS, LED Assistant, and ConnectedCare.
Key Features
- 10.41 mm Pixel Pitch — optimized for long-distance outdoor viewing.
- 5,000-nit Brightness — daylight-readable output for outdoor use.
- HDR10 with 16-bit Color — wider dynamic range and color depth.
- 6,000:1 Dynamic Contrast — deeper contrast for outdoor content.
- Ultra Light Cabinet — about 14.33 lb to minimize structural load.
- webOS 4.0 — built-in system controller and software compatibility.
- IP65 Weatherproof — front and back certified for durability.
Typical Applications

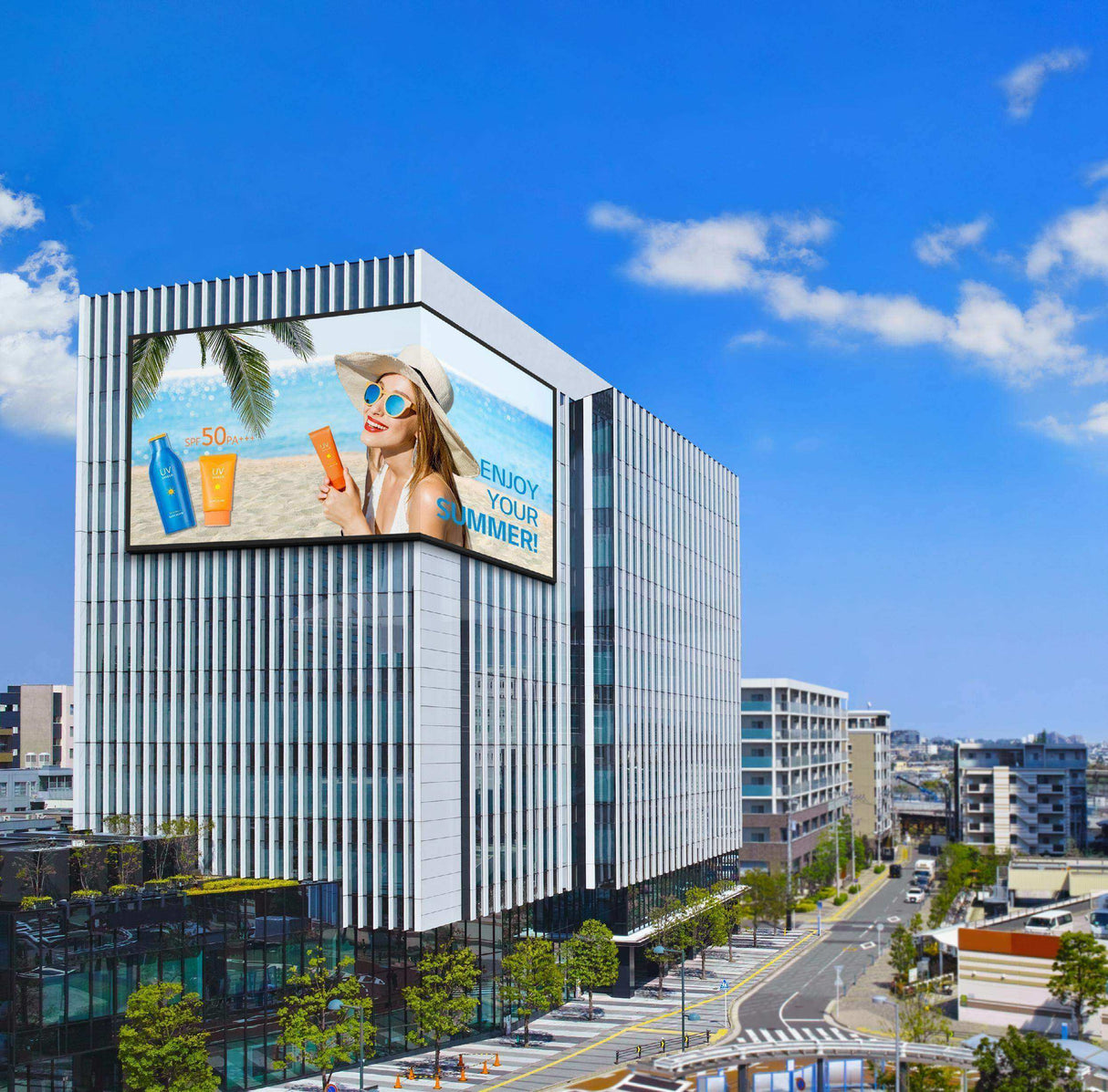

The GSCD100-GN4 suits large building facades, billboards, stadiums, transit hubs, and outdoor plazas viewed at longer distances. Its light weight and small footprint help with complex, custom-shaped installs.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | GSCD100-GN4 |
| Series | GSCD Ultra Light (Outdoor DVLED) |
| Pixel Pitch | 10.41 mm |
| Brightness | 5,000 nits |
| Module Resolution | 48 x 48 |
| Color Depth | 16-bit |
| Dynamic Contrast | 6,000:1 |
| HDR | Yes (HDR10) |
| Operating System | webOS 4.0 |
| Interfaces | HDMI, USB, Ethernet |
| Input Voltage | 120 / 230 V AC |
| Ingress Protection | IP65 (front and back) |
| Cabinet Type | Half-Height / Half-Width |
| Dimensions | 19.7 x 19.7 x 3.3 in |
| Weight | 14.33 lb |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Does it support HDR? Yes, it is HDR10 capable with 16-bit color and a 6,000:1 dynamic contrast ratio.
Is it weatherproof? Yes, both the front and back are IP65 certified.
What is the module resolution? 48 x 48 per cabinet.
What software works with it? LG SuperSign CMS, LED Assistant, and ConnectedCare.
