LG LUPA098BRND – LUPA Series DVLED, P1.25, 1920x540 resolution, 98" Ultra-Stretch AIO

Product Overview

The LG LUPA Series P1.25 98-inch Ultra-Stretch All-in-One direct-view LED display delivers a 1920x540 resolution in a 32:9 ultra-wide format, purpose-built for commercial environments where wide-format content or multi-zone digital signage is the primary use case. With a 1.25 mm fine pixel pitch, 600 nit brightness, and an integrated all-in-one controller and content management system, this DVLED display is designed for straightforward deployment without the complexity of modular LED video wall systems. The 98-inch diagonal in a stretch format provides an impactful visual presence for wayfinding, retail digital signage, transportation hubs, and corporate communications applications. Creation Networks supplies the LUPA series for commercial AV integrators and end-users nationwide.

Product Description

The LG LUPA098BRND is a 98-inch ultra-wide direct-view LED all-in-one display with a 32:9 aspect ratio and 1920x540 pixel resolution. At 1.25 mm pixel pitch, the display reproduces fine detail at the close viewing distances typical of retail environments, corporate lobbies, and transportation hubs, where large-format stretch displays are deployed for wayfinding, brand communications, and multi-zone content delivery. The all-in-one design incorporates a built-in LED video controller and embedded content management system, eliminating the need for external signal processing hardware and reducing both system cost and installation complexity compared to component-based modular LED solutions. At 600 nits, the LUPA provides adequate brightness for most indoor commercial environments while maintaining efficient power consumption across its wide display surface. The 1920x540 resolution is optimized for ultra-wide content formats, supporting side-by-side multi-channel content layouts, panoramic imagery, and stretch-format video that takes full advantage of the 32:9 aspect ratio. Standardized mounting compatibility simplifies installation planning, and the AIO architecture means fewer field components to configure and maintain over the product lifecycle. The LUPA series is well-suited for retail digital signage, hotel and hospitality public area displays, corporate lobby communications, transportation information displays, and any application that benefits from an exceptionally wide display format in a single-unit solution.

Key Features

• 98-Inch Ultra-Stretch Format — Large 32:9 aspect ratio display provides expansive visual coverage for wide-format content.
• 1.25 mm Pixel Pitch — Fine pixel density supports close-range viewing with sharp image reproduction.
• 1920x540 Resolution — Optimized for ultra-wide content, multi-zone layouts, and panoramic display applications.
• 600 Nit Brightness — Suitable for well-lit indoor commercial environments.
• All-in-One Architecture — Integrated controller and CMS eliminates external processing hardware.
• Embedded Content Management — Built-in CMS simplifies content scheduling, playback management, and remote monitoring.
• Standardized Mounting Compatibility — Simplified installation planning with standard-compatible mounting interfaces.
• Single-Unit Deployment — Complete display solution in one product, reducing system component count and installation time.

Typical Applications

• Retail digital signage and in-store brand communications
• Corporate lobby and reception area stretch displays

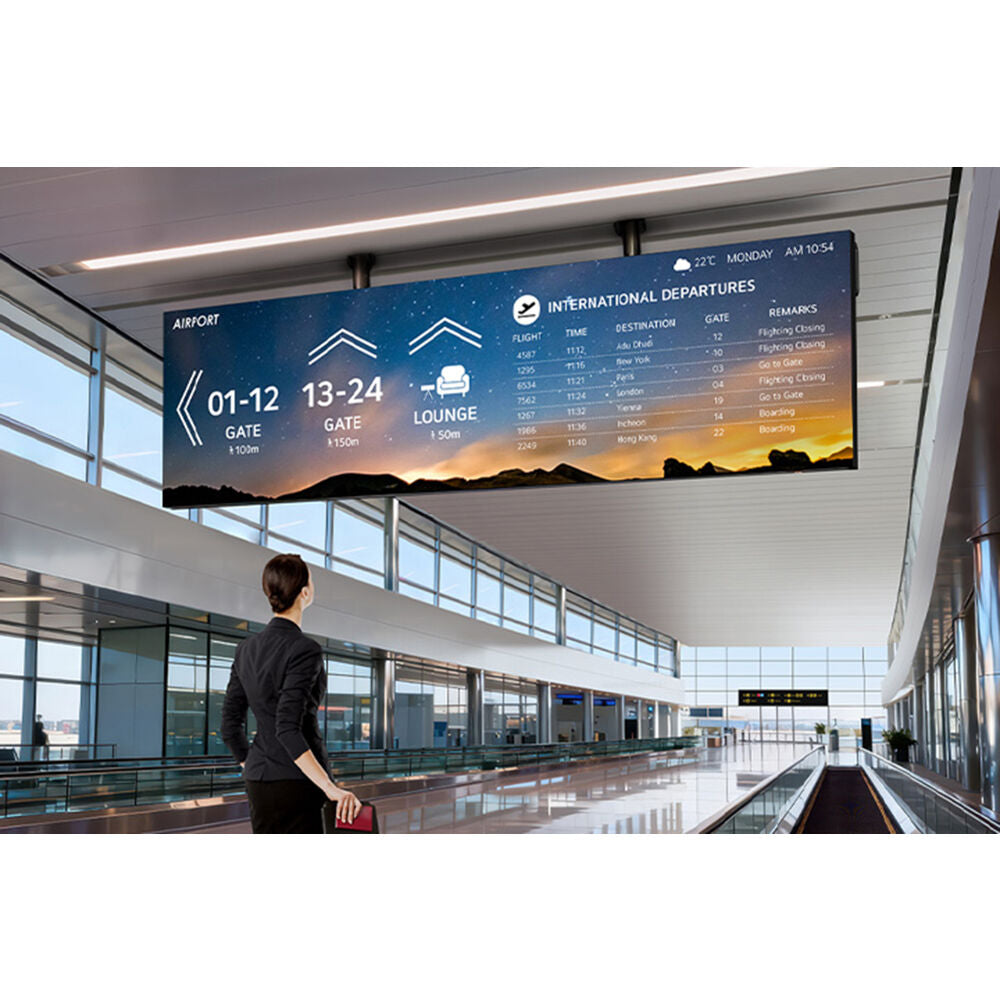

• Transportation hub wayfinding and information displays
• Hotel and hospitality public area displays
• Sports and entertainment venue concourse signage
• Digital menu boards and product showcase walls
• Corporate communications and employee information displays

Technical Specifications

Frequently Asked Questions

What content formats are compatible with the 1920x540 resolution?

The 1920x540 resolution is optimized for ultra-wide 32:9 content. Compatible content formats include standard 1920x1080 video cropped or adapted for stretch display, natively created 32:9 content, and multi-zone layouts that divide the display into side-by-side content zones. Most commercial digital signage software supports custom resolution output for stretch displays.

Does the built-in CMS require a network connection?

The embedded CMS can operate with a network connection for remote content management or via local storage for standalone operation. Specific CMS capabilities depend on the software version and network configuration. Contact Creation Networks for detailed CMS specifications.

How does this compare to a standard 16:9 LED display?

The LUPA's 32:9 aspect ratio provides twice the horizontal width of a standard 16:9 display at the same height. This makes it well-suited for wide-format applications, multi-zone signage, or panoramic content where a standard aspect ratio display would not fill the available space effectively.

What is the minimum viewing distance for P1.25 at this size?

At 1.25 mm pixel pitch, the minimum recommended viewing distance is approximately 1.25 to 1.5 meters. At the 98-inch diagonal, most viewers will naturally stand at distances that exceed this threshold during normal interaction with the display.

Is external signal processing required?

No. The LUPA AIO includes an integrated controller that handles signal processing internally. This significantly simplifies installation and reduces system component count compared to modular LED video wall systems that require separate processors.

What warranty is included?

LG commercial LED products carry LG's standard commercial warranty. Contact Creation Networks at creationnetworks.net for current warranty terms and support options for the LUPA series.
