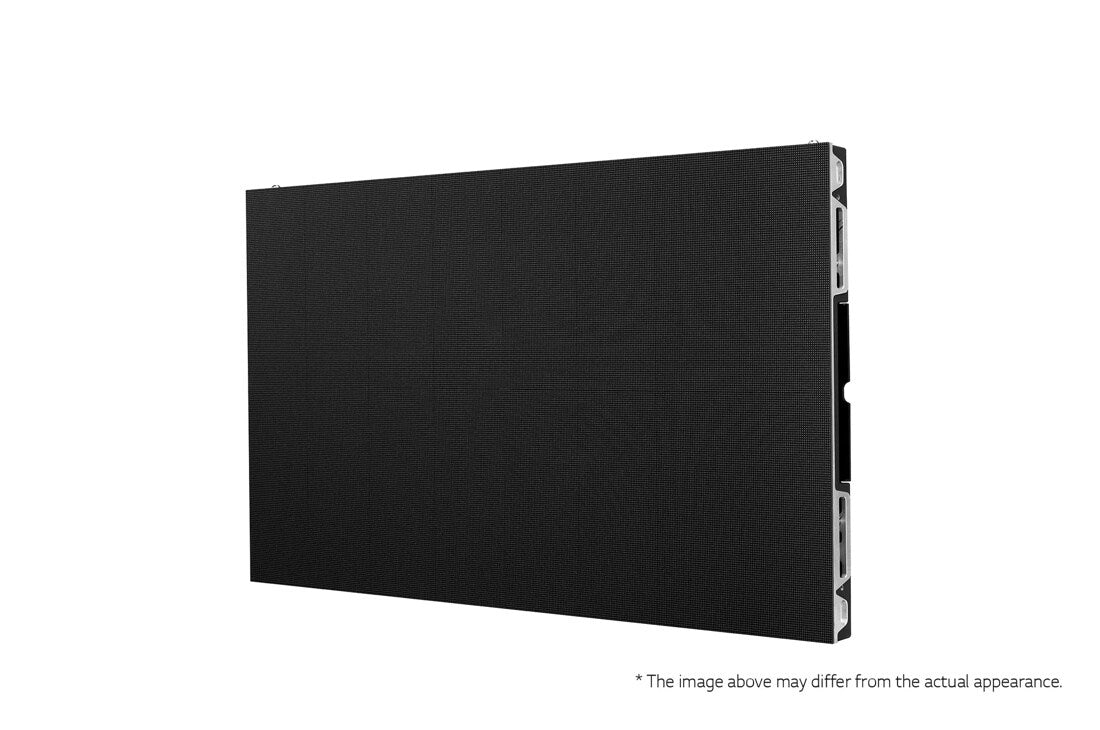

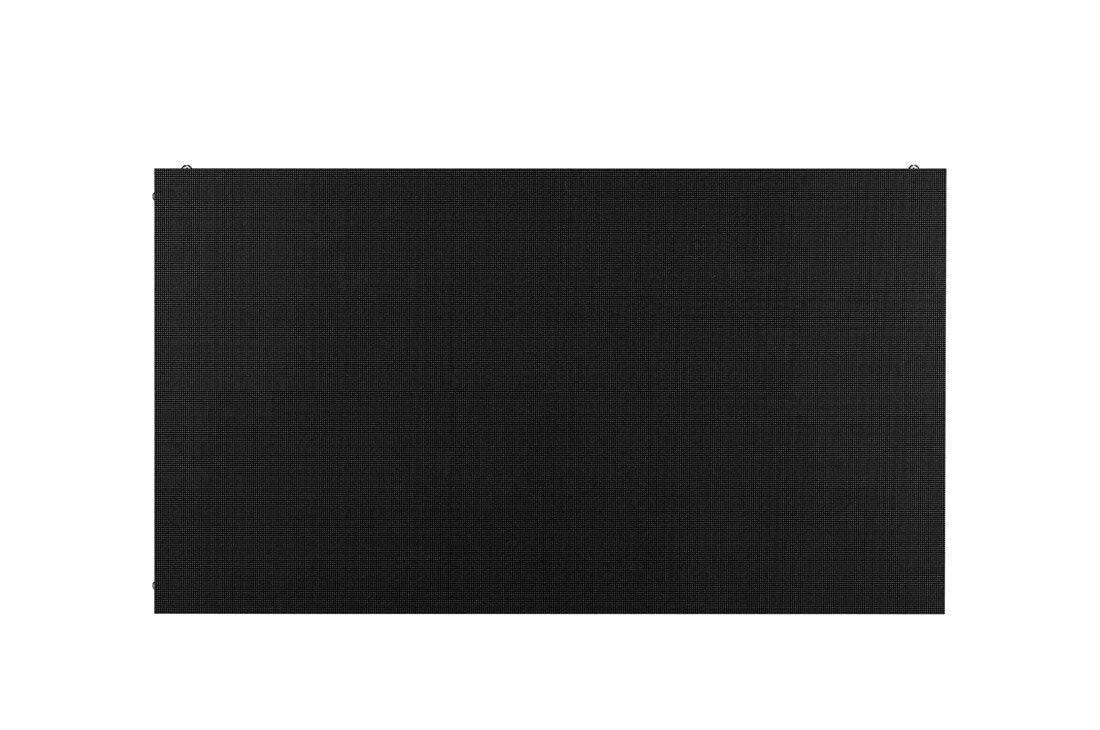

LG LSCC018-GZG – Ultra Slim LSCC-GOB Series DVLED, P1.875, 320x180 resolution

Product Overview

The LG Ultra Slim LSCC-GOB Series P1.875 direct-view LED cabinet adds Glue on Board (GOB) protective coating to the ultra slim LSCC P1.875 platform, delivering enhanced LED module durability in a 320x180 resolution, lightweight indoor LED display package. At just 33.6 mm deep and 5.0 kg, this DVLED cabinet maintains the installation advantages of the standard LSCC series while providing additional protection against dust, humidity, and minor physical contact. This cabinet is well-suited for boardrooms, corporate lobbies, digital signage installations, and any indoor environment where LED module longevity and reduced maintenance are priorities.

Product Description

The LSCC018-GZG applies GOB (Glue on Board) encapsulant technology to LG's LSCC P1.875 ultra slim direct-view LED cabinet. GOB coating creates a smooth, hard resin surface over the individual LED chips, significantly increasing resistance to physical impacts, dust accumulation, and moisture ingress compared to standard bare-die SMD LED modules. This protection is particularly valuable in installations where the display is accessible to personnel, located in environments with variable humidity, or deployed in settings where long-term maintenance access is limited. The 320x180 resolution per cabinet and 1.88 mm pixel pitch support clear image reproduction at close-range indoor viewing distances, making this cabinet appropriate for conference rooms, corporate meeting spaces, and professional digital signage. The 33.6 mm slim depth and 5.0 kg cabinet weight make it one of the most manageable fine-pitch LED cabinets available for commercial AV installation, reducing both structural requirements and installation labor. LG's modular LSCC system design allows this cabinet to be combined with other LSCC series units to create scalable video wall configurations. Creation Networks can assist with full system design, controller specification, and sourcing for LSCC-GOB series projects.

Key Features

• GOB (Glue on Board) Coating — Hard resin encapsulant protects LED modules from physical damage, dust, and moisture.
• 1.88 mm Pixel Pitch — Fine pitch for clear indoor viewing at close to medium distances.
• 320x180 Resolution Per Cabinet — Contributes to high-density, seamless video wall surfaces.

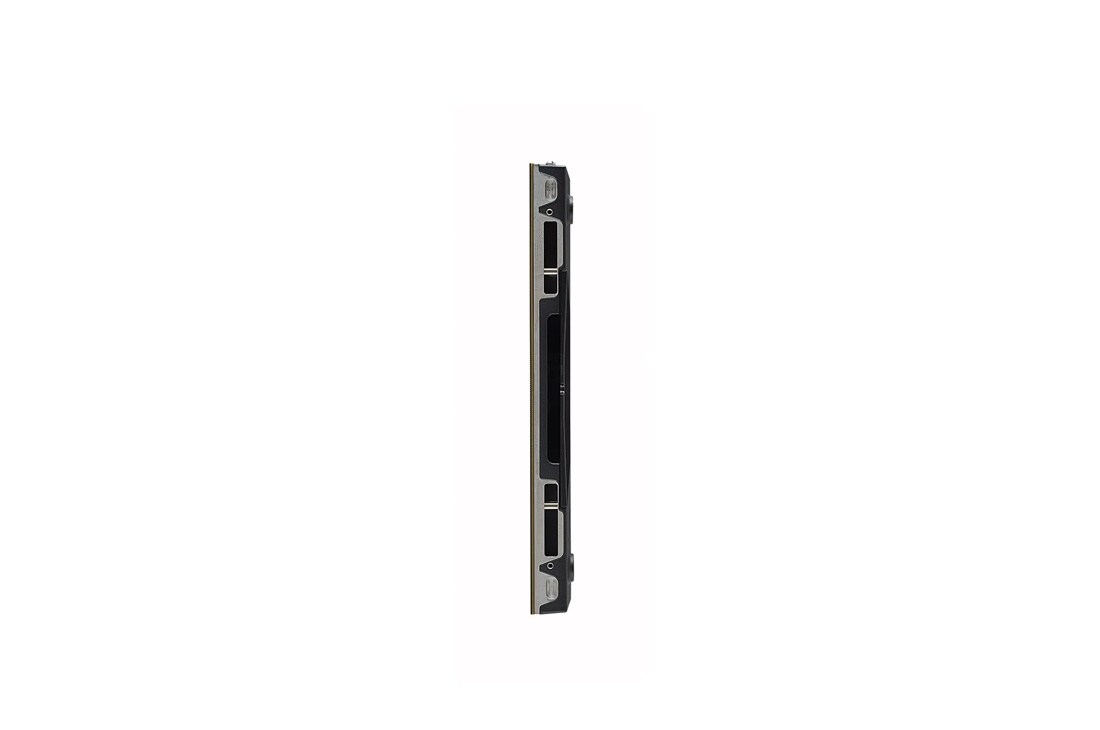

• 33.6 mm Ultra Slim Depth — Minimal wall protrusion for clean installations in finished interiors.
• 5.0 kg Lightweight Cabinet — Low weight reduces structural requirements and installation complexity.
• Enhanced Module Longevity — GOB protection reduces wear and extends operational life in demanding environments.
• Modular LSCC System — Compatible with other LSCC series cabinets for scalable screen configurations.
• Commercial-Grade Indoor LED — Rated for continuous operation in professional AV deployments.

Typical Applications

• Conference rooms and boardrooms
• Corporate lobby and reception area displays
• Digital signage in high-traffic commercial environments
• Command center and NOC video walls
• Auditorium and house of worship installations
• Broadcast studio backgrounds
• Retail display environments with public access

Technical Specifications

Frequently Asked Questions

What is the practical benefit of GOB coating for an indoor LED display?

For indoor installations, GOB coating primarily benefits displays that are within reach of occupants or located in environments with dust or humidity variability. The encapsulant protects LED chips from accidental contact damage, reduces the need for module-level cleaning, and can extend the operational life of the display.

How does the LSCC018-GZG compare to the standard LSCC018-GZ?

Both cabinets share the same pixel pitch, cabinet dimensions, and ultra slim design. The GZG variant adds GOB coating for enhanced module protection. The choice between them typically comes down to the installation environment and the customer's preference for additional durability.

Can GOB panels be repaired if an LED fails?

GOB-coated LED panels can be repaired, but the process is more involved than standard SMD LED replacement due to the encapsulant. In most commercial deployments, individual module replacement is handled by a certified service technician. Creation Networks can advise on service options for this product.

What controller system is required?

The LSCC series requires a compatible LED video processor and receiving cards sized for your total cabinet count and target resolution. Creation Networks provides complete system specifications. Visit creationnetworks.net for support.

What is the minimum recommended viewing distance?

For P1.875 (1.88 mm) pixel pitch, the minimum recommended viewing distance is approximately 2 meters. Performance at closer range depends on content and viewer expectations.

What warranty is included?

This product carries LG's standard commercial LED warranty. Contact Creation Networks for current warranty terms and support options.
