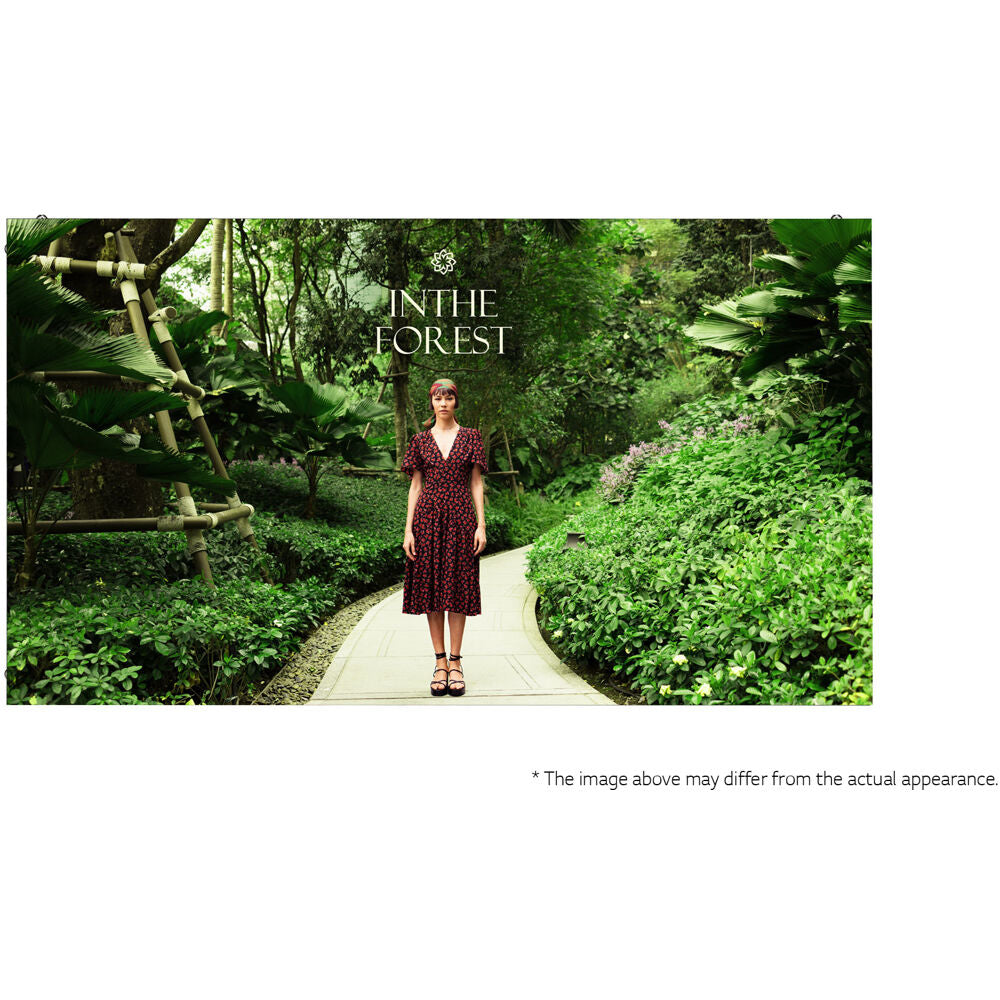

LG LSCC018-GZ – Ultra Slim LSCC Series DVLED, P1.875, 320x360 resolution

Product Overview

The LG Ultra Slim LSCC Series P1.875 direct-view LED cabinet delivers clear indoor LED display performance at a 1.88 mm pixel pitch with 320x360 resolution per cabinet and 800 nit maximum brightness. The ultra slim 33.6 mm cabinet depth and 5.0 kg lightweight design minimize structural requirements and make this cabinet one of the easiest in its class to install in finished commercial interiors. This DVLED cabinet is well-suited for boardrooms, conference rooms, corporate lobbies, and digital signage environments where a refined, low-profile installation is required. LG's flexible LSCC series design enables scalable video wall configurations across a wide range of screen sizes and aspect ratios.

Product Description

The LSCC018-GZ is part of LG's LSCC ultra slim direct-view LED cabinet line, featuring a 1.88 mm pixel pitch that balances fine image detail with broader compatibility across indoor commercial environments. With a per-cabinet resolution of 320x360 pixels, this module contributes substantial pixel density to multi-cabinet video wall arrays, supporting smooth, detailed content reproduction for corporate AV applications. At 800 nits maximum brightness, the display performs well in indoor environments with standard ambient lighting control, including training rooms, digital signage installations, and auditorium applications. The standout feature of the LSCC series is its ultra slim cabinet profile — at 33.6 mm deep and 5.0 kg, the cabinet integrates into virtually any architectural environment with minimal impact on the existing space. This makes the LSCC018-GZ particularly attractive for projects in occupied buildings where construction disruption must be minimized and structural reinforcement is not practical. LG's commercial-grade SMD LED components are engineered for long-term continuous indoor operation, and the modular LSCC cabinet system supports scalable deployment from compact boardroom displays to large-format video walls. Creation Networks provides full pre-sale system design support, including layout planning, controller selection, and installation consultation for LSCC series projects.

Key Features

• 1.88 mm Pixel Pitch — Balanced fine pitch for clear imagery across a range of indoor commercial viewing distances.
• 320x360 Resolution Per Cabinet — High per-cabinet pixel count supports seamless, detailed video wall surfaces.
• 800 Nit Maximum Brightness — Calibrated for indoor environments with managed ambient lighting.
• 33.6 mm Ultra Slim Depth — Minimal wall protrusion for clean, professional installations in finished interiors.
• 5.0 kg Lightweight Cabinet — Reduces structural load and simplifies mounting configuration.
• Flexible LSCC System Design — Supports a wide range of screen sizes through modular cabinet assembly.
• Commercial-Grade Indoor LED — Long-term continuous operation in professional AV environments.
• Minimal Architectural Impact — Slim and light design integrates into existing spaces without major structural changes.

Typical Applications

• Boardrooms and executive conference rooms
• Corporate lobby and reception displays
• Auditorium and house of worship video walls
• Command center and operations center installations
• Digital signage in commercial interiors
• Training rooms and presentation spaces
• Broadcast studio backgrounds

Technical Specifications

Frequently Asked Questions

How does the P1.875 pixel pitch compare to P1.5 in the LSCC series?

A 1.875 mm pixel pitch provides slightly lower pixel density than P1.5, which typically results in a lower cost per cabinet while still supporting quality viewing at distances of 2 meters or more. For most boardroom and conference room applications, P1.875 delivers excellent results at a better price point than finer-pitch options.

What video processor is required for the LSCC018-GZ?

The LSCC series requires a compatible LED video processor and receiving cards. The specific processor model depends on your total cabinet count and target resolution. Creation Networks can specify the full system configuration for your project.

Is the LSCC018-GZ compatible with other LSCC series cabinets?

Within the LSCC series, cabinets with matching pixel pitch and cabinet dimensions are compatible. Mixing different pixel pitch cabinets in a single array is not recommended. Contact Creation Networks to confirm compatibility for your planned configuration.

What is the minimum recommended viewing distance?

For a 1.88 mm pixel pitch display, the minimum recommended viewing distance is approximately 2 meters. Viewing at closer range may reveal individual pixels depending on content and viewer sensitivity.

Does this product require special structural support?

At 5.0 kg per cabinet, the LSCC018-GZ has minimal structural requirements compared to heavier LED cabinets. Standard commercial wall framing is typically sufficient, though a structural review is recommended for any video wall installation. Creation Networks can connect you with installation partners experienced with LG LSCC deployments.

What warranty is included?

LG commercial LED products carry LG's standard commercial warranty. Contact Creation Networks at creationnetworks.net for current warranty terms and support options.
