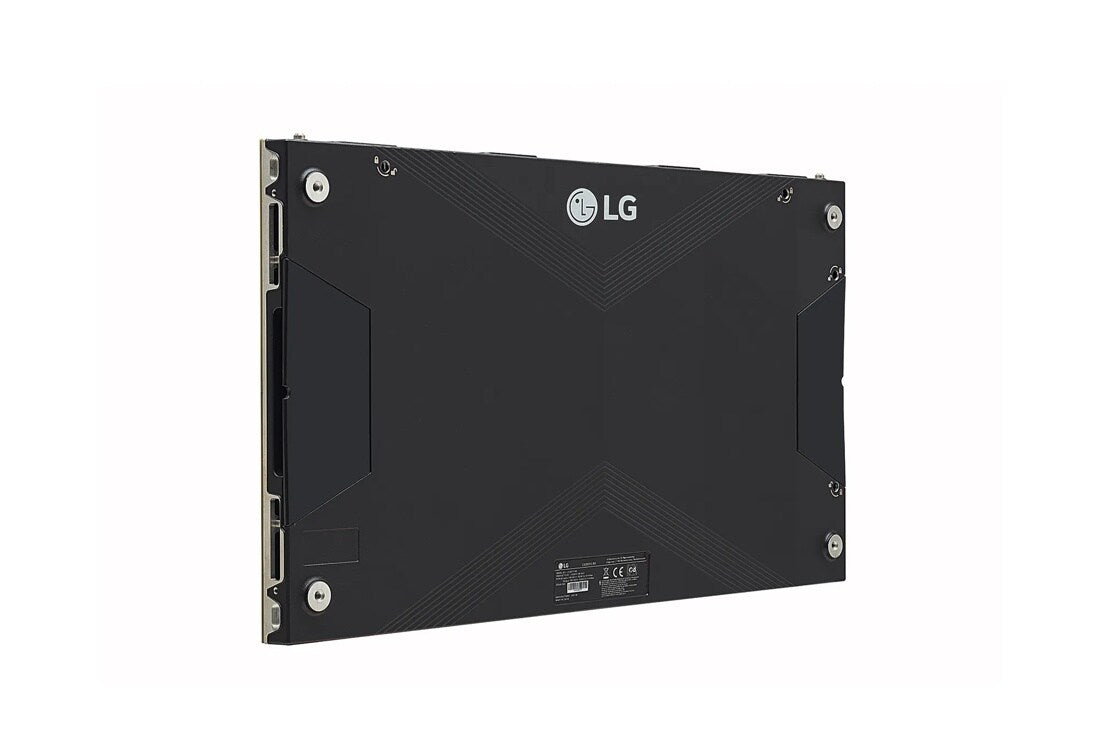

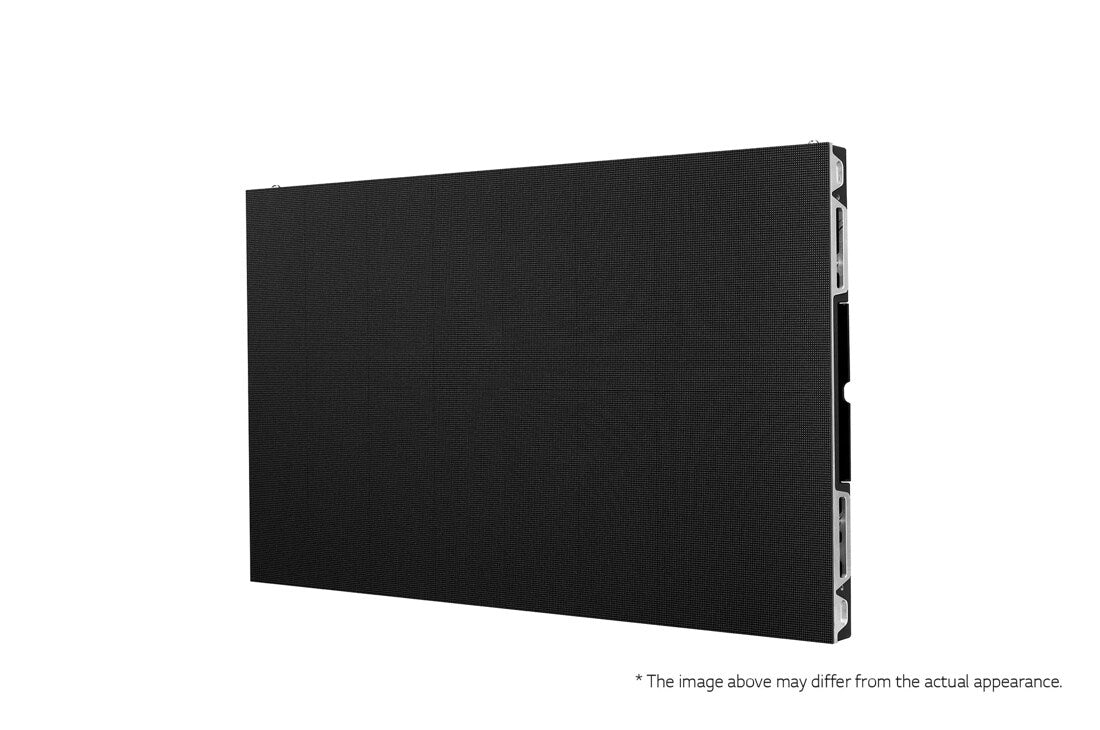

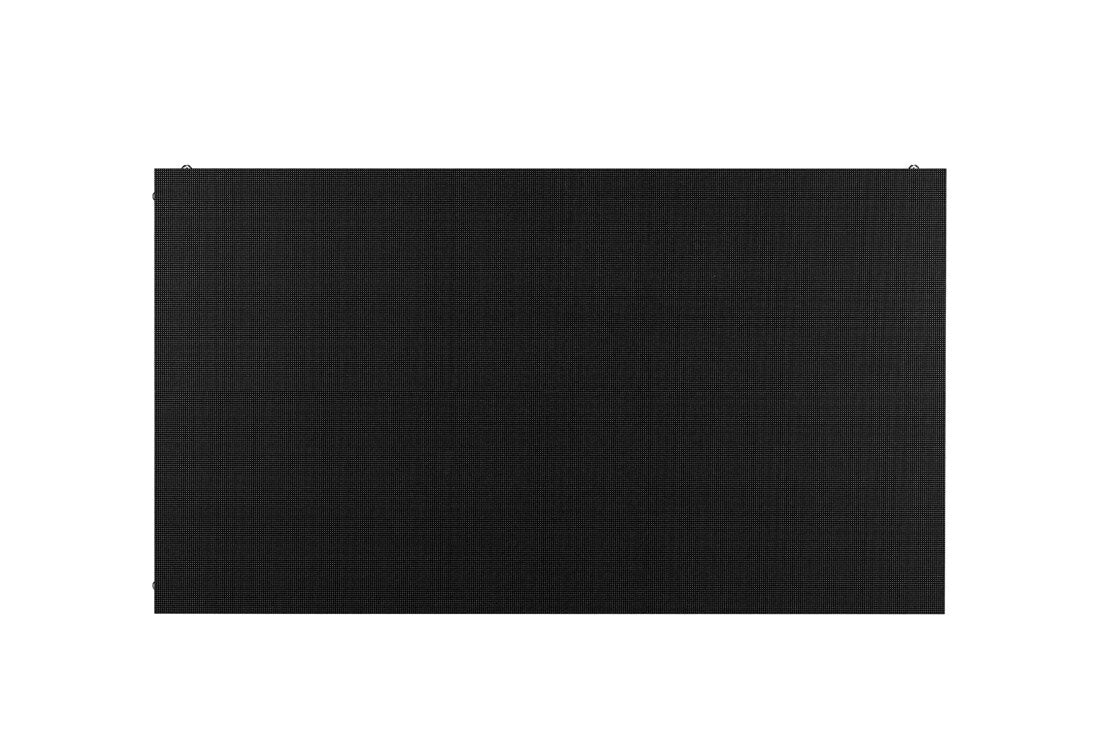

LG LSCC015-GZG – Ultra Slim LSCC-GOB Series DVLED, P1.5, 384x216 resolution

Product Overview

The LG Ultra Slim LSCC-GOB Series P1.5 direct-view LED cabinet combines a fine 1.56 mm pixel pitch with Glue on Board (GOB) protective coating, delivering durable indoor LED display performance in a compact, lightweight form factor. With a 384x216 resolution per cabinet and 800 nit maximum brightness, this DVLED cabinet is suited for boardrooms, conference rooms, corporate lobbies, and digital signage installations where both image quality and LED module protection are priorities. The ultra slim 33.6 mm cabinet depth and 5 kg weight make this one of the most installation-friendly fine-pitch LED cabinets in LG's commercial lineup. The GOB coating provides a smooth, encapsulated LED surface that resists dust, humidity, and minor physical contact.

Product Description

The LSCC015-GZG is a GOB-protected variant of LG's LSCC P1.5 ultra slim direct-view LED cabinet. At just 33.6 mm deep and 5.0 kg, the cabinet is among the slimmest and lightest in its class, enabling installations in spaces where depth and structural load are significant constraints. The GOB (Glue on Board) encapsulant covers the LED module surface, providing protection against dust ingress, humidity exposure, and accidental contact — factors that can affect LED reliability in high-traffic or less-controlled environments. The 1.56 mm pixel pitch supports close-range viewing at distances typical for corporate meeting rooms and professional display environments, while the 384x216 resolution per cabinet contributes to dense, seamless video wall surfaces when assembled in multi-cabinet arrays. LG's commercial-grade LED components are rated for long-term continuous indoor operation, and the LSCC series modular design supports scalable configurations from small boardroom displays to large-format video walls. The 800 nit brightness level is appropriate for indoor environments with managed ambient lighting, including command centers, training rooms, and digital signage applications. Creation Networks can provide complete system design services, including cabinet count planning, controller selection, and technical support for LSCC-GOB series deployments.

Key Features

• GOB (Glue on Board) Protection — Encapsulant coating shields LED modules from dust, humidity, and minor contact damage.
• 1.56 mm Pixel Pitch — Fine pitch delivers clear imagery at close viewing distances in professional environments.
• 384x216 Resolution Per Cabinet — Dense pixel layout for high-quality, seamless video wall construction.
• 800 Nit Maximum Brightness — Suitable for indoor environments with controlled ambient lighting.

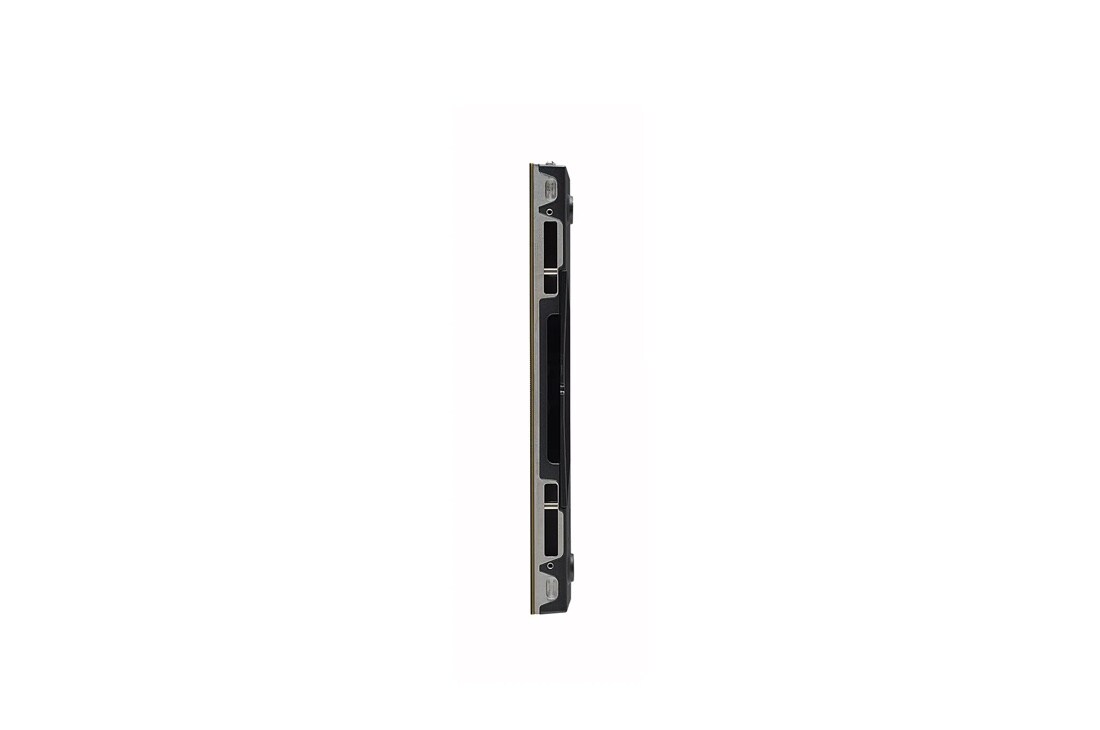

• 33.6 mm Ultra Slim Depth — Exceptionally thin profile reduces installation footprint.
• 5.0 kg Lightweight Cabinet — Low weight simplifies mounting and reduces structural requirements.
• Modular LSCC System — Compatible with other LSCC cabinets for flexible, scalable video wall configurations.
• Commercial-Grade Indoor LED — Engineered for continuous operation in professional AV deployments.

Typical Applications

• Conference rooms and boardrooms
• Corporate lobby and reception displays
• Command center and NOC video walls
• Digital signage in high-traffic commercial interiors
• Auditorium and house of worship installations
• Broadcast studio backgrounds
• Retail display environments

Technical Specifications

Frequently Asked Questions

How does GOB coating improve cabinet durability?

GOB coating encapsulates the individual LED chips in a clear protective resin, creating a smooth, hard surface over the module face. This significantly reduces vulnerability to physical impacts, dust accumulation, and moisture exposure compared to exposed SMD LED designs.

Is image quality affected by the GOB coating?

When properly applied, GOB coating has minimal impact on brightness or color accuracy. Some displays show a slightly different surface gloss compared to bare-die SMD panels, but overall image performance remains consistent with the underlying 1.56 mm pixel pitch specification.

How does the LSCC015-GZG differ from the LSCC015-GZ?

The LSCC015-GZG adds GOB protective coating to the standard LSCC015-GZ cabinet. Both share the same pixel pitch and ultra slim form factor, but the GZG variant offers enhanced module protection for environments where durability is a priority.

What signal processing equipment is required?

The LSCC series requires a compatible LED video processor and receiving cards. Creation Networks can recommend appropriate system components based on your project's total cabinet count and resolution requirements. Contact us at creationnetworks.net.

What is the minimum viewing distance for this display?

For a 1.56 mm pixel pitch display, the minimum recommended viewing distance is approximately 1.5 to 2 meters. Actual visual performance at close range depends on content type and viewer expectations.

What warranty coverage is included?

This product is covered by LG's standard commercial LED warranty. Creation Networks provides pre- and post-sale support throughout the product lifecycle.
