LG LSCC015-CZG – Ultra Slim LSCC-GOB Series DVLED, P1.5, 192x216 resolution

Product Overview

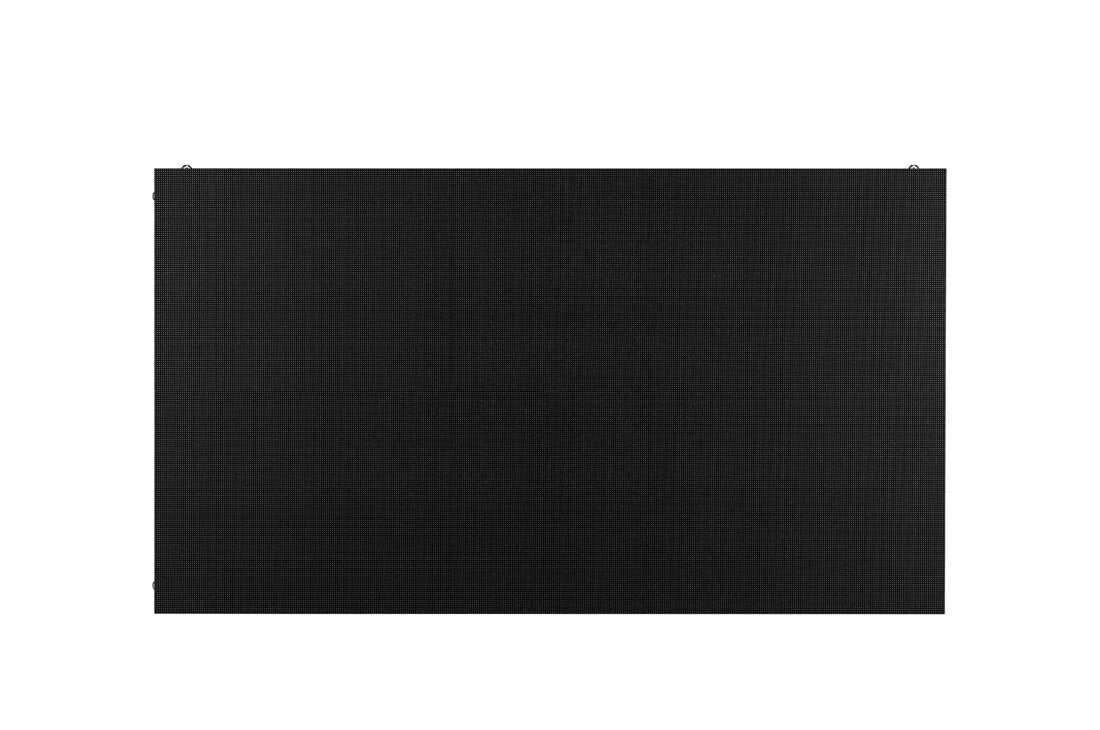

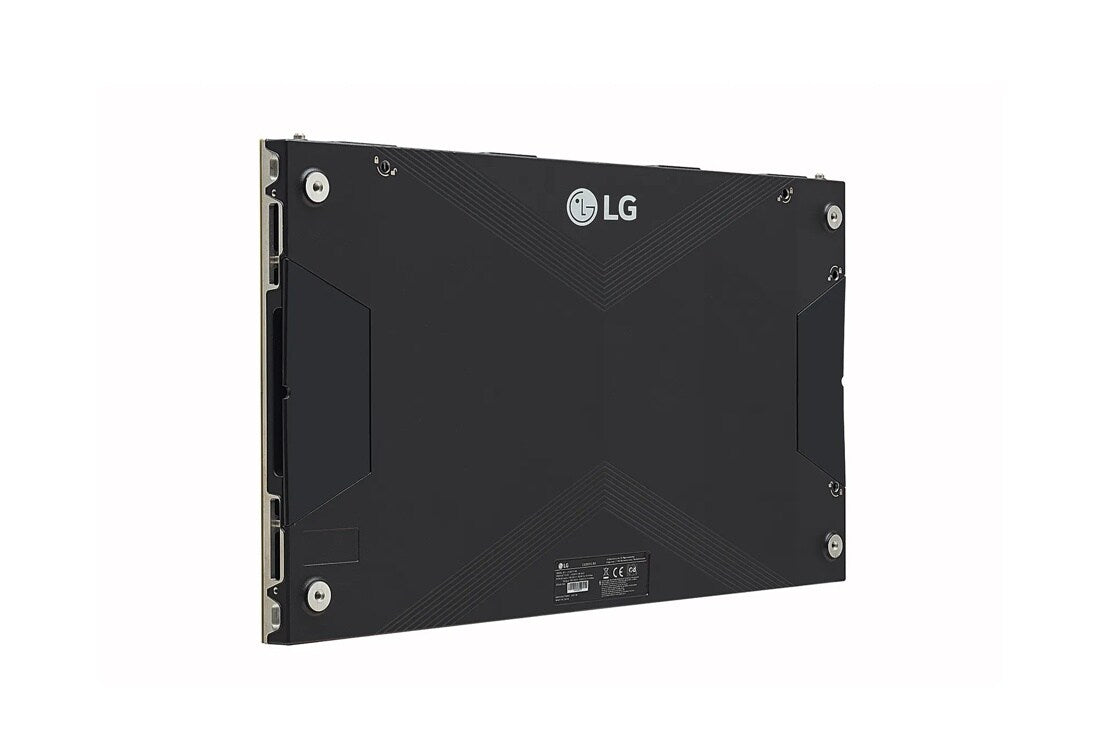

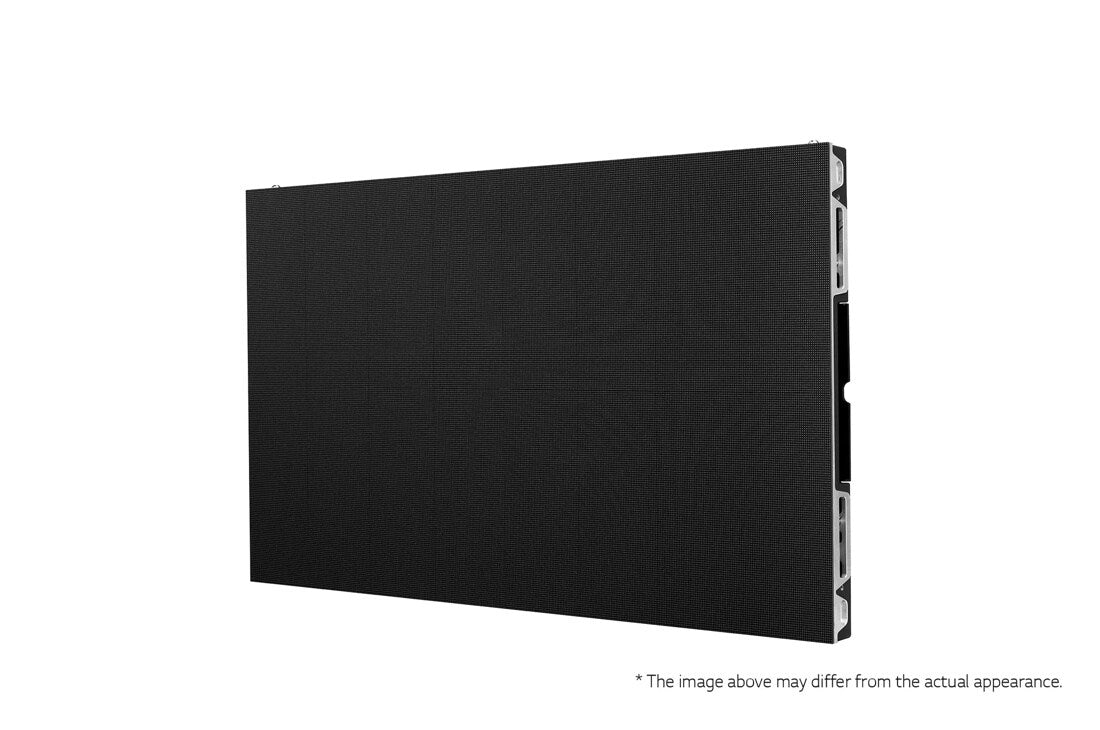

The LG Ultra Slim LSCC-GOB Series P1.5 direct-view LED cabinet combines fine-pitch image quality with Glue on Board (GOB) protective coating for enhanced LED module durability. With a 192x216 resolution per cabinet and an ultra slim form factor, this indoor LED display is suited for boardrooms, corporate lobbies, and environments where physical LED protection is a priority. The GOB coating encapsulates the LED surface, providing resistance to dust, moisture, and minor physical contact without compromising image quality. This DVLED cabinet is a practical option for installations in high-traffic areas or environments where standard bare-die LED modules may be at elevated risk of damage.

Product Description

The LSCC015-CZG brings GOB (Glue on Board) LED protection technology to LG's ultra slim LSCC P1.5 cabinet line. GOB coating applies a clear encapsulant over the LED modules, creating a smooth surface that is more resistant to accidental contact, humidity, and fine particulate contamination compared to standard SMD LED displays. This protection is particularly valuable in installations where the display is accessible to the public or located in environments with higher ambient dust or humidity. The P1.5 pixel pitch supports close-range viewing typical in conference rooms, corporate spaces, and digital signage applications, while the 192x216 resolution per cabinet contributes to a seamless, high-density video wall surface when multiple cabinets are assembled. The ultra slim cabinet depth keeps the installed profile tight to the wall, and the lightweight construction simplifies mounting and reduces structural requirements. LG's commercial-grade LED components are rated for long-term continuous indoor operation, making the LSCC-GOB series appropriate for mission-critical display installations. Creation Networks can assist with system design, controller configuration, and sourcing for complete LSCC-GOB video wall projects.

Key Features

• GOB (Glue on Board) Coating — Encapsulant protects LED modules from dust, humidity, and minor physical contact.
• 1.5 mm Pixel Pitch — Fine pitch supports close-range viewing in conference rooms and corporate environments.
• 192x216 Resolution Per Cabinet — Dense pixel layout contributes to seamless, high-quality video wall surfaces.

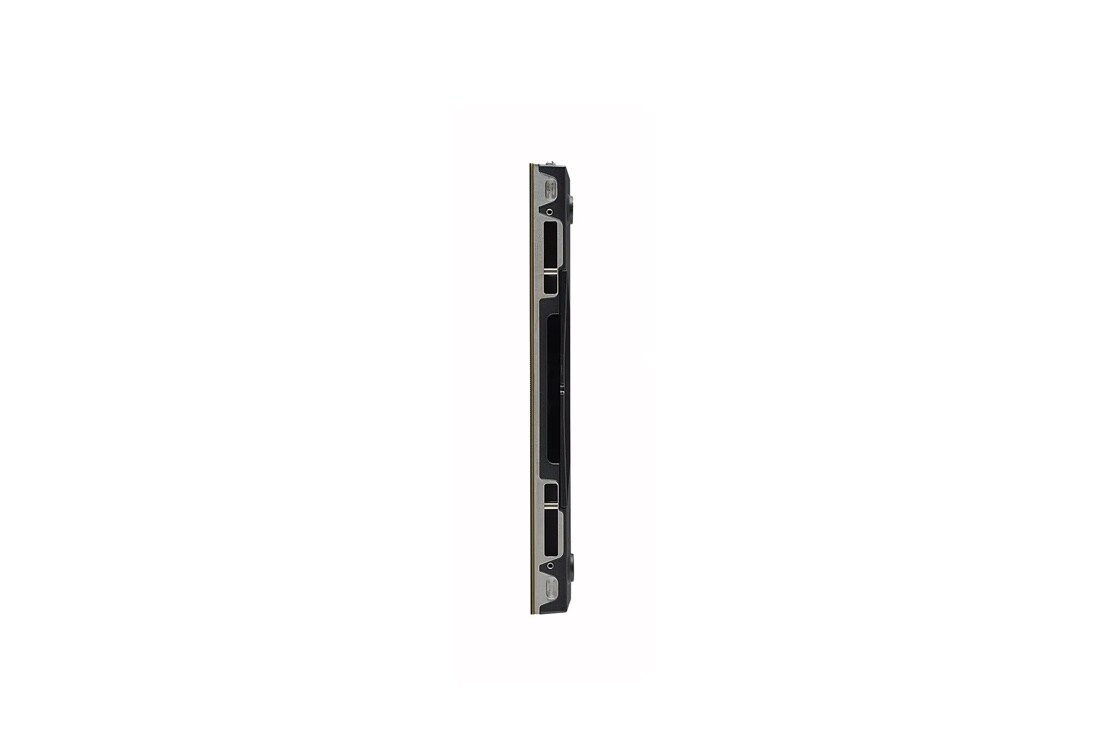

• Ultra Slim Cabinet Depth — Minimal depth profile for clean, low-protrusion wall installations.
• Lightweight Construction — Reduces mounting hardware requirements and simplifies installation.
• Commercial-Grade Indoor LED — Rated for continuous operation in professional AV environments.
• Modular Cabinet Design — Compatible with other LSCC series cabinets for scalable screen configurations.

Typical Applications

• Conference rooms and boardrooms
• Corporate lobby and reception displays
• High-traffic indoor digital signage
• Command center and NOC video walls
• Auditorium and house of worship installations
• Retail display environments with public access
• Broadcast studio backgrounds

Technical Specifications

Frequently Asked Questions

What is GOB coating and what are its benefits?

GOB stands for Glue on Board. It is a transparent encapsulant applied over the LED surface of a display cabinet. GOB coating improves resistance to dust, moisture, and accidental physical contact, extending the operational life of the LED modules in demanding environments.

Does GOB coating affect image quality?

GOB coating has minimal impact on image quality when properly applied. Some installations may notice a slight change in surface reflectivity compared to standard bare-die SMD panels, but contrast and color performance remain consistent with the base LED specification.

Is this cabinet compatible with standard LSCC P1.5 cabinets?

The LSCC-GOB cabinets share the same pixel pitch and cabinet format as standard LSCC P1.5 cabinets. Contact Creation Networks to confirm compatibility for mixed configurations in your specific project.

What is the recommended minimum viewing distance for P1.5 LED?

For a 1.5 mm pixel pitch display, typical minimum viewing distance is approximately 1.5 to 2 meters. Actual perception of pixel structure depends on content type and viewer sensitivity.

What controller system is required?

The LSCC series requires a compatible LED video processor and receiving cards. Creation Networks can recommend a complete system configuration based on your cabinet count and resolution. Visit creationnetworks.net for support.

What warranty applies to this product?

This product is covered by LG's standard commercial LED warranty. Contact Creation Networks for current warranty terms and post-sale support options.
