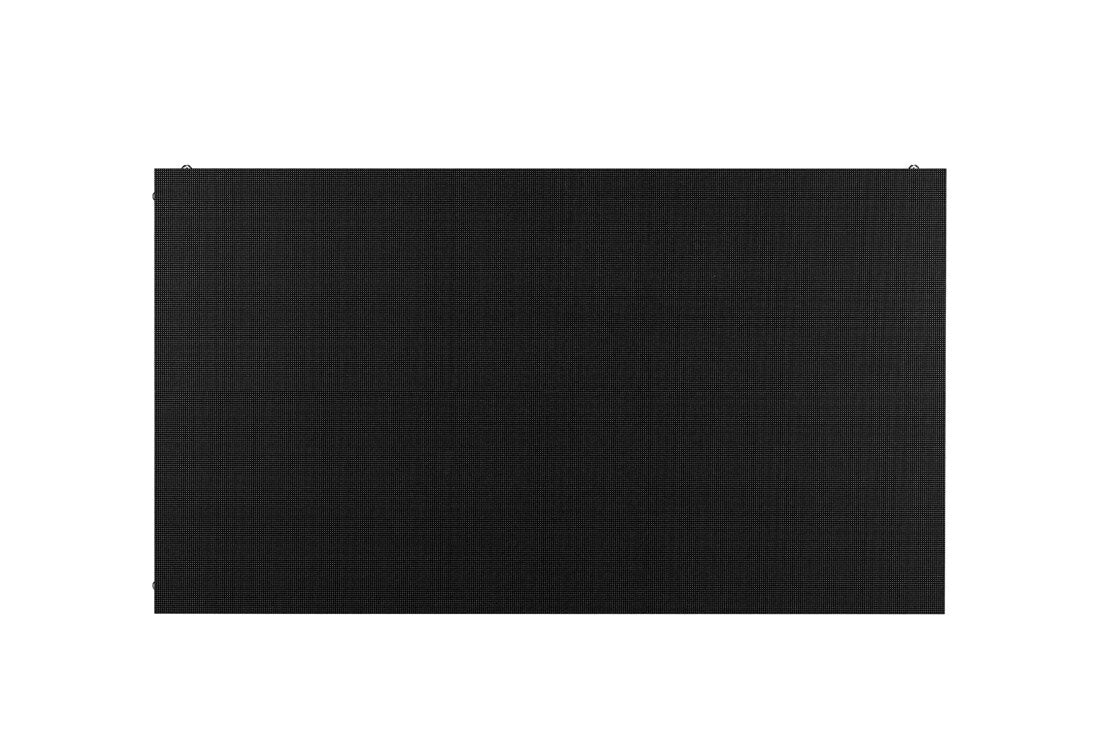

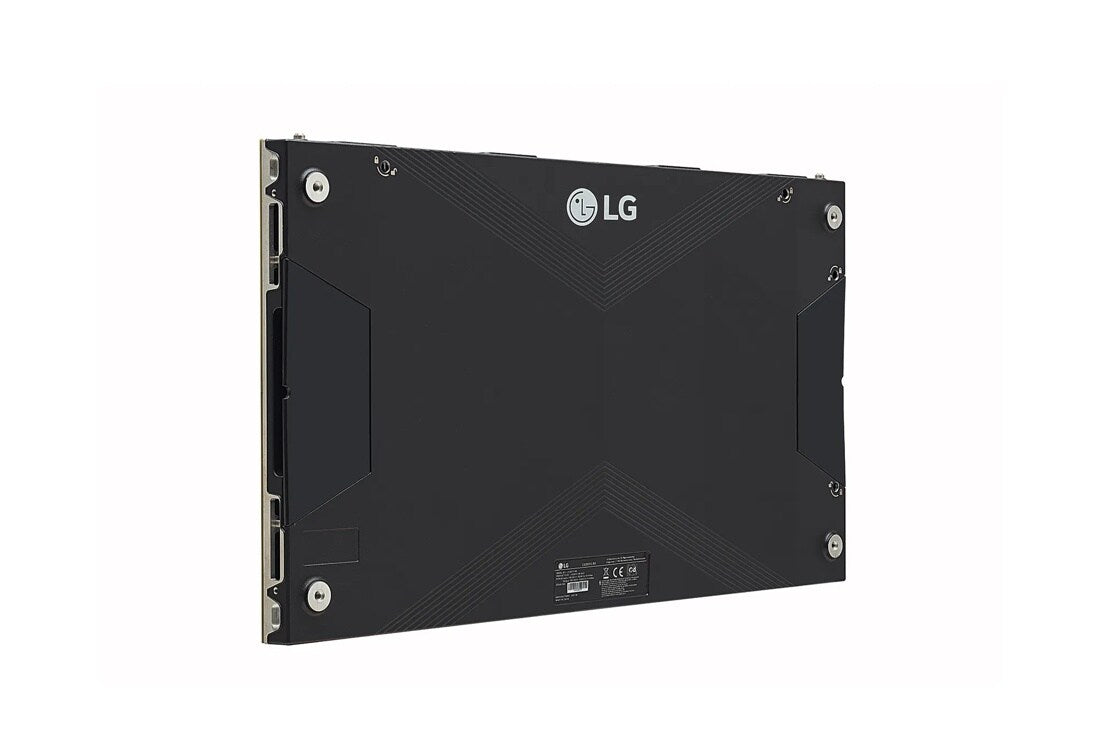

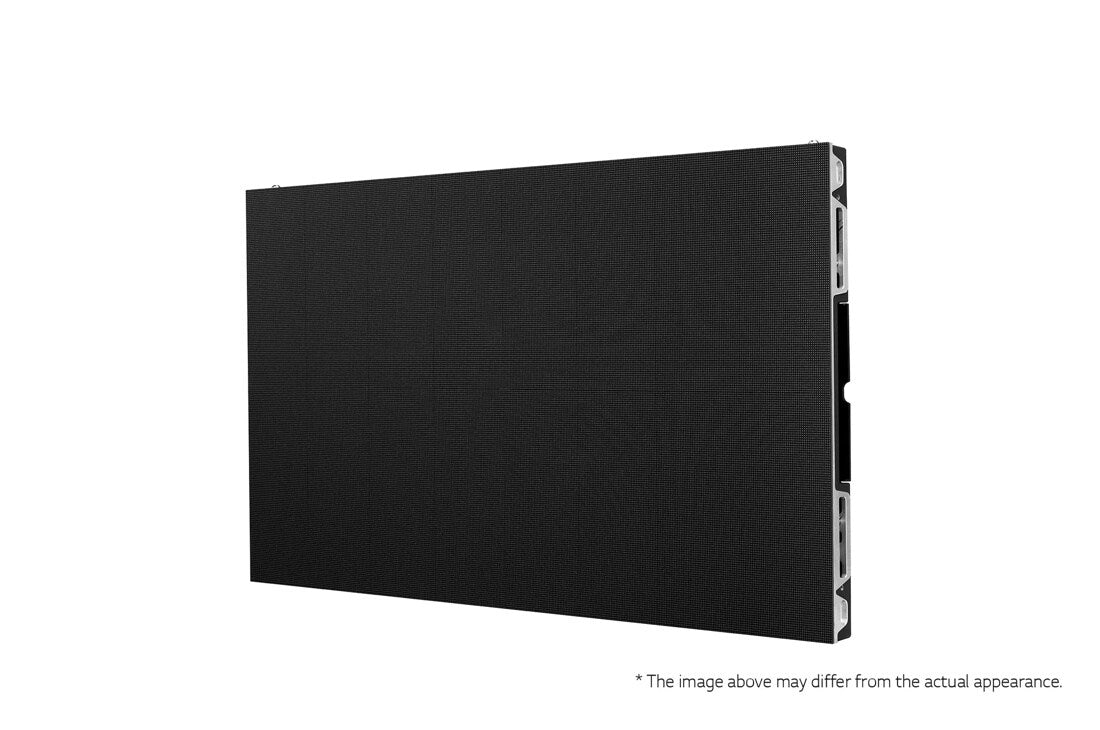

LG LSCC012-CZF – Ultra Slim LSCC-Curve Series DVLED, P1.25, 240x270 resolution

Product Overview

The LG Ultra Slim LSCC-Curve Series P1.25 direct-view LED cabinet is engineered for high-end indoor installations where display curvature and minimal depth are both required. With a 1.2 mm pixel pitch and 240x270 resolution per cabinet, this indoor LED display delivers precise image quality suitable for boardrooms, corporate lobbies, and command centers. The curved module design enables concave and convex screen configurations, making it a versatile choice for architectural LED video wall projects. This DVLED cabinet is ideal for integrators seeking fine-pitch LED display solutions with flexible cabinet configuration options.

Product Description

The LSCC-Curve Series cabinet from LG is built around a 1.2 mm pixel pitch SMD LED module, producing sharp, detailed imagery at close viewing distances typical of corporate and executive environments. At 800 nits maximum brightness, the display performs well in controlled indoor lighting conditions found in conference rooms, auditoriums, and broadcast studios. The ultra slim cabinet depth and lightweight construction reduce structural load requirements and simplify wall mounting or ground-stacking installations. The curved module capability is what distinguishes this cabinet within the LSCC line — integrators can configure concave or convex LED video walls to match curved architectural surfaces or create immersive viewing environments. Half-height and half-width cabinet variants are also available within the LSCC series, allowing fine-grained control over total screen dimensions. Cabinet-to-cabinet alignment is maintained through precision mechanical design, ensuring consistent pixel gaps across large multi-cabinet arrays. The LSCC-Curve Series is well-suited for projects where the display must conform to a non-flat surface or where the installation design calls for a curved screen aesthetic. Creation Networks supplies this cabinet as part of a complete direct-view LED system, and our technical team can assist with cabinet count calculations, controller sizing, and installation planning.

Key Features

• 1.2 mm Pixel Pitch — Fine pixel density enables close-range viewing with sharp, clear image reproduction.
• 800 Nit Maximum Brightness — Sufficient output for indoor environments with ambient lighting control.
• Curved Module Design — Supports concave and convex LED video wall configurations for architectural installations.

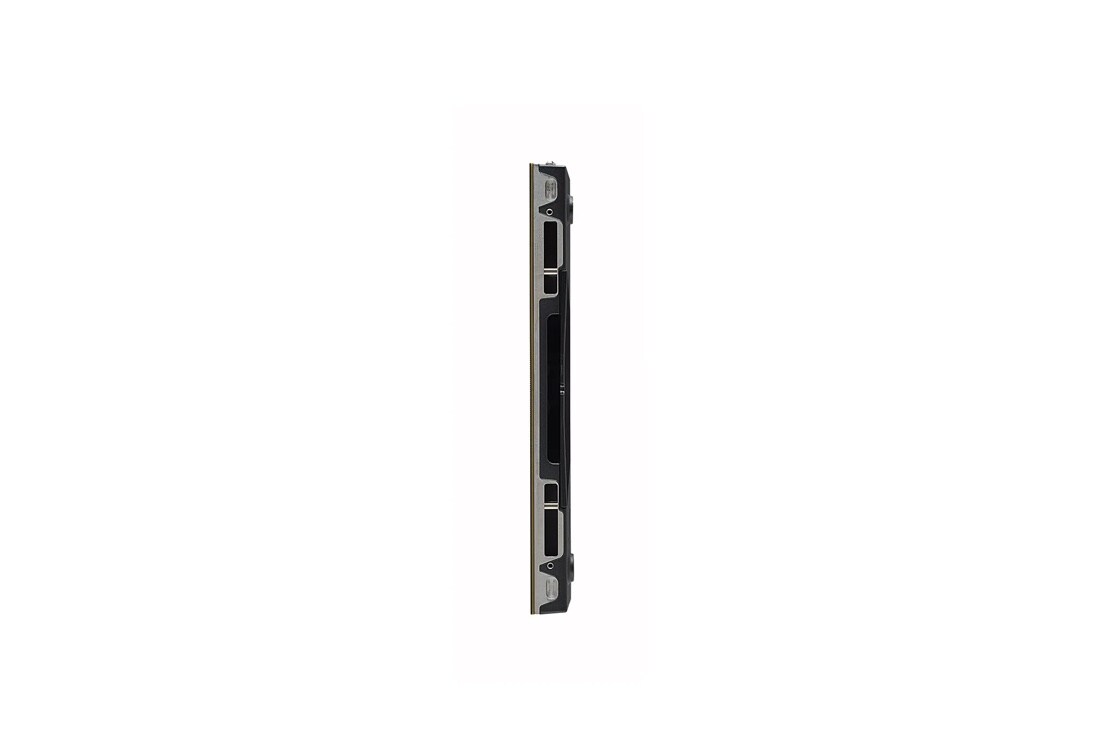

• Ultra Slim Cabinet Depth — Reduced depth of 33.6 mm minimizes protrusion from the mounting surface.
• Lightweight Construction — Low cabinet weight simplifies structural planning and reduces installation complexity.
• Flexible Screen Configuration — Compatible with half-height and half-width cabinets for custom aspect ratios and screen sizes.
• Indoor Direct-View LED — Commercial-grade SMD LED technology designed for long-term continuous operation.

Typical Applications

• Boardroom and executive conference rooms
• Corporate lobby displays
• Auditorium and house of worship video walls
• Command center and NOC displays
• Broadcast studio backgrounds
• High-end retail display installations
• Digital signage in commercial interiors

Technical Specifications

Frequently Asked Questions

What controller is required for the LSCC012-CZF?

The LSCC series requires a compatible LED video processor and receiving cards. Creation Networks can specify the correct controller based on your total cabinet count and desired resolution. Contact us at creationnetworks.net/pages/contact for system design support.

Can this cabinet be mixed with flat LSCC cabinets in the same video wall?

Yes. The LSCC-Curve cabinet is designed to integrate with flat LSCC cabinets, allowing designers to combine straight and curved sections within a single display array.

What is the minimum bend radius for the curved module?

Minimum bend radius specifications are provided by LG and vary based on cabinet configuration. Our team can provide detailed mechanical drawings during the design phase.

Is this display suitable for 24/7 operation?

The LSCC series is a commercial-grade indoor LED display rated for continuous operation. Actual operational hours and maintenance intervals depend on installation environment and content brightness levels.

What warranty does this product carry?

LG commercial LED products are covered by LG's standard commercial warranty. Creation Networks also provides pre- and post-sale technical support. Reach us at creationnetworks.net for warranty details.

Does Creation Networks offer installation services for this product?

Creation Networks is an AV distribution and solutions provider. We can connect you with certified installation partners and provide full system design, configuration, and technical support throughout your project.
