LG LSCB025-RKR 2.5mm Pixel Pitch Indoor LED Signage Display Cabinet Right Cut

Product Overview

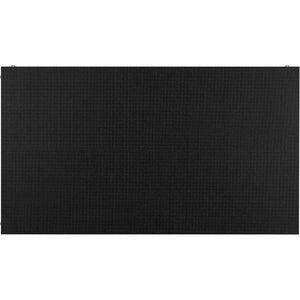

The LG LSCB025-RKR is a 2.5 mm pixel-pitch indoor direct-view LED signage cabinet in a right-cut configuration for fine-pitch video walls. It delivers an 800-nit brightness suited to controlled indoor lighting. Part of the LSCB Ultra Slim family, it is a building block for larger seamless LED walls. The right-cut variant provides tailored edge geometry within a wall layout.

Product Description

This LSCB-series cabinet carries a 2.5 mm pixel pitch (98.4 mil) on an LCD-class direct-view LED panel rated at 800 nits, weighing approximately 10 lb per cabinet. The 2.5 mm pitch suits medium indoor viewing distances common to retail, signage, and corporate environments. As a right-cut cabinet, it combines with standard and complementary cabinets to build a complete wall with clean edges. Detailed electrical, optical, and dimensional values vary by the broader wall configuration and should be confirmed with Creation Networks for a specific project. The LSCB family supports front-side installation and maintenance for installs with limited rear access.

Key Features

• 2.5 mm pixel pitch — balanced resolution for medium indoor viewing distances.
• Direct-view LED — self-emissive imaging for clarity and color.
• 800-nit brightness — matched to controlled indoor lighting.
• Right-cut cabinet — tailored edge geometry for clean wall boundaries.
• Ultra Slim LSCB series — modular building block for larger seamless walls.
• Front-access design — LSCB series supports front installation and maintenance.
• ~10 lb cabinet — manageable weight for wall assembly.

Typical Applications

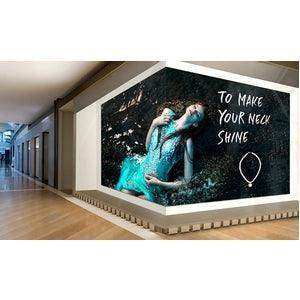

The LSCB025-RKR is a building block for indoor LED video walls in retail spaces, corporate lobbies, control rooms, and conference areas where a 2.5 mm pitch fits medium viewing distances. Its 800-nit output suits controlled interior lighting, and the right-cut geometry supports custom wall edges and corner treatments. It is well suited to signage walls and branded interior displays.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

What does "right cut" mean?
It is a cabinet with tailored edge geometry for the boundary or corner of a wall, combined with standard cabinets to complete the layout.

Is it a standalone display?
No. It is a cabinet building block for a larger video wall; contact Creation Networks to size a complete wall.

What viewing distance suits a 2.5 mm pitch?
It works well for medium indoor viewing distances common to retail and corporate signage.

Can it be serviced from the front?
Yes. The LSCB series supports front installation and maintenance.
