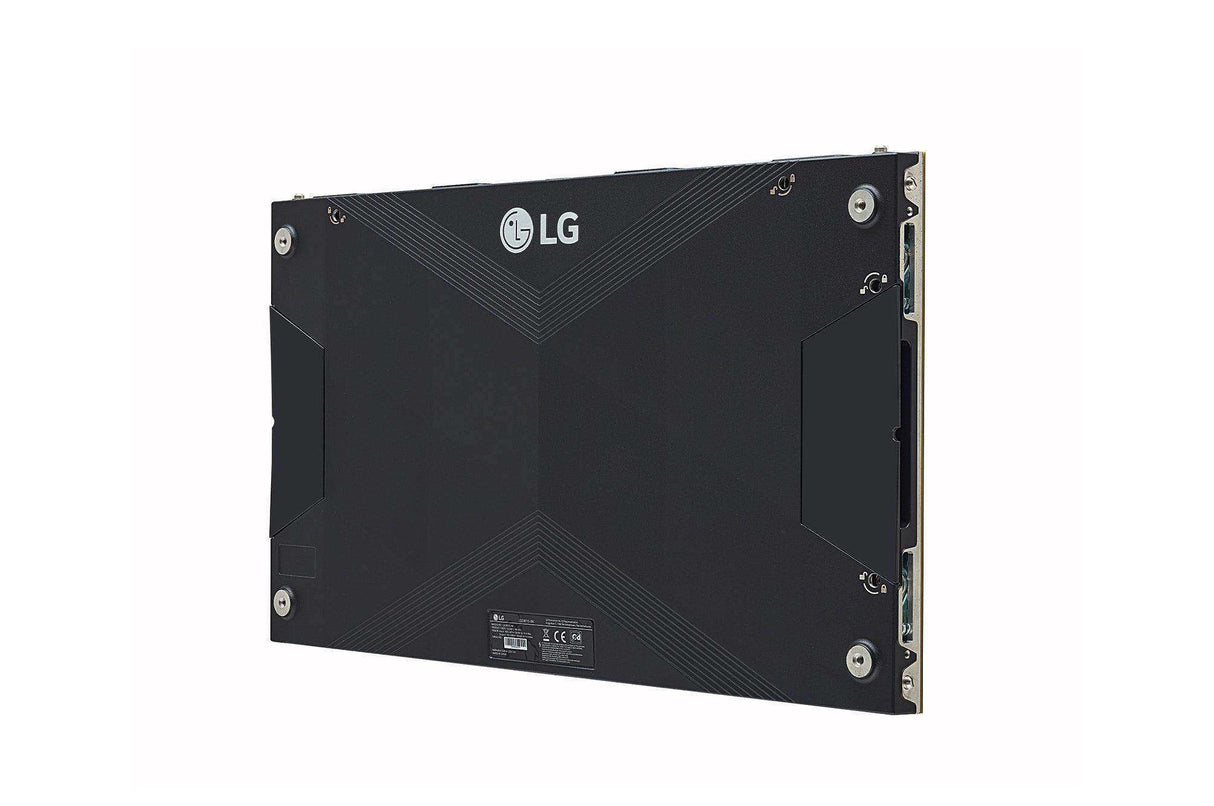

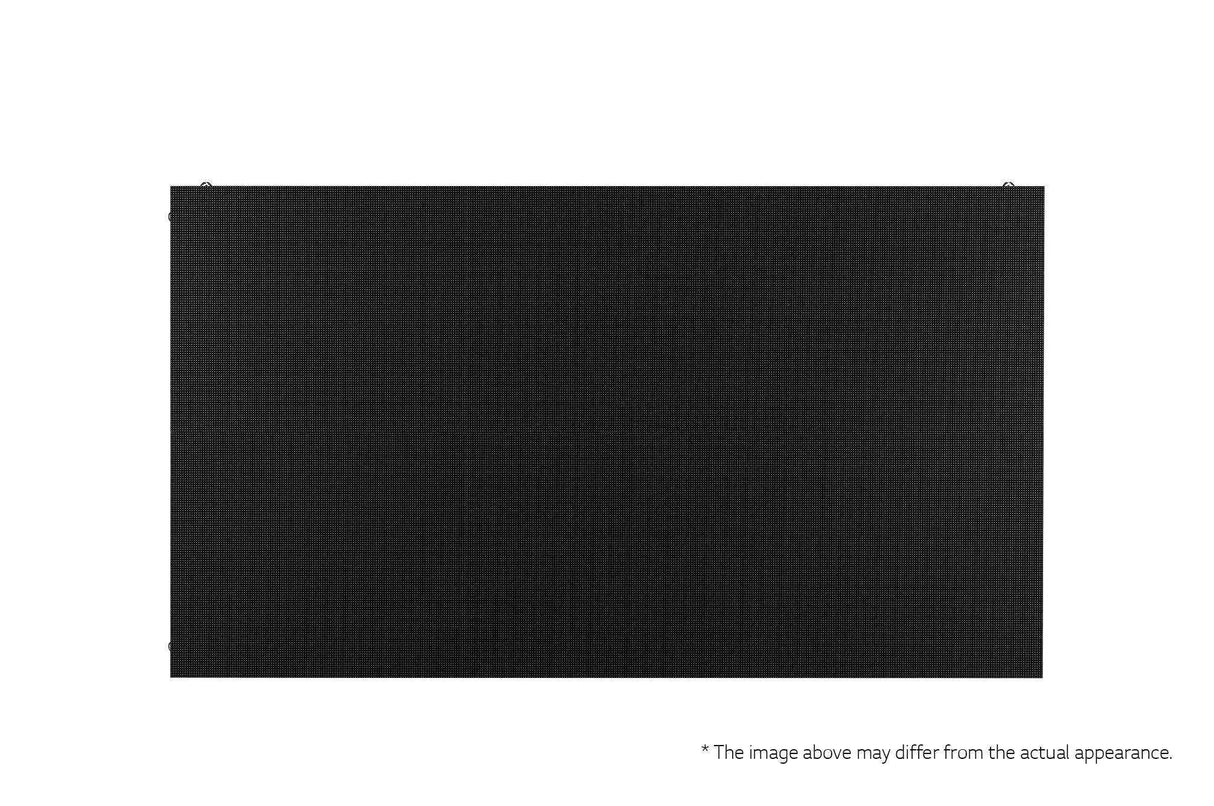

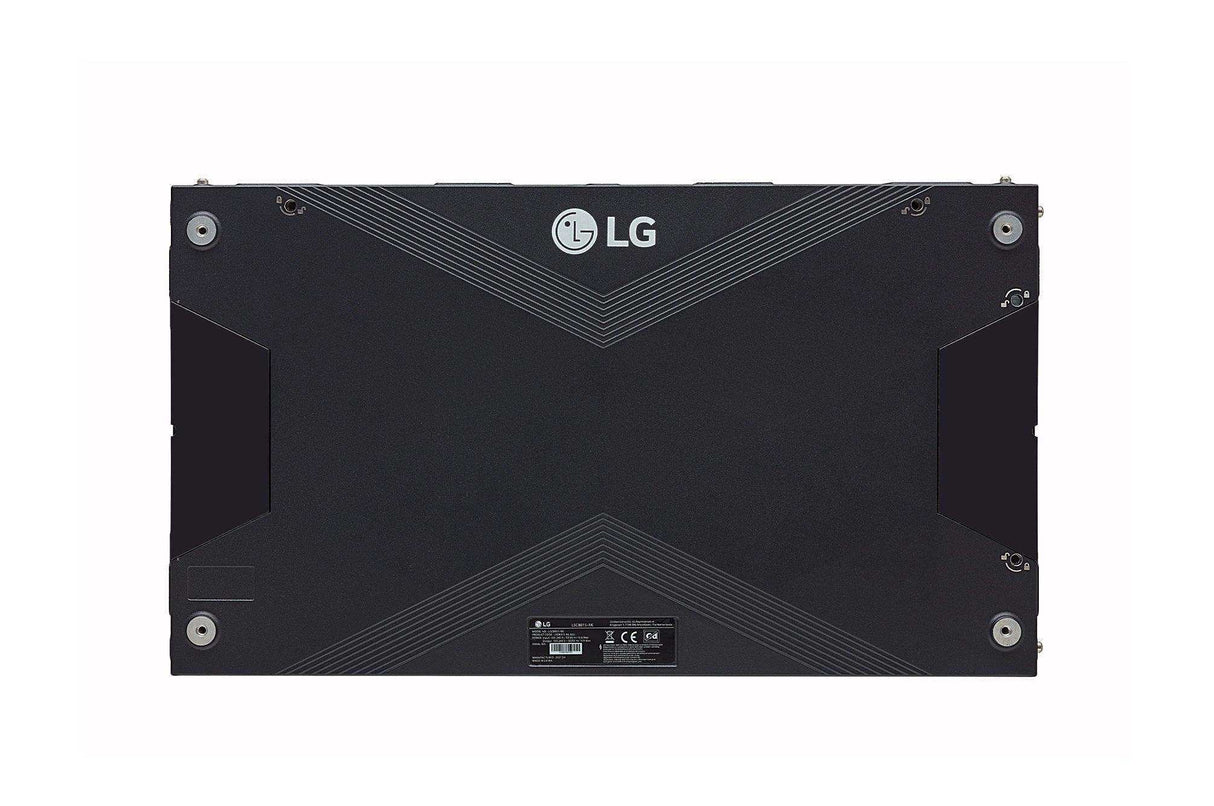

LG LSCB025-RKL 2.5mm Pixel Pitch Indoor LED Signage Display Cabinet Left Cut

LG LSAB009-T14 Digital Signage Display - LCD - Direct View LED - 1200 Nit

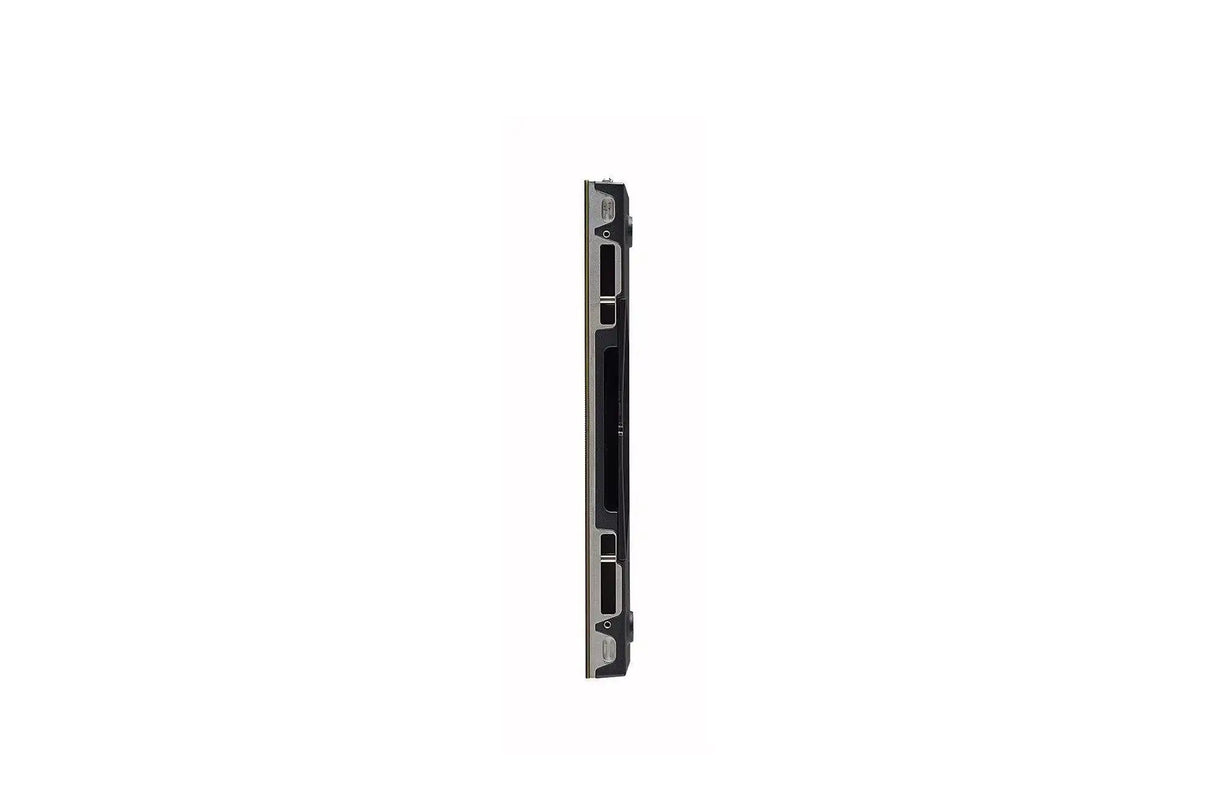

Ultra Slim Depth

Its ultra-slim design with 40.8mm edge thickness is the biggest advantage of the product. This feature enables the LSCB series to be installed in a variety of venues, as its thinness helps it to harmonize with its surroundings.

Easy & Seamless Installation

The LSCB series can be easily installed and managed from the front side for easy operation. Thanks to this feature, no additional space for maintenance behind the product is required. Its LED modules can also be simply attached or detached with a suction tool.

16:9 FHD/UHD Configuration

Each cabinet uses a 16:9 aspect ratio, the same most commonly used in displays for FHD and UHD content.
This allows you to keep using existing content without additional cost and time for editing.

90° Corner Design Available

If you add 90° corner option, the LSCB series fits naturally into the space and delivers smooth content to customers.

Compatibility with LG Software Solutions

When connected with LG's CVCA system controller, the LSCB series is compatible with LG software solutions including SuperSign CMS, LED Assistant, and ConnectedCare, which help customers operate their own business deftly.

* The availability of the 'LG ConnectedCare' service differs by region, and it needs to be purchased separately. So please contact the LG sales representative in your region for more details.
* The items that can be monitored by LG ConnectedCare : Main Board (Temp., Signal Status, FPGA Ver, Ethernet Connection Status), Receiving Card (Temp., LED Power)

Features

• Pixel Pitch: 2.50mm
• Brightness: 800cd/m²
• Ultra Slim Depth
• EMC Class B, BS 476 Part7 Class 1

Specs

• Physical Parameter

  Pixel Configuration	3 in 1
  Pixel Pitch (mm)	2.500
  Module Resolution (W x H)	120 × 135
  Module Dimensions (W x H, mm)	300 × 337.5
  Weight per Module (kg)	0.64 (-RK,-CK)/ 1.40 (-CKF)
  No. of Modules per Cabinet (W × H)	2x2 (-RK)/ 1x2 (-CK,-CKF)
  Cabinet Resolution (W × H)	240x135 (-RK)/ 120x135 (-CK, -CKF)
  Cabinet Dimensions (W × H × D, mm)	600x337.5x34 (-RK) / 300x337.5x29.7 (-CK) / 300x337.5x35.6 (-CKF, Cabinet Mounting Depth)
  Cabinet Surface Area (m²)	0.203 (-RK)/ 0.101 (-CK, -CKF)
  Weight per Cabinet (kg/cabinet)	5.3 (-RK)/ 4.0 (-CK)/ 3.1 (-CKF, Weight Changes for Different Curves)
  Weight per Square Meter (kg/m²)	26.2 (-RK)/ 39.0 (-CK)/ 30.6 (-CKF)
  Physical Pixel Density (pixels/m²)	160,000
  Flatness of Cabinet	± 0.1 mm
  Cabinet Material	Die-casting Aluminum (-RK)/ Aluminum Machine (-CK, CKF)
  Service Access	Front

• Optical Parameter

  Max. Brightness (After Calibration)	800
  Color Temperature	3,200-9,300 (K)
  Visual Viewing Angle (Horizontal/Vertical)	160 × 160
  Brightness Uniformity	97 %
  Color Uniformity	± 0.003 Cx,Cy
  Contrast Ratio	5,000:1
  Processing Depth (bit)	14 (HDR10, HDR10 Pro)

• Electrical Parameter

  Power Consumption (W/Cabinet, Max.)	100 (-RK)/ 55 (-CK, -CKF)
  Power Consumption (W/Cabinet, Avg.)	34 (-RK)/ 18 (-CK, CKF)
  Power Consumption (W/m², Max.)	494 (-RK)/ 543 (-CK, -CKF)
  Power Supply (V)	100 to 240
  Frame Rate (Hz)	50 / 60
  Refresh Rate (Hz)	3,840

• Operation Conditions

  Lifetime (Hours to Half Brightness)	100,000
  Operating Temperature (°C)	-10 °C to +45 °C
  Operating Humidity	0~80%RH
  IP rating Front / Rear	IP30 / IP30

• Controller

  Controller	CVCA, LCIN006, LCIN008 (4K)

• 90 Degree Corner Cut

  90 Degree Corner Cut	Yes
