LG LSCB012-RN 1.25mm Pixel Pitch LED Signage Display Cabinet

Product Overview

The LG LSCB012-RN is a 1.25 mm pixel-pitch Ultra Slim indoor LED signage cabinet, a very-fine-pitch building block for premium video walls. It delivers an 800-nit brightness with 14-bit HDR10/HDR10 Pro processing and a high 640,000 pixels per square meter density. The 480 x 270 cabinet resolution is built from a 2 x 2 module layout, with front service and a 90-degree corner option. It runs on LG's controllers and supports LG software solutions.

Product Description

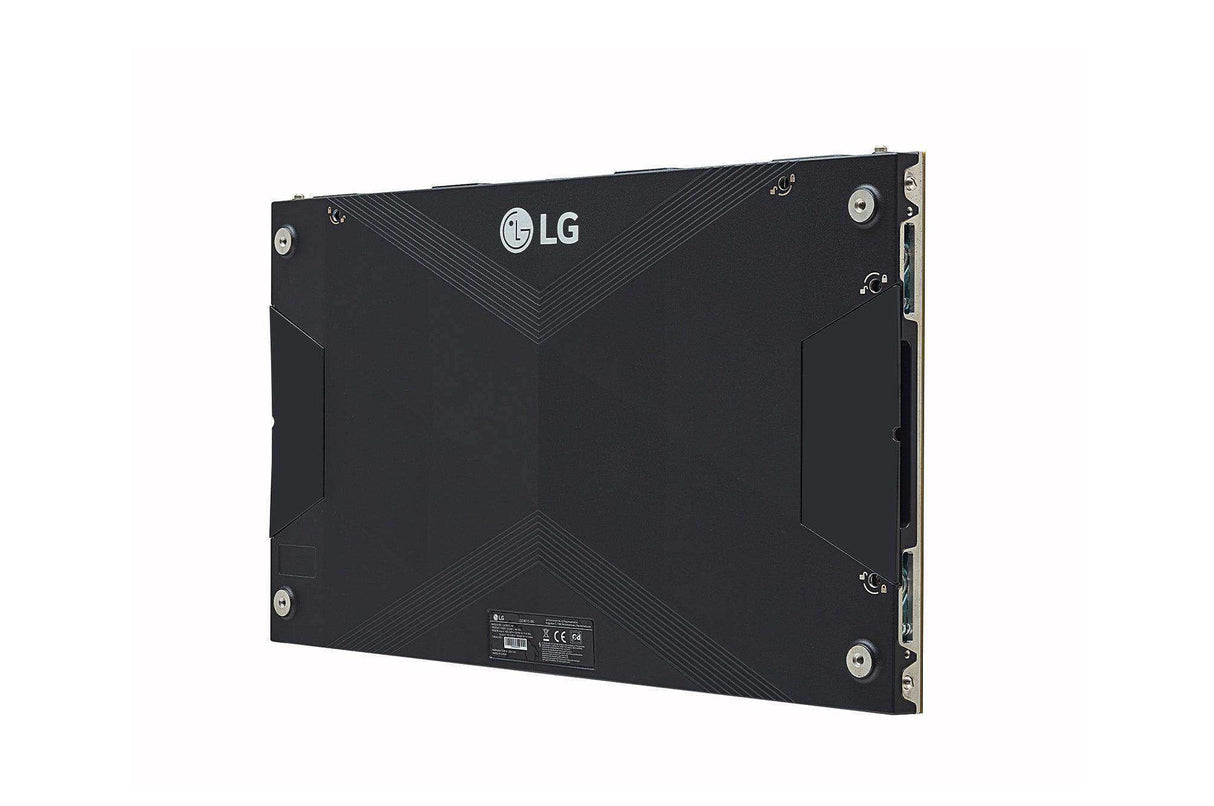

This LSCB-series cabinet (-RK) measures 600 x 337.5 x 34 mm with a 480 x 270 cabinet resolution, built from 300 x 168.75 mm modules at a 240 x 135 module resolution, and weighs 5.3 kg per cabinet (26.2 kg/m²). The 1.25 mm pitch resolves fine detail for short viewing distances, with cabinet flatness to plus or minus 0.1 mm. Calibrated brightness is 800 nits across a 3,200 to 9,300 K color temperature, with a 5,000:1 contrast ratio, 160 x 160-degree viewing angles, and 14-bit HDR10/HDR10 Pro processing. The cabinet refreshes at 3,840 Hz on a 50/60 Hz frame rate, draws up to 150 W, and runs on 100 to 240 V. Service access is from the front, a 90-degree corner cut option is available, and the 16:9 ratio runs FHD/UHD content without re-editing. Operating range is -10 to +45 degrees C at 0-80% RH with IP30 front and rear ratings. LED lifetime to half brightness is 100,000 hours, driven by CVCA, LCIN006, or LCIN008 (4K) controllers. EMC Class B and BS 476 Part 7 Class 1 certifications apply.

Key Features

• 1.25 mm pixel pitch — very fine resolution for short-distance, detail-critical viewing.
• 640,000 pixels/m² density — high pixel density for crisp close-up imagery.
• 800-nit brightness — 14-bit HDR10/HDR10 Pro processing for indoor color depth.

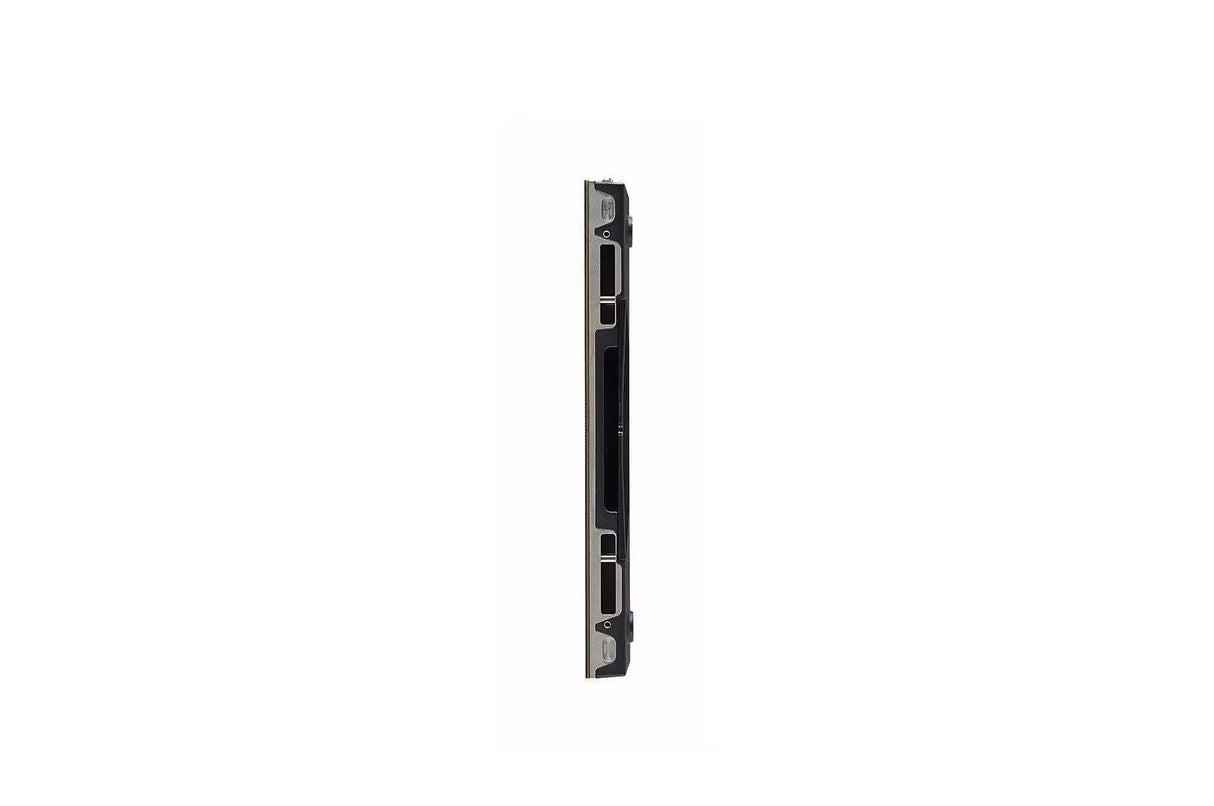

• Ultra-slim 34 mm depth — low-profile installation.
• Front service access — no rear clearance needed for maintenance.
• 90° corner cut option — wraps the wall into corners.
• EMC Class B / fire-resistant — certified for safe public installation.
• 100,000-hour LED lifetime — rated to half brightness for long service.

Typical Applications

The LSCB012-RN is a building block for premium indoor fine-pitch LED video walls in executive briefing centers, corporate lobbies, broadcast studios, control rooms, and high-end retail where the 1.25 mm pitch supports very short viewing distances and detailed content. Its fire-resistant, EMC-certified design suits regulated public interiors, and the 90-degree corner cut supports column and corner features.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

How fine is the 1.25 mm pitch?
It packs 640,000 pixels per square meter, suiting very short viewing distances and detailed content.

Is it a standalone display?
No. It is a cabinet building block for a larger video wall; contact Creation Networks to size a complete wall.

Can it turn a corner?
Yes. A 90-degree corner cut option is available.

Is it fire-rated?
Yes. It carries EMC Class B and BS 476 Part 7 Class 1 fire-resistance certifications.
