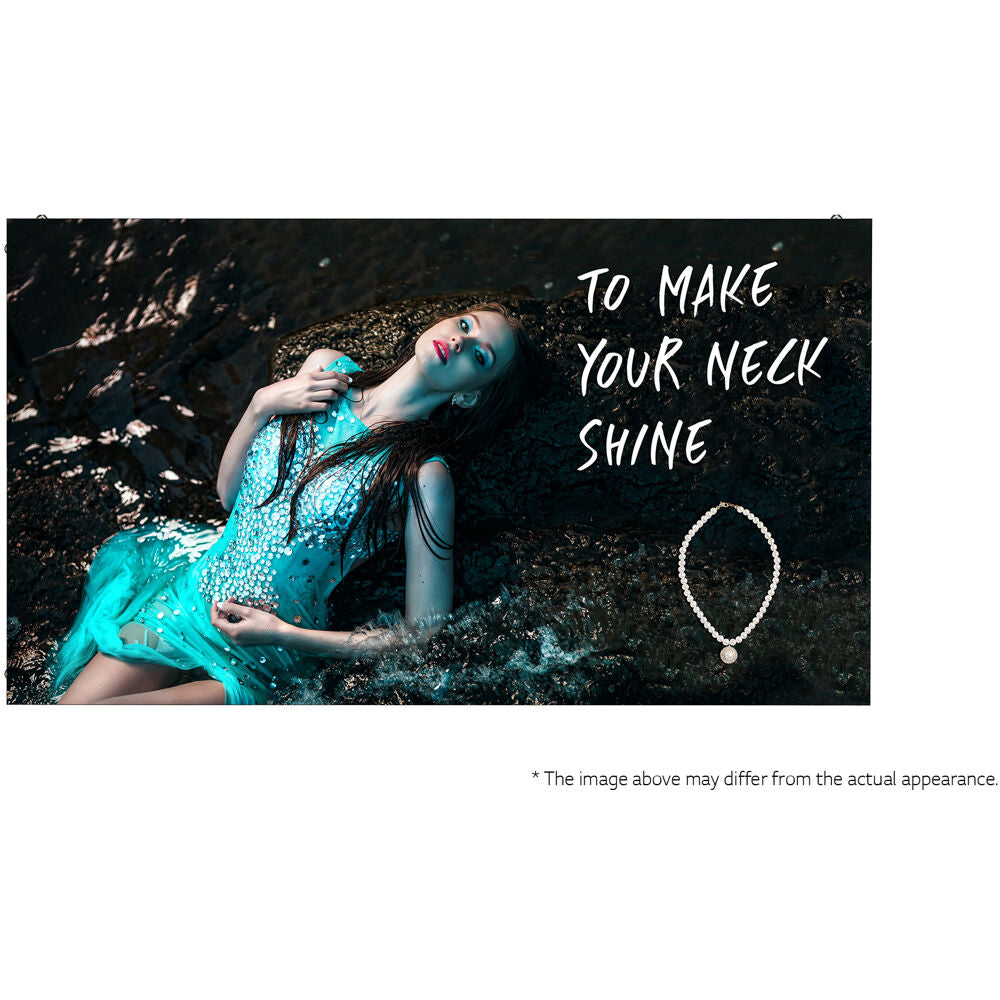

LG LSCB012-RK – LSCB DVLED P1.2 Ultra Slim SMD Full Cabinet 800Nits 600x337.5x34

Product Overview

The LG LSCB DVLED P1.2 Ultra Slim Full Cabinet is a fine-pitch direct-view LED cabinet designed for architecturally sensitive commercial installations where display depth is a constraint. With a 1.25mm pixel pitch and an edge depth of just 41mm, this 600 x 337.5mm cabinet provides high-resolution imagery for close-range viewing at 4–6 feet while maintaining one of the thinnest cabinet profiles in the commercial LED market. At 800 nits of brightness, it covers a broader range of indoor lighting conditions than standard 600-nit models, and EMC Class B and fire-resistant certifications confirm its suitability for commercial interior deployment.

Product Description

The 41mm edge depth of the LSCB series sets it apart from conventional commercial LED cabinets, which typically run 65–120mm deep. This slim profile allows the display to be mounted flush or near-flush to wall surfaces, enabling integration into interior design environments where a conventional LED wall would protrude too far into the space. Reception walls, architectural feature displays, executive conference rooms, and high-end retail installations are typical deployment environments for this cabinet.

The full cabinet format at 600 x 337.5mm maintains the standard 16:9 aspect ratio used throughout the LSCB series. This simplifies grid layout calculations and content scaling across multi-cabinet arrays. The 1.25mm pixel pitch delivers fine detail appropriate for viewing distances beginning at approximately 4–6 feet, which corresponds to typical boardroom table distances and close-proximity digital signage placements.

At 800 nits, this cabinet operates with more brightness headroom than standard 600-nit indoor cabinets, which is useful in spaces where window light or architectural lighting creates higher ambient conditions. EMC Class B certification confirms compliance with electromagnetic compatibility standards for commercial interiors. The fire-resistant design per BS 476 Part 7 Class 1 meets standard commercial building requirements.

Key Features

• 1.25mm Pixel Pitch — Fine pixel density for close-range viewing at approximately 4–6 feet.
• 41mm Ultra-Slim Edge Depth — Among the thinnest full cabinet profiles in commercial direct-view LED, enabling flush architectural installation.
• 800-Nit Brightness — Higher output than standard indoor cabinets, accommodating moderate ambient lighting conditions.
• 600 x 337.5mm Full Cabinet Format — Standard 16:9 aspect ratio for straightforward multi-cabinet grid layout.
• EMC Class B Certified — Meets electromagnetic compatibility standards for commercial indoor environments.
• BS 476 Part 7 Class 1 Fire Resistant — Meets commercial building fire resistance requirements.
• Front Service Access — LED module replacement accessible from the front face of the display.
• Architectural Integration Depth — 34mm total depth compatible with wall niches and shallow mounting structures.

Typical Applications

• Corporate lobby and reception wall architectural feature displays
• Executive boardroom and conference room video walls
• High-end retail digital signage
• Broadcast studio background panels
• Hospitality feature wall installations
• Command center close-proximity displays
• House of worship premium stage screens

Technical Specifications

Frequently Asked Questions

How does the 41mm depth compare to standard LED cabinets?

Standard commercial LED cabinets typically range from 65mm to over 100mm in depth. The LSCB's 41mm profile is significantly shallower, allowing it to fit in architectural niches and wall cavities that cannot accommodate conventional LED systems.

What viewing distance is recommended for 1.25mm pixel pitch?

The 1.25mm pixel pitch is optimized for viewing distances starting at approximately 4–6 feet, covering typical boardroom, executive briefing center, and close-proximity digital signage positions.

Does the LSCB012-RK support curved configurations?

The full cabinet format is designed for flat installations. For curved configurations, the LSCB series includes dedicated curved half-width cabinet options. Contact Creation Networks for curved display design assistance.

Is a separate LED processor required?

Yes. A compatible LED video processor is required to drive the cabinet array. Creation Networks can recommend compatible processors based on your installation size and input requirements.

What certifications does this cabinet carry?

The LSCB012-RK carries EMC Class B certification and meets BS 476 Part 7 Class 1 fire resistance requirements, confirming its suitability for commercial interior installation.

What warranty is included?

LG commercial LED products include LG's standard commercial warranty. Contact Creation Networks for current warranty and support coverage details.
