LG LSCB Ultra Slim Series LSCB025-CK 2.5mm Pixel Pitch Indoor LED Signage Display Cabinet Mini

Product Overview

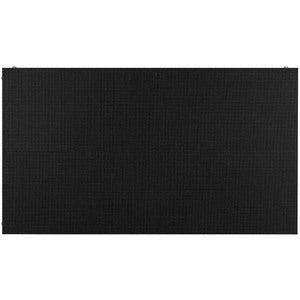

The LG LSCB025-CK is a 2.5 mm pixel-pitch Ultra Slim indoor LED signage cabinet in a half-width 'mini' configuration with copper connectors. It delivers an 800-nit brightness with 14-bit HDR10/HDR10 Pro processing in a slim, lightweight cabinet for fine-pitch video walls. The half-width format and curved-cabinet availability add layout flexibility for concave and convex screens. It runs on LG's webOS controller and supports LG software solutions.

Product Description

This LSCB-series half-width cabinet (-CK) has a 120 x 135 cabinet resolution built from a 300 x 337.5 mm module at a 120 x 135 module resolution, weighing approximately 12.35 lb. The 37.5 mm ultra-slim edge thickness keeps the wall low-profile, and front and rear access support flexible installation and maintenance. Calibrated brightness is 800 nits with a 5,000:1 dynamic contrast ratio and 14-bit color depth supporting HDR10 and HDR10 Pro. Copper connectors handle signal and power between cabinets. The 16:9 cabinet ratio runs existing FHD and UHD content without re-editing, and the LSCB family offers half-height/half-width and curved cabinets for customized curvature. EMC Class B certification and BS 476 Part 7 Class 1 fire-resistant design support safe public installation. Powered by webOS, it works with LG SuperSign CMS, LED Assistant, and ConnectedCare. Input voltage is auto-ranging across 120 V and 230 V AC; Ethernet is supported.

Key Features

• 2.5 mm pixel pitch — balanced resolution for medium indoor viewing distances.
• Half-width mini cabinet — added layout flexibility for custom and curved walls.
• 800-nit brightness — 14-bit HDR10/HDR10 Pro processing for indoor color depth.

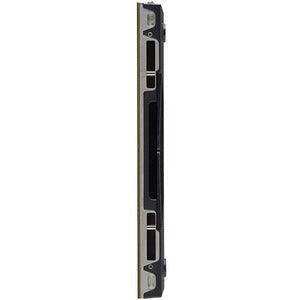

• 37.5 mm ultra-slim depth — low-profile installation in any indoor venue.
• Copper connectors — reliable inter-cabinet signal and power transfer.

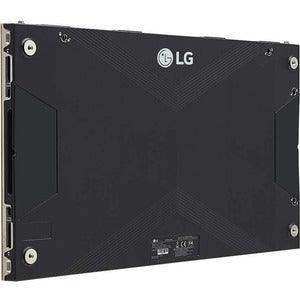

• Front and rear access — flexible installation and maintenance options.
• EMC Class B / fire-resistant — certified for safe public-space installation.
• webOS + LG software — SuperSign CMS, LED Assistant, and ConnectedCare support.

Typical Applications

The LSCB025-CK is a building block for indoor fine-pitch LED video walls in corporate lobbies, retail interiors, control rooms, and conference spaces, with the half-width format enabling custom and curved layouts. Its EMC and fire certifications suit regulated public interiors, and the curved-cabinet availability supports concave and convex feature walls. It fits reception walls, branded displays, and column wraps.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

FAQ

What is a half-width cabinet for?
The half-width 'mini' format adds layout flexibility, including custom and curved wall configurations.

Can it form curved walls?
Yes. The LSCB family offers curved cabinets for concave and convex configurations.

Is it safe for public interiors?
Yes. It carries EMC Class B and BS 476 Part 7 Class 1 fire-resistance certifications.

What software does it support?
Powered by webOS, it works with LG SuperSign CMS, LED Assistant, and ConnectedCare.
