LG GMBD035-GN4 Essential Cabinet Indoor GMBD, DVLED, P35, STANDARD, SINGLE SMD, 7500NIT, 280X2,800X24.5
LG GMBD035-GN4 Essential Cabinet Indoor GMBD, DVLED, P35, STANDARD, SINGLE SMD, 7500NIT, 280X2,800X24.5 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG GMBD035-GN4 Essential Cabinet Indoor GMBD, DVLED, P35, STANDARD,...
Product Overview

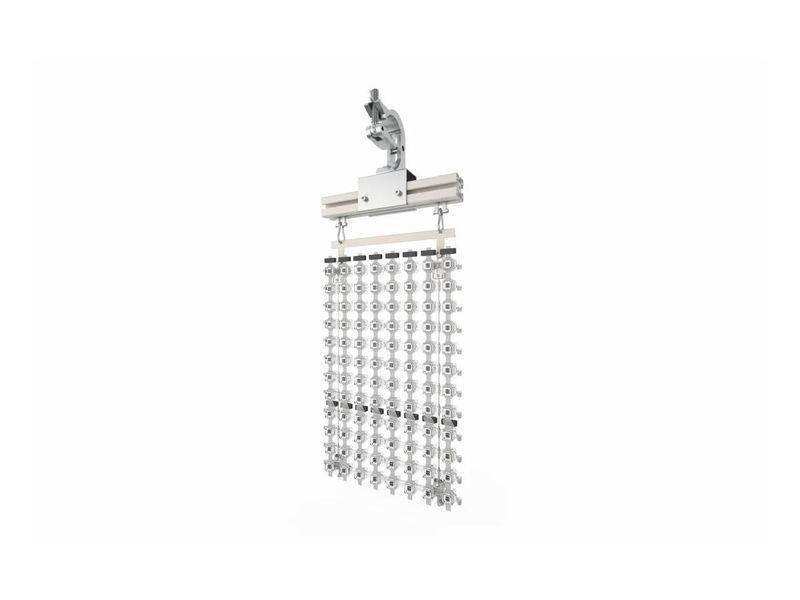

The LG GMBD035-GN4 is a flexible Direct View LED strip from LG's GMBD Essential series, with a 35mm pixel pitch and a single SMD configuration. Built on a plastic body with silicon cabling, it can be curved, folded, or rolled to form a wide range of shapes. With 7,500 nit brightness and an IP66 rating, it is suited to high-ambient and weather-exposed installations. Each strip measures 280 x 2,800 x 24.5mm.
Product Description
The GMBD strip is engineered for creative and architectural LED builds where rigid cabinets cannot follow the geometry. Its ability to be curved, folded, or rolled lets it conform to columns, curved facades, and sculptural forms for artistic, ornamental, or signage work. At 7,500 nit it remains legible in direct sunlight, and the IP66 rating protects against dust ingress and powerful water jets, supporting daytime and nighttime viewing on building exteriors and large events. The single-SMD package at a 35mm pitch is intended for medium-to-long viewing distances typical of large-format outdoor displays. Multiple strips tile to build the overall display surface.
Key Features
- 35mm Pixel Pitch — Single SMD for large-format, longer-distance viewing.
- 7,500 nit Brightness — Legible in direct sunlight.
- IP66 Rated — Dust-tight and protected against powerful water jets.
- Curve, Fold, or Roll — Conforms to columns, curved facades, and sculptural forms.
- Plastic Body, Silicon Cable — Flexible construction for creative geometry.
- Strip Size 280 x 2,800 x 24.5mm — Long-format module for large surfaces.
Typical Applications
As a high-brightness flexible cabinet, the GMBD035-GN4 builds displays for building facades, outdoor commercial signage, large events and stages, and creative architectural installations that require curved or sculptural LED surfaces.
Technical Specifications
| Specification | Value |
|---|---|
| Model | GMBD035-GN4 |
| Type | Flexible LED (DVLED) |
| Pixel Pitch | 35 mm |
| Pixel Configuration | Single SMD |
| Brightness | 7,500 nit |
| IP Rating | IP66 |
| Dimensions | 280 x 2,800 x 24.5 mm |
| Material | Plastic body, silicon cable |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Can this strip be bent? Yes. It can be curved, folded, or rolled to form a variety of shapes.
Is it weatherproof? It carries an IP66 rating, protecting against dust and powerful water jets.
How bright is it? 7,500 nit, suitable for direct-sunlight viewing.
What is the pixel pitch? 35mm, intended for large-format, longer-distance viewing.
