Product Overview

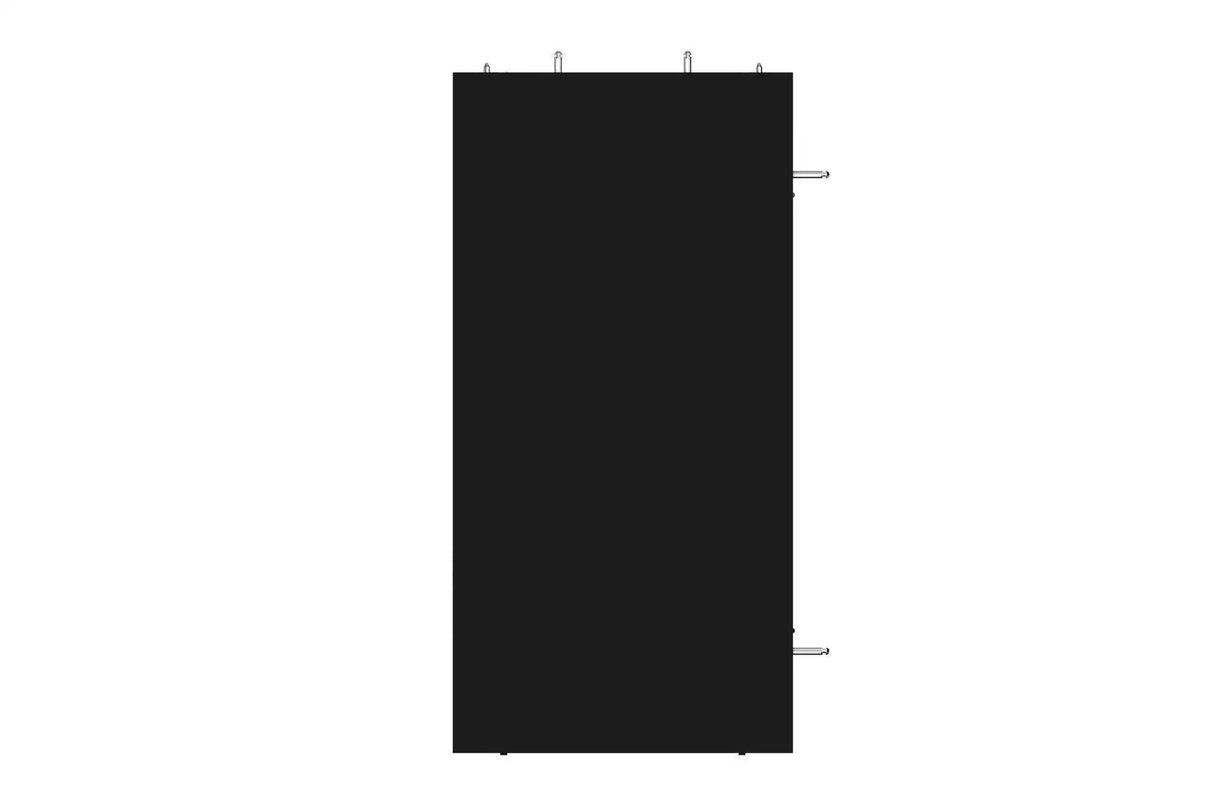

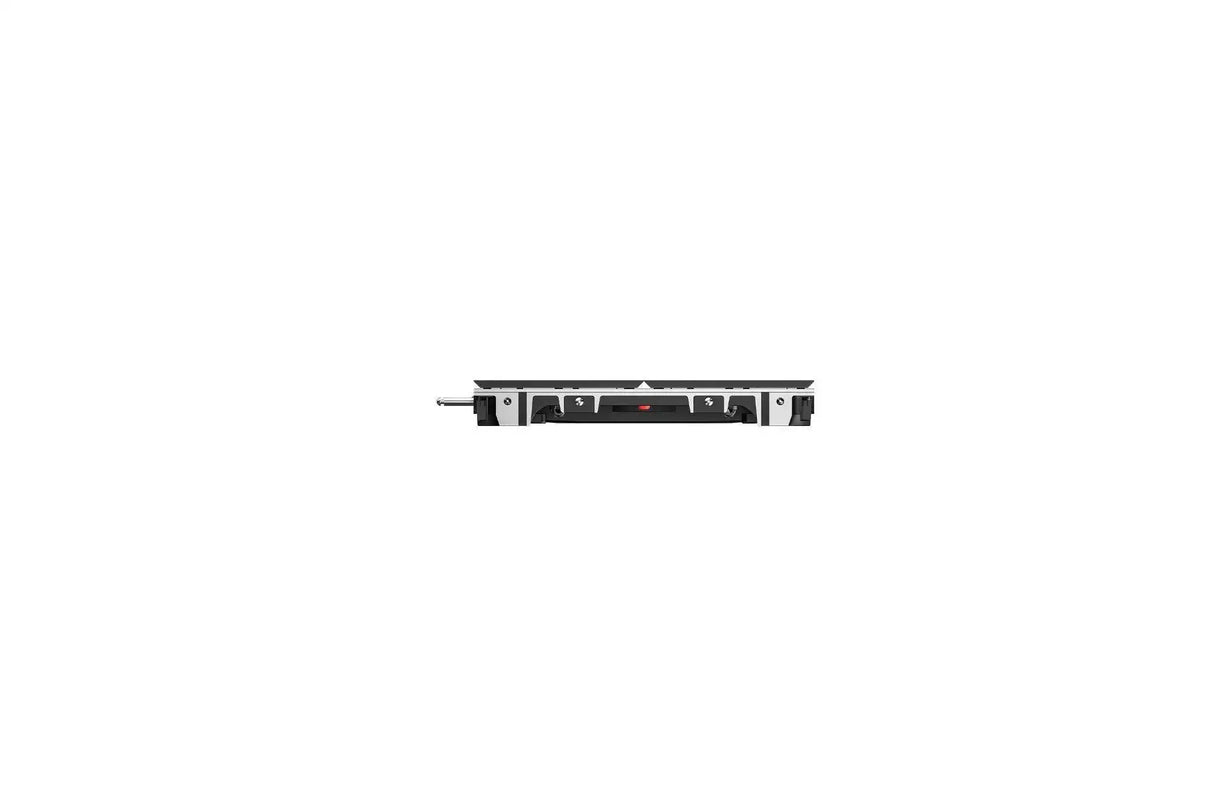

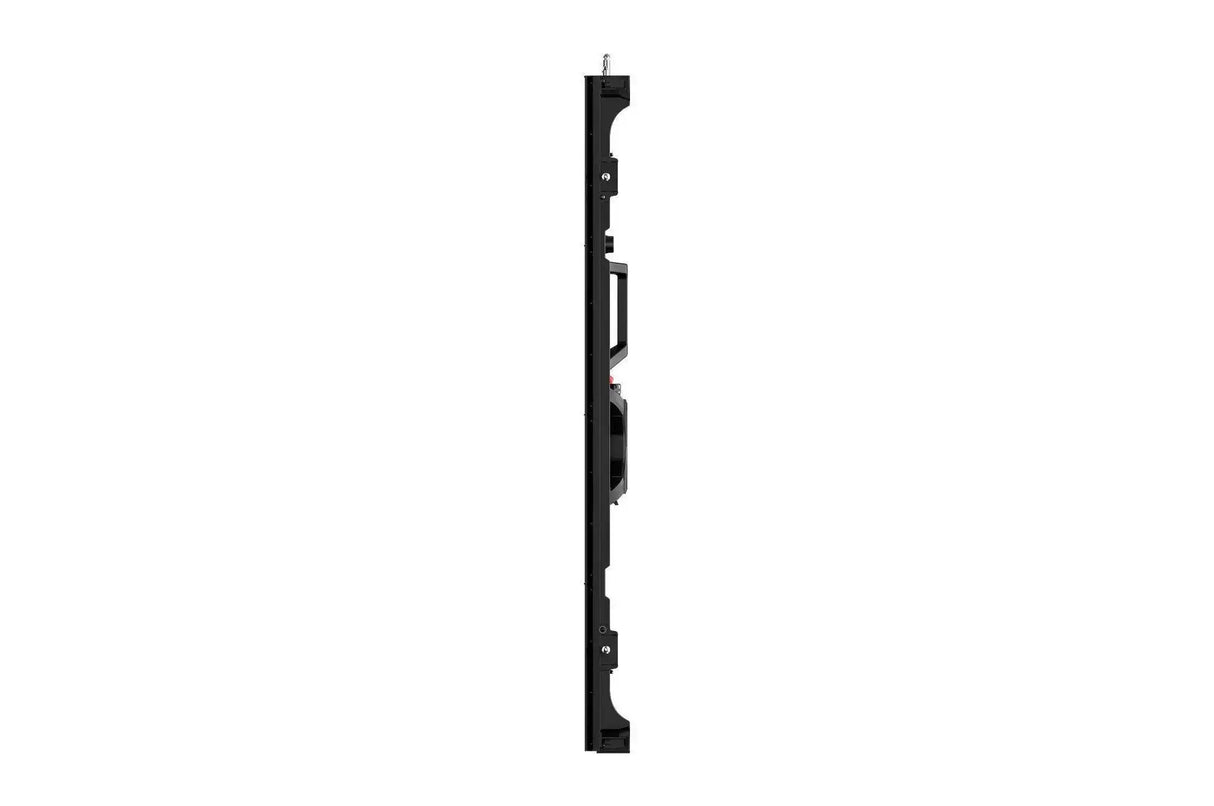

The LG LSBC029-GD is a 2.9mm pixel-pitch indoor cabinet from LG's LSBC Compact Direct View LED series. Each cabinet measures 500 x 1,000 x 68mm with a 168 x 336 resolution built from a 2x4 array of 250 x 250mm modules. It is engineered for fast installation and easy front or rear maintenance, and it runs LG webOS for content and management. The LSBC platform is a building block for indoor video walls.
Product Description

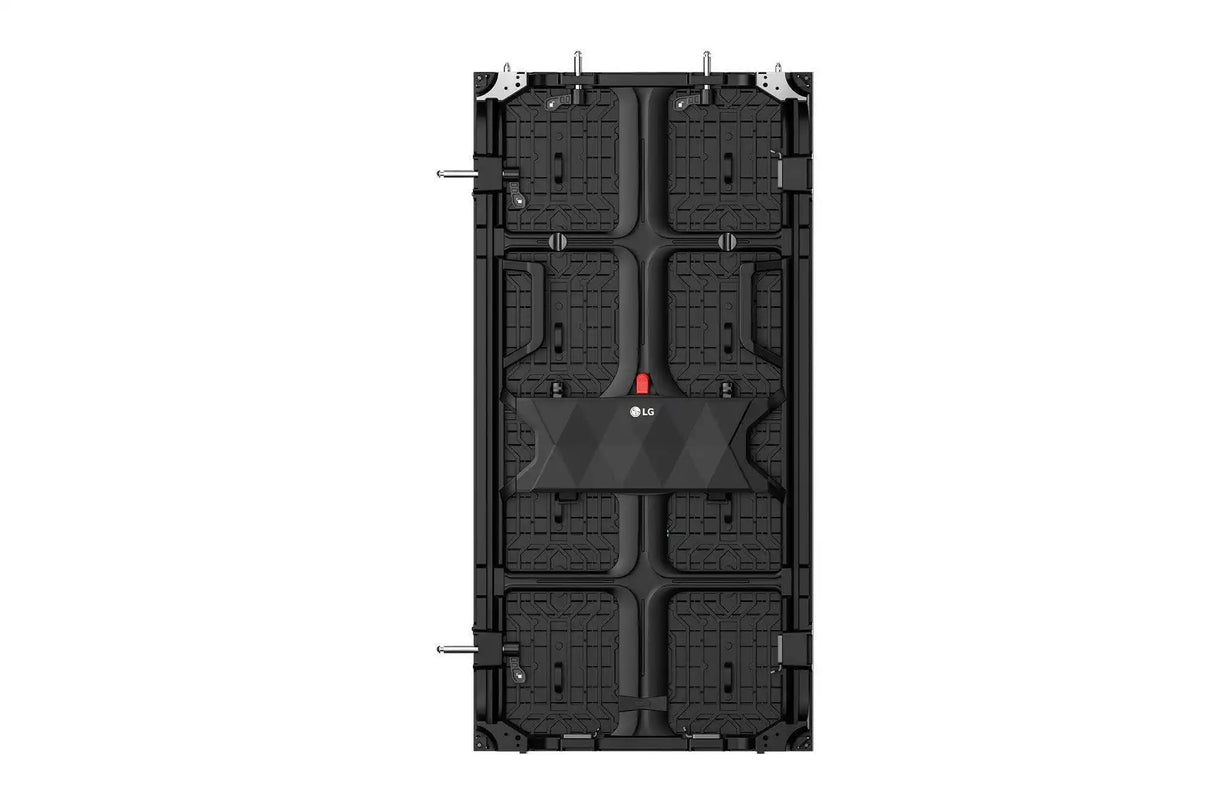

The LSBC029-GD uses a 3-in-1 SMD LED at a 2.976mm pitch, delivering a physical pixel density of 112,896 pixels per square meter. Rated brightness is 1,000 nit with a 5,000:1 typical contrast ratio and 16-bit processing that supports HDR10 and HDR10 Pro. The die-cast aluminum cabinet allows front or rear service access and uses a quick lock and flip design for fast module replacement. A 90-degree corner installation option is available as a free add-on on request. Powered by LG's system controller and webOS, it is compatible with LG software including SuperSign CMS, LED Assistant, and ConnectedCare. The cabinet weighs 12.0 kg, draws up to 300 W, operates from 100 to 240 V, and carries an IP5X front and rear rating with a rated lifetime of 100,000 hours to half brightness.
Key Features
- 2.976mm Pixel Pitch — 3-in-1 SMD for high-density indoor walls.
- 1,000 nit Brightness with HDR — HDR10 and HDR10 Pro at 16-bit processing.
- Front or Rear Service Access — Maintain modules from either side.
- Quick Lock & Flip Design — Tool-light installation and module replacement.
- 90-degree Corner Option — Free add-on for corner builds on request.
- Die-Cast Aluminum Cabinet — Rigid structure with 0.5 flatness.
- webOS Compatibility — Works with SuperSign CMS, LED Assistant, and ConnectedCare.
- 100,000-hour Lifetime — Rated to half brightness.
Typical Applications
As a high-density indoor cabinet, the LSBC029-GD builds walls for corporate lobbies, retail environments, control rooms, conference and briefing spaces, and corner installations where a continuous image wraps a 90-degree edge.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LSBC029-GD |
| Pixel Pitch | 2.976 mm |
| Pixel Configuration | 3-in-1 SMD |
| Brightness (Max, Calibrated) | 1,000 nit |
| Contrast Ratio | 5,000:1 (typ.) |
| Processing Depth | 16-bit (HDR10, HDR10 Pro) |
| Module Resolution | 84 x 84 |
| Cabinet Resolution | 168 x 336 |
| Cabinet Dimensions | 500 x 1,000 x 68 mm |
| Modules per Cabinet | 2 x 4 |
| Pixel Density | 112,896 pixels/m² |
| Weight per Cabinet | 12.0 kg |
| Power Consumption (Max) | 300 W |
| Power Supply | 100 to 240 V |
| IP Rating (Front / Rear) | IP5X / IP5X |
| Service Access | Front or Rear |
| Lifetime | 100,000 hours to half brightness |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Can it be installed in a corner? Yes. A 90-degree corner installation option is available as a free add-on on request.
How is it serviced? From the front or rear, using a quick lock and flip design for fast module replacement.
What software does it work with? LG SuperSign CMS, LED Assistant, and ConnectedCare via webOS.
What is the pixel pitch? 2.976mm with a 3-in-1 SMD package.
