LG LSBF015-GDR – LSBF DVLED P1.5 TAA R Mitre Cut Indoor Cabinet 600Nit 1200x675x72

Product Overview

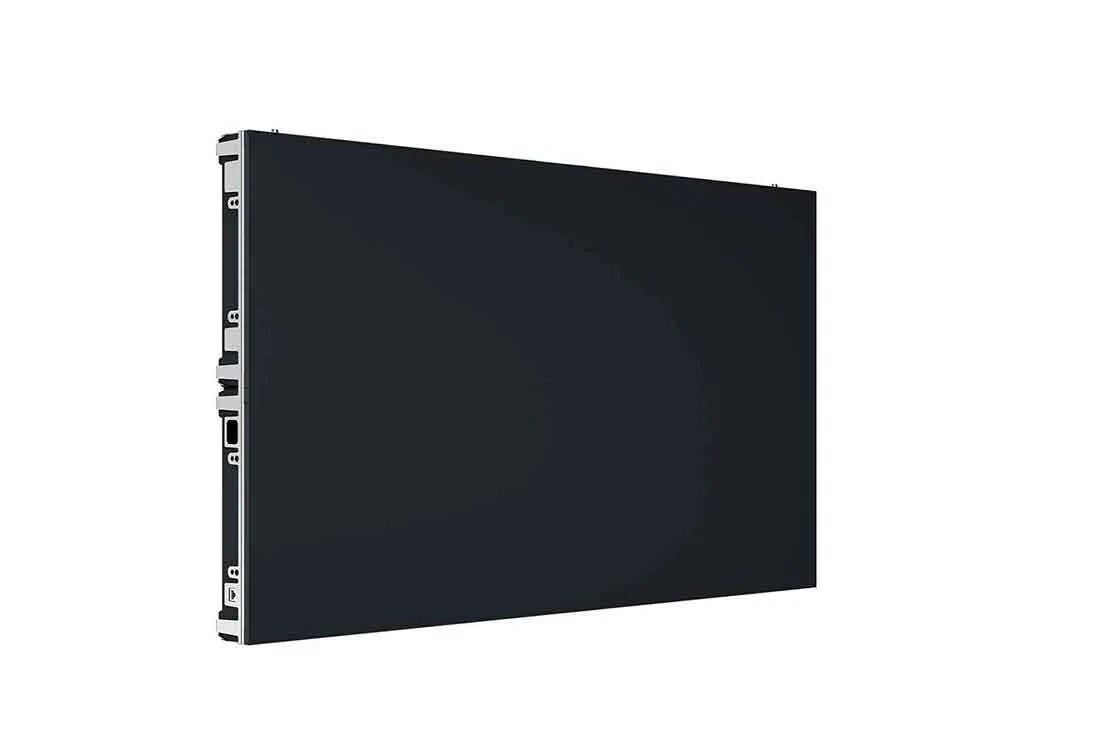

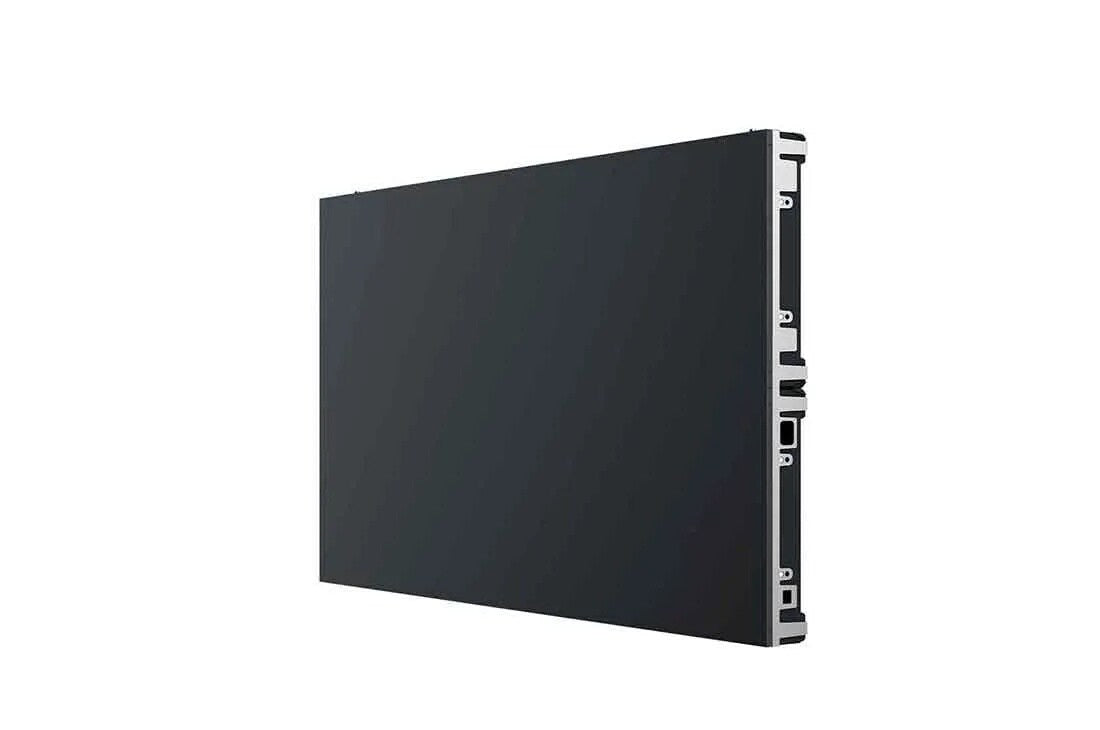

The LG LSBF DVLED P1.5 R Mitre Cut indoor LED cabinet is a direct-view LED cabinet with a right-side angled edge designed for corner and angled video wall configurations. The 1.56mm pixel pitch provides high image resolution at viewing distances starting around 5–7 feet, making it appropriate for boardrooms, command centers, corporate lobbies, and other close-proximity commercial display environments. The R mitre-cut edge enables this cabinet to serve as the right-side termination panel when transitioning the display around a corner or through an angle. TAA compliant and available at $6,649 MAP.

Product Description

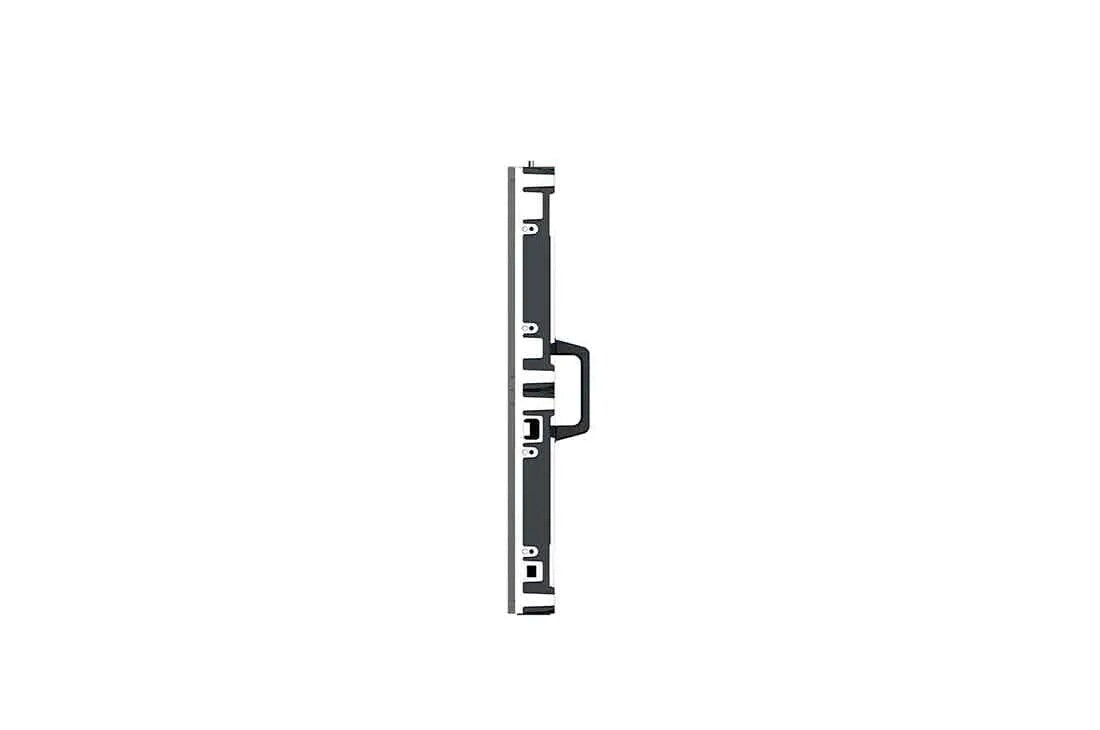

The right mitre-cut edge on this LSBF cabinet is machined to create a precise angled join when paired with a flat or L mitre-cut cabinet on the adjacent surface. This configuration is commonly used in 90-degree corner displays, V-shaped walls, and angled display alcoves found in corporate lobbies, retail environments, and conference spaces. The R mitre-cut variant is ordered as the right-side panel in these arrangements.

As with the full LSBF series, this cabinet includes signal detection status indicators integrated into the main frame, readable from both the front and rear of the installed unit. The diagnostic check button provides field technicians with a quick status verification method during installation or routine maintenance. Front serviceability allows individual LED module replacement without removing the cabinet from the mounting structure.

The 1.56mm pixel pitch combined with 600 nits of brightness delivers clear, detailed visuals in controlled indoor lighting. The 1200 x 675mm cabinet maintains a 16:9 aspect ratio that aligns with standard content and controller configurations.

Key Features

• 1.56mm Pixel Pitch — Supports close-range viewing from approximately 5 feet in indoor environments.
• R Mitre Cut Edge — Precision right-side angled edge for corner-wrap and angled video wall installations.
• Signal Detection Status Indicator — Frame-integrated indicator provides real-time signal and power status.
• Dual-Access Diagnostic Check Button — Reachable from both front and rear of the installed cabinet.
• Front Serviceability — LED modules replaceable from the front face without cabinet removal.
• Lightweight Cabinet Construction — Reduces cumulative load on mounting hardware in large arrays.
• 600-Nit Brightness — Suited for controlled indoor lighting conditions.
• TAA Compliant — Meets Trade Agreements Act requirements for eligible procurement.

Typical Applications

• Corporate lobby corner-wrap video walls
• Boardroom and conference room angled display configurations
• Command center multi-angle display walls
• Retail and hospitality kiosk corner panels
• House of worship corner stage screen transitions
• Auditorium side-extension panels
• Broadcast studio angled background configurations

Technical Specifications

Frequently Asked Questions

When do I need the R Mitre Cut versus the L Mitre Cut version?

Use the R mitre-cut cabinet as the right-side panel when your display transitions around a corner. Pair it with an L mitre-cut cabinet on the adjacent wall surface for a full 90-degree join. If the display only turns in one direction, only the corresponding side is needed.

Is this cabinet compatible with standard flat LSBF cabinets in the same array?

Yes. Mitre-cut and standard flat LSBF cabinets share the same depth and grid dimensions, allowing them to be combined within the same installation.

Can LED modules be serviced from the front?

Yes. The LSBF series supports front-access module replacement, allowing service technicians to swap modules without dismounting the cabinet.

What LED processor is compatible with this cabinet?

The LSBF series is compatible with standard commercial LED video processors. Contact Creation Networks for processor recommendations based on your installation size and signal requirements.

Is the LSBF015-GDR TAA compliant?

Yes, this cabinet is TAA compliant and eligible for government and federally funded AV installations.

What support does Creation Networks provide?

Creation Networks provides pre-sales design assistance, system configuration guidance, and post-sale support. Visit creationnetworks.net for more information.
