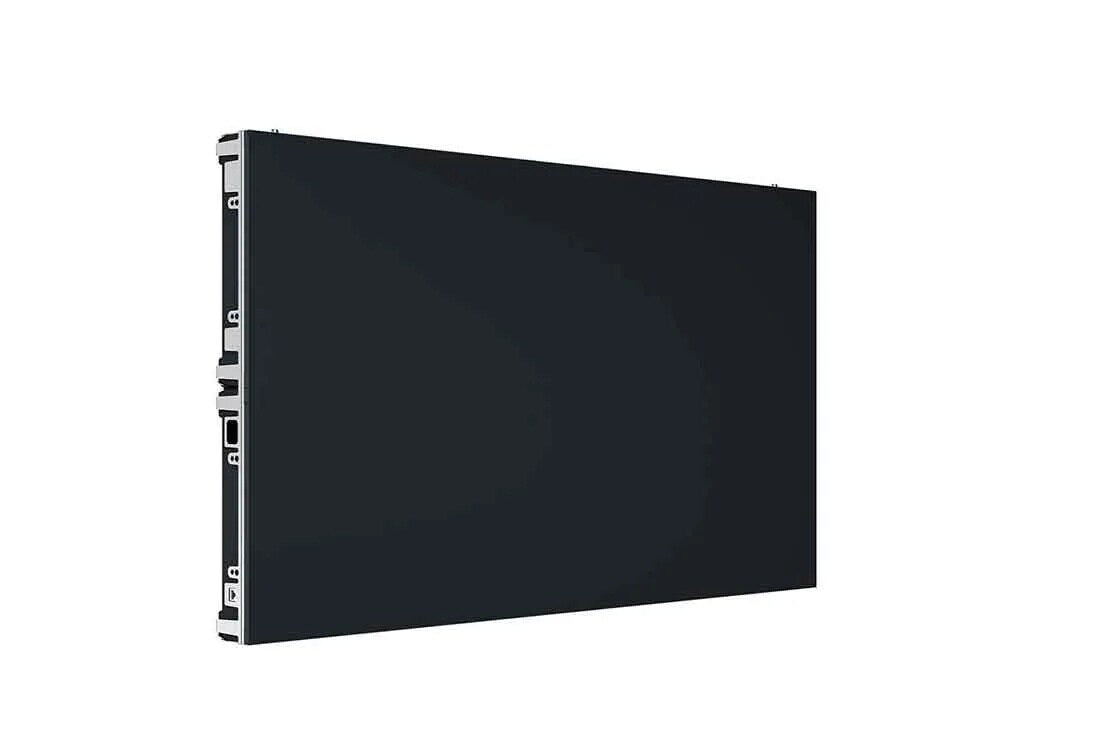

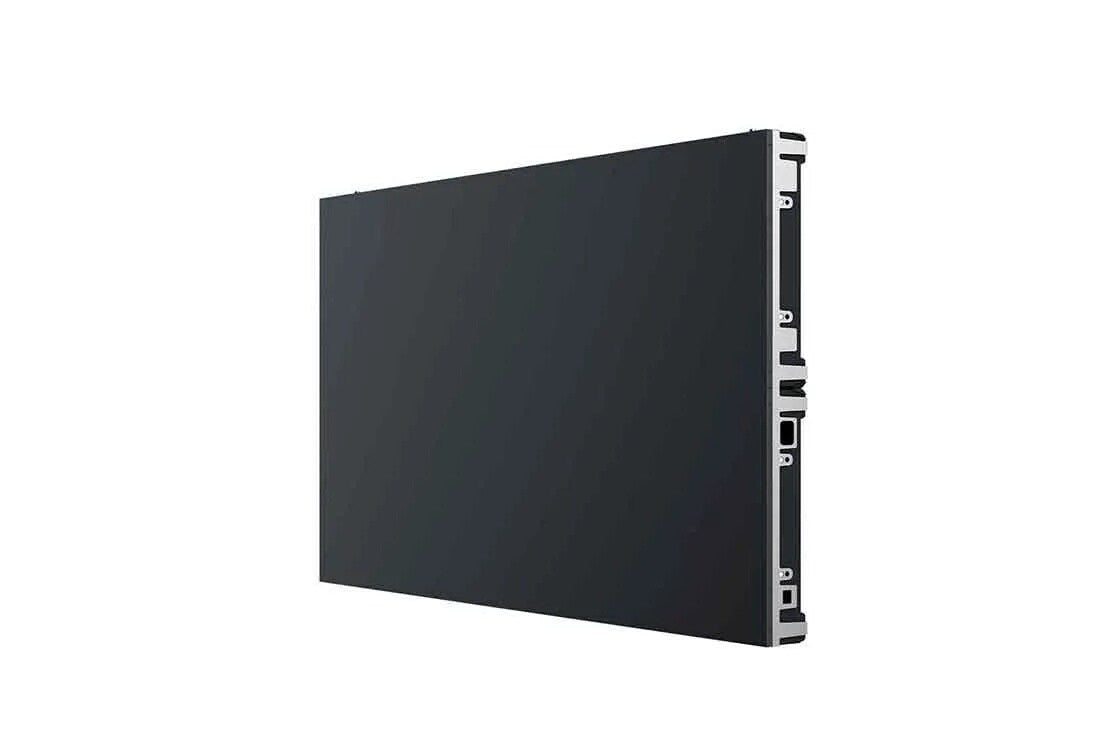

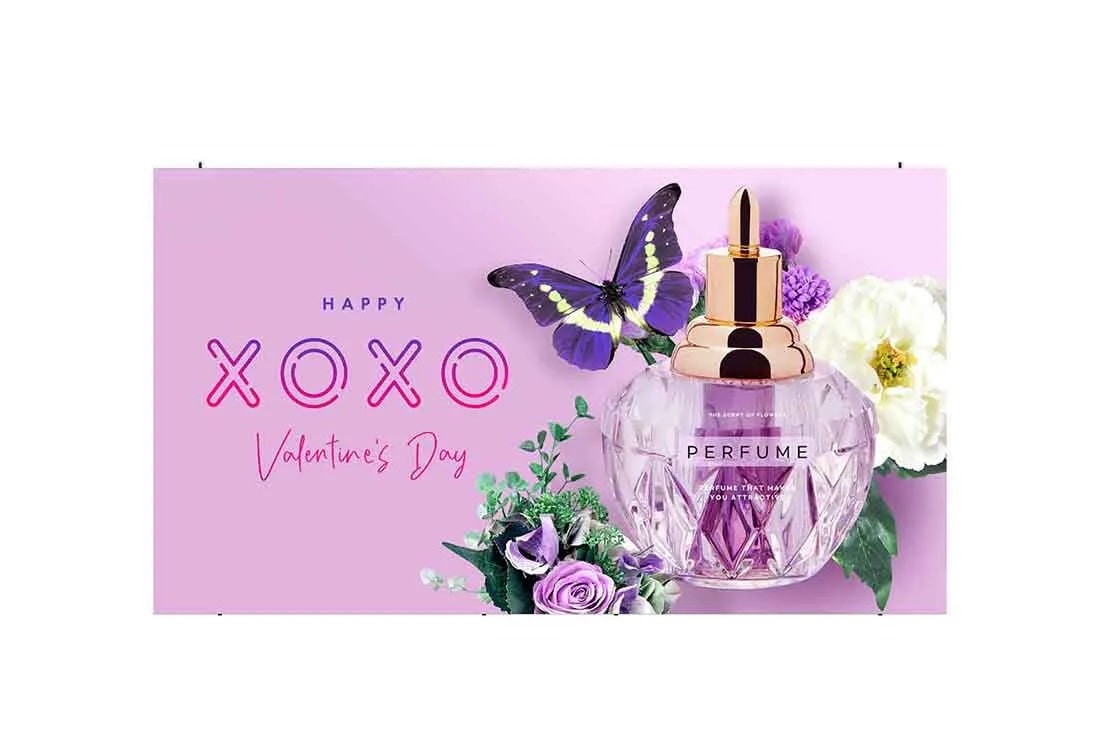

LG LSBF015-GDL – LSBF DVLED P1.5 TAA L Mitre Cut Indoor Cabinet 600Nit 1200x675x72

Product Overview

The LG LSBF DVLED P1.5 L Mitre Cut indoor LED cabinet is a direct-view LED cabinet designed for video wall installations that require a left-side angled edge join. The 1.56mm pixel pitch delivers detailed imagery for viewing distances from approximately 5–7 feet, and the left mitre-cut edge allows this cabinet to serve as the left-side termination panel in corner, angled, or V-shaped display configurations. At 1200 x 675 x 72mm with a 16:9 aspect ratio, this TAA-compliant cabinet integrates with standard LSBF flat cabinets in commercial LED video wall arrays.

Product Description

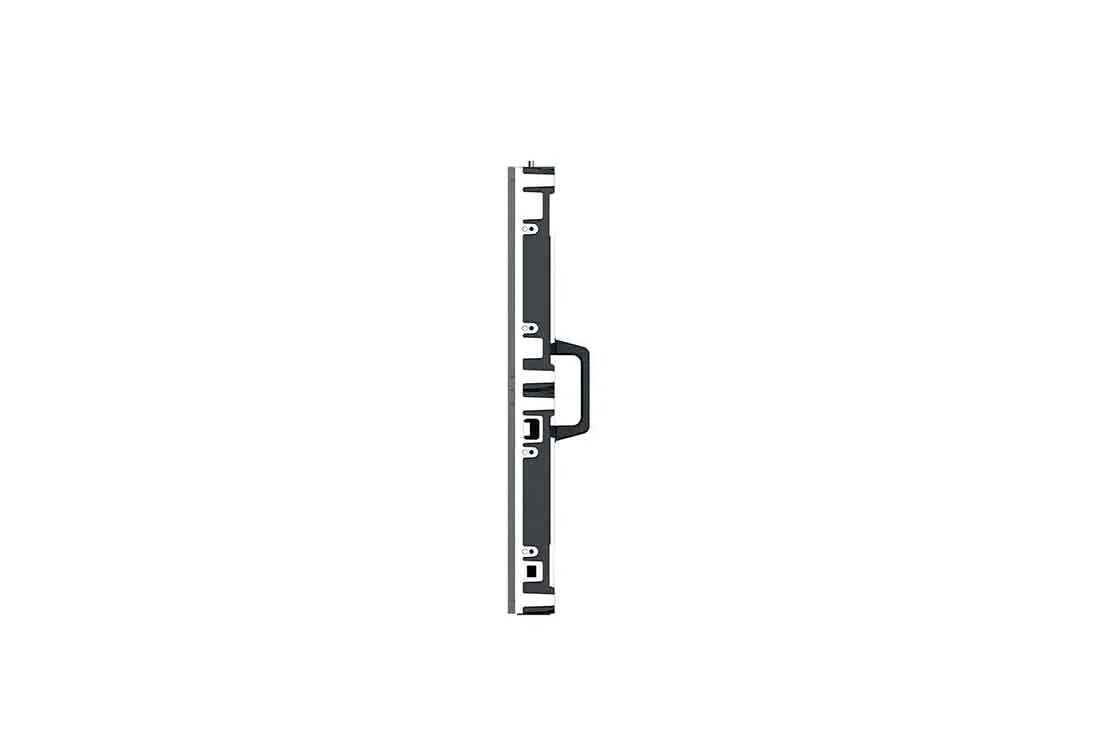

The L mitre-cut edge configuration is precision-machined to create a clean angled join on the left side of the cabinet. This enables the display to turn a corner or form an angled wall geometry when paired with matching R mitre-cut or flat cabinets. Typical use cases include corner-wrap displays in corporate lobbies, retail kiosks, and hospitality installations where a 90-degree or custom-angle panel transition is required.

LSBF series cabinets include status indicators and a diagnostic check button located in the main frame structure, accessible from both the front and rear of the installed unit. This dual-access design enables efficient field diagnosis and monitoring without requiring full access behind the installation. Front serviceability allows individual LED modules to be replaced from the front of the display without removing the cabinet from the wall.

The 1.56mm pixel pitch at 600 nits of brightness is suited to a broad range of controlled indoor lighting environments, from conference rooms and boardrooms to house of worship applications and command center displays where close-range viewing is expected.

Key Features

• 1.56mm Pixel Pitch — High pixel density for viewing distances from approximately 5 feet indoors.
• L Mitre Cut Edge — Precision left-side angled edge for corner joins and angled video wall configurations.
• Signal Detection Status Indicator — Integrated in the main cabinet frame for real-time signal and power status monitoring.
• Dual-Access Check Button — Accessible from both front and rear of the installed cabinet.
• Front Serviceability — LED modules accessible and replaceable from the front face without cabinet dismounting.
• Lightweight Cabinet Design — Reduces structural load on mounting systems in large-format arrays.
• 600-Nit Brightness — Appropriate for controlled indoor environments.
• TAA Compliant — Eligible for government and federally funded procurement.

Typical Applications

• Corporate lobby corner-wrap video walls
• Boardroom and conference room angled display configurations
• Retail kiosk and digital signage corner panels
• Command center and operations room multi-angle displays
• House of worship corner stage screens
• Auditorium side-wall display extensions
• Broadcast studio angled background panels

Technical Specifications

Frequently Asked Questions

When do I need an L Mitre Cut cabinet versus an R Mitre Cut?

Use the L mitre-cut cabinet (LSBF015-GDL) as the left-side termination when your display turns a corner to the left. Use the R mitre-cut for a right-side corner. Both are required for a full 90-degree corner join, one on each side of the transition.

Can the L mitre-cut cabinet be combined with standard flat LSBF cabinets?

Yes. Mitre-cut cabinets are designed to integrate into standard LSBF flat-panel arrays. They are used at corner or edge positions within the wall layout.

Does this cabinet support front module replacement?

Yes, the LSBF series supports front-access LED module replacement without removing the cabinet from the mounting structure, reducing maintenance time in permanent installations.

Is an LED video processor required?

Yes. A compatible LED controller or video processor is required to drive the cabinet array. Creation Networks can assist with processor and system design recommendations.

Is this product TAA compliant?

Yes, the LSBF015-GDL is TAA compliant and eligible for government, education, and federally funded AV projects.

What warranty is included?

LG commercial LED cabinets include LG's standard commercial warranty. Contact Creation Networks for current warranty terms.
