LG LSBF015-GDC – LSBF DVLED P1.5 TAA L/R Mitre Cut Indoor Cabinet 600Nit 1200x675x72

Product Overview

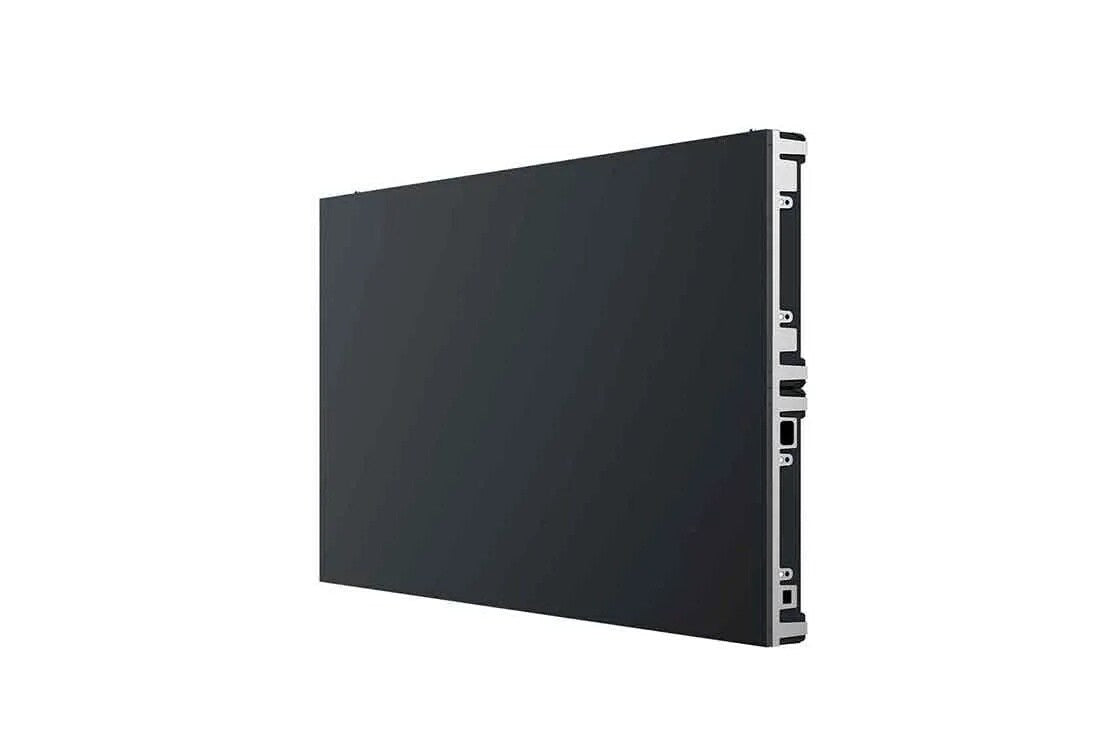

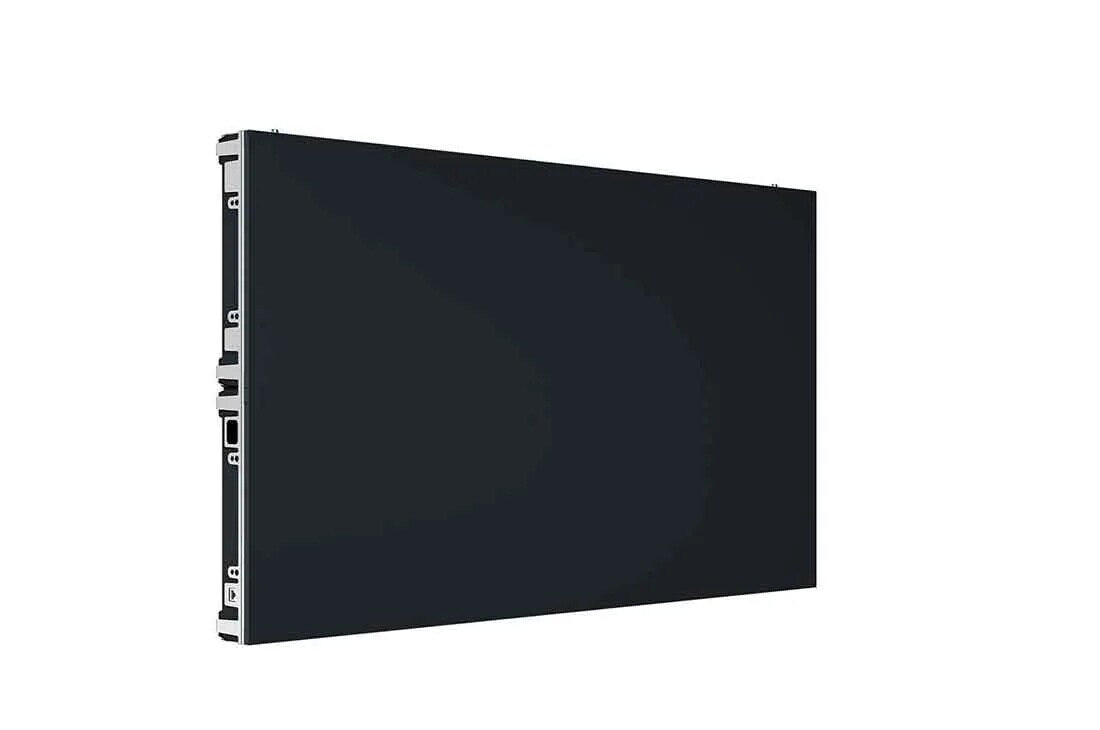

The LG LSBF DVLED P1.5 L/R Mitre Cut indoor LED cabinet is a direct-view LED cabinet designed for angular and corner video wall configurations. The 1.56mm pixel pitch provides high-resolution imagery at viewing distances from approximately 5–7 feet, and the L/R mitre-cut edge profile allows both left and right angled joins in a single cabinet, enabling V-shaped, corner-wrap, and multi-angle display geometries. At 1200 x 675 x 72mm with a 16:9 aspect ratio, this TAA-compliant cabinet fits standard commercial LED grid layouts and includes integrated front serviceability and signal status diagnostics.

Product Description

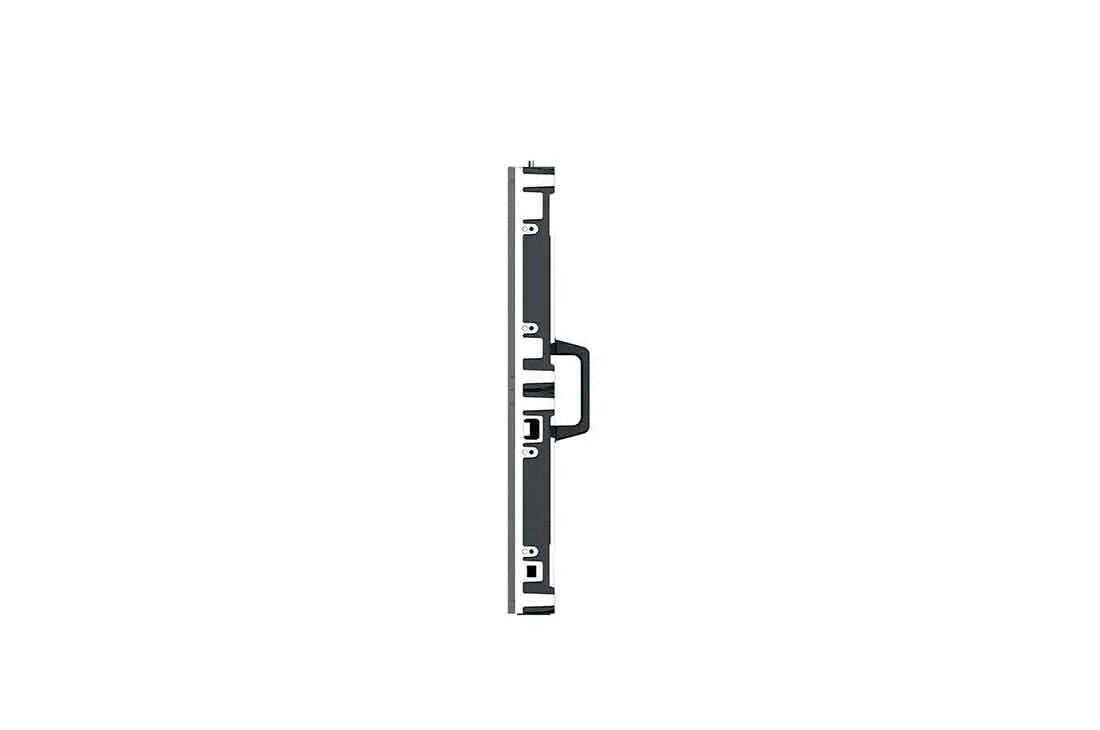

The L/R mitre-cut configuration is a specialized edge option that enables both left and right angled joins from a single cabinet unit. This is useful in installations where a display must transition through a corner in two directions, such as a three-sided kiosk wrap or a concave display alcove. Pairing L/R mitre-cut cabinets with standard flat cabinets allows integrators to design multi-angle walls without custom fabrication.

The LSBF series maintains the diagnostic and serviceability features consistent across the lineup: status indicators and a check button are integrated into the main frame and accessible from both the front and rear of the installed cabinet. Front module serviceability allows LED replacement without removing the cabinet from the wall, an important practical consideration in permanent commercial installations.

The 1.56mm pixel pitch delivers a balance of image resolution and coverage area per cabinet. At 600 nits of brightness, the cabinet is well-suited to controlled indoor lighting environments across corporate, institutional, and entertainment venue applications.

Key Features

• 1.56mm Pixel Pitch — Suitable for viewing distances from approximately 5 feet in indoor commercial environments.
• L/R Mitre Cut Edges — Both left and right angled edges on a single cabinet enable multi-direction corner joins without additional custom parts.
• Signal Detection Status Indicator — Integrated cabinet-frame indicator provides immediate signal and power status visibility.
• Dual-Access Diagnostic Check Button — Accessible from both front and rear of the installed unit.
• Front Serviceability — LED modules replaceable from the front face without cabinet dismounting.
• Lightweight Construction — Reduces cumulative structural load on mounting hardware in large arrays.
• 600-Nit Brightness — Calibrated for controlled indoor environments.
• TAA Compliant — Qualified for government and federally funded AV procurement.

Typical Applications

• Corner-wrap and multi-angle video wall installations
• Corporate lobby and atrium digital signage
• Boardroom and executive conference room displays
• Retail display environments with angled panel configurations
• Command center and operations room video walls
• House of worship stage displays with corner transitions
• Broadcast studio curved and angled background walls

Technical Specifications

Frequently Asked Questions

What is the difference between the L/R Mitre Cut and the standard L or R Mitre Cut versions?

The L/R mitre-cut cabinet has angled edges on both the left and right sides, allowing it to serve as a corner transition piece that joins panels on two directions simultaneously. The single L or R mitre-cut cabinets only have one angled edge.

Can this cabinet be combined with standard flat cabinets?

Yes. The mitre-cut cabinets are designed to integrate with standard LSBF flat cabinets in the same array. They are typically used as corner or edge transition units within a larger flat-panel wall.

Is front module replacement supported?

Yes. The LSBF series supports front-access LED module replacement without removing the cabinet from the mounting structure.

Does this product require an LED video processor?

Yes, a compatible LED controller or video processor is required. Creation Networks can assist with system design and processor selection.

Is the LSBF015-GDC TAA compliant?

Yes, this cabinet is TAA compliant and eligible for government and institutional procurement.

What is the warranty on this cabinet?

LG commercial LED cabinets carry LG's standard commercial warranty. Contact Creation Networks for current terms and support coverage.
