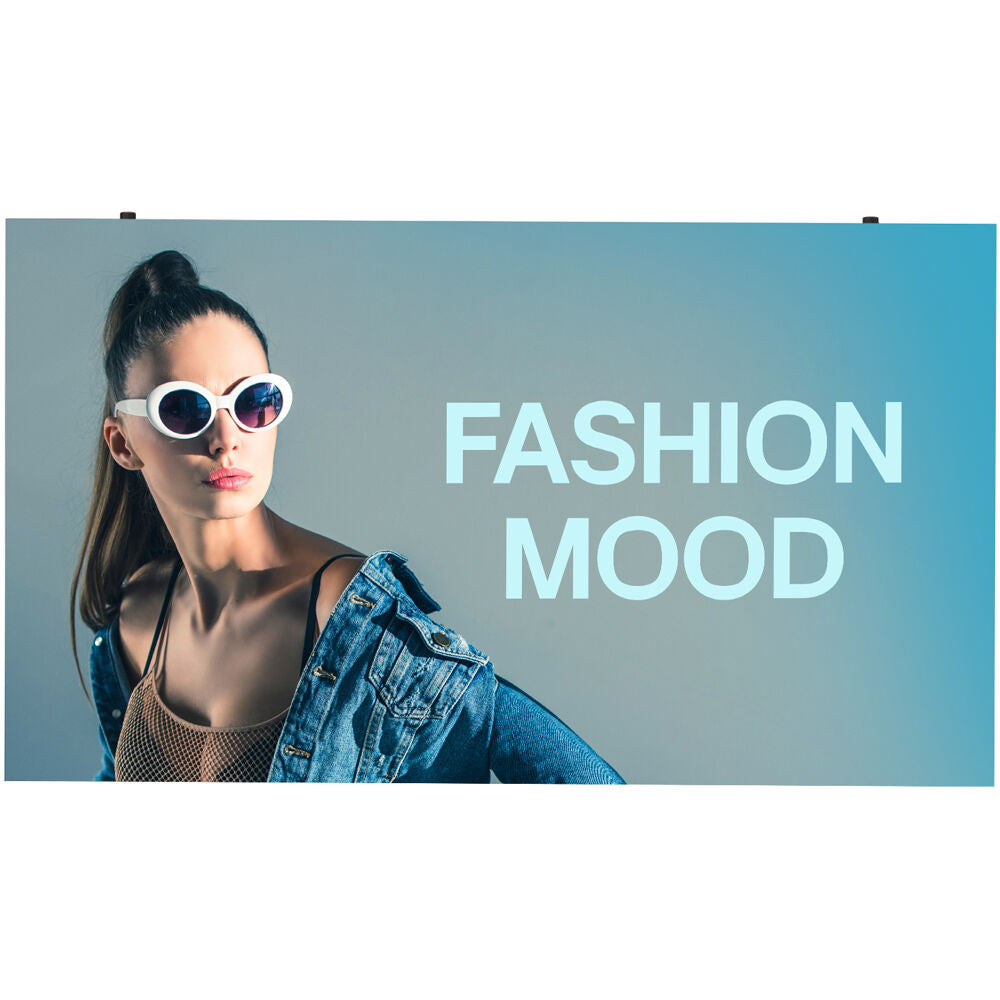

LG LSBE018-GDL – LSBE DVLED P1.8 TAA SMD L Mitre Cut Indoor Cabinet 600Nit 600x337.5x72

Product Overview

The LG LSBE018-GDL is a TAA-compliant 1.88 mm pixel pitch direct-view LED cabinet with a left-side mitre-cut edge, rated at 600 nits for indoor commercial video wall installations. The left mitre-cut provides a 45-degree angled edge on the left side of the cabinet, enabling a clean finished perimeter or seamless left-corner junction in architectural video wall configurations. The cabinet measures 600 x 337.5 x 72 mm and is compatible with LG software solutions. Durable frame construction and straightforward installation procedures support reliable long-term commercial deployment.

Product Description

The LSBE018-GDL is the left-side mitre-cut variant in LG's LSBE P1.88 mm DVLED series. The L designation specifies that only the left edge of the cabinet carries a 45-degree mitre cut; the right edge is flat. This cabinet is positioned at the left perimeter of a video wall installation to provide a finished edge without the flat side face that would otherwise create a visible border around the active LED area. In wrap-around video wall configurations, it is placed at the left-corner junction where two display sections meet at a right angle. Specifying the correct mitre-cut variant for each perimeter position — GDL for left, GDR for right, GDC for both — produces a complete, professionally finished video wall border. The 1.88 mm pixel pitch is suited for viewing distances of 6 to 8 feet, making this cabinet appropriate for conference rooms, corporate lobbies, hotel reception areas, and retail digital signage. At 600 nits, the cabinet is calibrated for indoor controlled-lighting environments. The durable frame provides structural integrity for permanent mounting configurations, and LG software solutions compatibility enables centralized management of multi-cabinet installations. TAA compliance qualifies the LSBE018-GDL for U.S. federal, state, and education procurement under GSA Schedule contracts.

Key Features

• Left-Side Mitre-Cut Edge (L) — 45-degree angled left edge for clean perimeter termination and seamless left-corner junctions in video wall configurations.
• 1.88 mm Pixel Pitch — Suitable for 6 to 8 foot viewing distances in conference rooms, lobbies, and retail environments.
• 600 Nit Brightness — Indoor-calibrated luminance for accurate color rendering in controlled-lighting commercial spaces.
• Easy Installation and Maintenance — Designed for efficient field deployment and module access for professional AV installers.
• Durable Frame Design — Robust cabinet construction ensures long-term mechanical integrity in permanent commercial installations.
• LG Software Solutions Compatible — Supports centralized monitoring, content scheduling, and system diagnostics across multi-display deployments.
• TAA Compliant — Qualifies for U.S. federal, state, and education procurement under GSA Schedule and Trade Agreements Act programs.

Typical Applications

• Left-perimeter and left-corner positions in corporate conference room video walls
• Hotel and hospitality lobby left-edge and corner finishing
• Retail interior video wall left-perimeter architectural treatment
• Museum and exhibit display edge installations
• Higher education presentation space video walls with finished borders
• U.S. government and education facility display installations

Technical Specifications

Frequently Asked Questions

When should I use the GDL over the GDC or GDR mitre-cut variants?

Use the GDL at positions where only the left edge of the cabinet needs a mitre cut — typically the left perimeter of the video wall or the left side of a specific corner junction. Use GDR for right-side positions and GDC where both edges of a single cabinet need mitre cuts. Contact Creation Networks for a complete cabinet position map.

Is the mitre cut applied to the active LED surface?

No. The mitre cut is on the side housing of the cabinet only. The full active LED pixel area on the front face is unchanged.

What viewing distance is appropriate for this cabinet?

A 1.88 mm pixel pitch supports comfortable viewing at approximately 6 to 8 feet, making the LSBE018-GDL suitable for medium to large conference rooms, hotel lobbies, and retail digital signage environments.

Is this product TAA compliant for government procurement?

Yes. The LSBE018-GDL meets TAA compliance requirements and qualifies for procurement under GSA Schedule contracts and U.S. federal, state, and education purchasing programs.

Can this cabinet be mixed with standard GD cabinets in the same video wall?

Yes. The GDL is designed to work alongside standard GD, GDR, and GDC variants within the same LSBE018 video wall installation.

How do I get a complete layout specifying all cabinet variants needed for my video wall?

Contact Creation Networks at creationnetworks.net for a full position-by-position cabinet map and system quote based on your display dimensions and edge treatment requirements.
