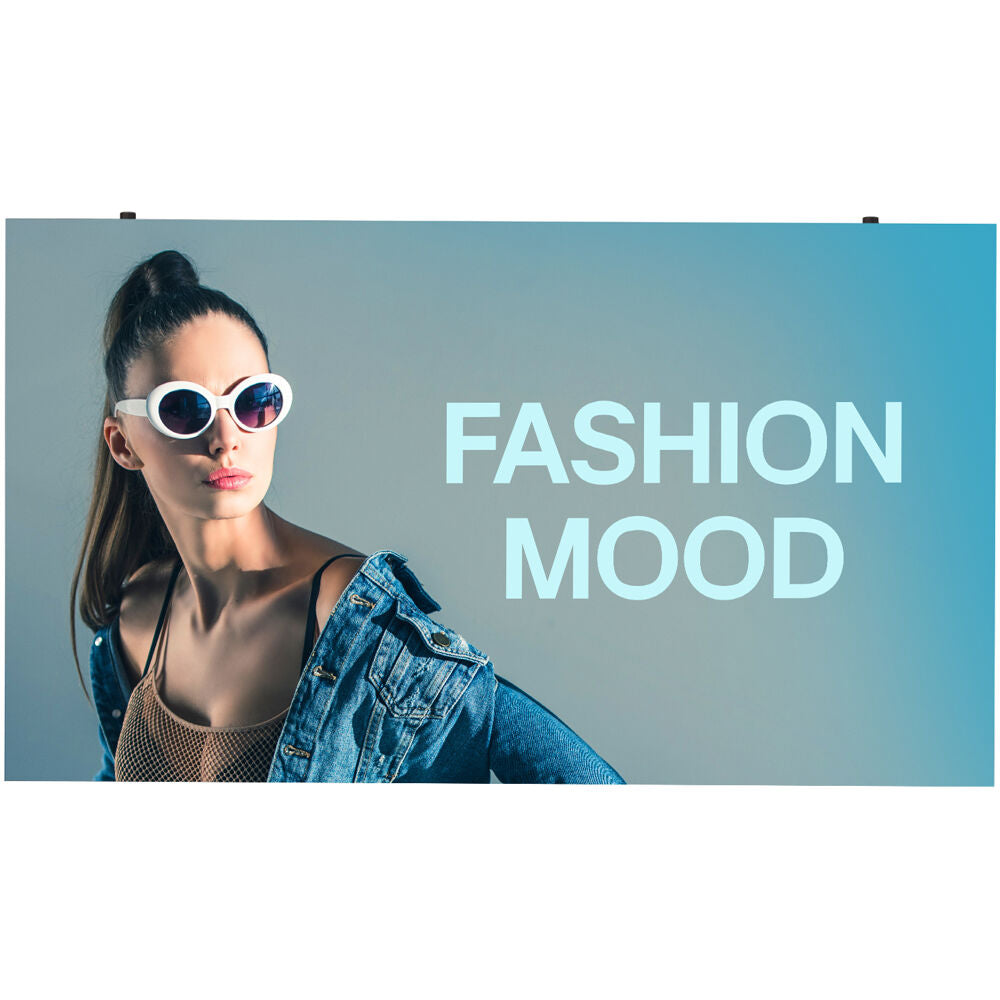

LG LSBE018-GD – LSBE DVLED P1.8 TAA Value SMD Indoor Cabinet 600Nit 600x337.5x72

Product Overview

The LG LSBE018-GD is a TAA-compliant 1.88 mm pixel pitch direct-view LED cabinet rated at 600 nits, designed for indoor commercial video wall installations. The cabinet measures 600 x 337.5 x 72 mm and uses a two-module construction per cabinet for simplified maintenance. LG software solutions compatibility supports centralized monitoring and management. Easy installation and a durable frame design make it a practical choice for permanent commercial deployments in conference rooms, lobbies, and retail environments.

Product Description

The LSBE018-GD is part of LG's LSBE Value SMD DVLED series, offering a 1.88 mm pixel pitch that provides a cost-effective balance between image resolution and per-cabinet price for commercial video wall installations where viewing distances are typically 6 to 8 feet. This pixel pitch is a versatile choice for medium to large conference rooms, corporate lobbies, hotel reception areas, and retail digital signage applications where audiences view the display from a moderate distance. At 600 nits, the brightness is well-calibrated for indoor environments with controlled or managed ambient lighting, delivering accurate color reproduction without unnecessary power consumption. The LSBE018-GD employs a two-module construction per cabinet, meaning each cabinet is formed by two LED modules. This design simplifies field service by allowing individual module replacement rather than full cabinet replacement when a service event occurs, which reduces parts cost and maintenance time over the life of the installation. The 600 x 337.5 x 72 mm cabinet dimensions define the standard LSBE tile, and multiple cabinets array together to form custom video wall sizes. TAA compliance qualifies this product for U.S. federal, state, and education procurement programs and GSA Schedule contracts. LG software solutions compatibility allows centralized monitoring, content scheduling, and health reporting for multi-display installations. The durable frame design provides mechanical integrity for long-term commercial use in permanent mounting configurations.

Key Features

• 1.88 mm Pixel Pitch — Practical pixel density for 6 to 8 foot viewing distances in medium to large conference rooms and lobby environments.
• 600 Nit Brightness — Indoor-calibrated luminance for accurate color rendering in controlled-lighting commercial spaces.
• Two-Module Per Cabinet Construction — Each cabinet uses two LED modules for simplified field maintenance and cost-effective module-level replacement.
• Easy Installation and Maintenance — Efficient cabinet handling and module replacement designed for professional AV integrators.
• Durable Frame Design — Robust cabinet construction ensures structural integrity for permanent commercial video wall installations.
• LG Software Solutions Compatible — Centralized monitoring, scheduling, and system management via LG's commercial display platform.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal, state, and education procurement and GSA Schedule eligibility.
• 600 x 337.5 x 72 mm Cabinet Form Factor — Standard LSBE tile dimensions for modular video wall construction at any target size.

Typical Applications

• Corporate conference rooms and meeting spaces
• Hotel and hospitality lobby and reception displays
• Retail interior digital signage and product showcase walls
• Healthcare facility information and wayfinding displays
• Higher education collaborative learning environments
• U.S. government and education facility display installations

Technical Specifications

Frequently Asked Questions

What viewing distance is the 1.88 mm pixel pitch designed for?

A 1.88 mm pixel pitch delivers comfortable image quality at viewing distances of approximately 6 to 8 feet, making the LSBE018-GD well-suited for medium and large conference rooms, hotel lobbies, and retail environments.

What does a two-module per cabinet construction mean for maintenance?

Each LSBE018-GD cabinet is assembled from two LED modules. If an LED module fails or requires replacement, the individual module can be swapped out rather than replacing the entire cabinet, which reduces parts cost and service time.

How does the LSBE018-GD differ from the LSBE015-GD and LSBE012-GD?

The three models share the same cabinet dimensions and series platform but differ in pixel pitch: 1.88 mm for LSBE018-GD, 1.56 mm for LSBE015-GD, and 1.25 mm for LSBE012-GD. The larger pitch of the LSBE018-GD makes it more cost-effective for longer viewing distances.

Is the LSBE018-GD eligible for U.S. government procurement?

Yes. TAA compliance qualifies the LSBE018-GD for procurement under GSA Schedule contracts and U.S. federal, state, and education programs requiring Trade Agreements Act compliance.

Does this cabinet work with LG's software management tools?

Yes. The LSBE018-GD is compatible with LG's commercial display management software for centralized system monitoring, content scheduling, and health diagnostics across multi-cabinet deployments.

How do I calculate how many cabinets I need for a specific video wall?

Divide your target display dimensions by the 600 x 337.5 mm cabinet tile size for an approximate cabinet count. Contact Creation Networks for a precise layout plan and complete system quote.
