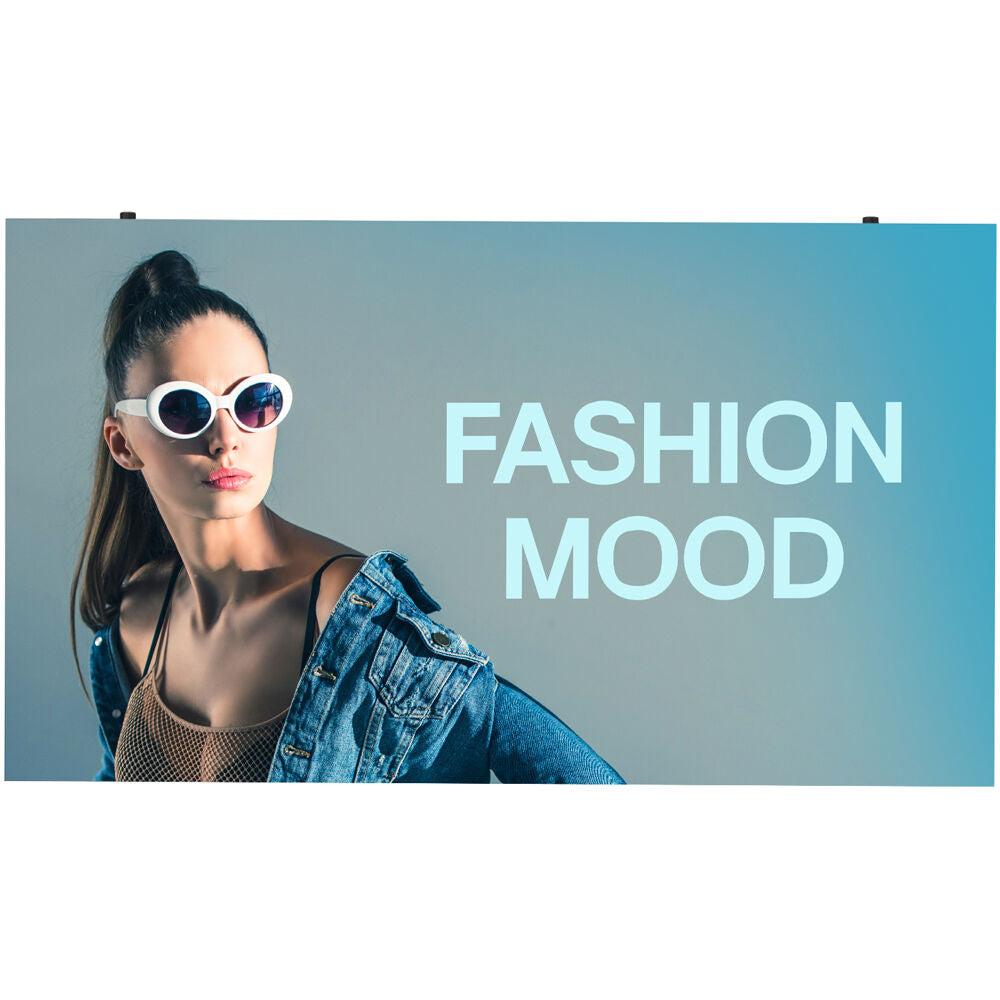

LG LSBE015-GDC – LSBE DVLED P1.5 TAA SMD L/R Mitre Cut Indoor Cabinet 600Nit 600x337.5x720 nit

Product Overview

The LG LSBE015-GDC is a TAA-compliant 1.56 mm pixel pitch direct-view LED cabinet with left and right mitre-cut edges, rated at 600 nits for indoor commercial video wall installations. The mitre-cut design allows adjacent cabinet rows to meet at a precise 45-degree angle, enabling seamless corner and edge transitions in architectural video wall configurations. The cabinet measures 600 x 337.5 x 72 mm and is compatible with LG software solutions for centralized display management. Easy installation and maintenance features reduce commissioning time and ongoing service effort.

Product Description

The LSBE015-GDC is the L/R (left and right) mitre-cut cabinet variant in LG's LSBE P1.56 mm DVLED line, designed specifically for video wall installations that require a finished edge treatment or a 90-degree corner wrap. The mitre-cut edge profile means the cabinet's side faces are angled at 45 degrees, allowing two cabinets with mitre-cut edges to butt together at a corner without requiring a gap or special corner bracket. This produces a clean, professional edge on the perimeter of a video wall, or a seamless corner join where the video wall turns at a right angle. The L/R designation means a single cabinet includes both left and right mitre cuts, making it functional as either the left-side or right-side terminating cabinet in a video wall edge row, or as a corner piece in a wrap-around configuration. The 1.56 mm pixel pitch delivers sharp imagery at viewing distances of approximately 5 to 7 feet, appropriate for conference rooms, lobbies, and retail environments where the audience is at a moderate distance from the display. At 600 nits, the cabinet is calibrated for indoor controlled-lighting environments with accurate color rendering. A durable frame design provides structural integrity during installation and long-term use. Compatibility with LG software solutions supports centralized monitoring, scheduling, and content management across multi-display deployments. TAA compliance qualifies this cabinet for U.S. government and federally funded procurement programs under GSA Schedule contracts.

Key Features

• L/R Mitre-Cut Edge Design — Both left and right cabinet edges are mitre-cut at 45 degrees for seamless corner transitions and clean perimeter edge treatment in video wall installations.
• 1.56 mm Pixel Pitch — Delivers detailed imagery at 5 to 7 foot viewing distances for conference rooms, lobbies, and retail environments.
• 600 Nit Brightness — Indoor-calibrated luminance for accurate color reproduction in controlled-lighting environments.
• Easy Installation and Maintenance — Designed for efficient field deployment and service with accessible module handling.
• Durable Frame Design — Robust cabinet structure provides long-term mechanical integrity in permanent commercial installations.
• LG Software Solutions Compatible — Integrates with LG's commercial display management platform for centralized monitoring and scheduling.
• TAA Compliant — Qualifies for U.S. federal, state, and education procurement under GSA Schedule and Trade Agreements Act programs.
• 600 x 337.5 x 72 mm Cabinet Form Factor — Standard LSBE tile dimensions for modular video wall construction.

Typical Applications

• Corporate conference rooms and boardrooms requiring finished edge video walls
• Hotel and hospitality lobby corner-wrap feature displays
• Retail interior corner-junction video wall configurations
• Museum and exhibit environments with architectural edge treatments
• Higher education presentation spaces with custom video wall layouts
• U.S. government and education facility display installations

Technical Specifications

Frequently Asked Questions

What is a mitre-cut edge on a DVLED cabinet?

A mitre cut is a 45-degree angled cut on the edge face of the cabinet. When two mitre-cut cabinets are placed together at a corner, their angled edges join flush at 90 degrees without a visible gap or bezel, creating a seamless corner junction or clean perimeter edge on the video wall.

What is the difference between the GDC (L/R mitre), GDL (left only), and GDR (right only) variants?

The GDC has both the left and right edges mitre-cut, making it a dual-use cabinet for either side of the display perimeter or for corner wraps. The GDL has only the left edge mitre-cut, and the GDR has only the right edge mitre-cut, for specific left or right perimeter termination.

Do I need mitre-cut cabinets for every installation?

No. Mitre-cut cabinets are used specifically at the edges and corners of a video wall when a finished border or corner-wrap is required. Interior cabinet positions use standard flat cabinets. Contact Creation Networks to determine which combination of standard and mitre-cut cabinets your project requires.

Is this cabinet TAA compliant for government purchasing?

Yes. The LSBE015-GDC is TAA compliant and eligible for procurement under GSA Schedule contracts and U.S. federal, state, and education programs requiring Trade Agreements Act compliance.

Can the LSBE015-GDC be used alongside standard GD cabinets in the same video wall?

Yes. Mitre-cut cabinets are designed to integrate directly with standard LSBE015-GD cabinets within the same video wall installation. The GDC units occupy perimeter and corner positions, while GD units fill the interior rows.

How do I plan which cabinets I need for a complete video wall with mitre-cut edges?

Contact Creation Networks at creationnetworks.net. Our team can produce a complete cabinet map specifying which positions require standard GD, left-cut GDL, right-cut GDR, or dual-cut GDC cabinets based on your display layout and corner configuration.
