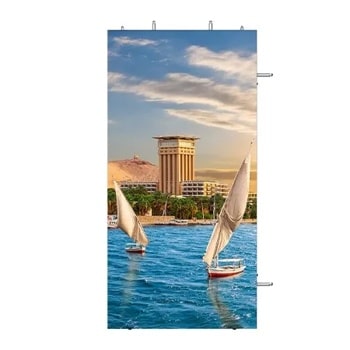

LG LSBC026-GD – LSBC Series DVLED, P2.60, 192x384 resolution, Standard Panel/Cabinet

Product Overview

The LG LSBC026-GD is a 2.60 mm pixel pitch direct-view LED standard panel cabinet with a 192x384 resolution, designed for indoor commercial video wall installations. Rated at 1,000 nits, it supports environments with moderate ambient lighting while delivering HDR-capable color reproduction. The Quick Lock and Flip installation mechanism reduces module installation and replacement time, while front and rear access options support a wide range of mounting configurations. A 90-degree corner installation option enables L-shaped and wrap-around video wall designs.

Product Description

The LSBC026-GD is part of LG's LSBC Compact Series, providing a 2.60 mm pixel pitch suited for indoor environments where viewing distances are typically 8 feet or greater. This pixel density makes it cost-effective for larger display installations such as hotel lobbies, retail floors, auditoriums, and large conference rooms where fine-pitch panels would exceed the project's visual requirements. At 1,000 nits, the cabinet delivers adequate brightness for environments with overhead fluorescent or LED lighting, maintaining color accuracy and legibility without creating eye fatigue in ambient-light viewing conditions. The 192x384 per-cabinet resolution is larger than the DD variant in the same series, providing more pixels per tile and allowing larger video walls to be assembled with fewer total cabinets. HDR support enables content with expanded dynamic range to render accurately, with brighter highlights and deeper shadow detail that standard dynamic range displays cannot reproduce. The Quick Lock and Flip mechanism allows LED modules to be installed and replaced with a single motion, significantly reducing installation labor and service time compared to traditional fastener-based designs. Both front and rear access options allow the cabinet to be serviced from either direction based on the installation environment. The 90-degree corner installation option supports video walls that wrap around architectural corners without gaps or misalignment. Compatible with LG software solutions for centralized display management across multi-cabinet deployments.

Key Features

• 2.60 mm Pixel Pitch — Practical pixel density for large-format indoor installations where viewing distances of 8 feet or more are standard.
• 1,000 Nit Brightness — Sufficient luminance for environments with moderate ambient lighting, maintaining color accuracy and readability.
• HDR Support — Expanded dynamic range processing produces deeper contrast and more accurate highlight reproduction for video and branded content.
• 192x384 Cabinet Resolution — Larger standard panel resolution reduces total cabinet count for a given video wall size compared to smaller cabinet configurations.
• Quick Lock and Flip Design — Tool-free module installation and replacement mechanism reduces labor time during deployment and field service.
• Front and Rear Accessibility — Dual service access options accommodate both wall-flush and freestanding mounting configurations.
• 90-Degree Corner Installation — Supports wrap-around and L-shaped video wall designs for retail, hospitality, and exhibit environments.
• LG Software Solutions Compatible — Integrates with LG's commercial display management platform for centralized monitoring and control.

Typical Applications

• Hotel and hospitality lobby and event space video walls
• Retail floor digital signage and promotional display walls
• Large corporate conference rooms and boardrooms
• Higher education auditoriums and lecture theaters
• Airport concourse and transit facility public information displays
• Entertainment venue interior feature walls
• Trade show and exhibit immersive display environments

Technical Specifications

Frequently Asked Questions

What is the recommended viewing distance for a 2.60 mm pixel pitch cabinet?

For comfortable viewing, a minimum distance of approximately 8 feet is recommended for a 2.60 mm pixel pitch. This makes the LSBC026-GD well-suited for lobbies, auditoriums, retail floors, and large conference rooms.

How does the Quick Lock and Flip mechanism work?

LED modules are inserted into the cabinet frame and lock into position with a single downward motion. To remove a module for service, it is flipped outward using a release mechanism — no tools required. This design reduces installation labor and speeds up field service calls.

Is the LSBC026-GD brighter than the LSBC026-DD?

The GD variant is rated at 1,000 nits. The DD variant does not publish a brightness spec in this data set but is the smaller cabinet configuration. The GD's higher brightness makes it better suited for environments with moderate ambient lighting.

Can this cabinet be used in a retail environment with overhead lighting?

Yes. At 1,000 nits, the LSBC026-GD is adequate for most retail environments with standard overhead LED or fluorescent lighting. For extremely bright environments, consult Creation Networks to determine if a higher-brightness cabinet is appropriate.

What LG software does this cabinet support?

The LSBC Series is compatible with LG's commercial display management software tools for centralized monitoring, scheduling, and content control. Contact Creation Networks or LG directly for specific software version compatibility.

How many LSBC026-GD cabinets are needed for a typical video wall?

The cabinet count depends on your target display size. Contact Creation Networks for a custom layout and total system quote based on your project dimensions and viewing requirements.
