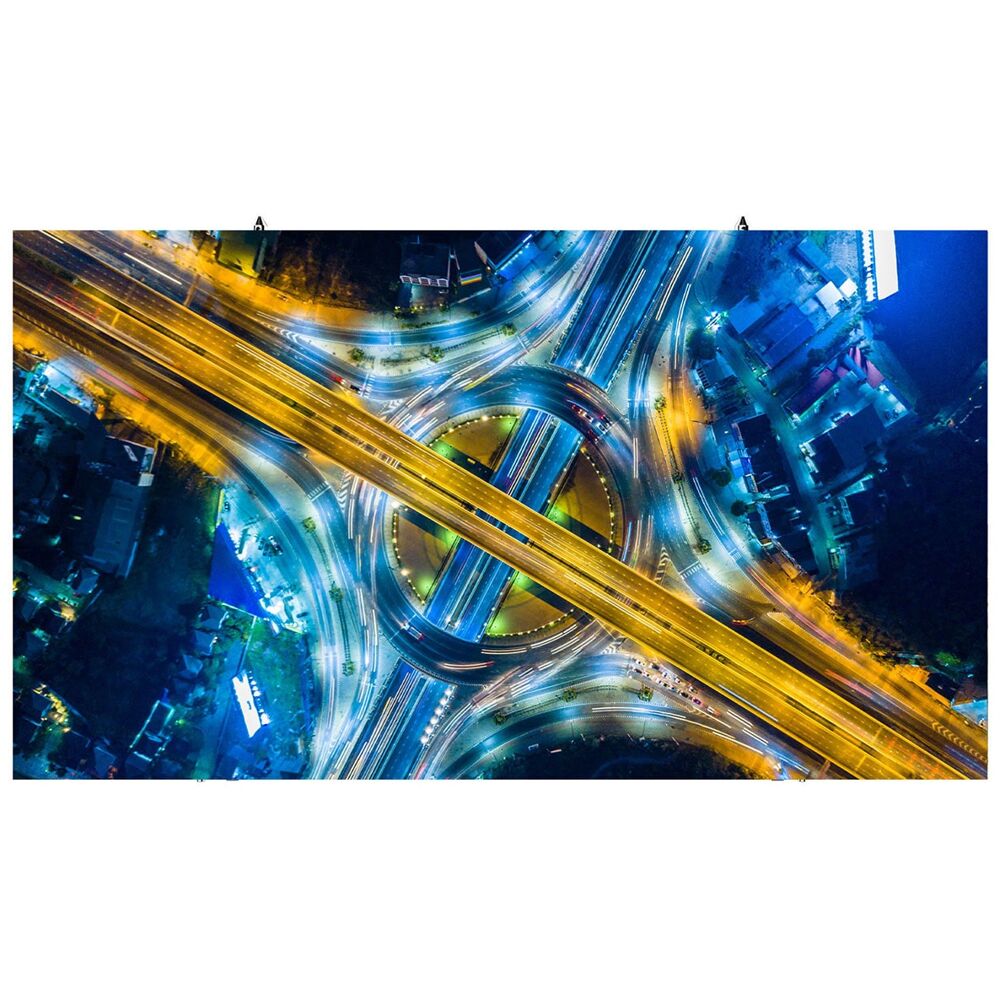

LG LSBB012-GD – LSBB DVLED P1.2 Value SMD Indoor Cabinet 600Nit 600x337.5x56

Product Overview

The LG LSBB012-GD is a 1.25 mm fine-pitch direct-view LED cabinet designed for indoor commercial digital signage and video wall installations. Rated at 600 nits brightness, it delivers clear, consistent imagery in controlled lighting environments such as lobbies, conference centers, and retail interiors. The cabinet measures 600 x 337.5 x 56 mm, offering a slim profile that simplifies integration into tight architectural spaces. Front serviceability and a lightweight construction reduce installation complexity and ongoing maintenance time.

Product Description

The LSBB012-GD belongs to LG's LSBB Value SMD DVLED cabinet line, designed to provide fine-pitch LED performance at a cost-effective price point for commercial integrators and end users. The 1.25 mm pixel pitch supports viewing distances as close as 4 to 5 feet, making it a practical choice for conference rooms, reception areas, and retail environments where audiences are in close proximity to the display. At 600 nits, the brightness level is well-calibrated for indoor environments with controlled or indirect ambient lighting, producing accurate color rendering without overdriving the LEDs unnecessarily. The slim 56 mm cabinet depth reduces wall protrusion and simplifies mounting in applications where depth clearance is limited. A Signal Detection Status Indicator is integrated into the cabinet frame, providing technicians with a quick visual health check during installation and routine maintenance without requiring additional diagnostic equipment. Front serviceability means modules and components can be accessed from the display face, which is essential in installations where rear access is obstructed by wall mounts or structural elements. The lightweight cabinet construction reduces physical handling strain during installation, lowering the risk of damage to the panels and reducing labor requirements on the installation crew. Multiple LSBB012-GD cabinets tile horizontally and vertically to build custom video walls at any target size or aspect ratio.

Key Features

• 1.25 mm Pixel Pitch — Fine-pitch LED spacing delivers sharp, detailed imagery at close viewing distances for conference rooms and retail environments.
• 600 Nit Brightness — Calibrated for indoor controlled-lighting environments with accurate color rendering and comfortable luminance levels.
• Signal Detection Status Indicator — Built-in health monitoring indicator allows technicians to quickly assess cabinet signal status during installation and maintenance.
• Front Serviceability — All components are accessible from the front face, enabling maintenance even when rear cabinet access is restricted.
• Slim 56 mm Cabinet Depth — Low-profile construction reduces wall protrusion and simplifies integration in space-constrained mounting environments.
• Lightweight Cabinet Design — Reduced weight lowers installation handling effort and decreases risk of panel damage during deployment.
• Modular Tiling Architecture — Cabinets tile in any configuration to create custom video wall dimensions and aspect ratios.
• SMD LED Technology — Surface-mount device LED construction provides consistent pixel uniformity and reliable long-term performance.

Typical Applications

• Corporate conference rooms and boardrooms
• Hotel and hospitality lobby displays
• Retail interior digital signage and product showcases
• Higher education lecture halls and collaboration spaces
• Healthcare facility wayfinding and information displays
• Entertainment venue interior feature walls

Technical Specifications

Frequently Asked Questions

What is the minimum recommended viewing distance for the LSBB012-GD?

With a 1.25 mm pixel pitch, this cabinet is suited for viewing distances of approximately 4 to 8 feet. It is well-matched for conference rooms, reception areas, and retail environments where close-range viewing is expected.

What does front serviceability mean in practice?

Front serviceability means that LED modules and internal components can be removed and replaced from the front face of the cabinet. This is critical when the back of the display is flush against a wall or otherwise inaccessible.

What is the Signal Detection Status Indicator used for?

It is a built-in visual indicator that shows whether the cabinet is receiving a valid signal. This allows installation technicians and maintenance staff to quickly diagnose connectivity or signal issues without specialized tools.

How many cabinets are needed to build a specific video wall size?

Cabinet count depends on your target display dimensions. Contact Creation Networks for a custom configuration layout and total system quote based on your project requirements.

Is this cabinet compatible with LG's software management tools?

Yes, the LSBB series is designed to work within LG's commercial display management ecosystem. Confirm compatibility with specific software versions with your LG reseller or contact Creation Networks.

Can these cabinets be used in a curved or angled video wall configuration?

The LSBB012-GD is a flat cabinet. For curved or angled configurations, consult Creation Networks to determine whether additional mounting hardware or a different cabinet variant is required.
