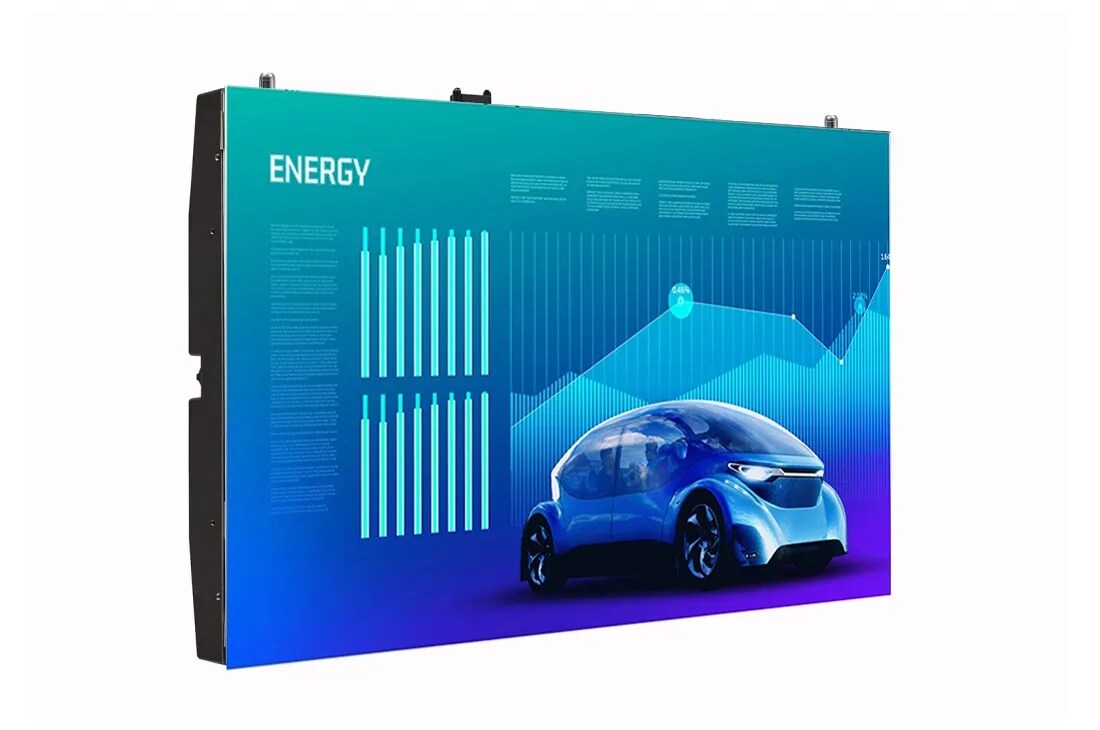

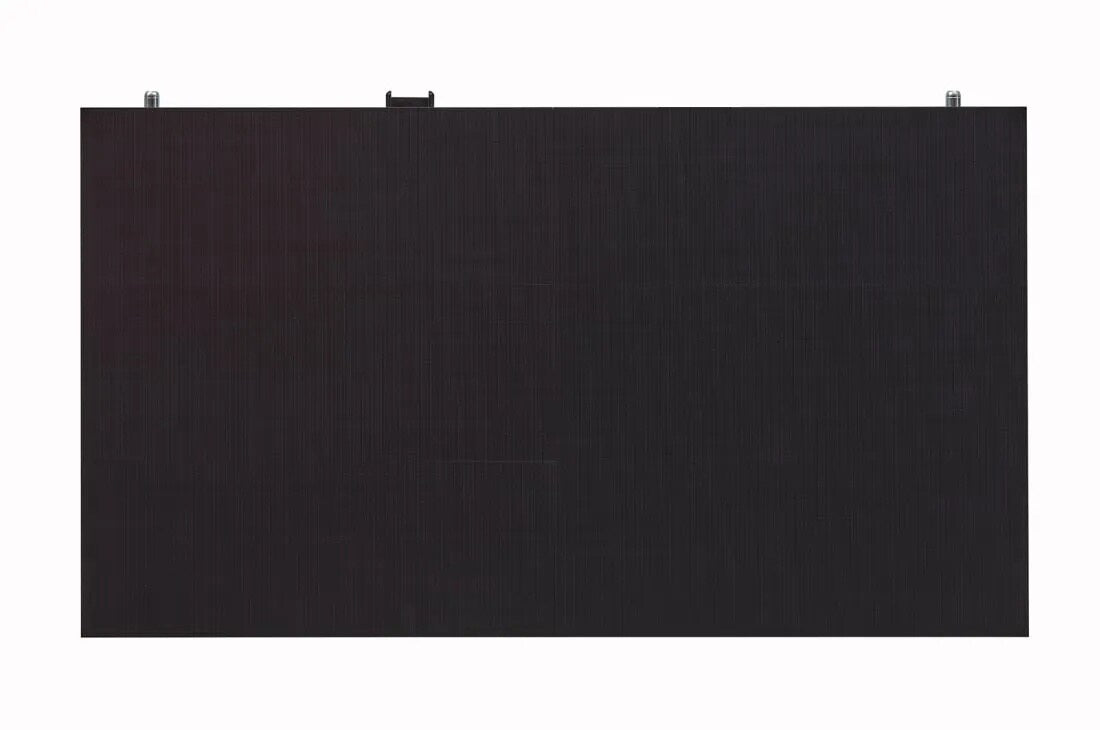

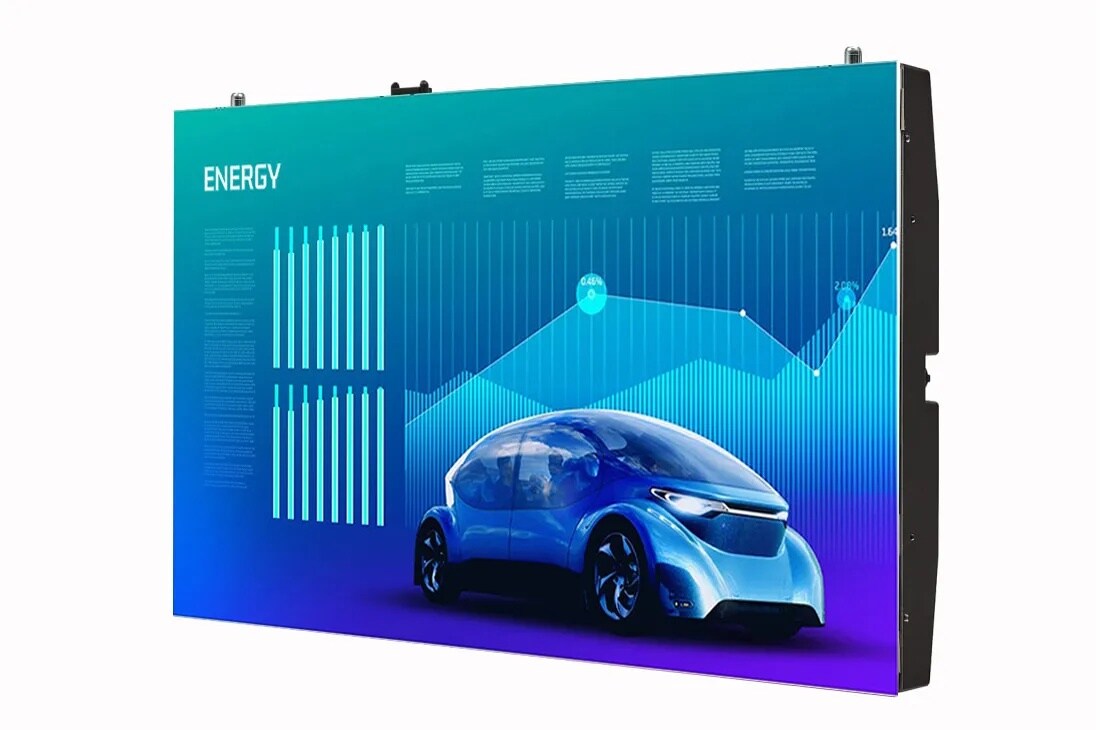

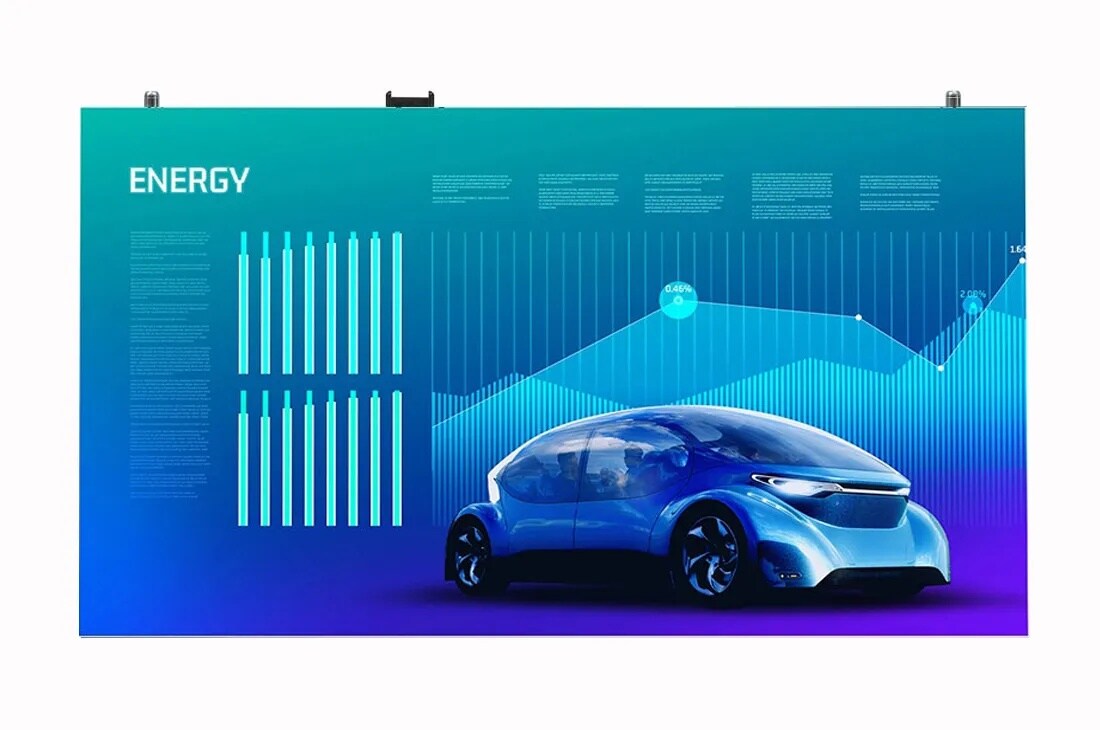

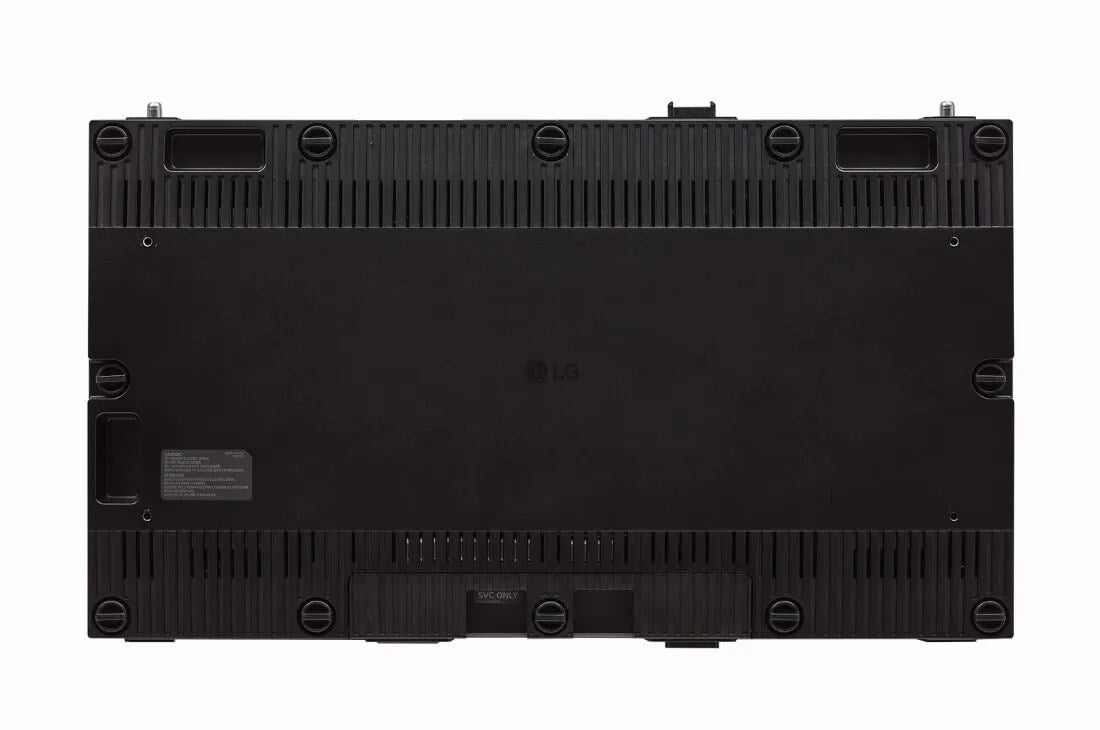

LG LSAP012-U23 – TAA MAGNIT LSAP VI F.L.A.T. Series DVLED, P1.25, 480x270 resolution

Product Overview

The LG MAGNIT LSAP VI F.L.A.T. Series DVLED cabinet (SKU: LSAP012-U23) is a 1.25 mm pixel pitch direct-view LED panel designed for large-format indoor commercial video walls. With 480x270 resolution per cabinet, it produces sharp, high-contrast imagery for corporate briefing centers, command rooms, and high-end professional AV environments. TAA compliant, this unit meets U.S. government and federally funded procurement requirements. The U23 designation identifies this as the main top cabinet configuration within the LSAP012 MAGNIT assembly series.

Product Description

The LSAP VI F.L.A.T. Series uses Direct View LED technology, placing LED elements directly at the display surface to deliver brightness uniformity and contrast that backlighted LCD displays cannot achieve. The 1.25 mm pixel pitch is suited for viewing distances as close as 4 to 5 feet, making it practical for boardrooms, collaboration hubs, and operations centers where the audience sits or stands near the screen. Each cabinet's 480x270 pixel matrix tiles with adjacent LSAP012 cabinets to form seamless video walls at any target resolution or aspect ratio. TAA compliance under the Trade Agreements Act makes this product eligible for procurement under GSA Schedule contracts and federal, state, and education purchasing programs that require compliant country-of-origin sourcing. The F.L.A.T. cabinet design incorporates precision alignment hardware to reduce inter-cabinet seam visibility across multi-cabinet installations. As the U23 (main top) cabinet in the LSAP012 series, this unit occupies the upper row of a MAGNIT video wall assembly and works in coordination with the N23 primary and T23 secondary cabinets. Integration with LG's MAGNIT ecosystem and third-party video wall processing systems is supported through standard signal interfaces. Contact Creation Networks for layout planning and full system configuration support.

Key Features

• 1.25 mm Pixel Pitch — Fine-pitch spacing enables crisp close-range imaging for conference rooms and command center environments.
• Direct View LED Technology — LED elements at the display surface deliver uniform brightness and deep contrast with no backlight diffusion losses.
• 480x270 Cabinet Resolution — High per-cabinet pixel density ensures detailed imagery and smooth transitions across multi-cabinet video wall tiles.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal, state, and education procurement and GSA Schedule eligibility.
• Main Top Cabinet Configuration (U23) — Designed for the upper row of LSAP012 MAGNIT assemblies, pairing with N23 and T23 cabinets for complete installations.
• F.L.A.T. Series Cabinet Alignment — Precision mechanical design minimizes visible seams between adjacent cabinets in large video wall configurations.
• LG MAGNIT Ecosystem Compatible — Natively integrates with LG DVLED signal processing and content management platforms.

Typical Applications

• Corporate boardrooms and executive briefing centers
• U.S. federal government command and operations centers
• Broadcast and network operations control rooms
• Security operations and situational awareness centers
• Higher education presentation and lecture hall environments
• High-end retail and hospitality video wall installations

Technical Specifications

Frequently Asked Questions

What does the U23 designation mean in the LSAP012 series?

The U23 suffix identifies this as the main top cabinet within the LSAP012 MAGNIT video wall assembly. It is positioned at the upper row and works in conjunction with the N23 primary and T23 secondary cabinets to form a complete display system.

Do I need all three cabinet variants (N23, T23, U23) to build a MAGNIT video wall?

The specific cabinets required depend on your total video wall size and configuration. Contact Creation Networks for a complete cabinet count and layout diagram for your project.

What is the minimum viewing distance for a 1.25 mm pixel pitch display?

Most installations operate comfortably at viewing distances of 4 to 8 feet. At 1.25 mm pitch, image quality remains excellent even at close range, which is why this cabinet is popular in boardrooms and control rooms.

Is this product eligible for U.S. government procurement?

Yes. TAA compliance qualifies this product for GSA Schedule contracts and federal, state, and education procurement programs that require Trade Agreements Act compliance.

What signal inputs does this cabinet support?

The cabinet supports standard DVLED signal inputs and is designed for integration with LG's MAGNIT ecosystem. It also supports leading third-party video wall processors via standard interfaces.

How do I get a complete system quote for a MAGNIT video wall project?

Contact Creation Networks at creationnetworks.net. Our team can provide a full system specification, cabinet layout, controller recommendations, and project pricing.
