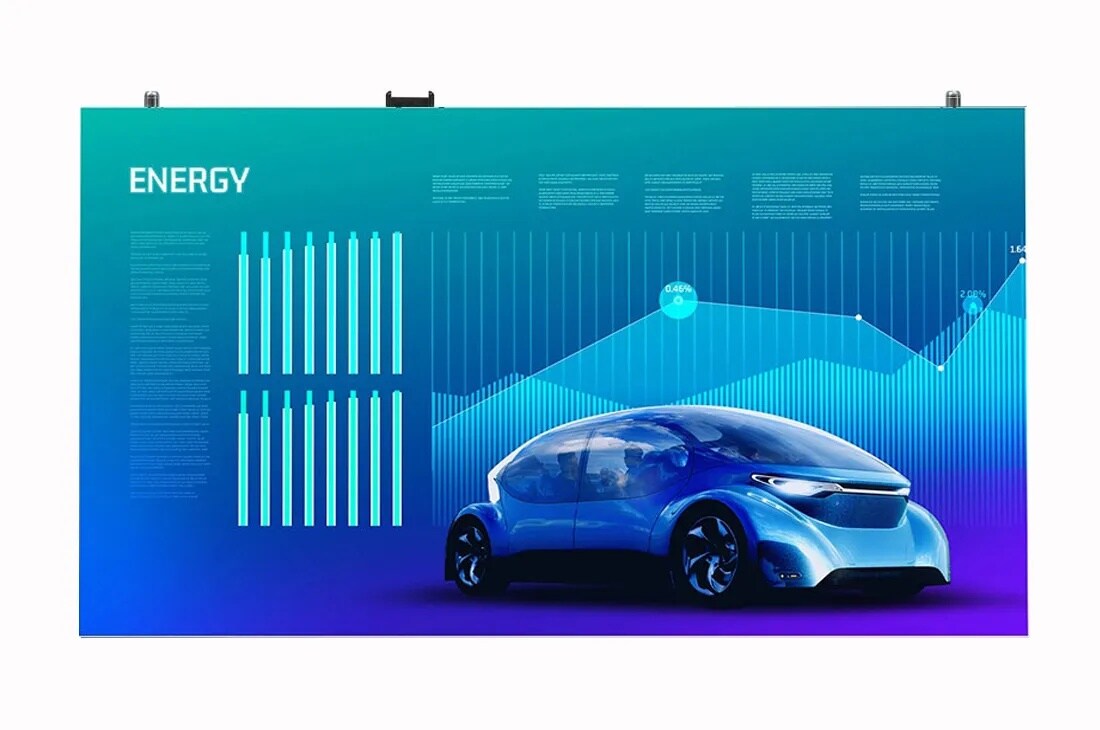

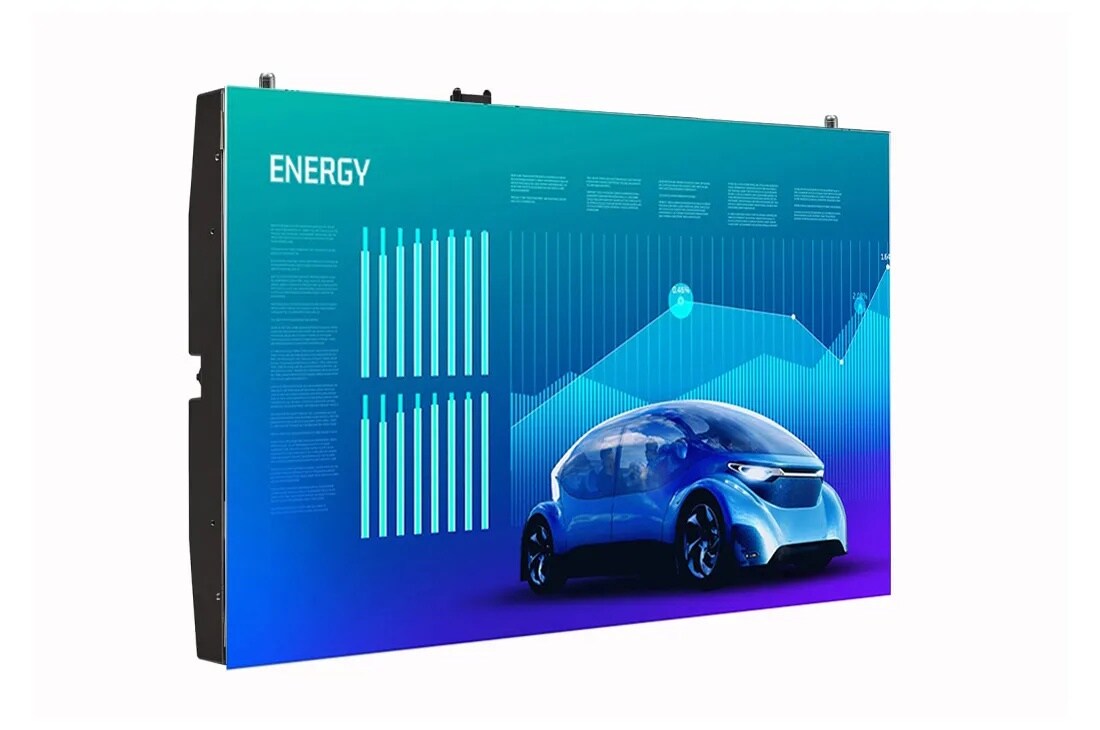

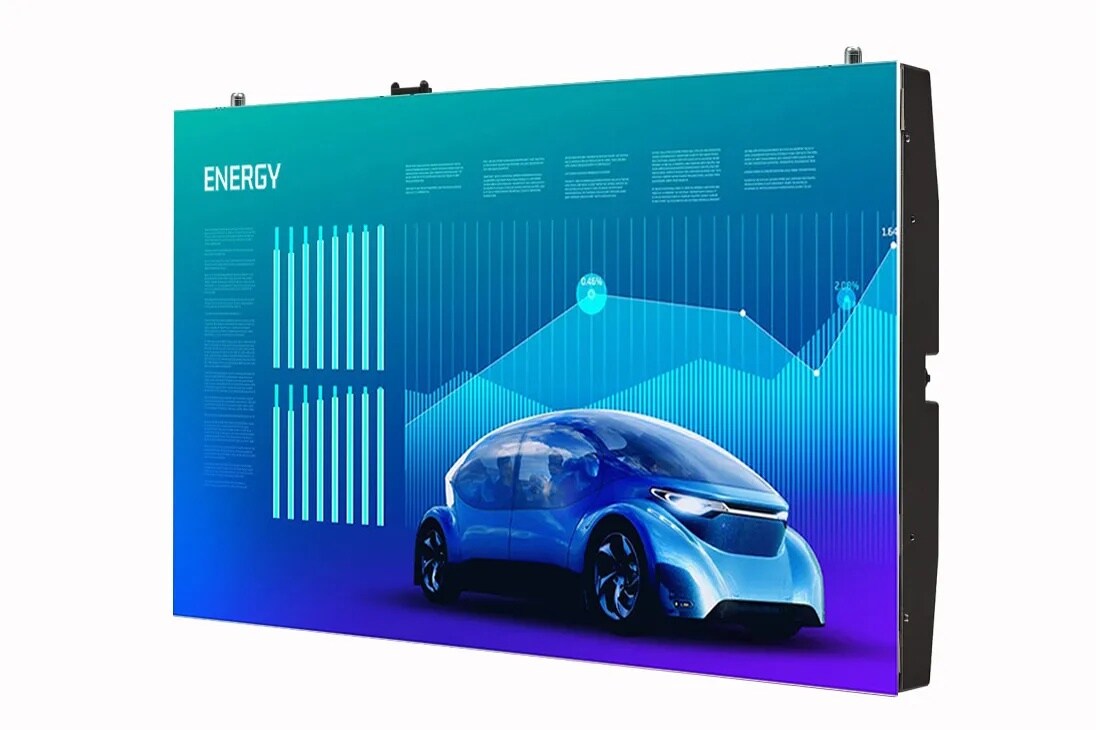

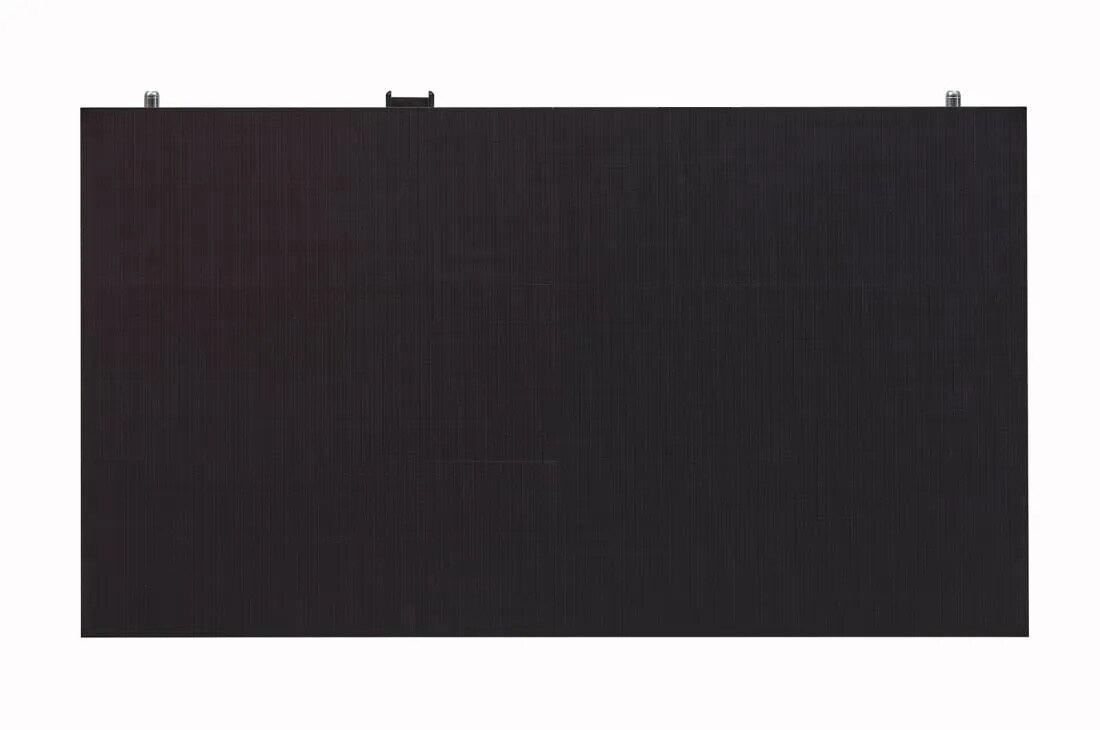

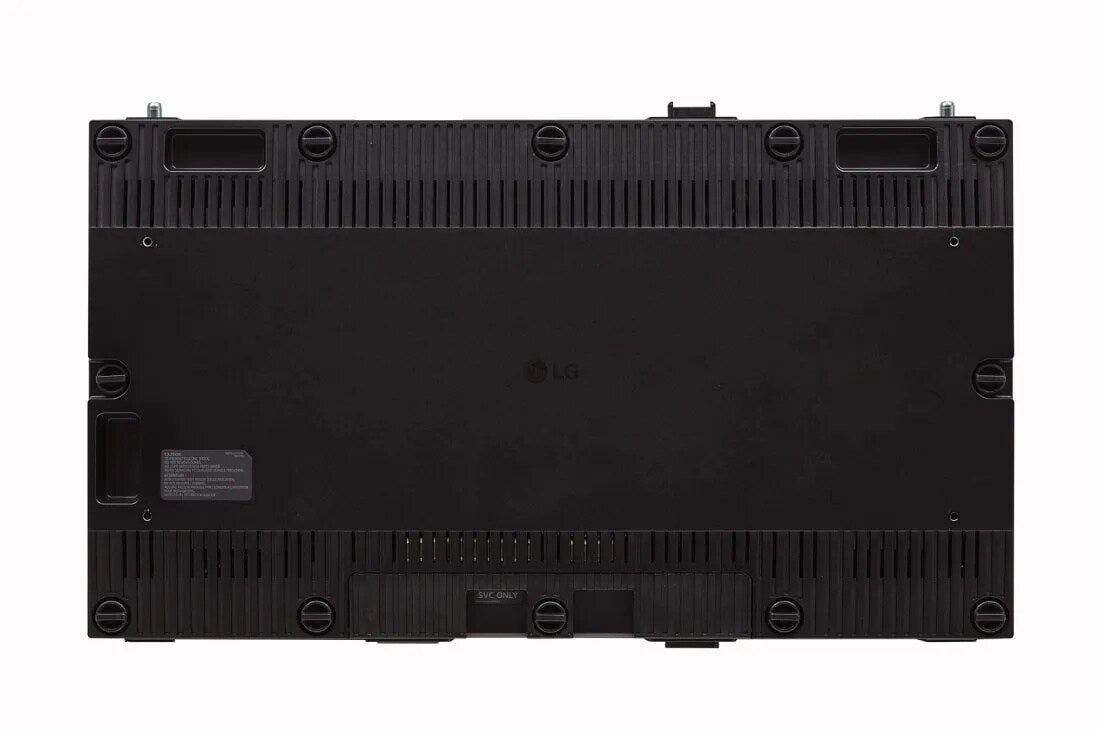

LG LSAP012-T23 – TAA MAGNIT LSAP VI F.L.A.T. Series DVLED, P1.25, 480x270 resolution

Product Overview

The LG MAGNIT LSAP VI F.L.A.T. Series DVLED cabinet (SKU: LSAP012-T23) is a fine-pitch 1.25 mm pixel pitch direct-view LED panel for large-format indoor commercial video wall systems. Delivering 480x270 resolution per cabinet, it provides sharp, high-contrast imagery for corporate briefing centers, government command rooms, and professional AV environments. This unit is TAA compliant for U.S. government and federally funded procurement. The T23 designation identifies this as the secondary cabinet configuration within the LSAP012 MAGNIT assembly series.

Product Description

The LSAP VI F.L.A.T. Series leverages Direct View LED technology, placing individual LED elements at the display surface for exceptional brightness uniformity and contrast that LCD-based displays cannot match. At 1.25 mm pixel pitch, viewing distances as close as 4 to 5 feet are fully supported, making this cabinet appropriate for boardrooms, collaboration spaces, and operations centers where audiences are in close proximity to the screen. The 480x270 per-cabinet pixel matrix tiles seamlessly with other LSAP012 cabinets to build video walls at any total resolution or aspect ratio. TAA compliance qualifies this product for U.S. federal, state, and education procurement programs that mandate country-of-origin requirements under the Trade Agreements Act. The F.L.A.T. cabinet design incorporates precision alignment hardware to reduce inter-cabinet seam visibility across large video wall installations. As the T23 (secondary) cabinet in the LSAP012 series, this unit works in concert with the primary (N23) and top (U23) cabinet variants to complete a full MAGNIT video wall assembly. Contact Creation Networks for layout planning, cabinet count calculations, and integration support.

Key Features

• 1.25 mm Pixel Pitch — Fine-pitch spacing supports close-range viewing with sharp, detailed imagery in boardrooms and control rooms.
• Direct View LED Technology — Surface-level LED placement delivers consistent brightness and deep contrast across the entire display.
• 480x270 Cabinet Resolution — High per-cabinet pixel density enables smooth tiling for large, detailed video wall configurations.
• TAA Compliant — Qualifies for U.S. federal and government-funded procurement under GSA Schedule and related programs.
• Secondary Cabinet Configuration (T23) — Designed to pair with N23 primary and U23 top cabinets for complete MAGNIT video wall assemblies.
• F.L.A.T. Series Alignment Design — Precision cabinet mechanics minimize inter-cabinet seams for a visually cohesive large-format display.
• LG MAGNIT Ecosystem Compatible — Integrates natively with LG DVLED signal processing, control, and content management systems.

Typical Applications

• Corporate boardrooms and executive briefing centers
• U.S. federal government command and operations centers
• Broadcast and production control rooms
• Network operations and security operations centers
• Higher education presentation and lecture environments
• High-end hospitality and retail feature video walls

Technical Specifications

Frequently Asked Questions

What does the T23 designation mean in the LSAP012 series?

The T23 suffix identifies this as the secondary cabinet configuration within the LSAP012 MAGNIT video wall assembly. It works alongside the N23 primary and U23 top cabinets to form a complete display system.

Is this cabinet sold as a standalone display?

DVLED cabinets are modular building blocks. This cabinet is typically purchased as part of a multi-cabinet video wall system. Contact Creation Networks to discuss your full configuration requirements.

What is TAA compliance and why does it matter?

TAA compliance ensures the product meets the Trade Agreements Act requirements for U.S. government procurement. It is required for purchases under GSA Schedule contracts and many federally funded programs.

What viewing distance does a 1.25 mm pixel pitch support?

A 1.25 mm pixel pitch is well-suited for viewing distances from approximately 4 to 8 feet, making it appropriate for conference rooms and boardrooms where the audience is relatively close to the display.

Can this cabinet be used with non-LG video wall controllers?

Yes. While it is designed for the LG MAGNIT ecosystem, standard signal interfaces allow integration with third-party video wall processors and control systems commonly used in commercial AV installations.

Where can I get a full system configuration and pricing for a MAGNIT video wall?

Contact Creation Networks at creationnetworks.net for a complete multi-cabinet layout, controller recommendations, and project pricing tailored to your installation.
