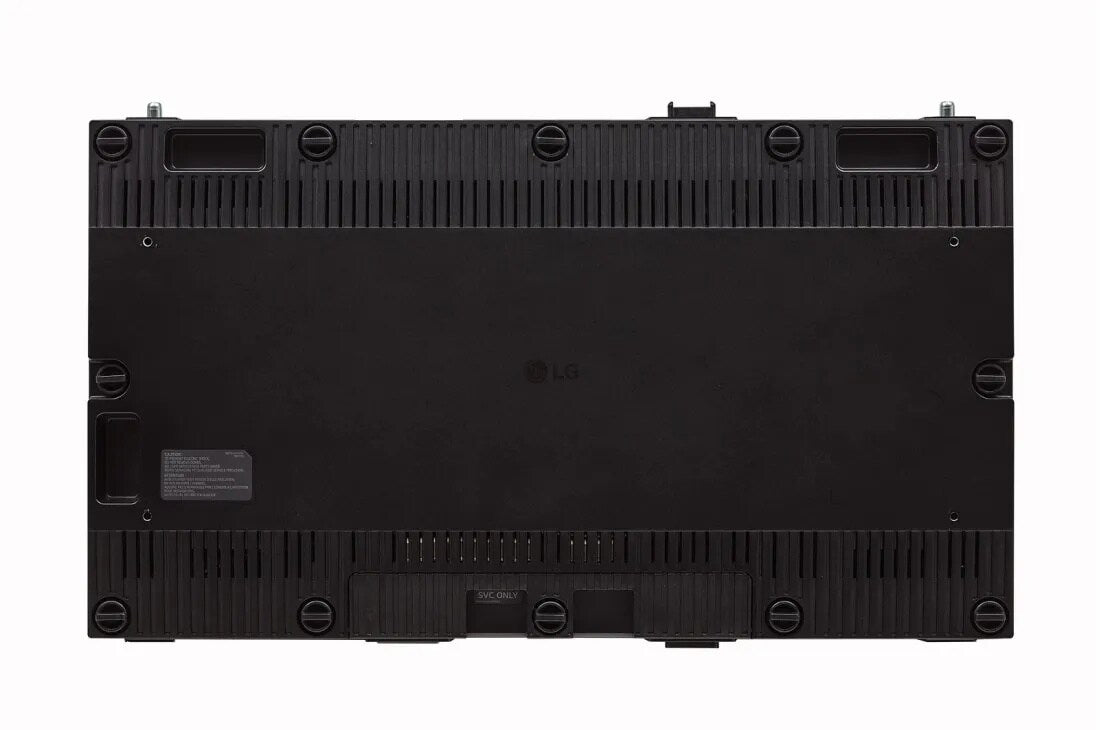

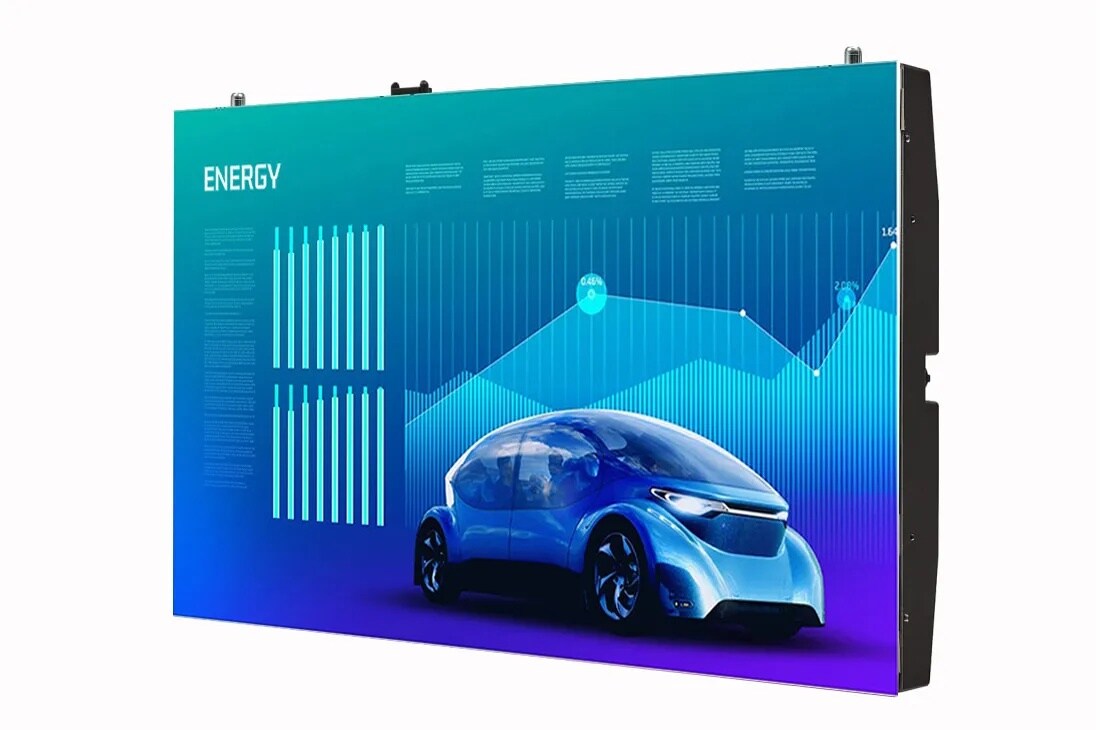

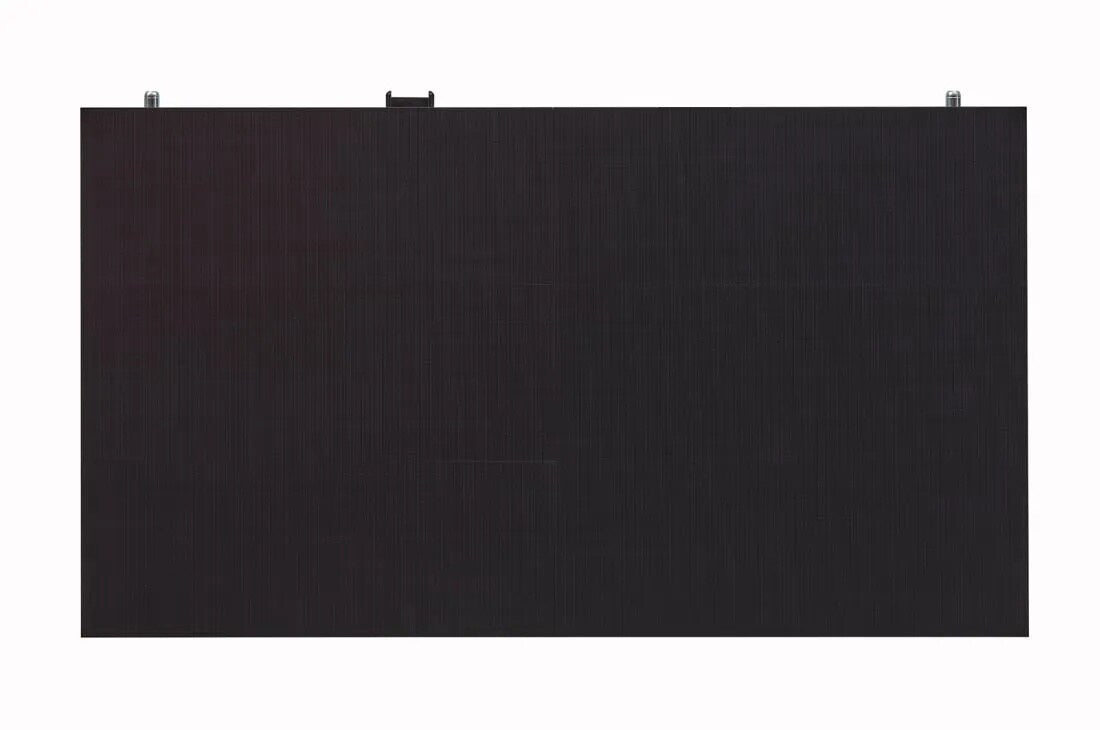

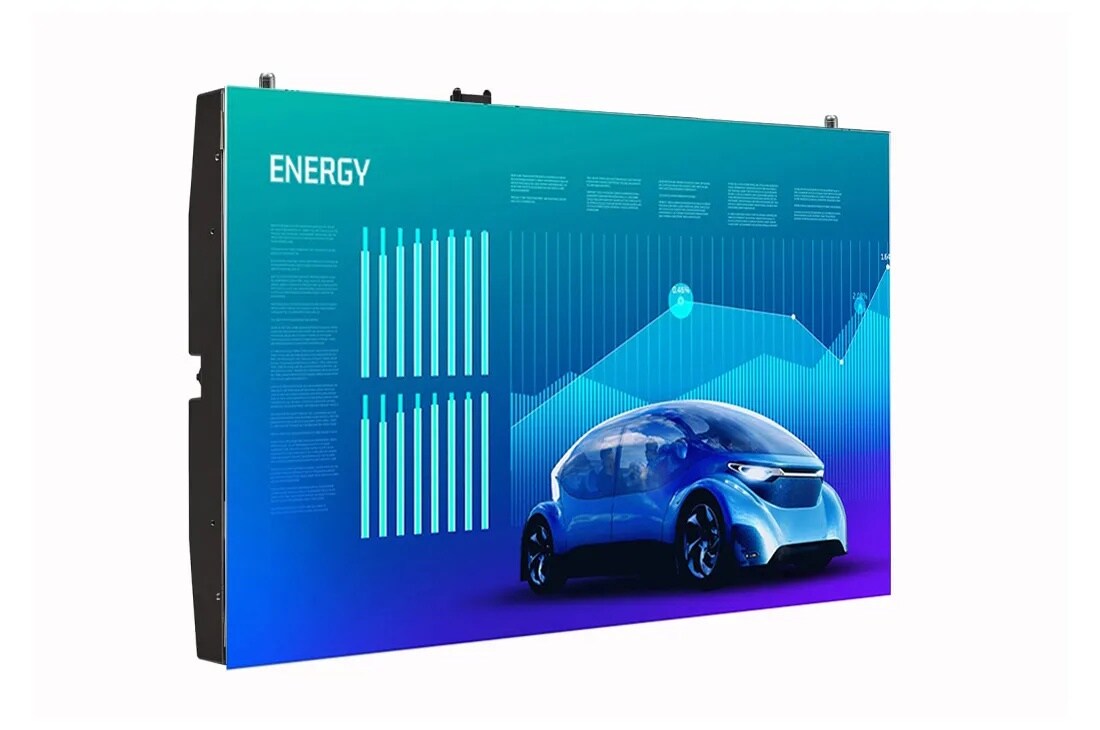

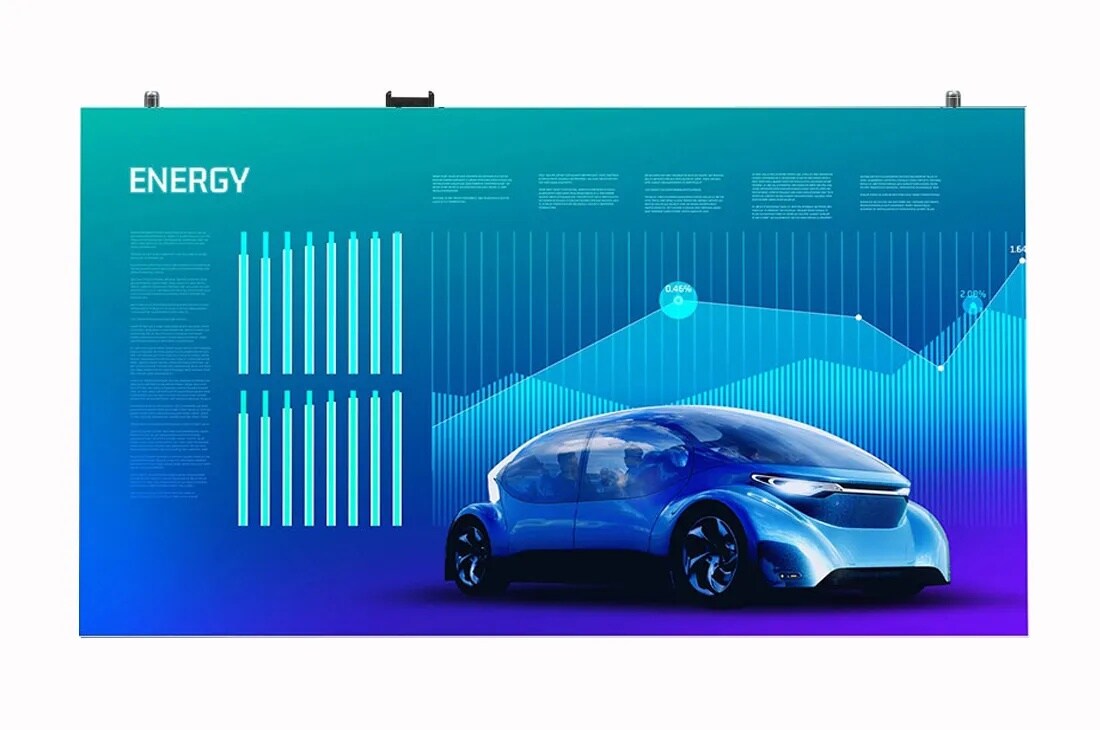

LG LSAP012-N23 – TAA MAGNIT LSAP VI F.L.A.T. Series DVLED, P1.25, 480x270 resolution

Product Overview

The LG MAGNIT LSAP VI F.L.A.T. Series DVLED cabinet (SKU: LSAP012-N23) is a fine-pitch 1.25 mm pixel pitch direct-view LED panel built for large-format indoor commercial video walls. With a native 480x270 resolution per cabinet, it delivers precise, high-contrast imagery suited to corporate boardrooms, government operations centers, and mission-critical control rooms. This cabinet is TAA compliant, qualifying it for U.S. federal and government-funded procurement programs. It is part of the LG MAGNIT F.L.A.T. Series, engineered for modular, seamless video wall construction.

Product Description

The LSAP VI F.L.A.T. Series uses Direct View LED backlight technology, placing LED elements directly at the display surface to achieve maximum brightness uniformity and contrast without the optical losses associated with LCD edge-lit or direct-lit backlighting. The 1.25 mm pixel pitch allows comfortable viewing as close as 4 to 5 feet, making this cabinet appropriate for environments where viewers are in close proximity to the display, such as conference rooms, broadcast studios, and network operations centers. Each cabinet provides a 480x270 pixel matrix, and multiple cabinets tile together to form video walls at virtually any total resolution or aspect ratio. TAA compliance under the Trade Agreements Act makes this product eligible for GSA Schedule contracts and procurement programs at federal, state, and education institutions that require country-of-origin compliance. The F.L.A.T. designation indicates a flat-panel cabinet form factor with precision mechanical alignment features that minimize visible seams at cabinet junctions. As part of LG's MAGNIT commercial DVLED ecosystem, this cabinet is designed to integrate with LG's signal processing and content management infrastructure, as well as third-party video wall processors and AV-over-IP systems. The N23 designation identifies this unit's specific cabinet position within a complete MAGNIT video wall assembly. Contact Creation Networks for multi-cabinet configuration layouts and full system integration guidance.

Key Features

• 1.25 mm Pixel Pitch — Fine-pitch LED spacing delivers sharp image quality at close viewing distances for boardrooms and control rooms.
• Direct View LED Technology — Individual LED elements at the display surface provide superior brightness uniformity and contrast versus LCD-based alternatives.
• 480x270 Cabinet Resolution — High per-cabinet pixel density supports detailed imagery and smooth multi-cabinet tiling across large video wall installations.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal, state, and education procurement programs and GSA Schedule contracts.
• F.L.A.T. Series Cabinet Design — Precision-machined alignment features minimize inter-cabinet gaps for a cohesive, near-seamless display surface.
• Scalable Video Wall Architecture — Cabinets tile in any configuration to build custom-sized displays for any installation footprint or aspect ratio.
• LG MAGNIT Ecosystem Integration — Designed to work within LG's DVLED signal processing, control, and content management platform.
• Third-Party Processor Compatibility — Supports standard signal interfaces for integration with leading video wall processors and AV-over-IP systems.

Typical Applications

• Corporate boardrooms and executive briefing centers
• U.S. federal government and defense command and control rooms
• Network and security operations centers
• Broadcast studios and production control rooms
• Higher education lecture halls and presentation spaces
• Airport and transit authority operations centers
• High-end retail flagship and hospitality feature displays

Technical Specifications

Frequently Asked Questions

What does TAA compliant mean for this product?

TAA compliance means the product is manufactured or substantially transformed in a country covered by the U.S. Trade Agreements Act. This is required for purchases under GSA Schedule contracts and many federal, state, and education procurement programs.

What is the minimum recommended viewing distance for a 1.25 mm pixel pitch display?

A general guideline is approximately 5 feet (1.5 meters) for comfortable viewing, though many control room and boardroom installations operate effectively at 4 feet or closer where fine detail is required.

How many cabinets are needed to build a specific screen size?

The cabinet count depends on your target display dimensions and aspect ratio. Creation Networks can provide a custom configuration quote and layout diagram based on your room and viewing requirements.

Is this cabinet compatible with third-party video wall processors?

Yes. While optimized for LG's MAGNIT ecosystem, the cabinet supports standard signal inputs compatible with leading third-party video wall processors and AV-over-IP distribution systems.

What is the difference between the N23, T23, and U23 variants in the LSAP012 line?

These SKU suffixes denote different cabinet positions within a complete MAGNIT video wall assembly — primary, secondary, and top configurations respectively. Consult LG's MAGNIT configuration guide or contact Creation Networks for complete assembly specifications.

Can this display be installed in a U.S. government facility?

Yes. TAA compliance makes this product eligible for deployment in U.S. federal government facilities and programs where TAA-compliant products are required under procurement rules.
