LG LSAP009-T5 – LSAP DVLED P0.9 MAGNIT COB Secondary Cabinet 600Nit 600x337.5x44.9

Product Overview

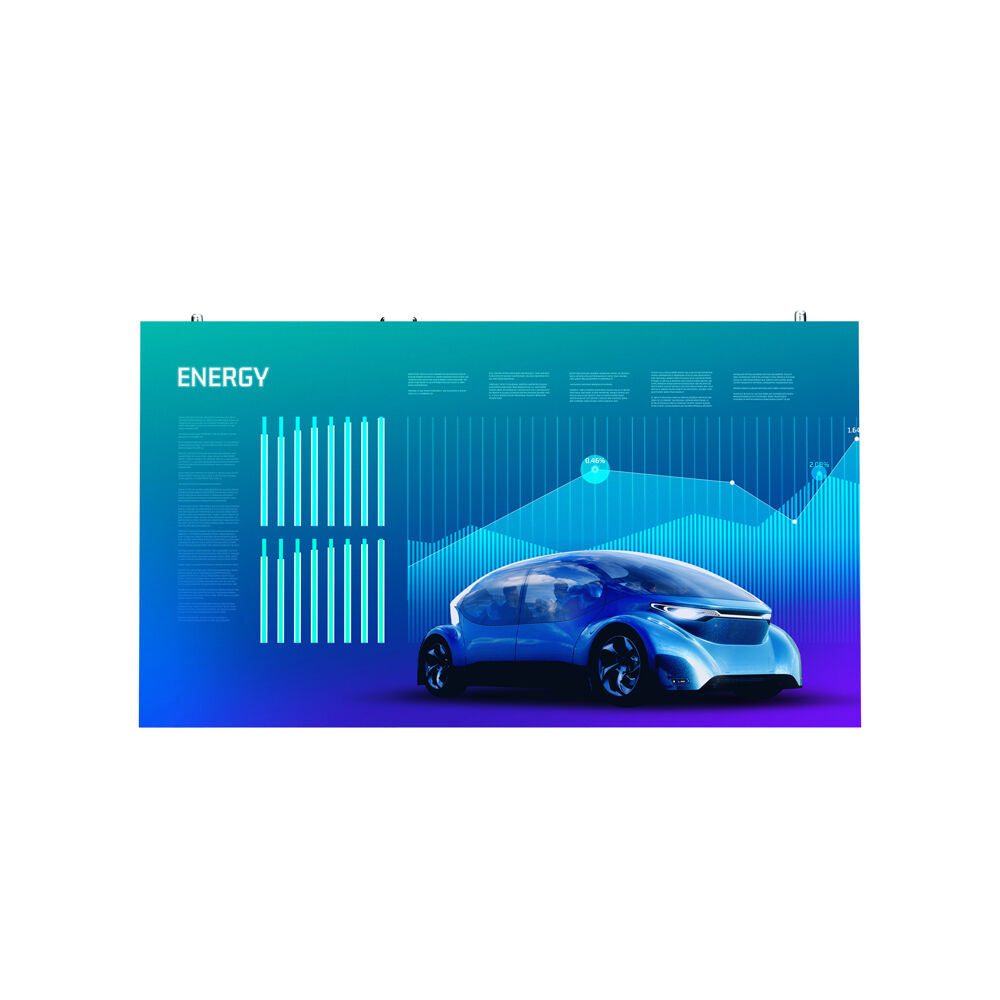

The LG LSAP009-T5 is a P0.9 MAGNIT COB secondary (extension) cabinet for expanding modular direct view LED video wall configurations in commercial indoor environments. The -T5 designation identifies it as an extension unit within the MAGNIT P0.9 family, adding display rows between the main bottom and main top cabinets to increase total screen height and resolution. With a 0.94mm pixel pitch, a minimum 800 nit brightness rating, and integration with the Megapixel HELIOS LED Processing Platform, this cabinet is suited for high-demand applications including boardrooms, broadcast facilities, and large-format digital signage deployments. Black Immersion and factory-calibrated accurate color reproduction ensure consistent, professional image quality across the assembled array.

Product Description

The LSAP009-T5 secondary cabinet enables AV integrators and end users to scale the height and total resolution of MAGNIT P0.9 video walls beyond what the two primary cabinets alone provide. Each -T5 unit inserted between the main bottom (LSAP009-N) and main top (LSAP009-U) cabinets adds an additional row to the array, allowing configurations to reach display heights and resolutions that match specific architectural and content requirements without forcing a complete system redesign.

At 0.94mm pixel pitch, the LSAP009-T5 delivers sharp, detailed imagery at commercial viewing distances starting around 2 to 3 meters. The minimum brightness specification of 800 nits positions this secondary cabinet at a higher luminance output than the 600 nit primary cabinets in the same P0.9 series, providing additional headroom for environments with moderate ambient lighting or where content demands consistently higher brightness levels across the full array.

The Megapixel HELIOS LED Processing Platform manages signal distribution, pixel-level calibration, and multi-cabinet synchronization across the entire array. This centralized processing ensures brightness and color uniformity between the secondary extension cabinets and the primary cabinets, which is critical for maintaining visual consistency across large-format video walls where any calibration mismatch would be immediately visible at the seam between cabinets.

Black Immersion technology treats the COB module surface to absorb rather than reflect ambient light, deepening perceived black levels and improving contrast ratios in typical indoor commercial settings. Accurate color reproduction, achieved through factory calibration and the HELIOS processing platform, ensures the assembled display meets the color fidelity standards required for broadcast monitoring, brand color presentation, and high-stakes visual communications. The cabinet's 600 x 337.5 x 44.9mm form factor matches the primary LSAP009 cabinets precisely, ensuring seamless visual alignment throughout the array.

Key Features

• Secondary / Extension Cabinet (-T5) — Designed to expand MAGNIT P0.9 video wall arrays by adding display rows between primary main bottom and main top cabinets.
• 0.94mm Pixel Pitch — P0.9 class fine pitch supports clear, detailed imagery at commercial viewing distances from approximately 2 meters.
• 800 Nit Minimum Brightness — Higher luminance specification than the primary 600 nit cabinets, providing additional brightness headroom for moderately lit commercial environments.
• Megapixel HELIOS LED Processing Platform — Centralized processing manages signal distribution, pixel calibration, and multi-cabinet synchronization across the full video wall array.
• Black Immersion Technology — Ambient light absorption treatment deepens perceived black levels and enhances contrast in standard indoor commercial lighting conditions.
• Accurate Color Reproduction — Factory calibration and HELIOS processing deliver consistent color fidelity across cabinet arrays for broadcast and corporate presentation standards.
• COB LED Technology — Chip on Board construction provides a flat, durable module surface with superior uniformity and contrast versus conventional SMD LED panels.
• Matched Form Factor — 600 x 337.5 x 44.9mm cabinet dimensions match all LSAP009 series primary cabinets for precise alignment and seamless visual continuity.

Typical Applications

• Corporate boardrooms and executive conference rooms requiring taller, higher-resolution video wall configurations
• Broadcast studios and production control rooms where expanded display height improves monitoring capability
• Command and control centers scaling video wall arrays to meet large-format visualization requirements
• Higher education auditoriums and large lecture halls with tall-format presentation display needs
• Corporate lobbies and atrium environments featuring multi-story or floor-to-ceiling LED display installations
• Retail environments and branded experience spaces requiring large, impactful direct view LED displays
• Houses of worship and event venues expanding existing MAGNIT P0.9 installations to reach larger screen sizes

Technical Specifications

Frequently Asked Questions

What does the -T5 designation mean?

The -T suffix identifies this as a secondary extension cabinet in the LSAP MAGNIT series. It is an expansion unit that adds rows to a P0.9 video wall array and must be used alongside main bottom (-N) and main top (-U) primary cabinets. It cannot operate as a standalone display.

Why does this secondary cabinet have a higher brightness spec (800 nit) than the main cabinets (600 nit)?

The 800 nit specification on the LSAP009-T5 reflects the component rating for this specific cabinet variant. In a calibrated array, the HELIOS processing platform normalizes brightness uniformity across all cabinets, so the actual displayed brightness of the assembled video wall will be calibrated to a consistent level regardless of per-cabinet maximum ratings.

How many secondary cabinets can be added to a MAGNIT P0.9 array?

The number of secondary (-T) cabinets that can be added depends on the specific MAGNIT system configuration and structural mounting requirements. Consult LG system documentation or contact Creation Networks for guidance on maximum array configurations for your installation.

What is the Megapixel HELIOS LED Processing Platform?

HELIOS is LG's dedicated LED signal processing platform for the MAGNIT series. It handles input signal management, pixel-level brightness and color calibration, and synchronization across all cabinets in the array to ensure uniform image quality at scale.

Is installation of extension cabinets complex?

MAGNIT cabinets are designed for professional AV integration. Extension cabinets align mechanically with primary cabinets using precision mounting hardware and connect electrically through standardized interfaces. Installation should be performed by a qualified AV integrator familiar with large-format LED systems.

Where can I purchase this cabinet?

The LSAP009-T5 is available through Creation Networks. Visit creationnetworks.net for pricing, configuration support, and to connect with our commercial AV team for complete system design assistance.
