LG LSAP009-N5 – LSAP DVLED P0.9 MAGNIT COB Main Bottom Cabinet 600Nit 600x337.5x44.9

Product Overview

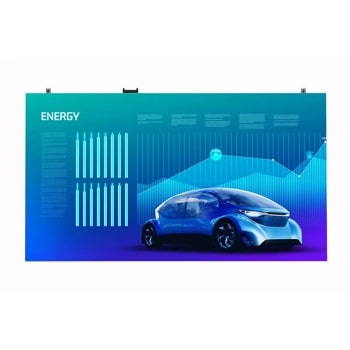

The LG LSAP009-N5 is a P0.9 MAGNIT COB main bottom cabinet designed as the foundational anchor unit for modular direct view LED video wall systems in commercial indoor environments. As the main bottom cabinet (-N designation), it serves as the primary structural and electrical base of the MAGNIT array, establishing the reference point for all additional cabinets stacked above it. With a native resolution of 640 x 360 per cabinet and a 0.94mm pixel pitch, it supports large-format, high-resolution displays appropriate for conference rooms, lobbies, digital signage installations, and command centers. COB LED technology delivers consistent image quality and improved physical durability compared to conventional SMD fine-pitch panels.

Product Description

The LSAP009-N5 main bottom cabinet is the starting point for any MAGNIT P0.9 video wall configuration. The -N5 designation confirms this unit as a primary bottom cabinet, housing the core electrical and signal connections that feed power and data upward through the array to secondary (-T) and main top (-U) cabinets. This architecture simplifies cabling runs and supports clean, front-accessible installations in permanent commercial settings.

Each LSAP009-N5 cabinet delivers a native resolution of 640 x 360 pixels within a 600 x 337.5 x 44.9mm form factor. The P0.9 class pixel pitch of 0.94mm provides excellent image clarity for viewing distances starting around 2 to 3 meters, covering a broad range of commercial AV environments including open-plan office video walls, higher education spaces, and large conference rooms. The per-cabinet pixel density allows arrays to reach very high total resolutions when multiple cabinets are combined.

COB (Chip on Board) LED technology is a defining characteristic of the MAGNIT platform. Rather than mounting individually packaged LED components onto a PCB as in SMD construction, COB embeds the LED chips directly into the substrate under a protective coating. This results in a flat, smooth module surface that is more resistant to physical damage, delivers better uniformity across the panel face, and produces deeper apparent black levels by reducing surface reflectivity.

The LSAP009-N5 operates at a minimum brightness of 600 nits, providing adequate luminance for controlled indoor lighting conditions found in commercial conference rooms and boardrooms. The direct view LED format means the display produces light directly from the module surface without requiring a separate backlight assembly, resulting in excellent contrast performance and a slim cabinet depth of 44.9mm. For AV integrators, the standardized 600mm wide cabinet format simplifies array layout planning and content mapping when combined with compatible LSAP009-T and LSAP009-U cabinets.

Key Features

• Main Bottom Cabinet (-N5) — Serves as the foundational anchor of a MAGNIT P0.9 array, providing primary electrical and signal connections for the entire video wall stack.
• 640 x 360 Per-Cabinet Resolution — Solid pixel count per module supports high-resolution array configurations appropriate for large commercial display installations.
• COB LED Technology — Chip on Board construction produces a flat, durable module surface with superior uniformity and improved contrast compared to SMD LED panels.
• 0.94mm Pixel Pitch — P0.9 class pitch supports clear, detailed imagery at commercial viewing distances of 2 meters and beyond.
• 600 Nit Minimum Brightness — Provides consistent luminance for accurate color representation in controlled indoor commercial environments.
• Direct View LED Architecture — Eliminates backlight assemblies for slim 44.9mm cabinet depth, precise pixel-level light control, and strong contrast performance.
• Indoor Commercial Design — Engineered specifically for permanent indoor AV installations including conference rooms, lobbies, and digital signage deployments.
• Standardized 600mm Cabinet Width — Consistent form factor simplifies array layout planning and content mapping across multi-cabinet configurations.

Typical Applications

• Corporate conference rooms and boardrooms requiring large-format direct view LED displays with close-proximity viewing quality
• Building lobbies and reception areas featuring high-resolution digital signage and brand communications
• Command and control centers running continuous-use, high-resolution video wall arrays
• Higher education lecture halls and auditoriums with large-format presentation display requirements
• Retail flagship environments and showrooms displaying high-value product and brand content
• Open-plan office environments with centrally visible information and communications displays
• Houses of worship and event venues requiring impactful large-format visual presentations

Technical Specifications

Frequently Asked Questions

What does the -N5 designation mean?

The -N suffix identifies this as a main bottom cabinet within the LSAP MAGNIT series. It anchors the base of the video wall array and provides the primary power and signal connections for the stack. The number (5) indicates the specific variant within the main bottom cabinet lineup.

What other cabinets are required to build a complete MAGNIT P0.9 array?

A complete MAGNIT array requires at minimum one main bottom (-N) cabinet and one main top (-U) cabinet. Secondary extension (-T) cabinets are added between them to increase the total display height. All cabinets in the array must be from the LSAP009 series for compatibility.

What is the recommended minimum viewing distance for a 0.94mm pixel pitch display?

A 0.94mm pixel pitch display produces visually seamless imagery at approximately 2 to 3 meters (6.5 to 10 feet), making it appropriate for most commercial conference rooms, lobbies, and open office environments where viewers are not seated immediately adjacent to the screen.

How does COB technology compare to SMD for this application?

COB (Chip on Board) mounts LED chips directly into the substrate, whereas SMD (Surface Mount Device) technology uses discrete packaged LEDs. COB produces a flatter, smoother surface that is more resistant to physical damage, has fewer light-trapping structures between pixels, and generally delivers better uniformity and contrast at fine pixel pitches.

Is this cabinet appropriate for permanent installation?

Yes. The LSAP009-N5 is designed for permanent indoor commercial installation. Front-access serviceability allows maintenance without requiring rear clearance, making it suitable for installations where the display is mounted flush against a wall or in a recessed structure.

Can this cabinet be purchased through Creation Networks?

Yes. Creation Networks supplies the full LG MAGNIT LSAP series. Visit creationnetworks.net for configuration guidance, system pricing, and professional installation support.
