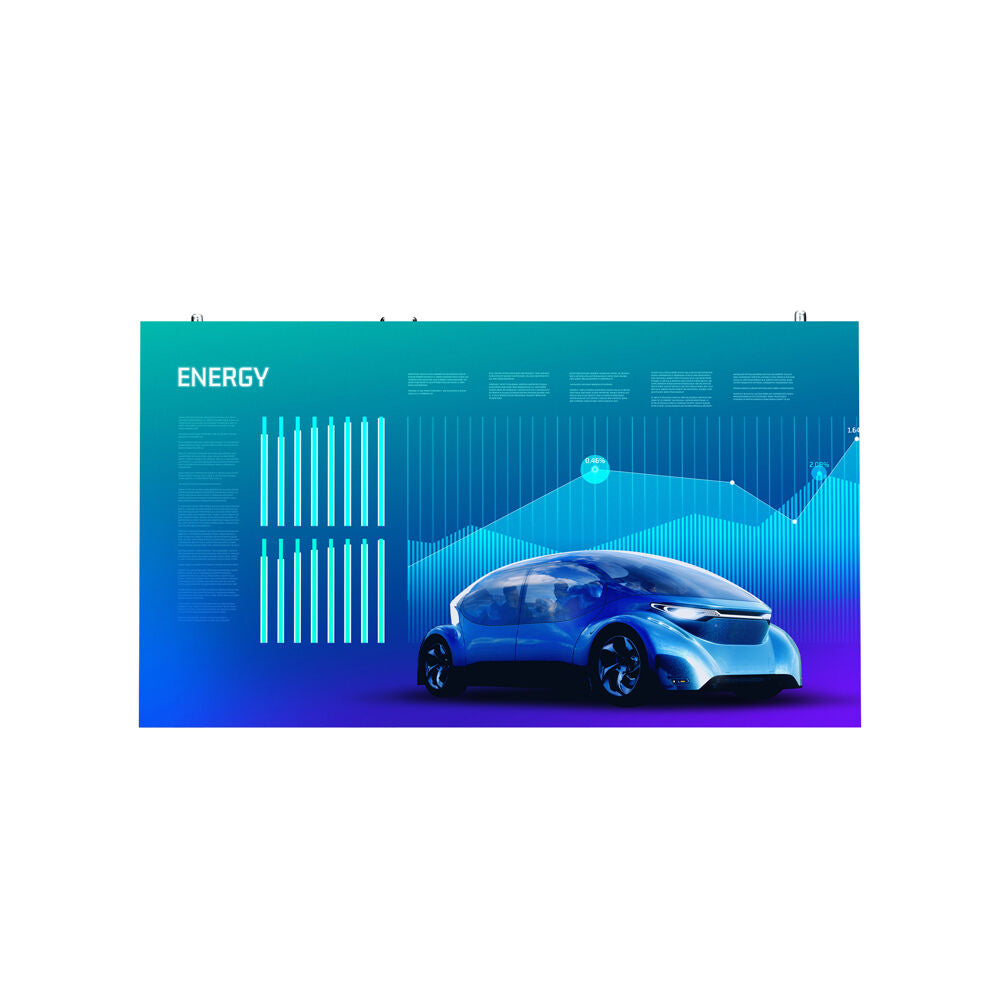

LG LSAP007-T2 – LSAP DVLED P0.7 MAGNIT COB Secondary Cabinet 600Nit 600x337.5x44.9

Product Overview

The LG LSAP007-T2 is a P0.7 MAGNIT COB secondary (extension) cabinet designed for large-format direct view LED video wall installations in premium commercial environments. Built with Chip on Board (COB) LED technology, it delivers a minimum 600 nits of brightness with exceptional color accuracy suited to boardrooms, broadcast studios, control rooms, and high-end corporate lobbies. This cabinet pairs with the main bottom (LSAP007-N) and main top (LSAP007-U) units to expand total display area in multi-cabinet configurations. Its ultra-fine 0.78mm pixel pitch produces sharp, detailed imagery at close viewing distances without visible pixel structure.

Product Description

The LSAP007-T2 secondary cabinet is a core building block for scalable MAGNIT COB direct view LED video walls requiring expansion beyond the standard two-cabinet primary configuration. COB technology encapsulates LED chips directly into the module substrate, eliminating the individual LED lens structures found in conventional SMD displays and resulting in a smooth, flat viewing surface with superior contrast and reduced glare. The 0.78mm pixel pitch makes this cabinet especially well-suited to applications where viewers are positioned within 2 to 4 feet of the display surface, such as executive conference rooms, trading floors, and immersive visualization environments.

At 600 nits minimum brightness, the LSAP007-T2 maintains consistent luminance across the panel surface, supporting accurate color reproduction in controlled lighting conditions. The cabinet integrates with LG's Megapixel HELIOS LED Processing Platform, which provides centralized signal management, pixel-level calibration, and support for high-resolution content sources across multi-cabinet arrays. Black Immersion technology deepens perceived black levels by treating the module surface to absorb ambient light rather than reflect it, enhancing contrast ratios in typical indoor commercial environments.

The cabinet measures 600 x 337.5 x 44.9mm and is engineered for precise cabinet-to-cabinet alignment with minimal seam gap, ensuring visual continuity across large-scale video wall configurations. Installation teams benefit from front-access serviceability, which reduces the clearance requirements behind the display and simplifies maintenance in permanent installations. This secondary cabinet designation (-T2) indicates it functions as an extension unit within a modular MAGNIT array, expanding vertical or horizontal display area when combined with the appropriate main bottom and main top cabinets.

Key Features

• 0.78mm Pixel Pitch — Supports close-proximity viewing with sharp image detail and no visible pixel structure at typical conference room distances.
• COB LED Technology — Chip on Board construction protects LED chips within the module substrate, improving durability and delivering a smooth, flat display surface.
• 600 Nit Minimum Brightness — Provides consistent, calibrated luminance across the panel for accurate color reproduction in indoor commercial settings.
• Megapixel HELIOS LED Processing Platform — Centralized processing supports high-resolution signal distribution, pixel-level calibration, and multi-cabinet synchronization.
• Black Immersion Technology — Ambient light absorption treatment deepens perceived black levels and enhances overall contrast in typical indoor lighting conditions.
• Accurate Color Reproduction — Factory calibration and advanced processing ensure consistent color fidelity across cabinet arrays meeting broadcast and corporate presentation standards.
• Secondary Cabinet Configuration — Designed as an extension unit (-T2) to expand MAGNIT video wall arrays beyond the standard primary two-cabinet setup.
• Front-Access Serviceability — Allows module maintenance and replacement from the front of the display, reducing installation clearance requirements and simplifying long-term upkeep.

Typical Applications

• Executive boardrooms and high-end corporate conference rooms requiring premium image quality at close viewing distances
• Broadcast studios and production control rooms needing precise color accuracy and high pixel density
• Trading floors and financial operations centers with continuous-use display requirements
• Corporate lobbies and reception areas featuring large-format brand and communications displays
• Higher education lecture halls and auditoriums with demanding image quality standards
• Command and control centers requiring detailed, high-resolution visualization across large display surfaces
• Retail flagship environments and showrooms presenting high-value products and brand content

Technical Specifications

Frequently Asked Questions

What does the -T2 designation mean on this cabinet?

The -T2 suffix indicates this is a secondary extension cabinet within the LSAP MAGNIT series. It is designed to expand a video wall array beyond the standard primary configuration and must be combined with main bottom (-N) and main top (-U) cabinets to form a complete display system.

What is COB LED technology and why does it matter?

COB (Chip on Board) technology mounts LED chips directly onto the module substrate without individual lenses, creating a smooth, flat surface. This reduces the risk of physical damage to individual LEDs, improves uniformity, and enhances contrast by minimizing reflective surfaces on the display face.

What is the minimum viewing distance for a 0.78mm pixel pitch display?

As a general guideline, a 0.78mm pixel pitch display produces visually seamless images at viewing distances of approximately 1.5 to 2.5 meters (5 to 8 feet). This makes the LSAP007-T2 appropriate for conference rooms, control rooms, and other environments where viewers are positioned close to the screen.

What is the Megapixel HELIOS LED Processing Platform?

HELIOS is LG's dedicated LED processing platform for MAGNIT displays. It manages signal input, pixel-level brightness and color calibration, and synchronization across multi-cabinet arrays to ensure consistent image quality at high resolutions.

What is Black Immersion technology?

Black Immersion is a surface treatment applied to COB LED modules that absorbs ambient light rather than reflecting it. This deepens the perceived black level of the display in typical indoor lighting conditions, improving contrast without requiring increased brightness.

Can this cabinet be used as a standalone display?

No. The LSAP007-T2 is a secondary extension cabinet and requires main bottom (LSAP007-N) and main top (LSAP007-U) cabinets to function as part of a complete MAGNIT video wall system. It is not designed for standalone operation.

Is this cabinet available through Creation Networks?

Yes. Creation Networks supplies the full LG MAGNIT LSAP series including secondary extension cabinets. Visit creationnetworks.net for pricing, configuration guidance, and installation support.
