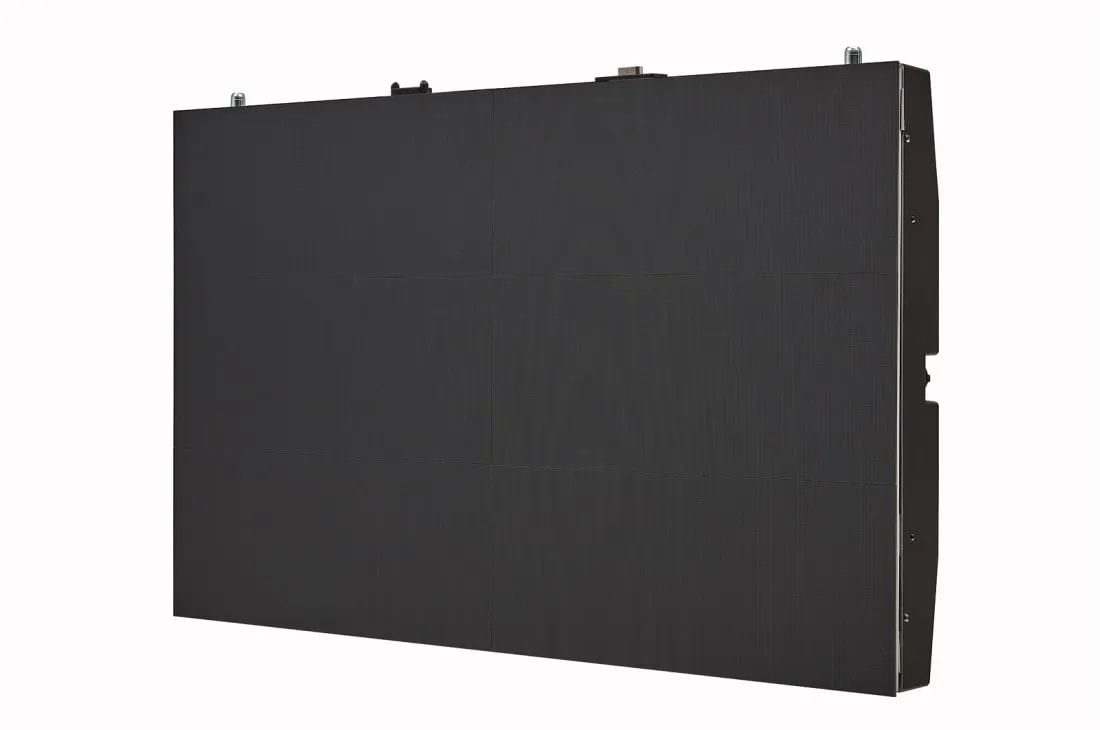

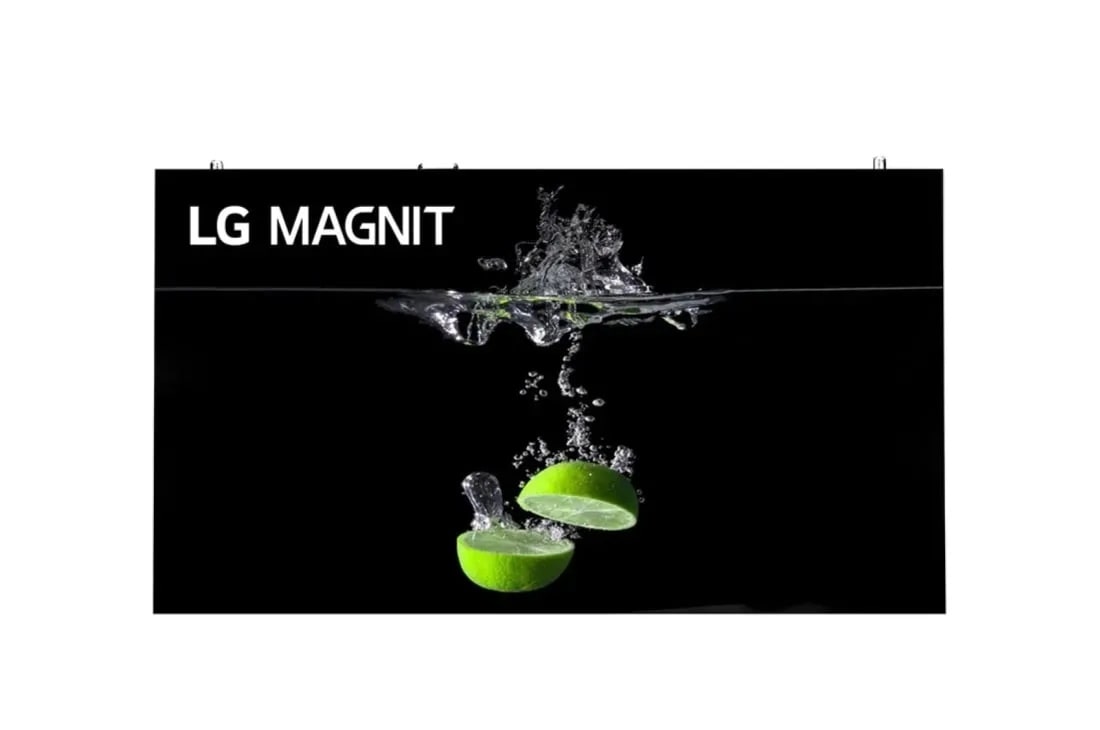

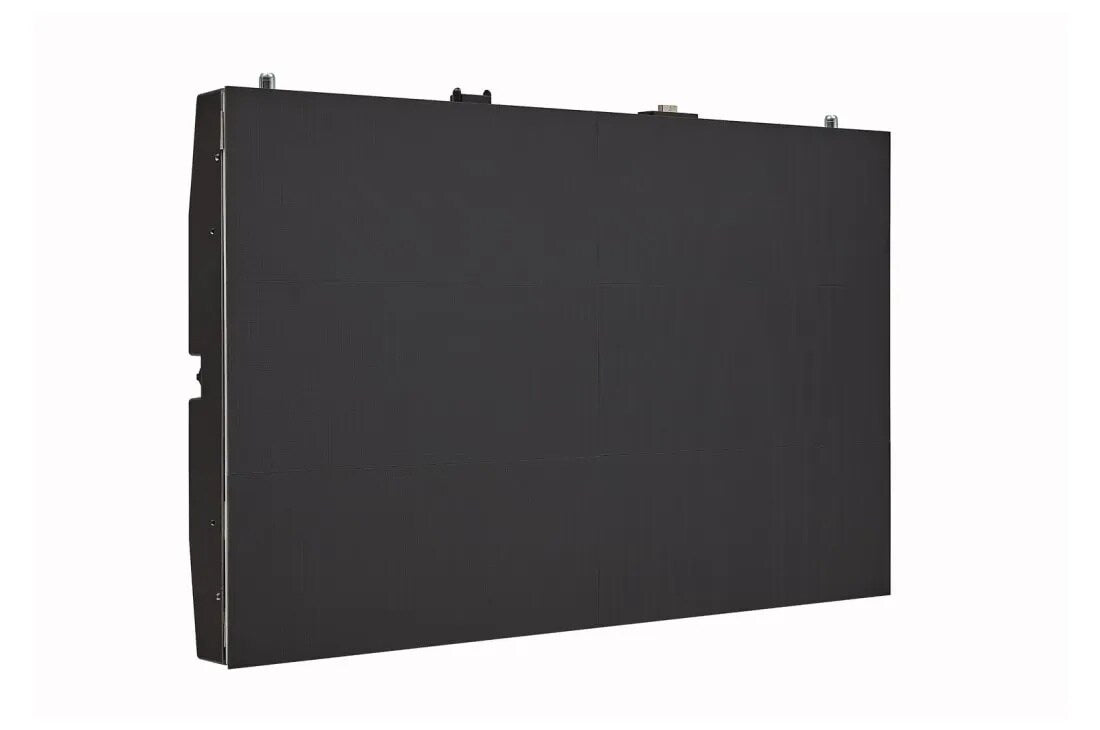

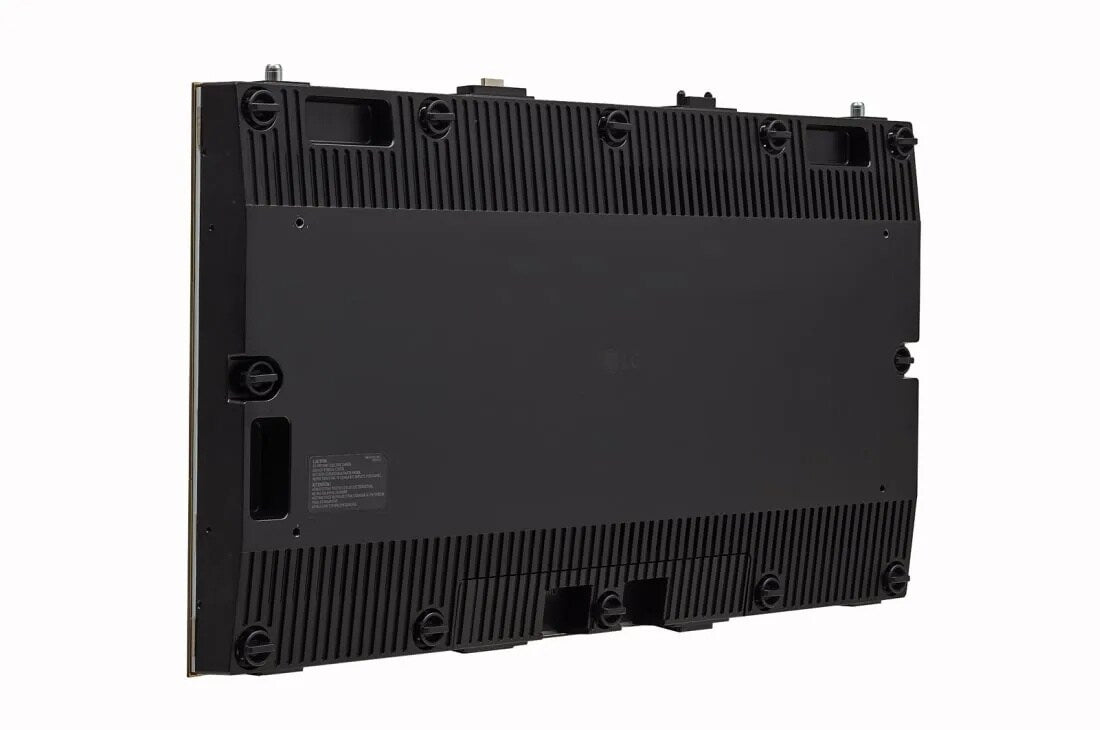

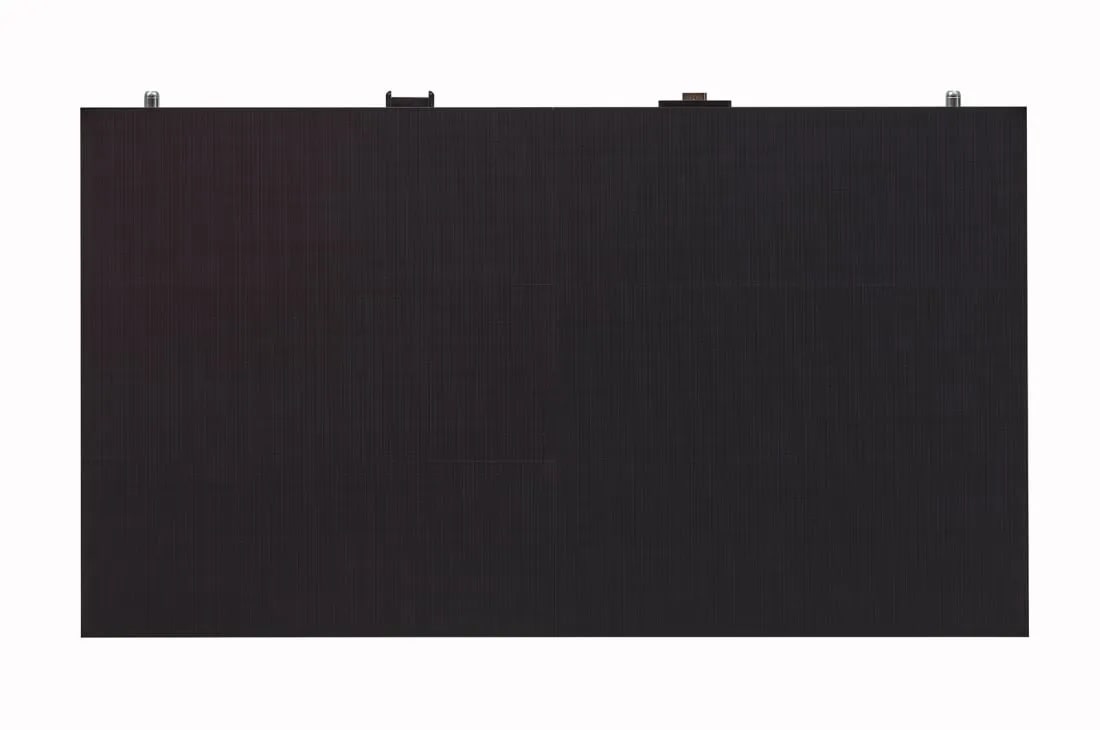

LG LSAB012-N22 – LSAB DVLED P1.2 TAA MAGNIT COB Main Bottom Cabinet 800Nit 600x337.5x44.9

Product Overview

The LG MAGNIT LSAB P1.2 COB DVLED (LSAB012-N22) is a TAA-compliant direct-view LED display cabinet built for commercial video wall installations where high brightness and long-term durability are priorities. Serving as the Main Bottom cabinet in a modular MAGNIT LSAB array, it delivers a 1.2mm pixel pitch across a 480x270 resolution panel, producing 1,500 nits of brightness output for visibility in high-ambient-light environments. Chip on Board (COB) LED technology and built-in Ethernet connectivity make this cabinet a reliable foundation for large-format digital signage and command center displays. Trade Agreements Act compliance supports U.S. government and public-sector AV procurement.

Product Description

The LSAB012-N22 is the primary lower cabinet in LG's MAGNIT LSAB P1.2 COB direct-view LED series, designed to anchor multi-cabinet video wall configurations in professional AV environments. With a 1.2mm pixel pitch and 480x270 native resolution per cabinet, it supports seamless large-format displays suitable for viewing distances starting around two to three feet, covering a broad range of corporate, governmental, and commercial deployment scenarios. At 1,500 nits of rated brightness, this cabinet exceeds the output of many competing direct-view LED systems at this pixel pitch, making it a dependable choice for spaces with significant ambient light — including lobbies, operations centers, and open-plan collaboration areas. The Chip on Board (COB) construction encapsulates LED chips directly onto the PCB, eliminating exposed component edges and producing a more impact-resistant, dust-tolerant display surface compared to conventional SMD LED designs. Built-in Ethernet connectivity enables network-based content management and system monitoring, integrating cleanly into managed AV and IT infrastructure. The -N22 designation identifies this as the Main Bottom cabinet, the structural and electrical anchor of the modular wall, upon which secondary (-T) and top (-U) cabinets build upward. LED backlighting technology provides uniform illumination across the cabinet face for consistent image quality from edge to edge. TAA compliance qualifies the LSAB012-N22 for U.S. federal procurement under GSA schedules and similar government purchasing vehicles. The combination of commercial-grade construction, high brightness, and network manageability makes this cabinet a versatile foundation for mission-critical and high-profile display installations.

Key Features

• 1.2mm Pixel Pitch (P1.2) — Delivers clear, detailed imagery at moderate to close viewing distances for boardrooms, lobbies, and operations centers.
• Chip on Board (COB) LED Technology — Direct LED-to-PCB bonding improves display flatness, impact resistance, and color uniformity over the cabinet's operational life.
• 1,500 Nit Brightness — High output maintains image clarity in ambient-light environments without washing out content.
• Built-in Ethernet Connectivity — Enables network-based content management and remote system monitoring within managed AV infrastructure.
• 480x270 Cabinet Resolution — Sufficient per-cabinet pixel density for seamless tiling into large-format high-resolution display arrays.
• LED Backlight Technology — Provides even illumination across the cabinet surface for consistent brightness and color uniformity.
• Main Bottom Cabinet (-N22) — Serves as the structural and electrical base of a modular MAGNIT LSAB video wall, compatible with -T and -U extension and top cabinets.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal, state, and public-sector procurement.
• Commercial-Grade Build Quality — Engineered for continuous-duty operation in demanding commercial and institutional AV environments.

Typical Applications

• Government and military command and operations centers
• Corporate lobby and reception area digital signage
• Conference rooms and executive briefing centers
• University and higher education auditoriums
• Retail flagship and high-traffic public display installations
• Broadcast and media production studios
• Transportation hub and airport public information displays

Technical Specifications

Frequently Asked Questions

What does the -N22 suffix indicate?

The -N suffix identifies this as the Main Bottom cabinet in the MAGNIT LSAB modular system. It is the primary lower cabinet that anchors the video wall assembly and connects with -T (secondary/extension) and -U (top) cabinets to build the full display height.

How does COB technology benefit a commercial installation?

Chip on Board (COB) technology bonds LED chips directly to the PCB without individual component housings, producing a flatter, more uniform display surface. This reduces the risk of damage from incidental contact and improves the display's tolerance to fine dust — practical advantages in high-traffic commercial environments.

What is the recommended minimum viewing distance for P1.2?

A general guideline for 1.2mm pixel pitch displays is a minimum comfortable viewing distance of approximately two to three feet, making the LSAB012-N22 suitable for conference rooms, lobbies, and operations centers where viewers are seated or standing at normal working distances from the display.

Why does the 1,500 nit brightness rating matter?

Higher brightness output ensures that content remains clearly visible in environments with significant ambient light, such as lobbies with large windows, open-plan offices, or public spaces. At 1,500 nits, this cabinet maintains image quality without requiring a fully darkened room.

Does the built-in Ethernet support remote management?

Yes. The Ethernet interface allows this cabinet to connect to a local network for content management, firmware updates, and system monitoring through compatible control software, integrating with standard managed AV and IT infrastructure.

Is this product eligible for government purchase?

Yes. The LSAB012-N22 is TAA (Trade Agreements Act) compliant, qualifying it for U.S. federal procurement under GSA schedules and other government purchasing programs.

Where can I find compatible top and extension cabinets?

Compatible MAGNIT LSAB P1.2 COB top (-U22) and secondary (-T22) cabinets are available at creationnetworks.net.
