LG LSAB009-U5 – MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.94, 640x360 resolution

Product Overview

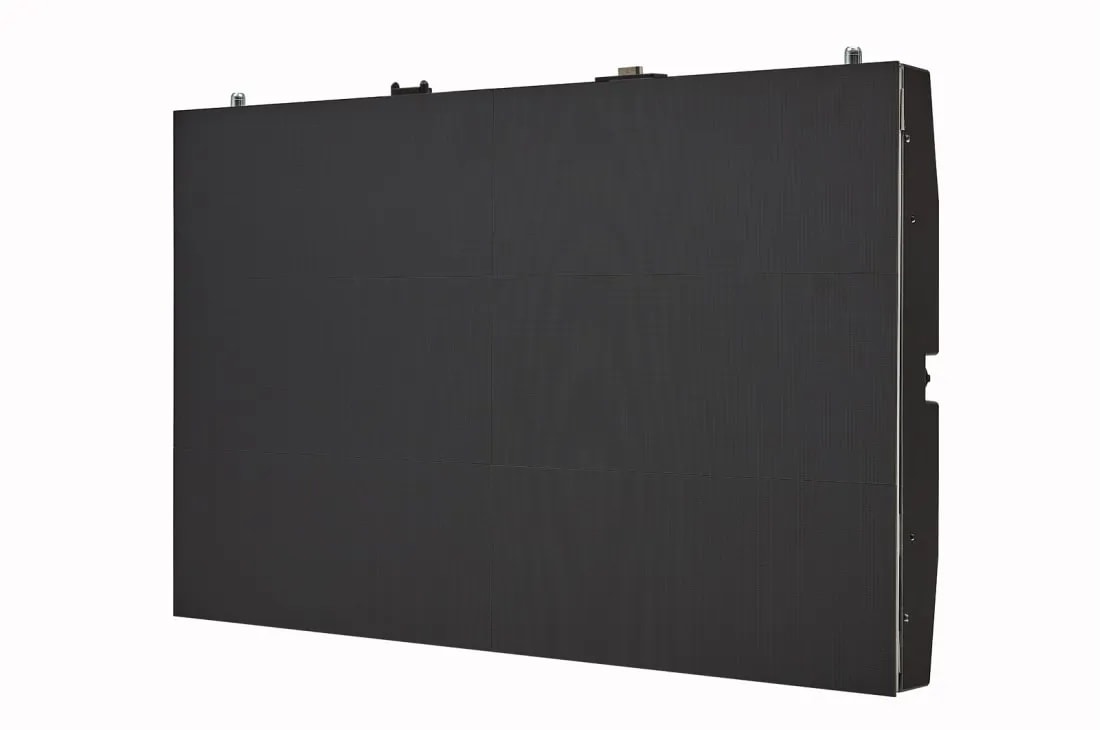

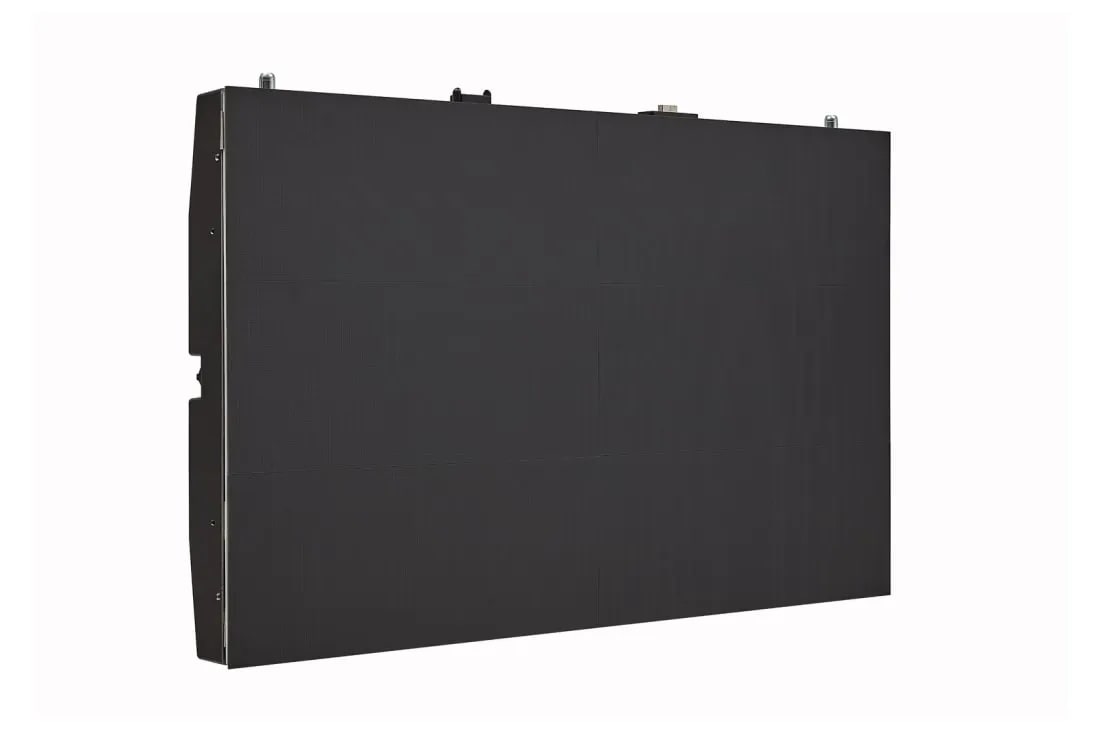

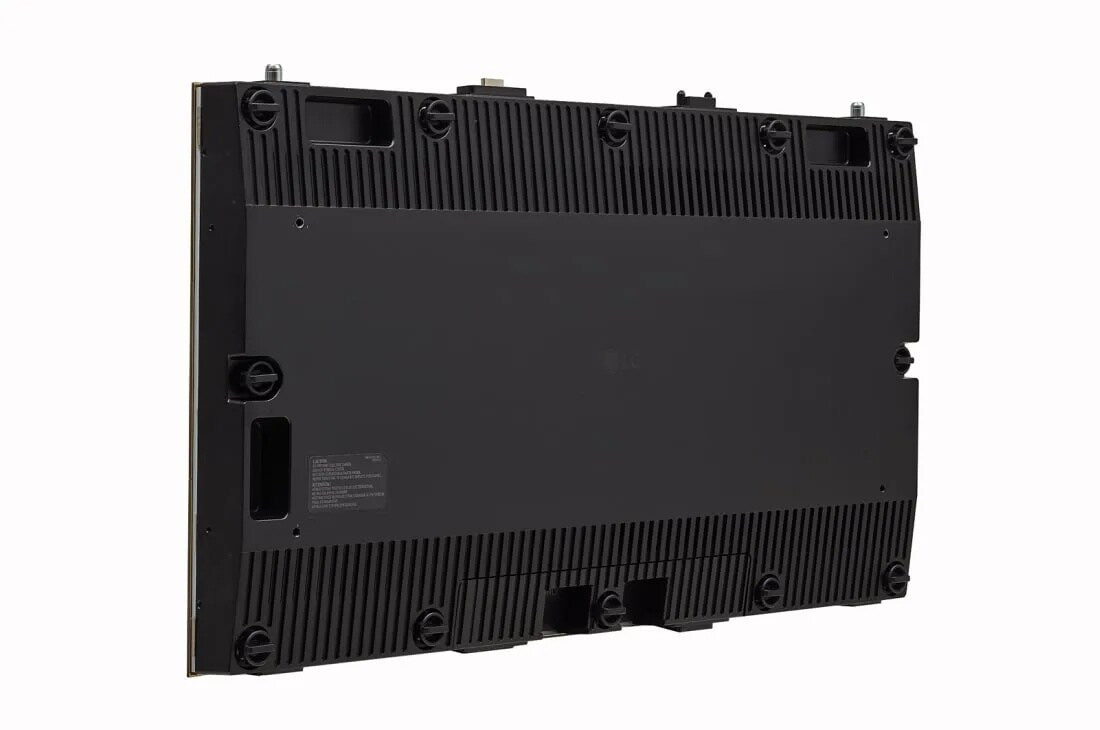

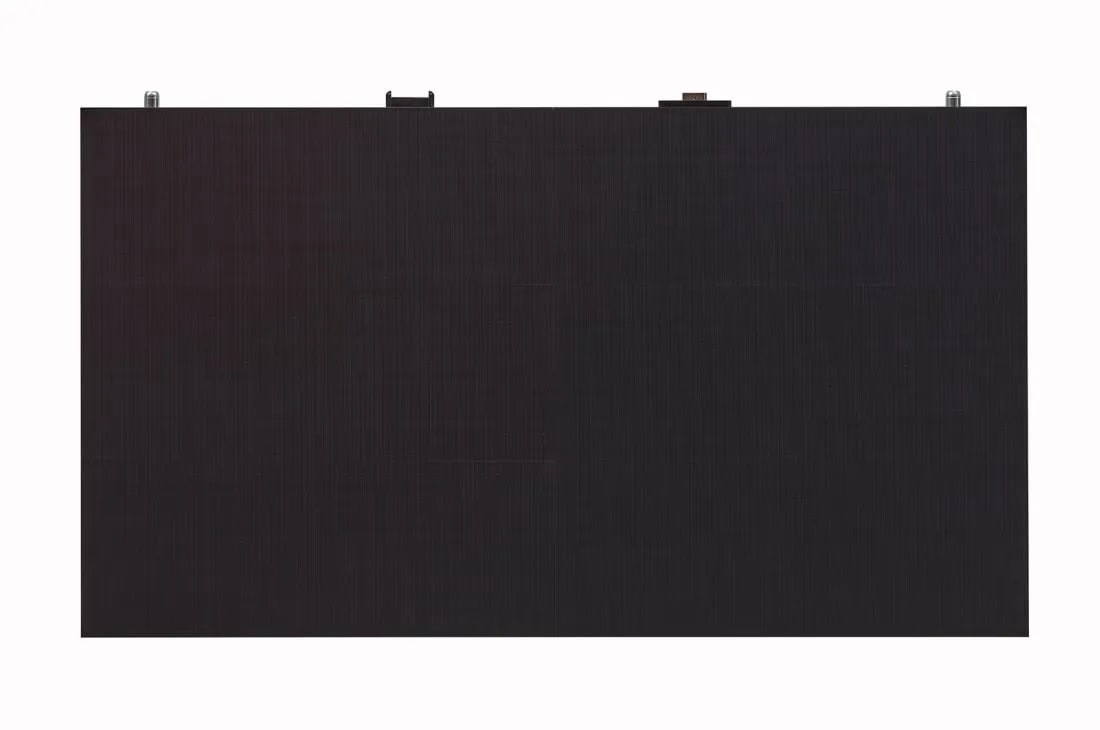

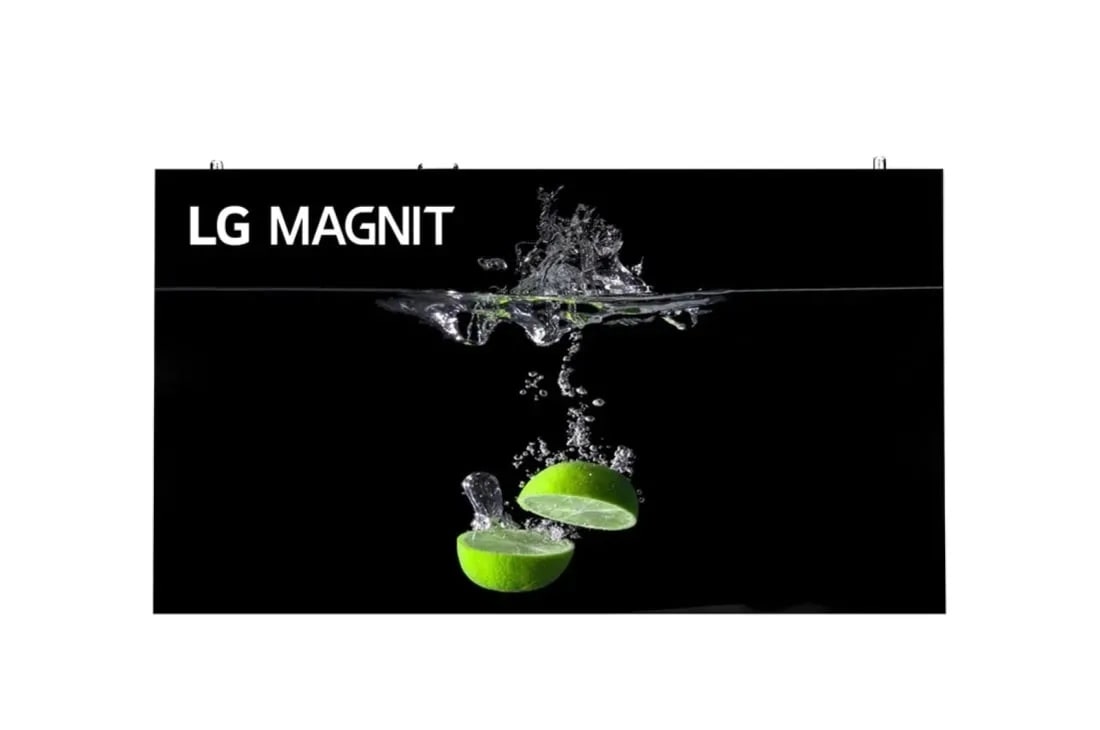

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB009-U5) is a professional MicroLED direct-view display cabinet designed for high-density commercial video wall installations demanding exceptional image clarity at close viewing distances. Positioned as the Main Top cabinet in a modular MAGNIT VI array, it features a 0.94mm pixel pitch with a 640x360 native resolution per cabinet. Chip on Board (COB) construction and Fine pitch LED Advanced Technology (F.L.A.T.) engineering deliver accurate color reproduction and consistent luminance across seamlessly tiled configurations. This model is the non-TAA variant of the LSAB009 series, suited for commercial and private-sector deployments where federal procurement compliance is not required.

Product Description

The LSAB009-U5 occupies the upper position in a MAGNIT LSAB VI F.L.A.T. modular video wall, designed to tile with compatible bottom and extension cabinets for custom large-format direct-view LED configurations. The 0.94mm pixel pitch places it firmly in the MicroLED category, making it appropriate for viewing distances starting under two feet and enabling pixel-dense imagery in boardrooms, broadcast sets, simulation environments, and premium digital signage applications. LG's Chip on Board (COB) LED technology bonds the LED elements directly to the circuit board, eliminating the individual component housings used in traditional SMD designs and resulting in a flatter, more uniform display surface with improved resistance to physical contact and fine particulate contamination. The F.L.A.T. platform ensures cabinet-to-cabinet consistency in brightness and color temperature, which is critical for large arrays where panel-to-panel variation would be visually distracting. Wireless Data Transfer capability reduces inter-cabinet cabling requirements, streamlining integration in tight spaces or architecturally sensitive environments. The Cable-less Power Docking system further simplifies deployment by minimizing the physical connections required at each cabinet. With a 100,000-hour LED lifetime, operational costs over the display's service life remain predictable and low. As the -U5 (non-TAA) variant, this model is available at a competitive price point for commercial integrators working on private-sector projects without federal procurement requirements.

Key Features

• MicroLED 0.94mm Pixel Pitch — Enables sharp, detailed imagery at close viewing distances for immersive conferencing and visualization environments.
• Chip on Board (COB) Technology — Direct LED-to-PCB bonding improves display flatness, color consistency, and durability compared to SMD alternatives.
• F.L.A.T. (Fine Pitch LED Advanced Technology) — LG's precision engineering platform ensures uniform luminance and color accuracy across multi-cabinet arrays.
• Wireless Data Transfer — Reduces cabling at the cabinet level, simplifying installation in architecturally constrained or aesthetically sensitive spaces.
• Cable-less Power Docking — Minimizes power connection points for faster deployment and a cleaner installation finish.
• 100,000-Hour LED Lifetime — Long-rated operational life reduces total cost of ownership for commercial and enterprise installations.
• Main Top Cabinet (-U5) — Designed for upper-position installation in modular MAGNIT VI video wall configurations alongside compatible bottom and extension cabinets.
• 640x360 Cabinet Resolution — High per-cabinet pixel count supports detailed content rendering and precise image tiling across large display arrays.

Typical Applications

• Corporate boardrooms and executive briefing centers
• Broadcast studios and live production environments
• Control rooms and network operations centers
• Hospitality lobby and feature wall digital signage
• Higher education auditoriums and immersive learning spaces
• Simulation and visualization centers
• High-traffic retail flagship digital displays

Technical Specifications

Frequently Asked Questions

What is the difference between the LSAB009-U5 and LSAB009-U25?

The LSAB009-U25 is TAA (Trade Agreements Act) compliant, making it eligible for U.S. federal government procurement. The LSAB009-U5 is the non-TAA version of the same cabinet and is typically priced lower, suited for commercial and private-sector projects where federal compliance is not required.

What does the -U suffix mean in the SKU?

The -U suffix designates this as a Main Top cabinet. It is installed in the upper position of a modular MAGNIT VI video wall array and is designed to mate precisely with -N (main bottom) and -T (secondary/extension) cabinets.

What is the minimum recommended viewing distance for a P0.94 display?

As a general guideline, the minimum comfortable viewing distance for a 0.94mm pixel pitch display is approximately 1.5 to 2 feet, making it well suited for conference table-adjacent walls, control room operator stations, and other close-proximity viewing environments.

How does COB LED compare to SMD LED for professional installations?

COB (Chip on Board) technology bonds LED chips directly to the PCB substrate without individual packaging, producing a flatter surface with better uniformity, greater resistance to dust and physical contact, and improved color consistency—advantages that matter in high-visibility commercial installations.

Does Wireless Data Transfer eliminate all cabling?

Wireless Data Transfer removes the inter-cabinet data cabling requirement. Power connections are handled through the Cable-less Docking system. Some infrastructure cabling to the wall system as a whole is still required, but cabinet-level connections are greatly reduced.

What companion cabinets work with the LSAB009-U5?

This cabinet is part of the MAGNIT LSAB VI F.L.A.T. Series. Compatible bottom (-N) and extension (-T) cabinets in the same series are available at creationnetworks.net.

What is the rated operational life of this display?

The LED components are rated for 100,000 hours, equivalent to more than 11 years of continuous 24/7 operation, making long-term reliability a strong characteristic of this system.
