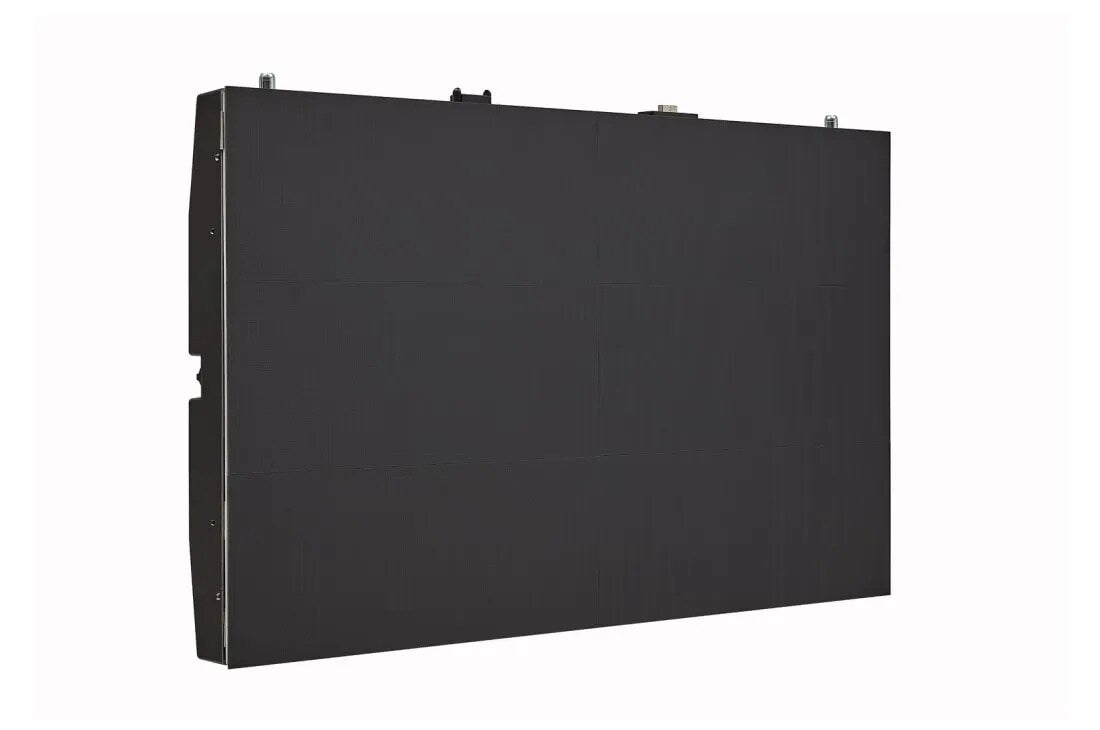

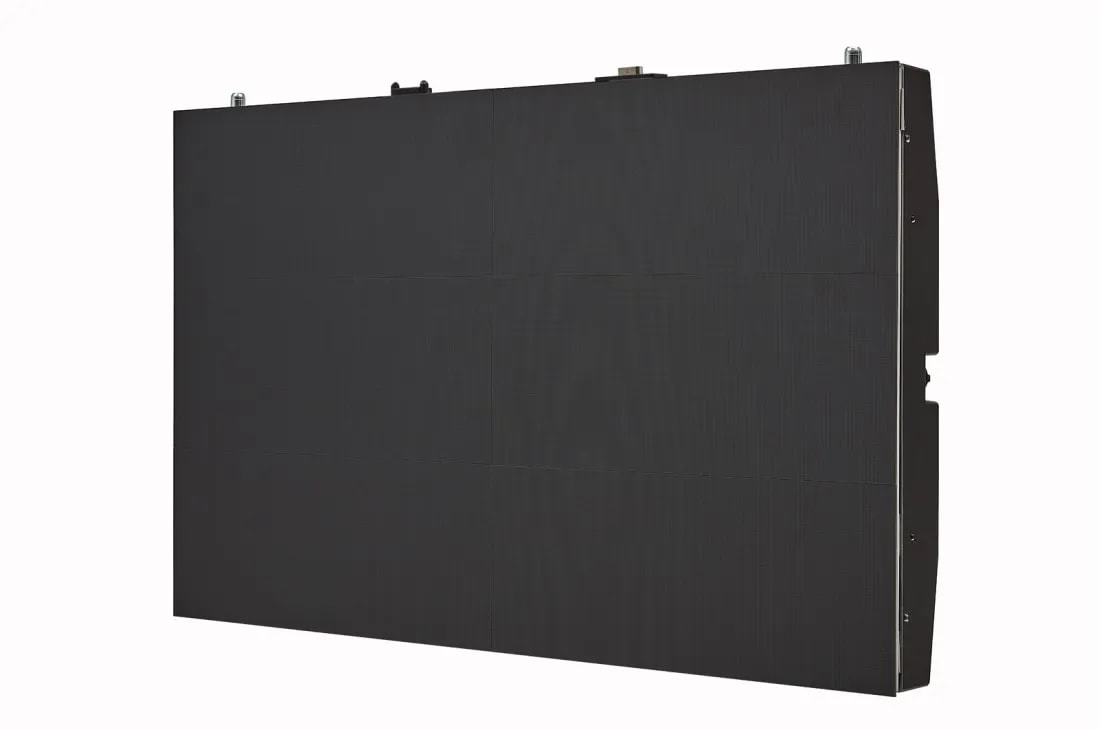

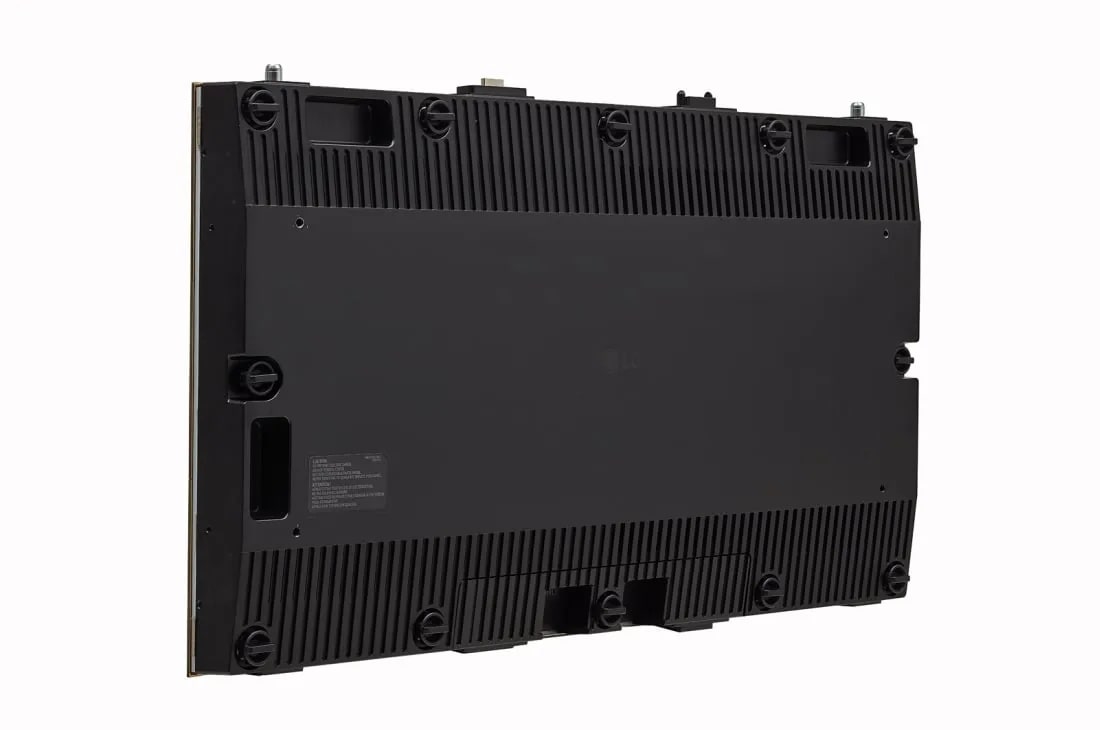

LG LSAB009-U25 – TAA MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.94, 640x360 resolution

Product Overview

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB009-U25) is a TAA-compliant MicroLED direct-view display cabinet engineered for high-profile commercial installations requiring premium image quality at close viewing distances. Designed as the Main Top cabinet in a modular MAGNIT VI video wall array, it delivers a 0.94mm pixel pitch across a 640x360 resolution panel for smooth, detailed imagery. Its Chip on Board (COB) LED technology and 1,200 nit brightness output make it suitable for control rooms, boardrooms, broadcast environments, and large-format display walls. Trade Agreements Act compliance makes it an approved option for U.S. federal government and public-sector AV deployments.

Product Description

The LSAB009-U25 is the upper-position cabinet in LG's MAGNIT LSAB VI F.L.A.T. Series, a professional-grade MicroLED direct-view LED system built around a 0.94mm pixel pitch. The F.L.A.T. (Fine pitch LED Advanced Technology) platform integrates Chip on Board (COB) LED construction, which encapsulates the LED chips directly onto the PCB substrate, improving impact resistance, dust protection, and color consistency compared to traditional SMD designs. With a rated brightness of 1,200 nits, this cabinet delivers clear, high-contrast imagery even in moderately lit environments such as conference centers, government operations centers, and premium retail installations. Wireless Data Transfer and Cable-less Power Docking technology simplifies installation and maintenance, reducing the number of connections required at the cabinet level and enabling cleaner cable management across a full video wall array. The 640x360 native resolution per cabinet allows integrators to configure large-scale seamless displays by tiling multiple units, with the -U25 designation indicating its role as the top section of the assembled wall. The 100,000-hour rated LED lifetime minimizes long-term maintenance costs and ensures consistent performance over the display's operational lifespan. TAA compliance under the Trade Agreements Act ensures this product meets U.S. federal procurement requirements, making it suitable for GSA schedule purchases and government AV projects. The MAGNIT VI F.L.A.T. Series is designed for mission-critical and prestige environments where image accuracy, long-term reliability, and clean installation are non-negotiable.

Key Features

• MicroLED 0.94mm Pixel Pitch — Delivers smooth, detailed imagery at close viewing distances, ideal for conference rooms and control centers.
• Chip on Board (COB) Technology — Encapsulates LEDs directly on the PCB for improved durability, color uniformity, and resistance to dust and impact.
• F.L.A.T. (Fine Pitch LED Advanced Technology) — LG's precision manufacturing platform engineered for accurate, consistent performance across large-format seamless video walls.
• 1,200 Nit Brightness — Provides strong visibility in ambient-light commercial environments without overdriving the display.
• Wireless Data Transfer — Reduces cabling complexity during installation and simplifies signal distribution across the cabinet array.
• Cable-less Power Docking — Streamlines power connections at each cabinet for faster deployment and a cleaner finished installation.
• 100,000-Hour LED Lifetime — Minimizes replacement and maintenance costs over the long operational life of the display system.
• Main Top Cabinet (-U25) — Configured as the upper cabinet in a multi-unit MAGNIT VI video wall, designed to align precisely with companion bottom and extension cabinets.
• TAA Compliant — Meets Trade Agreements Act requirements for U.S. federal, state, and public-sector procurement programs.

Typical Applications

• Government and military operations centers
• Corporate boardrooms and executive conference rooms
• Broadcast studios and media production control rooms
• Higher education lecture halls and auditoriums
• Premium retail flagship digital signage
• Network operations centers (NOC) and security monitoring environments
• Public information displays in transit hubs and airports

Technical Specifications

Frequently Asked Questions

What does the -U25 suffix indicate?

The -U suffix designates this as a Main Top cabinet in the MAGNIT VI modular system. It is designed to be installed in the upper position of a multi-cabinet video wall assembly and pairs with -N (bottom) and -T (extension) cabinets.

What is COB LED technology and why does it matter?

Chip on Board (COB) technology bonds LED chips directly to the PCB without individual packaging, resulting in better color uniformity, a flatter display surface, and improved resistance to physical contact and environmental contaminants compared to standard SMD LED designs.

What is the F.L.A.T. platform?

F.L.A.T. stands for Fine pitch LED Advanced Technology. It is LG's proprietary manufacturing and engineering platform for sub-1mm pixel pitch MicroLED displays, ensuring precise cabinet alignment, consistent luminance, and accurate color reproduction across large video wall configurations.

Is this product eligible for federal government purchase?

Yes. The LSAB009-U25 is TAA (Trade Agreements Act) compliant, making it eligible for U.S. federal procurement, including GSA schedule purchases and other government AV contracts.

How does Wireless Data Transfer simplify installation?

Wireless Data Transfer eliminates the need for individual data cables between cabinets, reducing installation time, minimizing cable management complexity, and lowering the potential for signal issues caused by loose or damaged data connections.

What is the expected service life of this display?

The LEDs in the LSAB009-U25 are rated for 100,000 hours of operation, which translates to over 11 years of continuous 24/7 use, making it well-suited for commercial and mission-critical environments.

Where can I find compatible MAGNIT VI cabinet models?

Compatible MAGNIT LSAB VI F.L.A.T. Series cabinets, including bottom (-N) and extension (-T) units, are available at creationnetworks.net.
