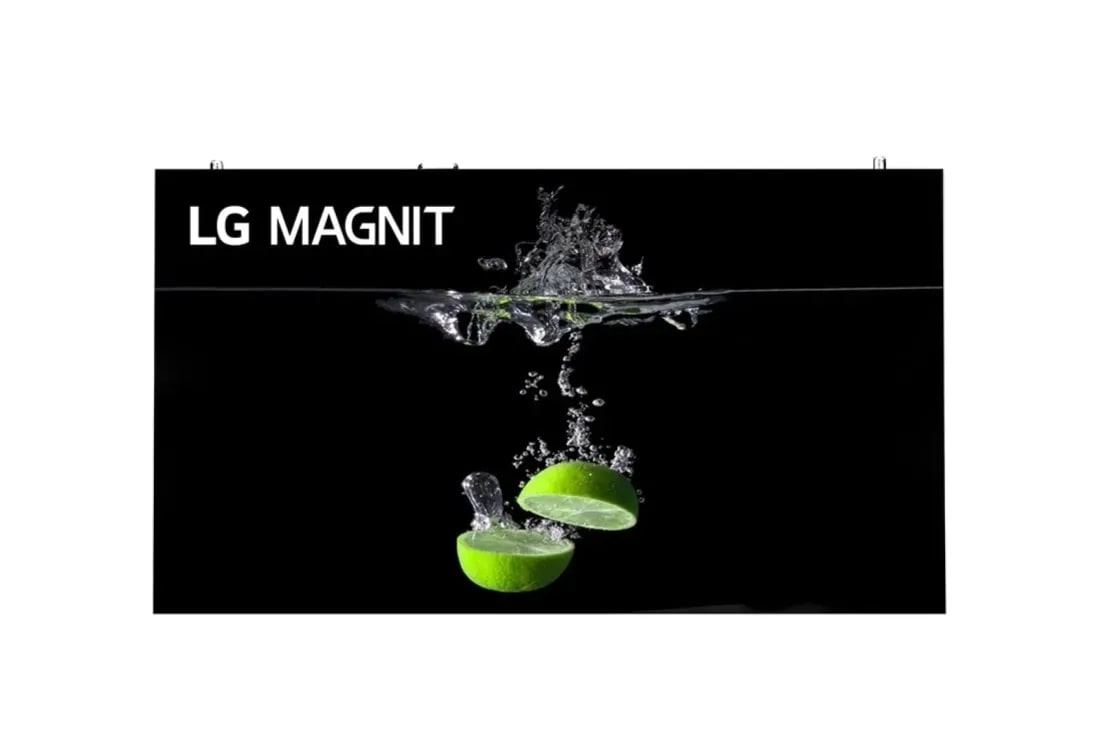

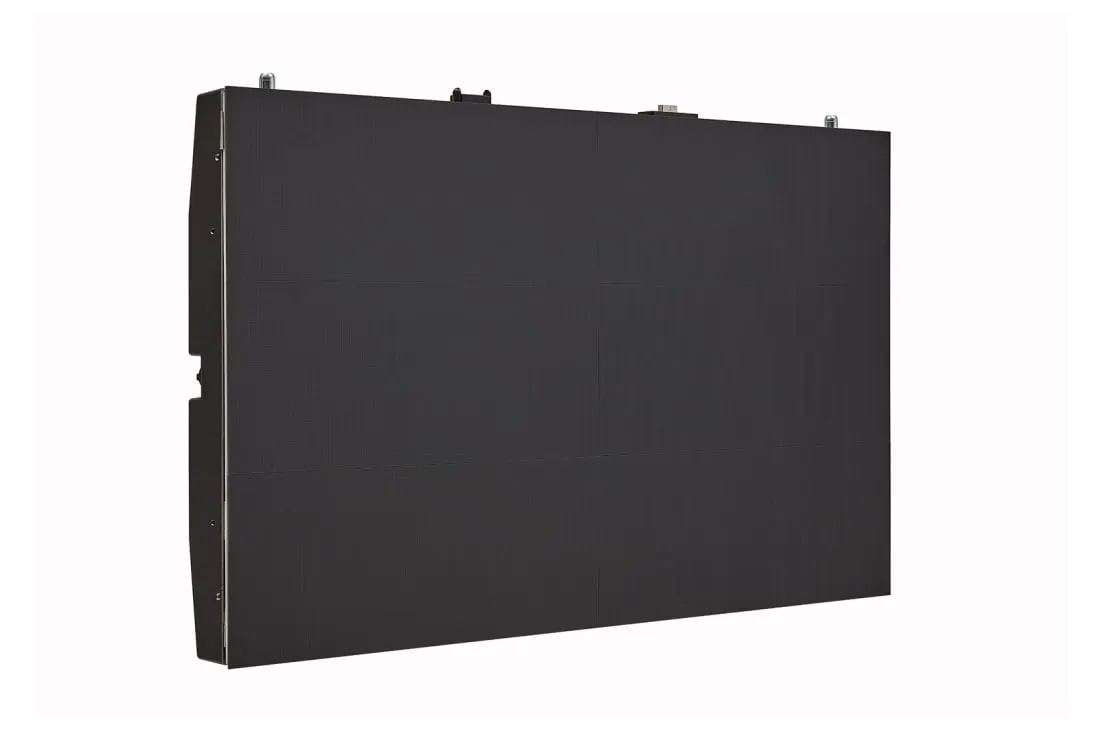

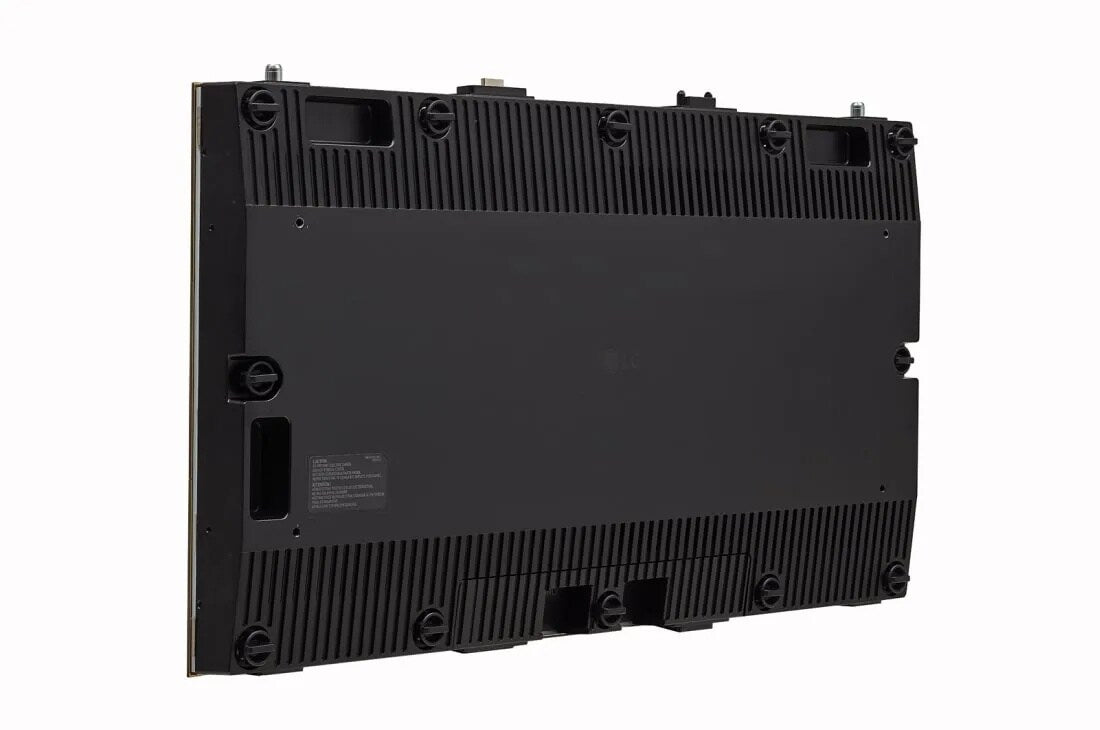

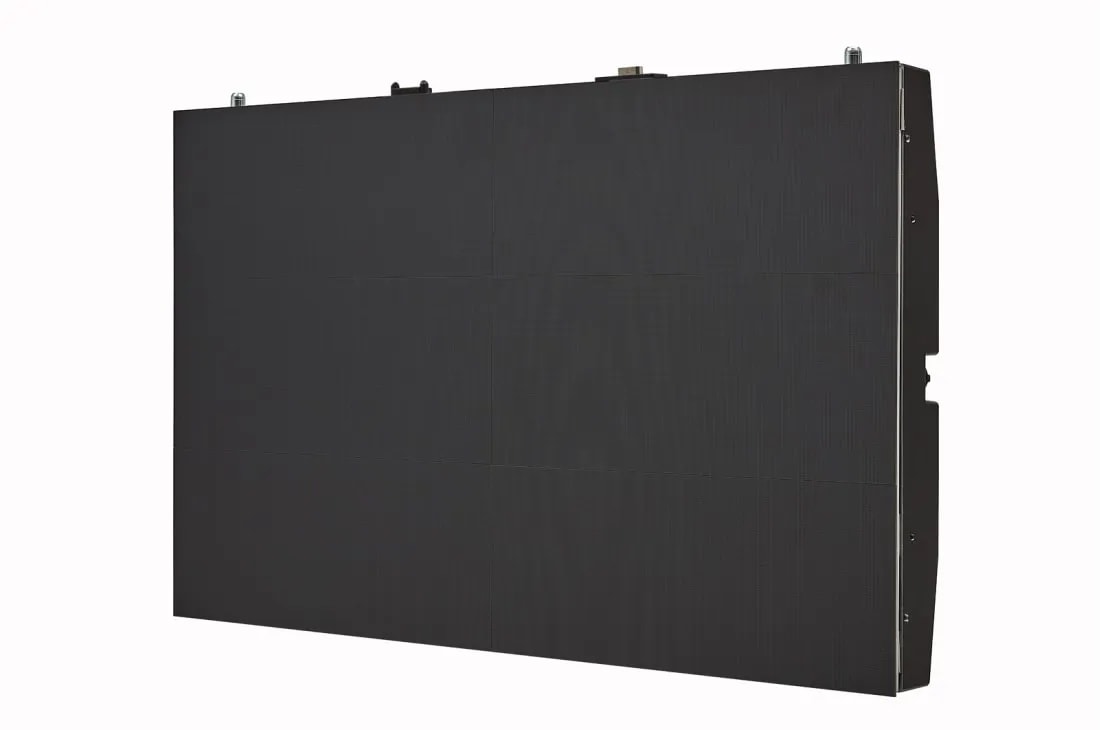

LG LSAB009-T5 – MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.94, 640x360 resolution

Product Overview

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB009-T5) is a P0.94 pixel pitch secondary extension cabinet designed to expand multi-cabinet direct view LED video wall installations in commercial AV environments. With a native resolution of 640x360 per cabinet, this unit adds rows or columns to an existing LSAB VI array, allowing integrators to reach custom or standard wall dimensions without changing the core pixel pitch or image characteristics of the installation. This is the non-TAA variant of the LSAB009-T series, providing identical display performance to the TAA-compliant version for commercial projects without federal procurement requirements. The F.L.A.T. cabinet construction and P0.94 pixel pitch make it a practical choice for conference rooms, corporate lobbies, and commercial digital signage where sub-1mm pitch is specified.

Product Description

The LSAB009-T5 is a secondary extension cabinet in LG's MAGNIT LSAB VI F.L.A.T. series, intended to expand video wall arrays built on main bottom (-N) and main top (-U) base cabinets. The -T suffix identifies it as an extension unit, while the 5 grouping designates the configuration batch. When added to an existing LSAB VI installation, the LSAB009-T5 tiles into the array to increase wall height or width while preserving the P0.94 pixel pitch and the visual consistency of the full display surface. At 0.94mm pixel pitch with 640x360 resolution per cabinet, this extension unit supports viewing distances starting at approximately one meter, making it well-matched for mid-size conference rooms, open plan collaboration areas, corporate lobbies, and retail display walls where staff and customers view from moderate distances. The F.L.A.T. (Fine pitch LED Advanced Technology) cabinet frame ensures alignment precision between adjacent cabinets, maintaining near-seamless seams across the full tiled display. The LSAB009-T5 is the non-TAA variant, making it the appropriate procurement choice for private-sector commercial integrators and enterprise buyers whose projects fall outside federal purchasing requirements. This allows the same premium display technology to be deployed in commercial hospitality, retail, and corporate environments at a competitive price point compared to the TAA-certified alternative. As part of LG's MAGNIT platform, it integrates with LG's DVLED controller and calibration ecosystem. For project design support and system pricing, contact Creation Networks at creationnetworks.net.

Key Features

• P0.94 Pixel Pitch — Sub-1mm pixel pitch provides high-resolution imagery at moderate viewing distances in commercial conference rooms, lobbies, and retail environments.
• F.L.A.T. Series Cabinet Construction — Precision-engineered frames produce near-seamless tiling with adjacent cabinets, maintaining a uniform display surface across the full video wall.
• 640x360 Native Resolution — Per-cabinet resolution tiles into broader video wall configurations to achieve target wall resolutions in standard or custom formats.
• Secondary Extension Cabinet — Expands existing LSAB VI video wall arrays by adding rows or columns to reach specified installation dimensions.
• Non-TAA Variant — Matches the display specifications of the TAA-compliant LSAB009-T25 for commercial and private-sector projects without federal compliance requirements.
• LG MAGNIT Platform — Compatible with LG MAGNIT LSAB VI main cabinets, LG DVLED controllers, and the broader MAGNIT service and calibration ecosystem.
• Direct View LED Technology — Each pixel is individually driven by dedicated LEDs, providing superior contrast, color depth, and viewing angle compared to LCD-based large-format displays.
• Commercial-Grade Build Quality — Suitable for continuous operation in demanding environments including 24/7 digital signage, NOCs, and commercial retail installations.

Typical Applications

• Extending commercial video walls in corporate headquarters, boardrooms, and open collaboration spaces
• Hospitality venues including hotel conference centers, event ballrooms, and lobby display walls
• Retail flagship stores and brand experience environments requiring large-format high-resolution displays
• Healthcare facility main lobbies, administrative areas, and patient information displays
• Entertainment venues, sports facilities, and live event production display walls
• Higher education common areas, student centers, and large lecture halls
• Multi-tenant commercial real estate lobbies and building directory displays

Technical Specifications

Frequently Asked Questions

What is the difference between LSAB009-T5 and LSAB009-T25?

Both cabinets share the same P0.94 pixel pitch and 640x360 resolution specifications. The LSAB009-T25 is TAA compliant for government and federal procurement. The LSAB009-T5 is the non-TAA variant for commercial and private-sector projects.

What does the -T5 suffix indicate?

The -T suffix identifies this as a secondary extension cabinet in the LSAB series. It is designed to expand a video wall array beyond the base configuration of main bottom and top cabinets. The 5 denotes the configuration grouping.

What cabinets does this unit pair with?

The LSAB009-T5 pairs with the LSAB009-N5 (main bottom) and corresponding LSAB VI top cabinets in the same non-TAA configuration group for a fully matched commercial video wall installation.

Is this cabinet a standalone display?

No. The LSAB009-T5 is an extension cabinet that requires main bottom and top cabinets from the LSAB VI series, along with a compatible DVLED controller and mounting hardware, to form a complete functioning video wall.

What viewing distance does P0.94 pixel pitch support?

P0.94 pixel pitch supports practical viewing distances starting at approximately 1 to 1.5 meters. For most conference room and lobby applications, comfortable viewing begins around 1.5 meters depending on content and ambient light.

Can non-TAA and TAA cabinets be mixed in the same video wall?

It is generally advisable to keep TAA and non-TAA variants separate within a single installation to maintain compliance integrity for government projects. For commercial-only projects, consult with a system designer. Contact Creation Networks at creationnetworks.net for guidance.

How do I configure a complete video wall using this cabinet?

Creation Networks provides DVLED system design, cabinet configuration planning, and procurement services. Visit creationnetworks.net to start a project consultation.
