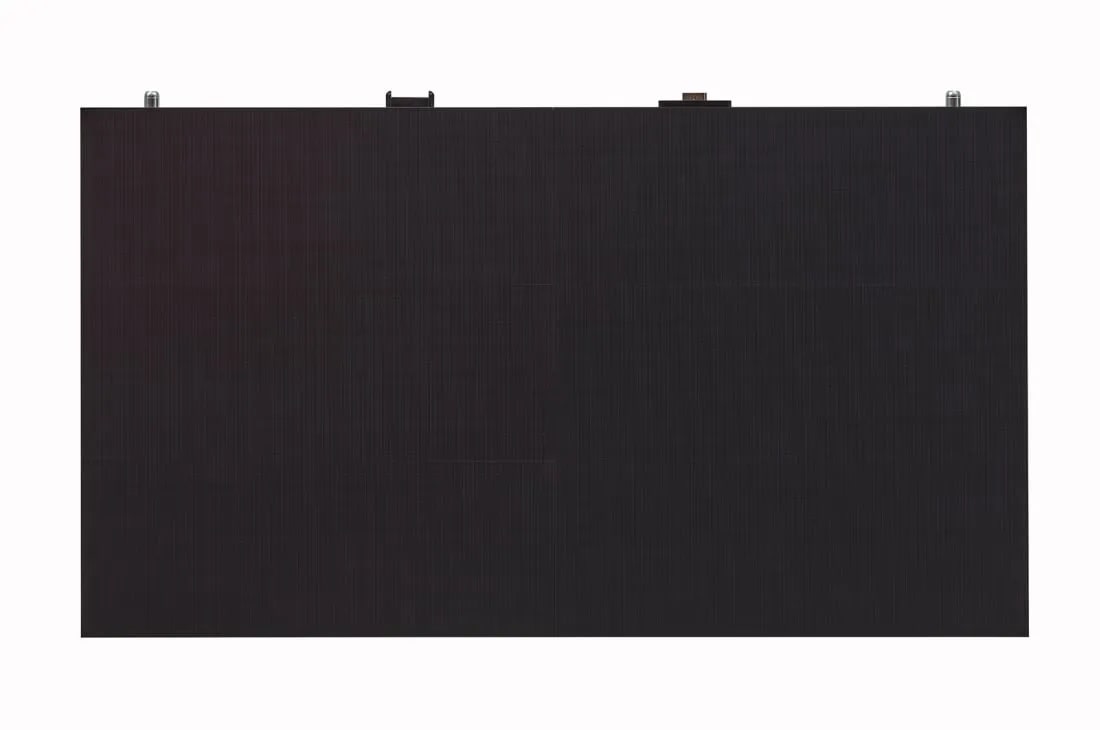

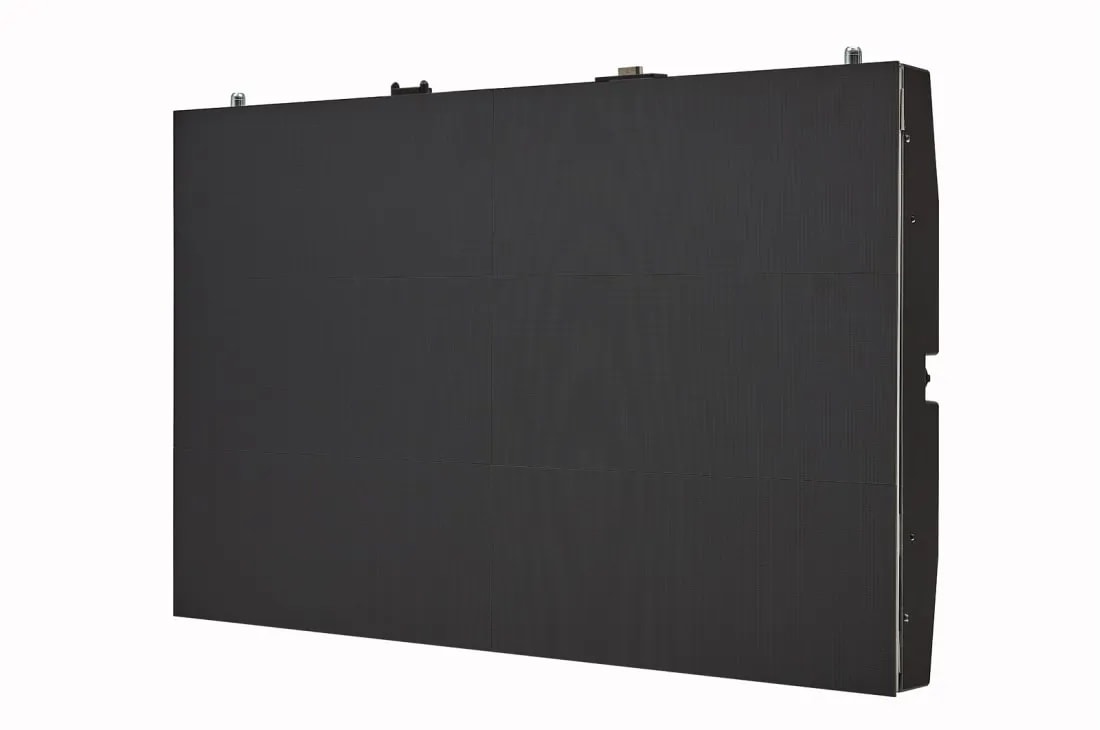

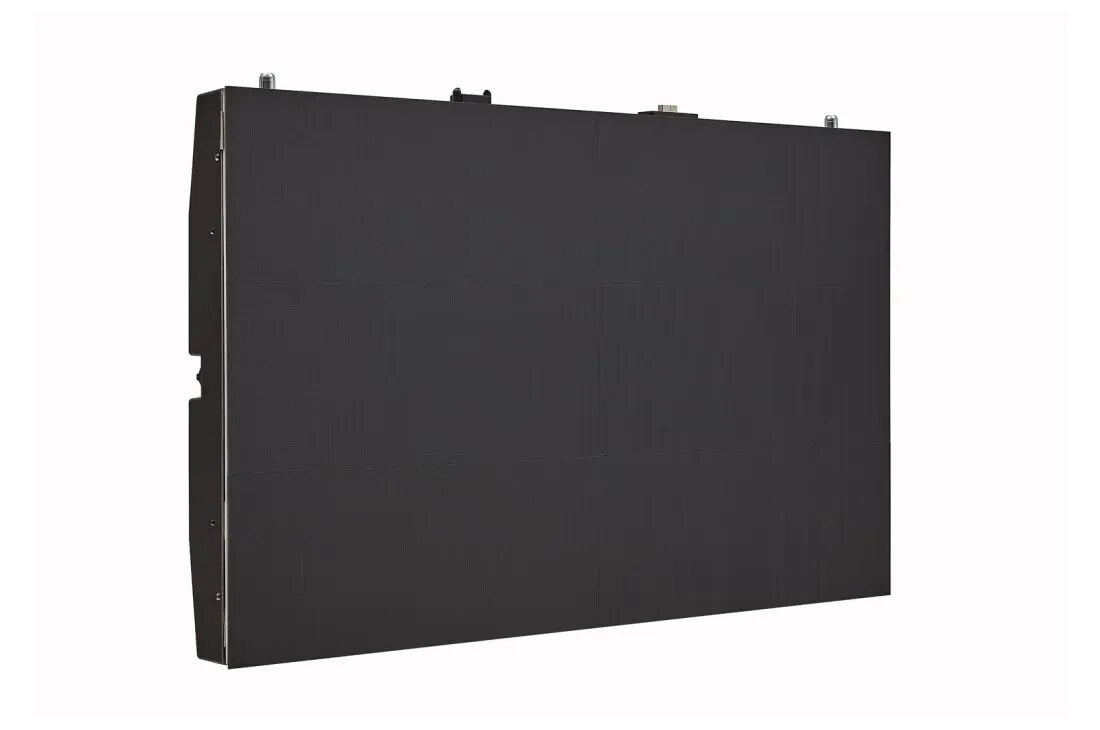

LG LSAB009-T25 – TAA MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.94, 640x360 resolution

Product Overview

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB009-T25) is a TAA-compliant secondary extension cabinet designed for use in multi-cabinet direct view LED video wall installations. Operating at P0.94 pixel pitch with a native resolution of 640x360 per cabinet, this unit extends an existing LSAB VI array by adding additional rows or columns to reach the target wall dimensions. The direct view LED backlight architecture and F.L.A.T. cabinet construction ensure consistent image quality and alignment across the full video wall surface. As a TAA-compliant product, it is eligible for federal government, GSA schedule, and government-funded institutional procurement.

Product Description

The LSAB009-T25 is the secondary extension cabinet in LG's MAGNIT LSAB VI F.L.A.T. series, engineered to expand a video wall array started with main bottom (-N) and main top (-U) cabinets. The -T designation indicates this cabinet's role as an extension unit, which tiles into the array to add height or width to the display while maintaining the consistent pixel pitch and color performance of the primary cabinets. At 0.94mm pixel pitch with 640x360 resolution per cabinet, this unit blends seamlessly into the existing wall to produce a unified, high-resolution display surface. The direct view LED backlight technology provides uniform luminance across the cabinet face, ensuring brightness consistency when the cabinet is tiled adjacent to other LSAB VI units. The F.L.A.T. (Fine pitch LED Advanced Technology) cabinet frame maintains the precision alignment tolerances required for near-seamless tiling in professional video wall installations. TAA compliance ensures this extension cabinet meets Trade Agreements Act requirements, making it a suitable complement to other TAA-compliant cabinets in the same array for government and federally funded projects. System integrators specifying multi-cabinet video walls for government agencies, military installations, or federally funded universities will find the LSAB009-T25 the correct extension unit to maintain TAA compliance throughout the full installation. The -T25 designation indicates a 25-unit grouping configuration. Creation Networks offers full DVLED project design and procurement services; visit creationnetworks.net for assistance.

Key Features

• P0.94 Pixel Pitch — Sub-1mm pixel pitch supports close-range viewing in professional conference rooms and command centers while maintaining a smooth display surface.
• Direct View LED Backlight — Each pixel is individually lit by dedicated LEDs, providing precise brightness control, high contrast, and wide color gamut across the cabinet surface.
• F.L.A.T. Series Construction — Precision cabinet framing enables near-seamless tiling with adjacent cabinets, producing a visually continuous video wall surface without prominent bezels or gaps.
• 640x360 Native Resolution — Per-cabinet resolution integrates into larger video wall configurations to achieve target wall resolutions in standard or custom aspect ratios.
• TAA Compliant — Meets Trade Agreements Act requirements, enabling inclusion in government, military, and GSA schedule procurement projects.
• Secondary Extension Cabinet — Designed to expand existing LSAB VI video wall arrays, adding rows or columns to reach specified wall dimensions when paired with main bottom and top cabinets.
• LG MAGNIT Platform — Part of LG's premium MicroLED direct view display ecosystem, ensuring compatibility with LSAB VI main cabinets, LG DVLED controllers, and calibration tools.
• Commercial-Grade Reliability — Built for extended continuous operation in demanding commercial AV environments including NOCs, broadcast studios, and 24/7 digital signage installations.

Typical Applications

• Extending existing LG MAGNIT LSAB VI video wall arrays in government command centers and operations rooms
• Federal and military facility briefing rooms and situation rooms with TAA procurement requirements
• Corporate headquarters and executive conference center video walls requiring additional display height or width
• Broadcast studios and live event production environments scaling display dimensions for production needs
• Higher education lecture halls and auditoriums funded through government or institutional grants
• High-traffic transportation hubs requiring wide-format digital signage with consistent image quality across many cabinet units
• Network operations centers scaling monitoring wall dimensions for expanded data visualization

Technical Specifications

Frequently Asked Questions

What does the -T25 suffix mean?

The -T suffix designates this as a secondary extension cabinet in the LSAB series. It is used to expand an existing video wall array beyond the base configuration of main bottom (-N) and main top (-U) cabinets. The 25 indicates the configuration grouping.

Does this cabinet require specific companion cabinets?

Yes. The LSAB009-T25 is designed to extend video walls built with LSAB VI main bottom and top cabinets. For TAA-compliant installations, it pairs with the LSAB009-N25 (main bottom) and corresponding top cabinets in the same series.

Is this product eligible for government procurement?

Yes. The LSAB009-T25 is TAA compliant and meets Trade Agreements Act requirements, making it eligible for GSA schedules and other federal and state government purchasing vehicles.

What is direct view LED backlight technology?

In a direct view LED display, each display pixel is produced by individual LEDs rather than a backlit LCD panel. This provides per-pixel brightness control, higher contrast ratios, and wider color gamut than LCD-based displays.

Can this cabinet be used as the starting point of a video wall?

No. The -T25 is an extension cabinet and requires main bottom (-N) and top (-U) cabinets to form a complete functional video wall. It cannot operate as a standalone display unit.

What pixel pitch is this cabinet?

The LSAB009-T25 uses P0.94 pixel pitch (0.94mm), suitable for viewing distances starting at approximately 1 to 1.5 meters in professional AV settings.

How do I order or configure a complete MAGNIT video wall?

Creation Networks provides end-to-end DVLED system design, configuration planning, and procurement. Visit creationnetworks.net to start a project inquiry.
