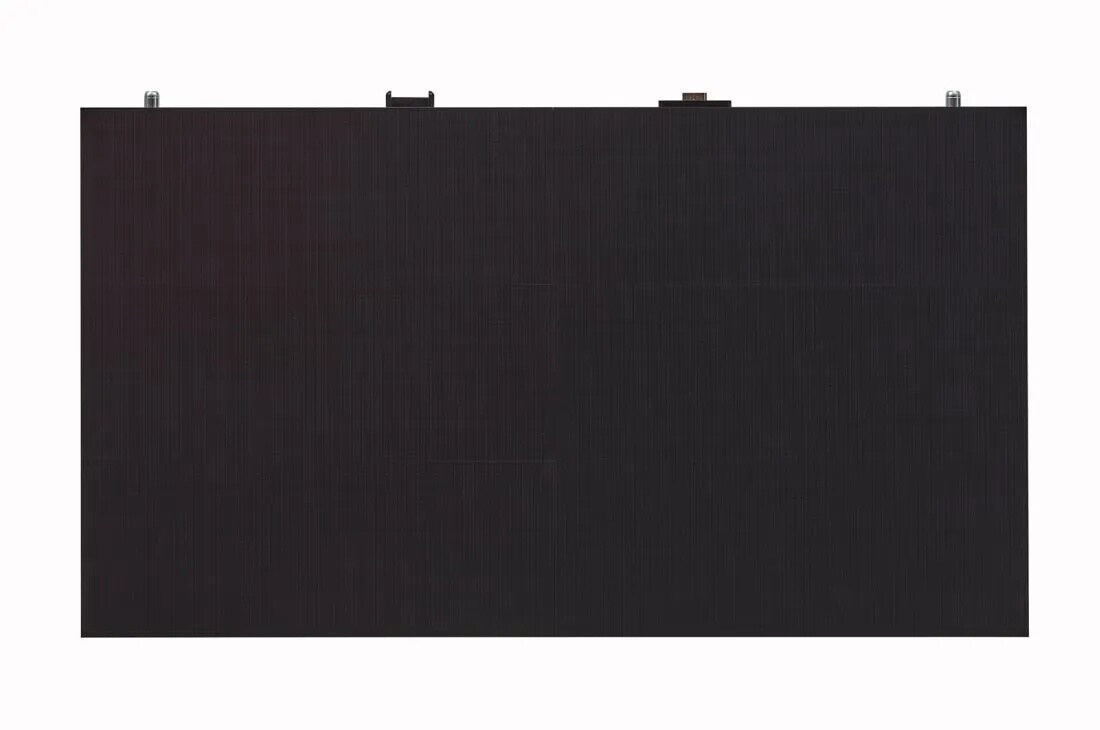

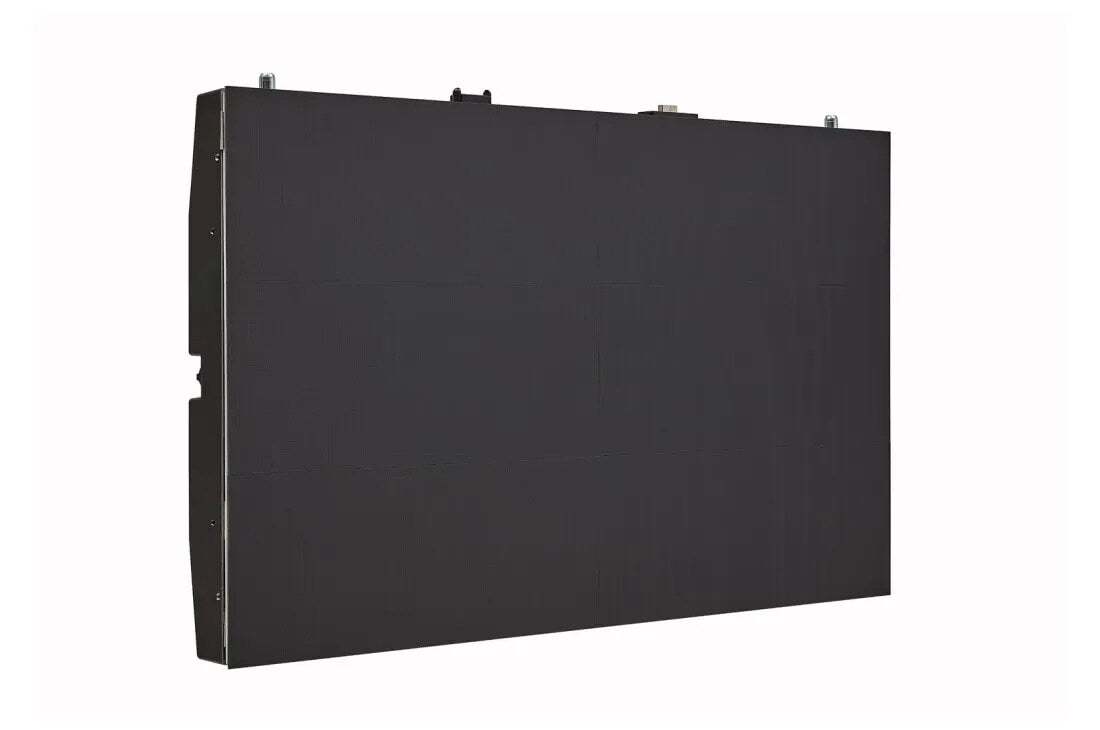

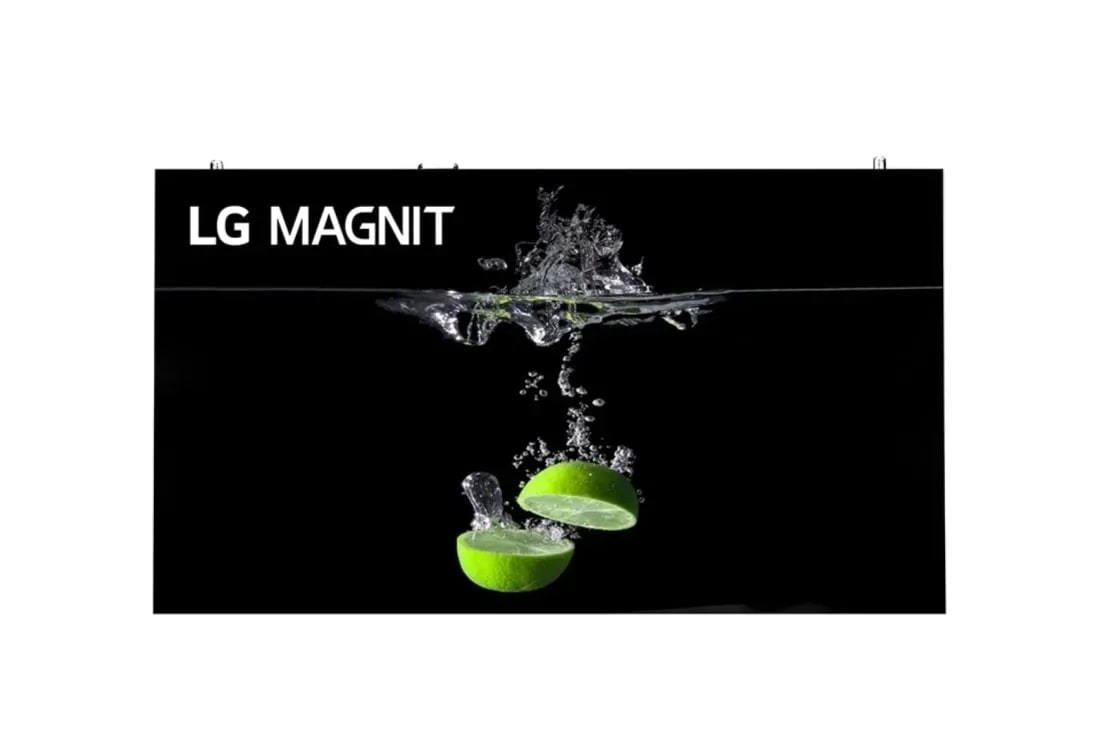

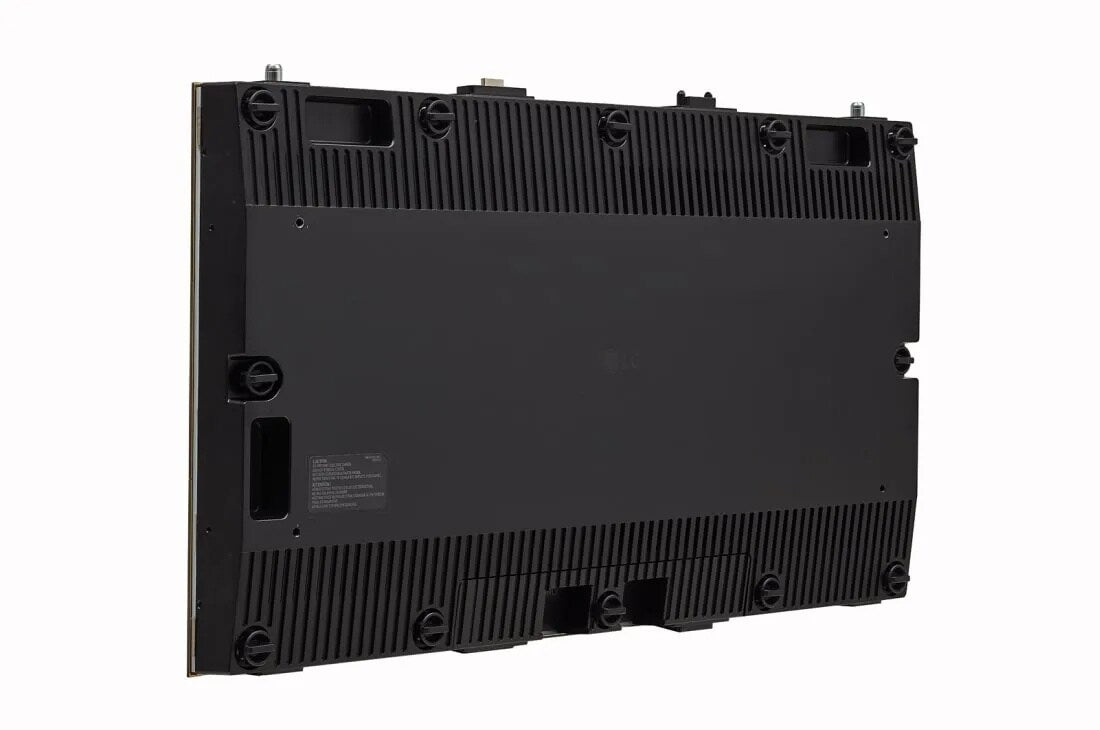

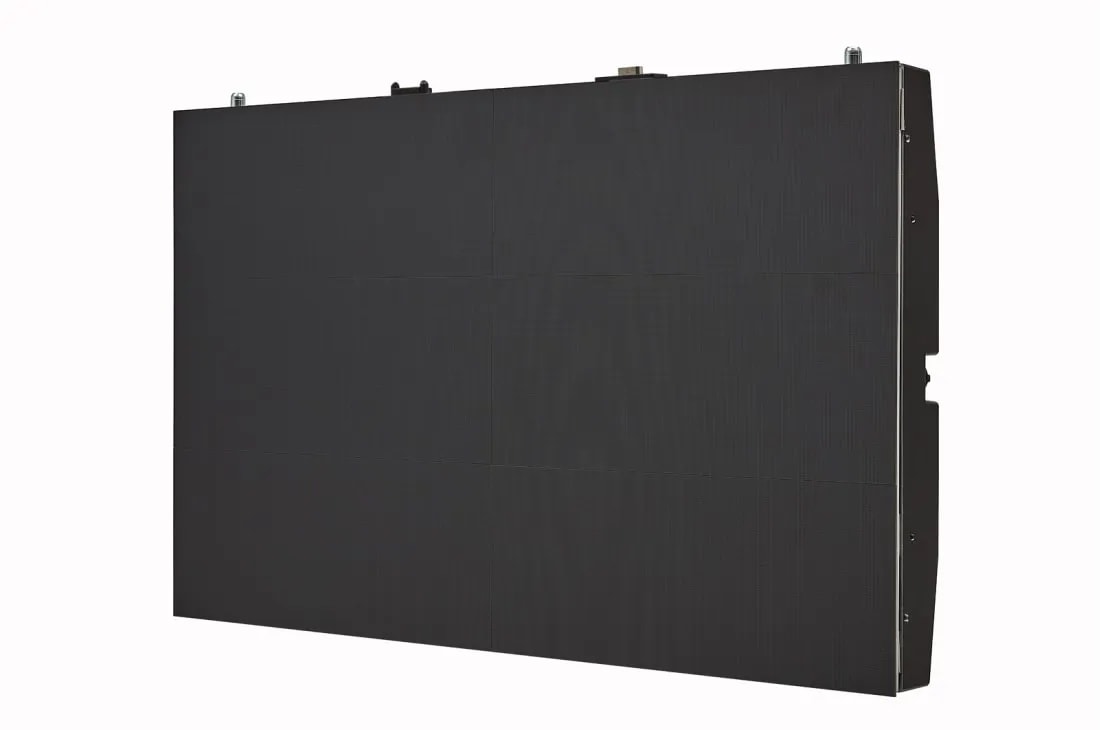

LG LSAB009-N5 – MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.94, 640x360 resolution

Product Overview

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB009-N5) is a P0.94 pixel pitch main bottom cabinet built for large-format direct view LED video wall deployments in commercial AV environments. Delivering a native resolution of 640x360 per cabinet, this unit is designed to serve as the base row in a multi-cabinet array, combining with extension and top cabinets in the LSAB VI series to build scalable video walls for conference rooms, corporate lobbies, and digital signage applications. The F.L.A.T. construction and Chip on Board LED technology provide the image quality and cabinet precision expected in professional installation projects. This SKU is the non-TAA variant of the LSAB009 series, offering the same core display performance at a competitive price point for commercial projects without federal procurement restrictions.

Product Description

The LSAB009-N5 delivers the full image quality of LG's MAGNIT LSAB VI F.L.A.T. platform in a non-TAA configuration, making it the appropriate choice for commercial AV integrators and enterprise buyers whose projects do not require Trade Agreements Act compliance. At P0.94 pixel pitch, this cabinet produces a smooth, continuous image surface suitable for viewing distances starting at approximately one meter, covering a wide range of corporate, hospitality, and retail applications. The 640x360 resolution per cabinet tiles efficiently with adjacent units to achieve standard or custom wall resolutions, with the F.L.A.T. cabinet system minimizing visible seam gaps for a cohesive display surface. Chip on Board (COB) LED technology provides enhanced surface uniformity compared to discrete SMD LED designs, reducing the appearance of pixel structure at closer viewing distances and improving long-term durability against surface contact during installation and maintenance. The -N5 suffix identifies this as a main bottom cabinet, which functions as the structural and electrical foundation of the video wall array. It is designed to pair with corresponding LSAB VI top cabinets (-U suffix) and secondary extension cabinets (-T suffix) to complete the installation. LG's MAGNIT platform supports a full ecosystem of DVLED controllers, calibration hardware, and mounting solutions to simplify system integration. For integrators building multi-site or large-scale commercial deployments where TAA compliance is not a project requirement, the LSAB009-N5 provides a cost-effective path to premium sub-1mm pixel pitch performance. For system design assistance and project pricing, visit creationnetworks.net.

Key Features

• P0.94 Pixel Pitch — Sub-1mm pixel pitch delivers fine-detail image reproduction appropriate for conference rooms, boardrooms, and close-range commercial display applications.
• Chip on Board (COB) Technology — Direct PCB mounting of LED chips improves surface uniformity, reduces visible pixel texture, and adds physical durability versus SMD LED designs.
• F.L.A.T. Series Cabinet Construction — Precision-machined frames minimize inter-cabinet gaps, producing a near-seamless tiled display surface across multi-cabinet video wall configurations.
• 640x360 Native Resolution — Per-cabinet resolution tiles to standard or custom aspect ratio walls when combined with additional cabinets in the LSAB VI series.
• Main Bottom Cabinet (LSAB009-N5) — Functions as the base row of a multi-cabinet video wall array, pairing with top and extension cabinets in the same series.
• Non-TAA Variant — Ideal for commercial and private-sector projects without federal procurement restrictions, offering the same display performance as the TAA-compliant variant.
• LG MAGNIT Platform Compatibility — Integrates with LG's DVLED controller ecosystem, calibration tools, and service network for a complete commercial installation solution.
• Commercial-Grade Construction — Designed for continuous operation in demanding environments including 24/7 digital signage and command center applications.

Typical Applications

• Corporate conference rooms, boardrooms, and executive briefing centers in private-sector organizations
• Hospitality venues including hotel lobbies, event spaces, and conference centers
• Higher education lecture halls, auditoriums, and campus common areas
• Retail flagship stores, brand experience centers, and high-traffic commercial environments
• Entertainment venues, sports facilities, and live event production spaces
• Healthcare facility lobbies, waiting areas, and patient communication displays
• Multi-tenant commercial real estate common areas and building directories

Technical Specifications

Frequently Asked Questions

What is the difference between LSAB009-N5 and LSAB009-N25?

The LSAB009-N25 is TAA compliant and eligible for government purchasing vehicles. The LSAB009-N5 is the non-TAA variant with identical display specifications, intended for commercial and private-sector projects where federal compliance is not required.

What does the -N5 suffix mean?

The -N suffix identifies this as a main bottom cabinet in the LSAB series. It is designed to be the base row in a multi-cabinet video wall, paired with top (-U) and extension (-T) cabinets from the same series.

What is the minimum recommended viewing distance?

For P0.94 pixel pitch, a practical minimum viewing distance is approximately 1 to 1.5 meters, with typical comfortable viewing starting around 1.5 meters for most content types and lighting conditions.

Does this cabinet work as a standalone display?

No. This cabinet is designed to function within a multi-cabinet video wall array. A complete installation requires additional cabinets, a compatible DVLED signal controller, and appropriate mounting infrastructure.

What LED technology is used?

The LSAB009-N5 uses Chip on Board (COB) LED technology, where individual LED chips are bonded directly to the circuit board, improving surface consistency and reducing discrete LED failure points compared to standard SMD designs.

Can this cabinet be mixed with TAA-compliant LSAB009 cabinets?

Consult with an AV system designer before mixing TAA and non-TAA variants in a single installation to ensure compatibility and to understand any compliance implications for the project. Contact Creation Networks at creationnetworks.net for guidance.
