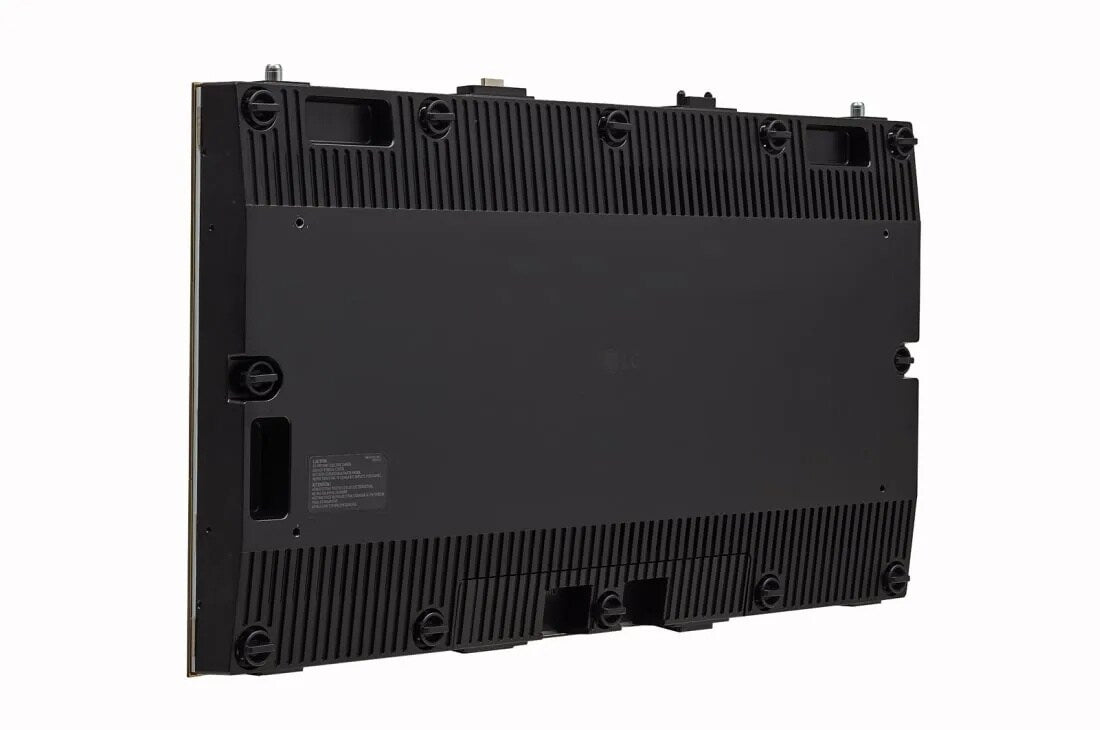

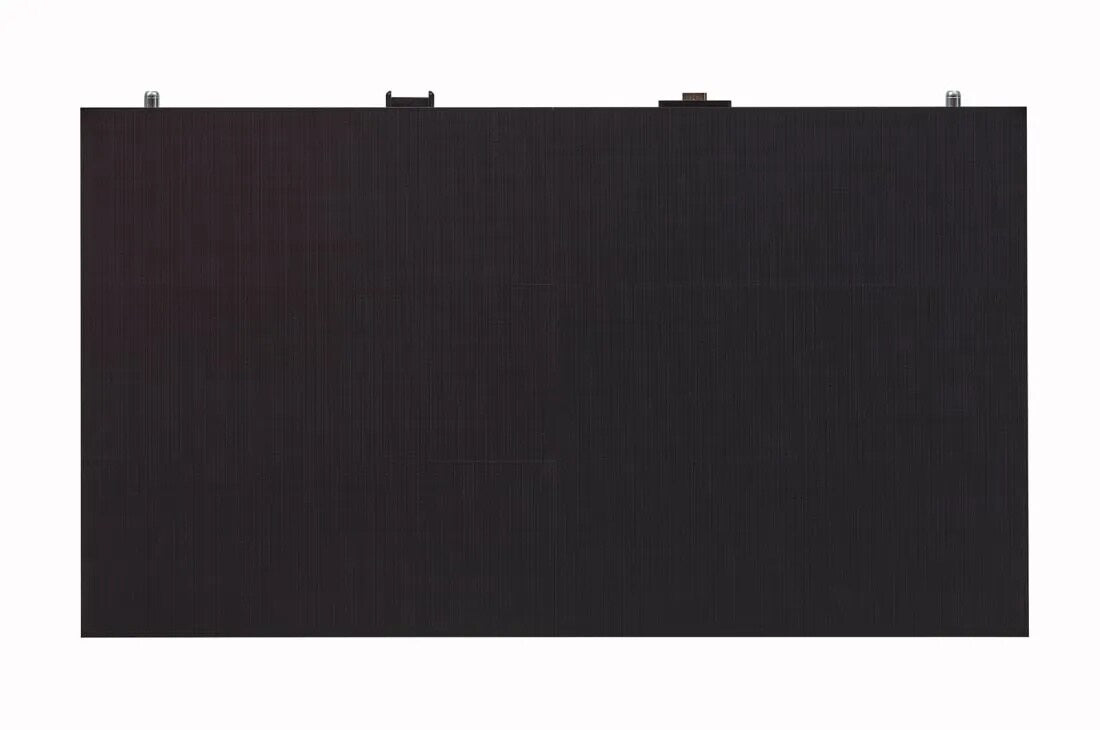

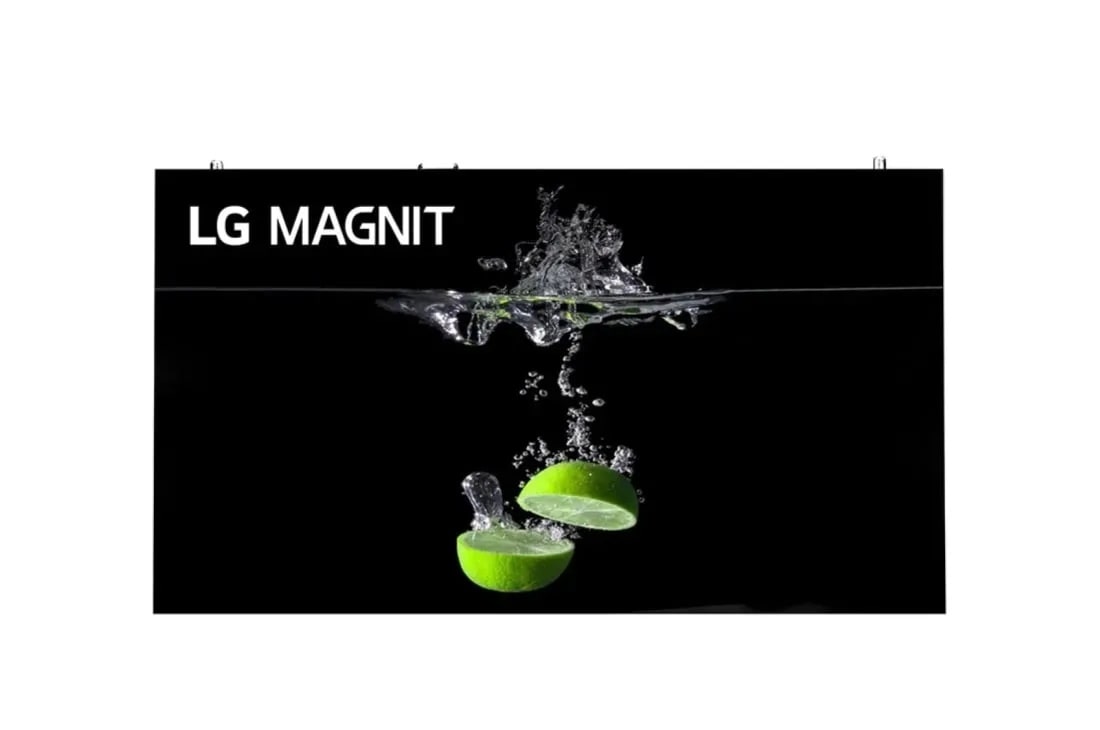

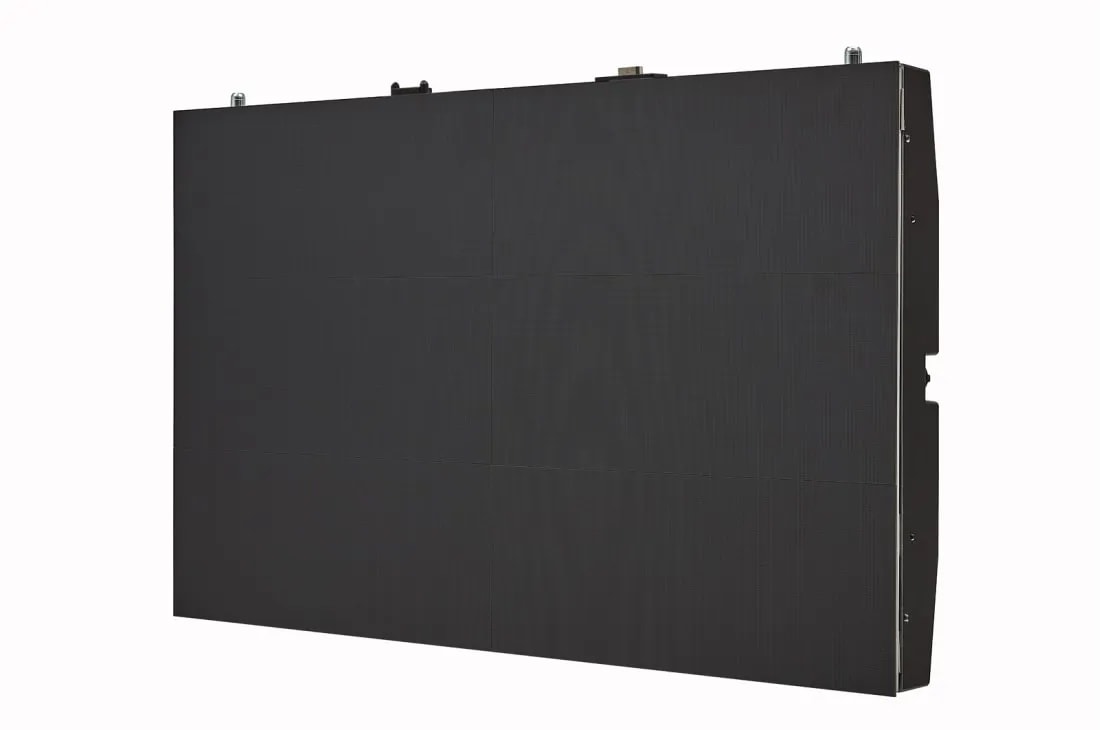

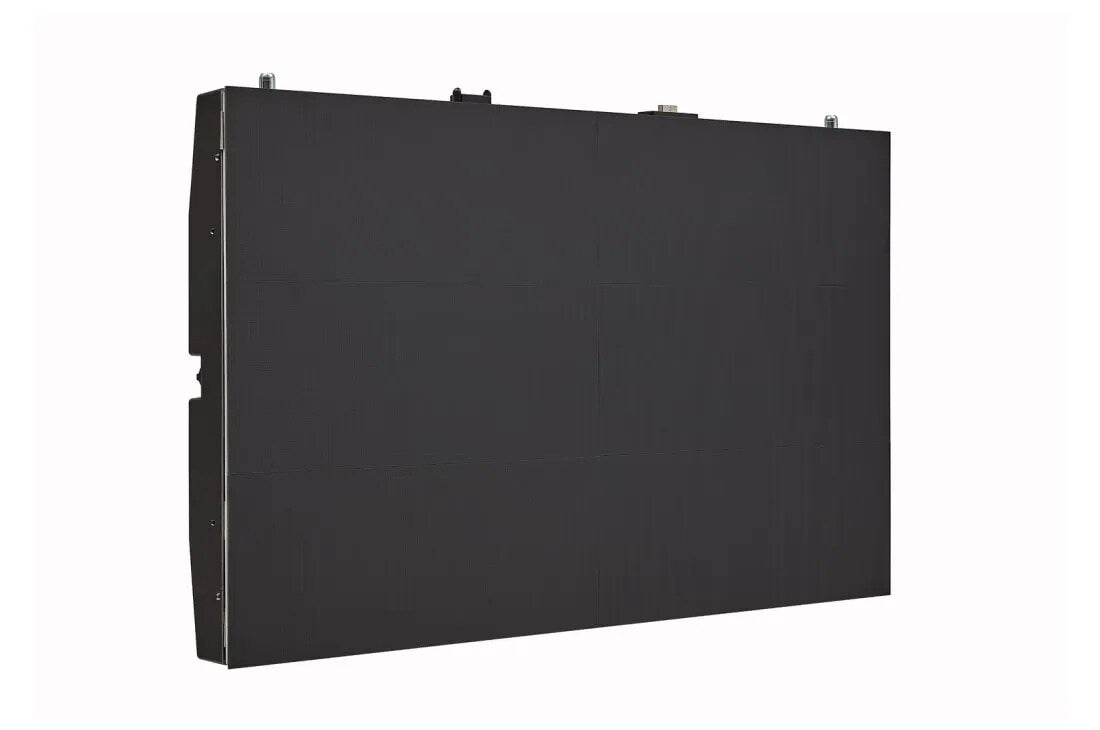

LG LSAB009-N25 – TAA MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.94, 640x360 resolution

Product Overview

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB009-N25) is a TAA-compliant, P0.94 pixel pitch main bottom cabinet designed for large-format direct view LED video wall installations. With a native resolution of 640x360 per cabinet, 1,200 nit brightness, and a rated 100,000-hour operational lifetime, this unit is built for demanding commercial environments including corporate conference rooms, command centers, and high-traffic digital signage venues. The Chip on Board LED construction and wireless data transfer with cable-less power docking distinguish this cabinet as a premium option in the LG MAGNIT portfolio. As the main bottom cabinet in a multi-unit array, it serves as the foundation row upon which extension and top cabinets are stacked.

Product Description

The LSAB009-N25 is the main bottom cabinet in LG's MAGNIT LSAB VI F.L.A.T. series, a product line that combines Chip on Board MicroLED technology with precision cabinet engineering for seamless video wall construction. At 0.94mm pixel pitch and 640x360 resolution per cabinet, this unit supports installations where viewing distances range from approximately one to several meters, making it practical for mid-to-large conference rooms, boardrooms, and open collaboration spaces. The 1,200 nit brightness output ensures the display remains legible under high ambient light conditions common in corporate lobbies, retail environments, and broadcast sets. One of the standout features of the LSAB009-N25 is its wireless data transfer and cable-less power docking system, which significantly reduces installation complexity by minimizing the cable runs required between cabinets during assembly and ongoing maintenance. The COB LED technology used in this cabinet positions LEDs directly on the circuit board, improving surface consistency, reducing visible texture at close distances, and providing greater physical resilience against contact damage compared to discrete SMD configurations. With a rated operational lifetime of 100,000 hours, the LSAB009-N25 supports continuous 24/7 deployment scenarios without premature degradation in brightness or color accuracy. TAA compliance makes this unit eligible for federal government purchasing vehicles, GSA schedules, and government-funded institutional projects. The F.L.A.T. (Fine pitch LED Advanced Technology) cabinet frame ensures precision alignment with adjacent cabinets, producing a near-seamless display surface across the full video wall. System integrators will find the -N25 designation indicates a main bottom cabinet with a 25-unit configuration grouping, designed to pair with corresponding top (-U) and extension (-T) cabinets in the same series. For project design support and procurement, visit creationnetworks.net.

Key Features

• P0.94 Pixel Pitch (MicroLED) — Sub-1mm pixel pitch delivers high-resolution imagery suitable for mid-range viewing distances in professional AV environments.
• Chip on Board (COB) Technology — LED chips mounted directly to the PCB improve uniformity, surface durability, and resistance to individual LED failures compared to SMD designs.
• 1,200 Nit Brightness — High peak luminance maintains image clarity in bright ambient light conditions found in corporate lobbies, retail spaces, and broadcast environments.
• Wireless Data Transfer and Cable-less Power Docking — Reduces cabling complexity during installation and service, simplifying multi-cabinet video wall assembly and ongoing maintenance.
• 100,000-Hour Rated Lifetime — Supports continuous 24/7 commercial operation with extended service life, reducing total cost of ownership over the display's deployment period.
• TAA Compliant — Meets Trade Agreements Act requirements for government, federal agency, and GSA schedule procurement.
• F.L.A.T. Series Construction — Fine pitch LED Advanced Technology framing achieves near-zero seam gaps when tiling multiple cabinets into a full video wall array.
• 640x360 Native Resolution — Per-cabinet resolution allows scalable video wall configurations in standard and custom aspect ratios when combined with additional cabinets.
• Main Bottom Cabinet — Serves as the base row in a multi-cabinet array, designed to pair with LG MAGNIT top (-U) and extension (-T) cabinets in the LSAB VI series.

Typical Applications

• Corporate headquarters conference rooms and boardrooms requiring premium image quality
• Federal and state government command centers with TAA procurement requirements
• Network operations centers (NOCs) and security monitoring rooms requiring continuous 24/7 display operation
• University and higher education auditoriums and large lecture halls
• Broadcast studios, live production environments, and media walls
• High-traffic retail flagship locations and brand experience centers
• Transportation hubs including airports, transit centers, and wayfinding applications

Technical Specifications

Frequently Asked Questions

What does the -N25 suffix indicate?

The -N suffix designates this as a main bottom cabinet in the LSAB series. The 25 denotes the configuration grouping. It pairs with corresponding top (-U) and extension (-T) cabinets to form a complete multi-cabinet video wall.

How does cable-less power docking work?

LG's cable-less power docking system uses a docking interface that eliminates the need for individual power cables between cabinets, reducing installation time and improving serviceability when individual cabinets need to be accessed or replaced.

Is this product eligible for government procurement?

Yes. The LSAB009-N25 is TAA compliant and meets Trade Agreements Act requirements, making it eligible for GSA schedules and other federal and state government purchasing vehicles.

What is the minimum viewing distance for P0.94 pixel pitch?

A standard guideline for P0.94 pixel pitch is approximately 1 to 1.5 meters minimum viewing distance, though comfortable daily-use viewing distances in conference rooms typically start around 1.5 to 2 meters depending on content and ambient conditions.

How long will the display maintain its rated brightness?

The LSAB009-N25 is rated for 100,000 hours of operational life, which at 24/7 continuous use represents over 11 years before brightness reaches its half-life threshold.

What other cabinets does this unit pair with?

This main bottom cabinet pairs with LG MAGNIT LSAB VI F.L.A.T. top cabinets (-U suffix) and secondary extension cabinets (-T suffix) within the same series to build out a full video wall configuration.
