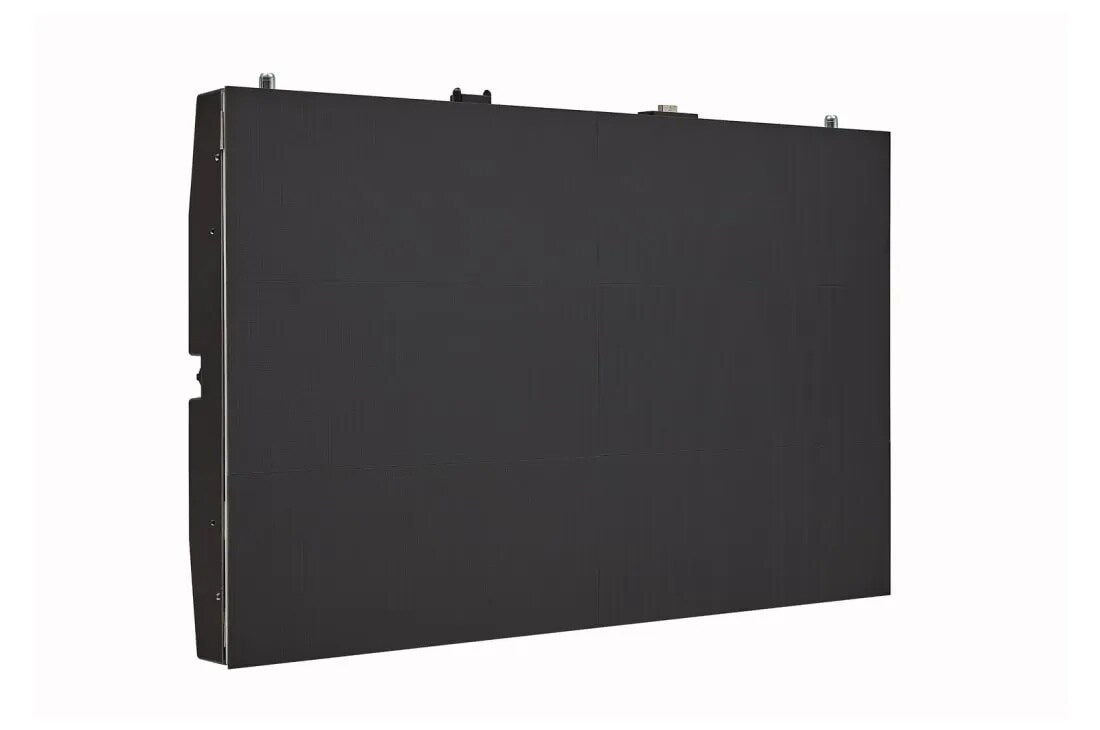

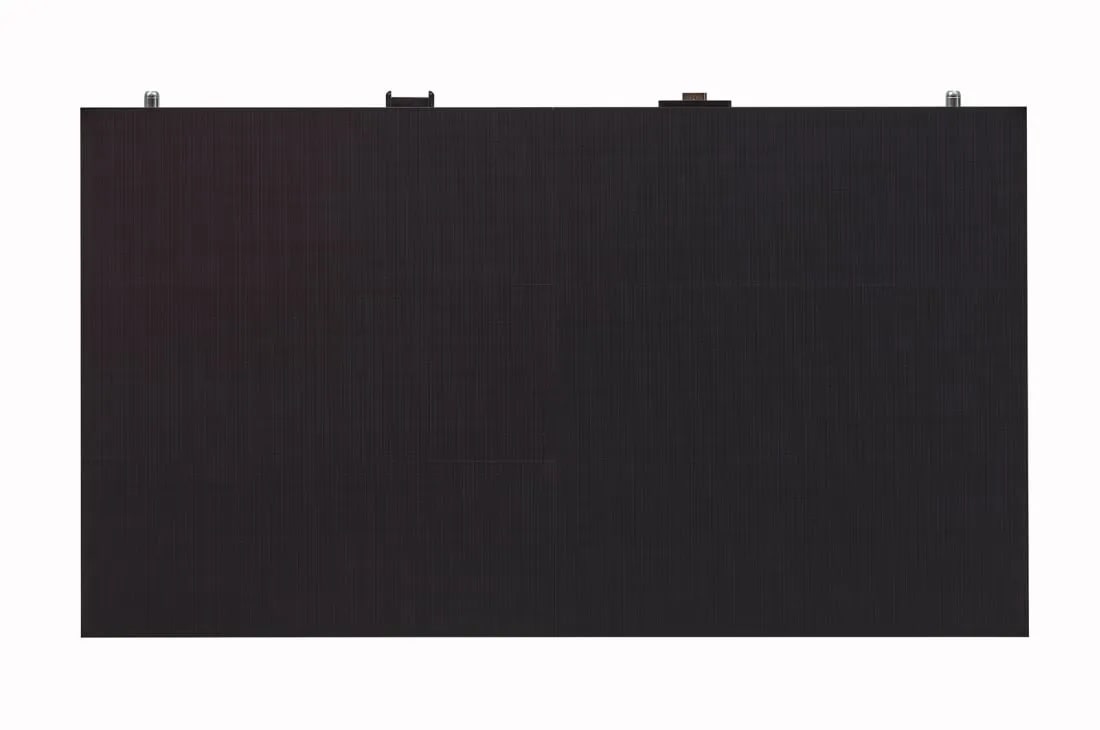

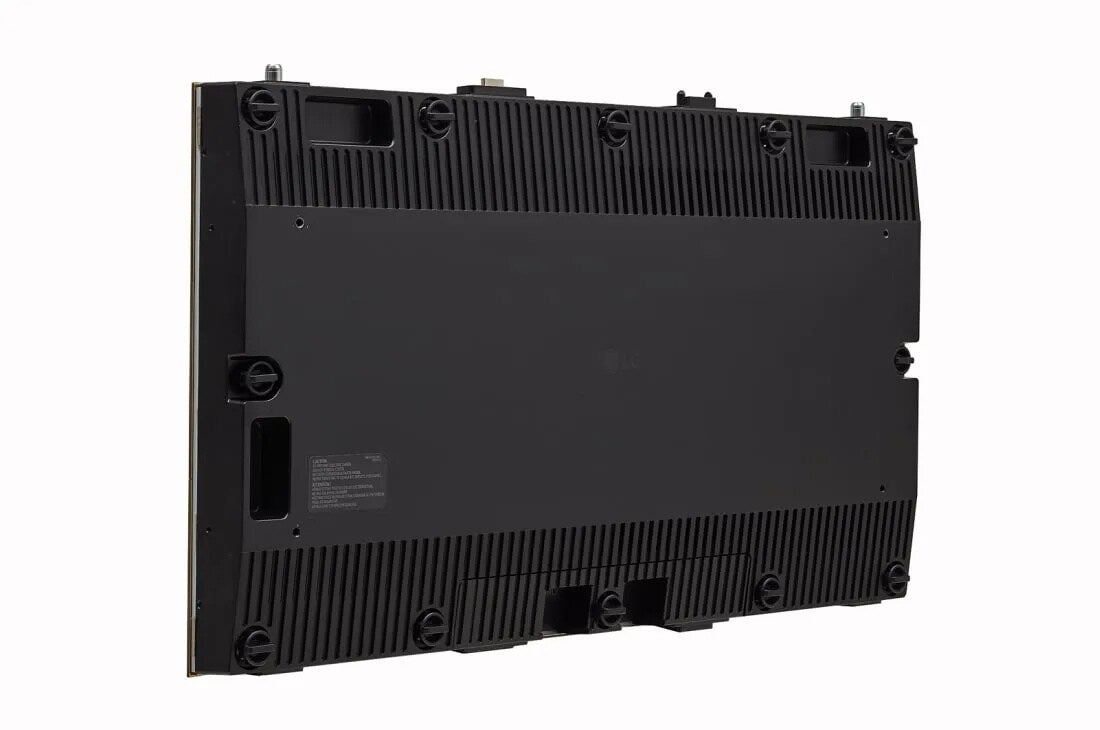

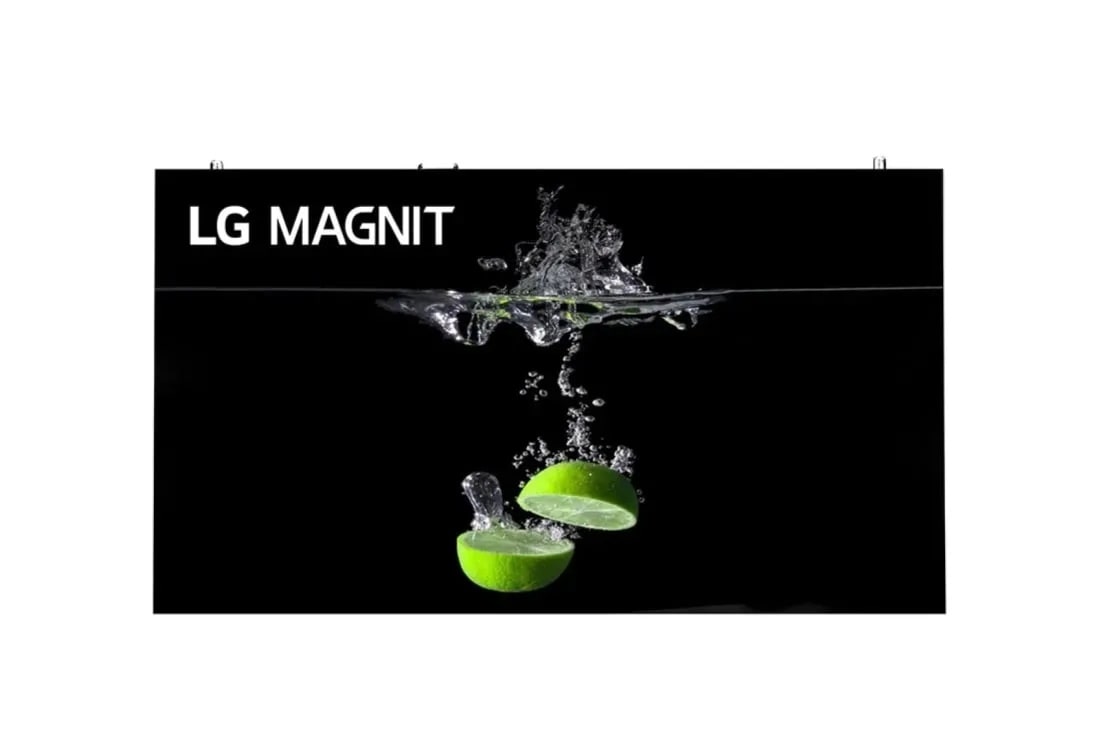

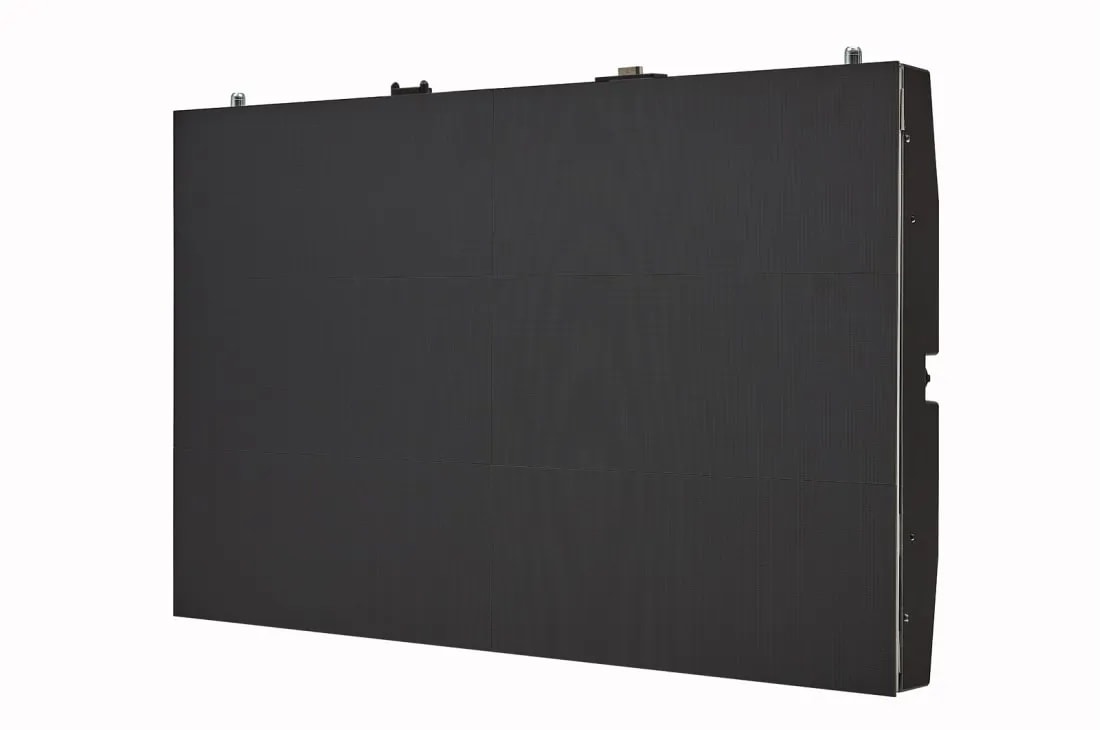

LG LSAB007-U23 – TAA MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.7, 768x432 resolution

Product Overview

The LG MAGNIT LSAB VI F.L.A.T. Series DVLED (LSAB007-U23) is a TAA-compliant, P0.7 pixel pitch direct view LED cabinet designed as the main top unit in large-format video wall configurations. With a native resolution of 768x432 per cabinet, this Fine pitch LED Advanced Technology panel delivers exceptional image clarity at close viewing distances, making it well-suited for executive briefing centers, high-end conference rooms, and premium digital signage installations. The Chip on Board construction eliminates discrete LED packaging to provide a smooth, uniform display surface. As a TAA-compliant product, it meets federal procurement requirements for government and education deployments.

Product Description

The LSAB007-U23 is the main top cabinet in the LG MAGNIT VI F.L.A.T. series, engineered for multi-cabinet video wall arrays where image quality and seamless tiling are critical. The P0.7 pixel pitch produces a pixel density high enough to support viewing distances as close as one meter without visible pixel structure, a key advantage in boardrooms and control rooms where personnel work in close proximity to the display. F.L.A.T. (Fine pitch LED Advanced Technology) combines Chip on Board LED technology with a precision-machined cabinet frame to achieve near-zero cabinet seams when tiled horizontally or vertically. The 768x432 resolution per cabinet allows system designers to build out standard aspect ratio walls—such as 16:9 or custom ultra-wide configurations—by stacking and tiling units to meet project-specific resolution targets. TAA compliance ensures this unit satisfies the Trade Agreements Act requirements, opening the product for GSA schedule purchasing, federal agency procurement, and government-funded educational projects. LG's MAGNIT platform is designed for commercial-grade continuous operation, with a rated lifetime that supports 24/7 use cases common in network operations centers and broadcast environments. The cabinet integrates with LG's ecosystem of direct view LED controllers and signal management hardware, and is compatible with standard DVLED installation hardware for wall-mount and freestanding configurations. Installation teams will find the cabinet weight and form factor appropriate for suspended ceiling structures and dedicated mounting frameworks. For Creation Networks project assistance and system design support, visit creationnetworks.net.

Key Features

• P0.7 Pixel Pitch — Supports close-range viewing distances as tight as one meter while maintaining a smooth, continuous image across the cabinet surface.
• Chip on Board (COB) Technology — Individual LED chips are mounted directly to the circuit board, improving uniformity, contrast, and surface durability compared to standard SMD configurations.
• F.L.A.T. Series Construction — Fine pitch LED Advanced Technology framing system enables near-seamless tiling when combining multiple cabinets into a full video wall.
• 768x432 Native Resolution — Per-cabinet resolution allows precise scaling to target wall resolutions when tiling in standard or custom aspect ratios.
• TAA Compliant — Meets Trade Agreements Act requirements for federal, state, and government-funded institutional procurement channels including GSA schedules.
• Main Top Cabinet (LSAB007-U23) — Configured as the primary top unit in a multi-cabinet array, designed to align and tile with corresponding bottom and extension cabinets in the LSAB series.
• Commercial-Grade Durability — Built for continuous operation environments including control rooms, broadcast studios, and 24/7 digital signage applications.
• LG MAGNIT Platform — Part of LG's premium MicroLED direct view display brand, ensuring compatibility with LG DVLED controllers, calibration tools, and service infrastructure.

Typical Applications

• Executive briefing centers and C-suite conference rooms requiring premium close-range image quality
• Federal government and military operations centers with TAA procurement requirements
• Network operations centers (NOCs) and security monitoring rooms with continuous display demands
• Broadcast studios and live event production environments
• Higher education lecture halls and auditoriums funded through government grants
• High-end retail flagship locations and luxury brand experience centers
• Command and control rooms in public safety and transportation hubs

Technical Specifications

Frequently Asked Questions

What does the -U23 suffix indicate?

The -U suffix designates this as a main top cabinet in the LSAB series. It is intended to be paired with corresponding bottom (-N) and extension (-T) cabinets to form a complete video wall array.

Is this product eligible for government purchasing vehicles such as GSA?

Yes. The LSAB007-U23 is TAA compliant, meaning it satisfies Trade Agreements Act requirements and can be procured through GSA schedules and other government purchasing vehicles.

What is the minimum recommended viewing distance for P0.7 pixel pitch?

A general guideline for P0.7 pixel pitch is approximately 0.7 to 1 meter minimum viewing distance, though comfortable everyday viewing typically starts around 1 meter depending on ambient light conditions and content type.

Can this cabinet be used as a standalone display?

This cabinet is designed for use within a multi-cabinet video wall system. A complete installation requires additional cabinets, a compatible DVLED controller, and appropriate mounting hardware.

What LED technology does this cabinet use?

The LSAB007-U23 uses Chip on Board (COB) LED technology, where LED chips are mounted directly onto the circuit board rather than in individual packages, improving surface uniformity and reducing pixel-level failure points.

How does F.L.A.T. technology affect installation?

F.L.A.T. (Fine pitch LED Advanced Technology) refers to LG's precision cabinet construction that minimizes the gap between tiled cabinets, resulting in a visually seamless video wall surface without visible bezels or seams.
