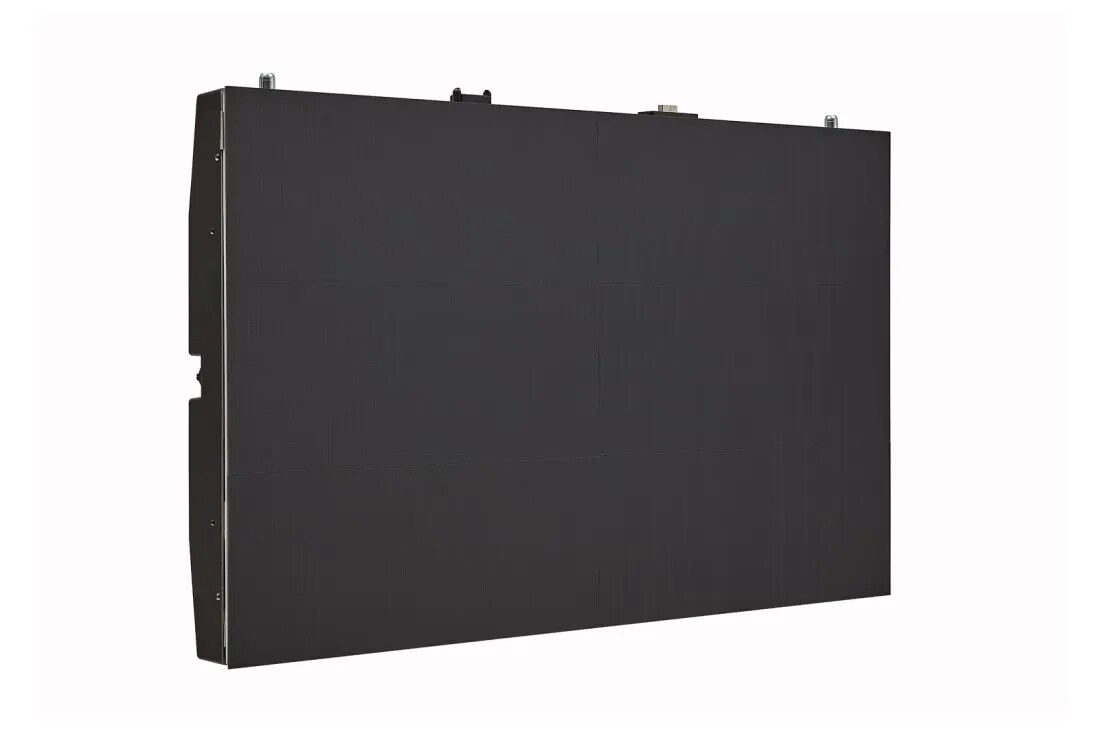

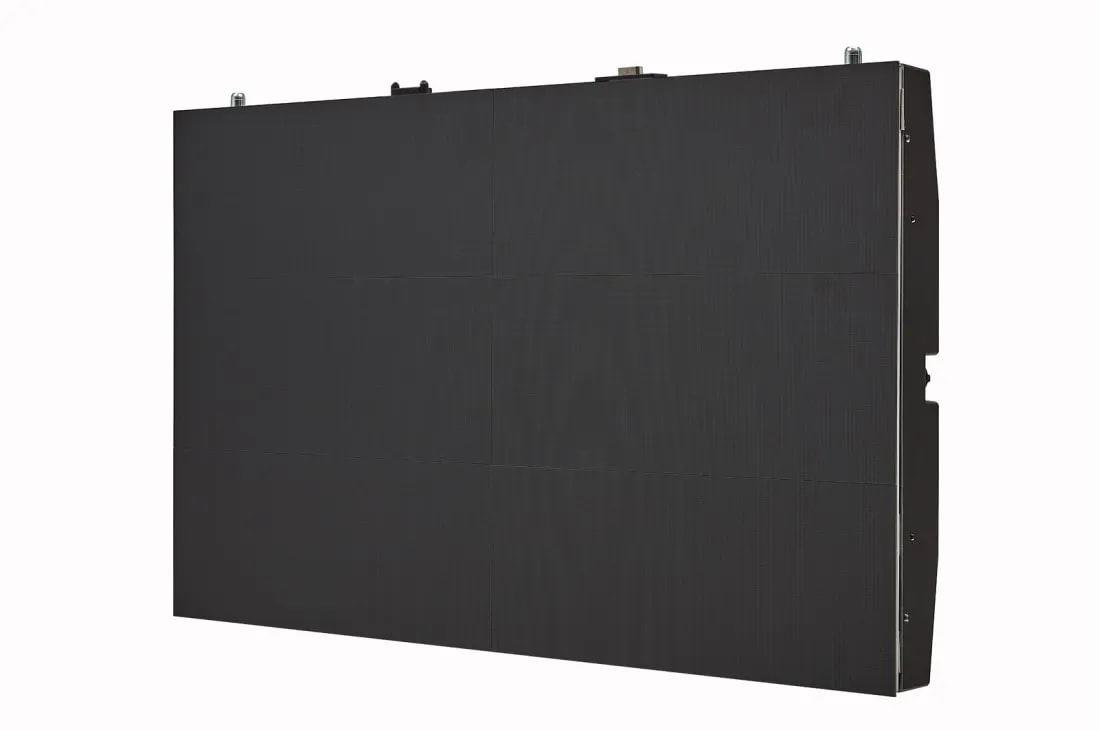

LG LSAB007-T23 – TAA MAGNIT LSAB VI F.L.A.T. Series DVLED, P0.7, 768x432 resolution

Product Overview

The LG TAA MAGNIT LSAB VI F.L.A.T. Series DVLED at P0.7 pixel pitch is the Secondary/Extension cabinet in a modular direct-view LED system designed for federal government, defense, and public sector installations requiring Trade Agreements Act compliance. This LSAB007-T23 cabinet slots between the Main Bottom (N) and Main Top (U) cabinets to extend the vertical height of the display array, allowing system designers to achieve custom display dimensions. The F.L.A.T. technology ensures precise alignment with adjacent cabinets for a near-seamless image surface. The 0.7mm pixel pitch delivers ultra-fine image resolution appropriate for operations centers, NOC environments, and government briefing rooms.

Product Description

The LSAB007-T23 is the T-role (Secondary/Extension) cabinet in LG's TAA-compliant MAGNIT LSAB VI F.L.A.T. direct-view LED system. Extension cabinets are the building blocks that determine the overall vertical dimension of a multi-cabinet display array. By adding one or more T-series cabinets between the Main Bottom (N) and Main Top (U) cabinets, system integrators can configure the display to match the specific wall dimensions and resolution requirements of the installation site.

TAA compliance is a fundamental requirement for many U.S. government procurement vehicles, including GSA Schedule contracts. This product meets those requirements, making it suitable for federal agencies, defense facilities, and state and local government installations where sourcing restrictions apply. The LSAB VI designation indicates sixth-generation LSAB architecture, which incorporates the manufacturing and alignment improvements accumulated across the product line's history.

At 0.7mm pixel pitch, this cabinet is among the finest-pitch DVLED products available for commercial and government applications. The F.L.A.T. (Fine pitch LED Advanced Technology) system is specifically engineered to address the alignment challenges inherent in fine-pitch multi-cabinet arrays, producing a display surface with minimal visible seam structure even at very close viewing distances. The 768x432 native resolution per cabinet tiles precisely across all units in the array.

When specifying a complete LSAB system, the number of T-series cabinets in the vertical stack determines the overall height of the display. Creation Networks provides configuration support to help customers select the correct combination of N, T, and U cabinets for their target display dimensions. Visit creationnetworks.net for pre-sales project support and government procurement assistance.

Key Features

• 0.7mm Pixel Pitch — Ultra-fine pixel spacing enabling close-proximity viewing in operations centers and government facilities.
• TAA Compliant — Eligible for federal and government procurement under GSA Schedule and TAA-restricted contracts.
• Secondary/Extension Cabinet (T-role) — Designed to extend the vertical height of a modular display array between N and U cabinets.
• F.L.A.T. Technology — Fine pitch LED Advanced Technology minimizes seam visibility and ensures precise cabinet-to-cabinet alignment.
• 768x432 Cabinet Resolution — High per-cabinet resolution tiles accurately into large multi-cabinet arrays.
• MAGNIT LSAB VI Platform — Sixth-generation architecture with proven deployment reliability in demanding environments.
• Scalable System Design — Multiple T-series cabinets can be stacked to achieve the target display height required by the installation.
• Consistent Color and Brightness — Matched performance characteristics with N and U cabinets in the same LSAB system.

Typical Applications

• Federal and state government operations centers
• Network operations centers (NOC) and security operations centers (SOC)
• Department of Defense command and control facilities
• Government conference rooms and briefing rooms
• Public safety dispatch and emergency management centers
• Intelligence community visualization environments
• GSA Schedule and government contract procurements

Technical Specifications

Frequently Asked Questions

What is the purpose of the T-cabinet in the LSAB system?

The T-designated cabinet (LSAB007-T23) is the Secondary/Extension cabinet. It is installed between the Main Bottom (N) and Main Top (U) cabinets to increase the overall vertical height of the display array. Each additional T cabinet adds one cabinet row to the display height.

How many T-cabinets do I need?

The number of T-cabinets depends on your target display height. Creation Networks can assist with configuration planning based on your wall dimensions and resolution requirements. Contact us at creationnetworks.net.

Is this cabinet sold as a standalone display?

No. The T-cabinet is a system component. A complete display requires at minimum one N (Main Bottom) and one U (Main Top) cabinet. T-cabinets extend the vertical dimension between those anchor cabinets.

How does TAA compliance affect purchasing?

TAA compliance means this product qualifies for U.S. government procurement under contracts requiring goods from TAA-designated countries. This includes GSA Schedule purchases and many federal and defense agency contracts.

What is F.L.A.T. technology and why does it matter for fine-pitch arrays?

F.L.A.T. (Fine pitch LED Advanced Technology) is LG's precision alignment system for the LSAB cabinet series. At 0.7mm pixel pitch, even small cabinet misalignment is visible. F.L.A.T. engineering reduces seam visibility to produce a more uniform display surface.

Is the LSAB007-T23 compatible with both LSAB007-N23 and LSAB007-U23 cabinets?

Yes. The T, N, and U cabinets within the LSAB007 series are designed to work together as a matched system. Always verify compatibility within the same series generation when configuring a complete display.

Does Creation Networks support government procurement for this product?

Yes. Creation Networks assists federal, defense, and government customers with specification documentation, TAA verification, and procurement coordination. Visit creationnetworks.net for government purchasing support.
