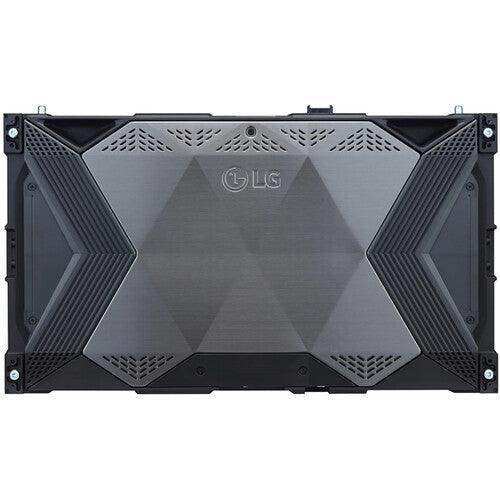

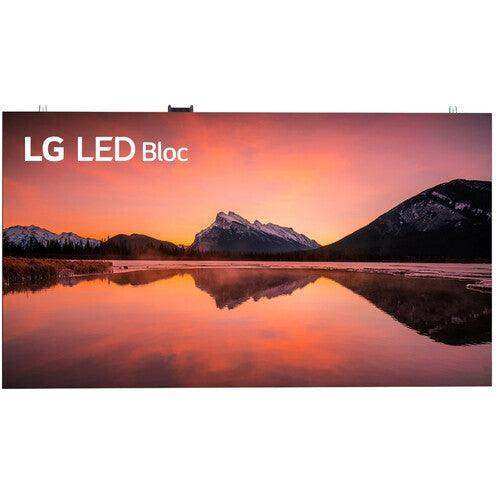

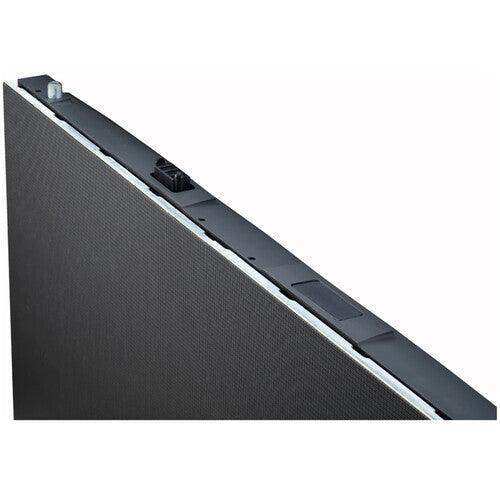

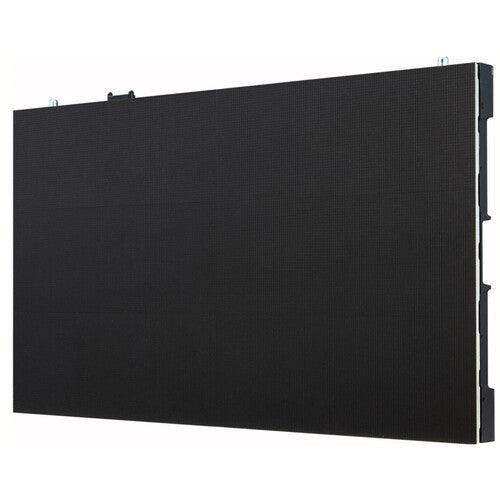

LG LSAA012-TX6 1.25mm LED Signage Display Cabinet Secondard Signal + Power Redundancy
LG LSAA012-TX6 1.25mm LED Signage Display Cabinet Secondard Signal + Power Redundancy is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
LG LSAA012-TX6 1.25mm LED Signage Display Cabinet Secondard Signal ...
Product Overview
The LG LSAA012-TX6 is a secondary cabinet with signal and power redundancy from LG's LSAA fine-pitch Direct View LED series. With a 1.25mm pixel pitch and a 480 x 270 cabinet resolution built from a 2x3 module array, it tiles alongside main cabinets to extend an indoor video wall while carrying redundant feeds. It runs LG webOS 4.0 and has a rated brightness of 1200 nit.
Product Description
The TX6 delivers high pixel density in a Direct View LED package, with HDR10 and HDR10 Pro support processed at 20-bit color depth and a 9,000:1 dynamic contrast ratio. As a secondary cabinet with signal and power redundancy, it provides backup paths so the wall continues operating if a primary feed is interrupted. It runs LG webOS 4.0 and accepts 120 or 230 V AC input. The cabinet carries RoHS environmental certification, measures roughly 23.6 inches wide by 13.2 inches high by 1.7 inches deep, weighs about 16.90 lb, and is finished in black. It works together with main and redundancy cabinets within the same wall.
Key Features
- 1.25mm Pixel Pitch — Fine pitch for high-resolution indoor walls.
- Signal + Power Redundancy — Backup paths maintain operation if a feed fails.
- 480 x 270 Cabinet Resolution — Built from a 2x3 module array.
- webOS 4.0 — Built-in platform for content and management.
- HDR10 / HDR10 Pro, 20-bit — Wider color and contrast with deep processing.
- 9,000:1 Dynamic Contrast — Deep blacks and bright highlights.
- Dual Voltage Input — Accepts 120 or 230 V AC.
- RoHS Certified — Meets environmental requirements.
Typical Applications
As a fine-pitch indoor cabinet with redundancy, the LSAA012-TX6 suits mission-critical walls in control rooms, network operations centers, broadcast studios, and corporate lobbies where uptime and high pixel density are both required.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LSAA012-TX6 |
| Cabinet Role | Secondary, Signal + Power Redundancy |
| Pixel Pitch | 1.25mm |
| Cabinet Resolution | 480 x 270 |
| Modules per Cabinet | 2 x 3 |
| Brightness | 1200 nit |
| Dynamic Contrast Ratio | 9,000:1 |
| Color Depth | 20-bit |
| HDR | HDR10, HDR10 Pro |
| Operating System | webOS 4.0 |
| Input Voltage | 120 / 230 V AC |
| Backlight Technology | Direct LED |
| Weight | 16.90 lb |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
What redundancy does the TX6 provide? Both signal and power redundancy as a secondary cabinet.
What is the cabinet resolution? 480 x 270, built from a 2x3 module array.
Does it run a built-in platform? Yes, LG webOS 4.0.
Does it support HDR? Yes, HDR10 and HDR10 Pro at 20-bit color depth.
