LG LSAA012-SX6 1.25mm LED Signage Display Cabinet Secondard Standard
Product Overview

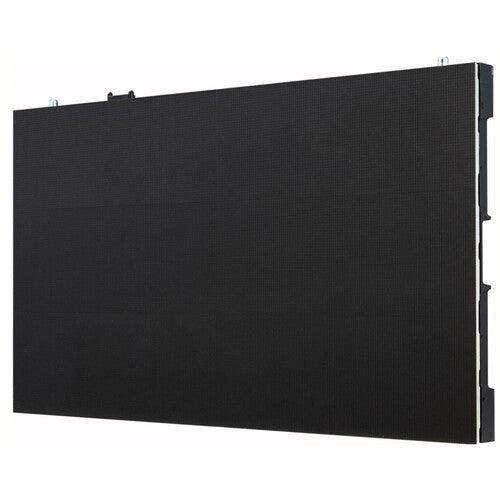

The LG LSAA012-SX6 is a secondary cabinet from LG's LSAA fine-pitch Direct View LED signage series. With a 1.25mm pixel pitch and a premium 4-in-1 IMD package, it tiles alongside main cabinets to extend an indoor video wall to the required size. It is TAA compliant and supports Wireless LAN. Cabinet dimensions are 600 x 337.5 x 44.9mm.
Product Description
The LSAA series uses cable-less transmission with non-connectors to pass signal and power between cabinets, supporting resolutions up to UHD at a 16:9 ratio, with a block-assembly design that simplifies installation. The SX6 is a secondary cabinet built on a 4-in-1 IMD LED package, with a rated brightness of 1200 nit and a 9,000:1 dynamic contrast ratio. Wireless LAN supports network connectivity, and the cabinet is finished in black and is TAA compliant. It pairs with main and redundancy cabinets in the same wall. The cabinet is classified under LG's indoor Direct-View LED display category with a shipping weight of about 19.85 lb.
Key Features
- 1.25mm Pixel Pitch — Fine pitch for high-resolution indoor walls.
- Secondary Cabinet Role — Tiles with main cabinets to extend wall size.
- 4-in-1 IMD Package — Fine-pitch density and durability.

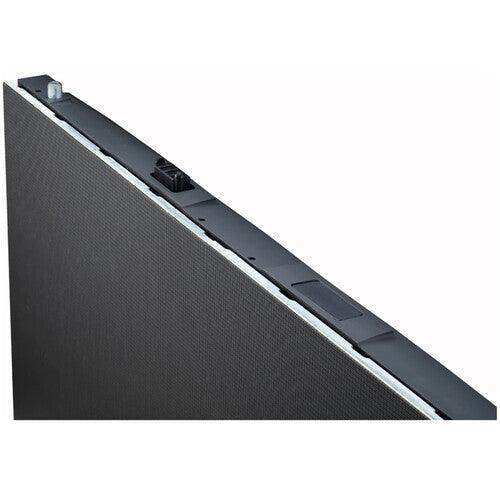

- Cable-less Docking — Non-connector signal and power transmission between cabinets.
- 1200 nit Brightness — Headroom for brighter indoor settings.
- 9,000:1 Dynamic Contrast — Deep blacks and bright highlights.
- Wireless LAN — Network connectivity for management.
- TAA Compliant — Meets procurement requirements for many institutional buyers.
Typical Applications
As a fine-pitch indoor cabinet, the LSAA012-SX6 builds walls for corporate lobbies, retail flagships, broadcast and studio backdrops, control rooms, and premium briefing spaces where viewers sit close and detail matters.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LSAA012-SX6 |
| Cabinet Role | Secondary, Premium |
| Pixel Pitch | 1.25mm |
| Brightness | 1200 nit |
| Dynamic Contrast Ratio | 9,000:1 |
| Pixel Configuration | 4-in-1 IMD |
| Backlight Technology | Direct View LED |
| Cabinet Dimensions | 600 x 337.5 x 44.9 mm |
| Wireless LAN | Yes |
| TAA Compliant | Yes |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
Is the LSAA012-SX6 a standalone screen? No. It is a secondary cabinet that tiles with main and redundancy cabinets to form a video wall.
What is the cabinet size? 600 x 337.5 x 44.9mm.
How do cabinets connect? Through cable-less, non-connector signal and power docking between adjacent cabinets.
Is it TAA compliant? Yes.
