LG LSAA012-SX5 1.25mm LED Signage Display Cabinet Secondard Standard

Product Overview

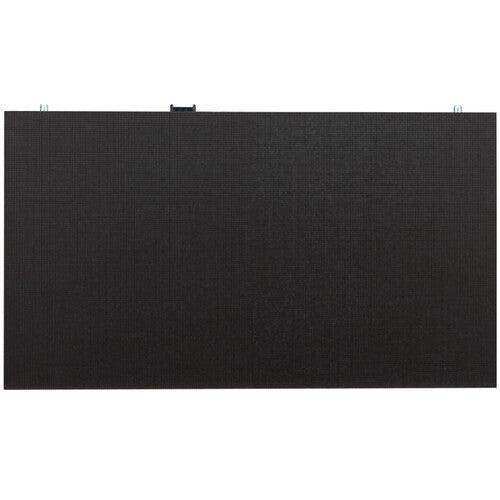

The LG LSAA012-SX5 is a secondary standard cabinet from LG's LSAA fine-pitch Direct View LED signage series. With a 1.25mm pixel pitch, it serves as a building block for high-resolution indoor video walls assembled from multiple cabinets. As a secondary cabinet, it tiles alongside main cabinets to extend a wall to the required size. The LSAA platform is engineered for fast, repeatable installation in premium indoor environments.

Product Description

The LSAA series applies cable-less transmission technology using non-connectors that move signal and power between cabinets without physical cabling, supporting resolutions up to UHD at a 16:9 ratio. This block-assembly design simplifies installation compared to traditional cabling. Image processing is handled by LG's Alpha 7 Intelligent Processor, which analyzes source content to optimize clarity and sharpness. HDR support (HDR10 and HDR10 Pro) widens the color spectrum and increases contrast for high-impact content. The SX5 ships as a secondary standard cabinet, intended to pair with main and redundancy cabinets within the same wall. Real-time ConnectedCare service provides remote monitoring of installed walls.

Key Features

• 1.25mm Pixel Pitch — Fine pitch resolves detail at close indoor viewing distances.

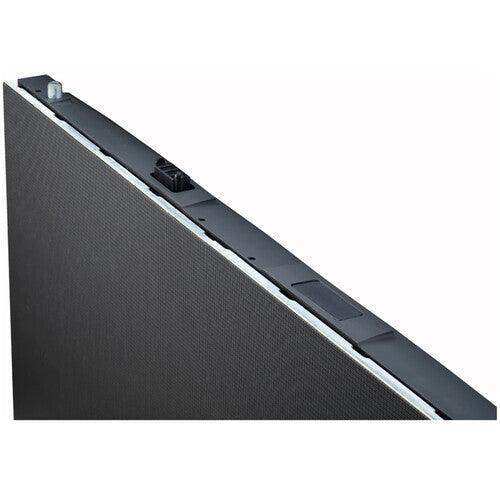

• Cable-less Signal & Power Docking — Non-connector transmission between cabinets simplifies assembly.
• Alpha 7 Intelligent Processor — AI-driven processing optimizes clarity and sharpness of source content.
• HDR10 / HDR10 Pro — Wider color spectrum and higher contrast for vivid content.
• Block Assembly Design — Faster, more repeatable installation than cabled cabinets.
• ConnectedCare Service — Real-time remote monitoring of the installed wall.
• Secondary Standard Cabinet — Tiles with main cabinets to extend wall dimensions.

Typical Applications

As a fine-pitch indoor cabinet, the LSAA012-SX5 builds walls suited to corporate lobbies, retail and flagship stores, broadcast studios, control rooms, and executive briefing spaces where close viewing distances demand high pixel density and accurate color.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

Is the LSAA012-SX5 a complete display? No. It is a secondary standard cabinet that tiles with other LSAA012 cabinets to build a video wall of the required size.

What does cable-less docking mean? Signal and power transfer between adjacent cabinets using non-connector transmission, reducing the cabling required during assembly.

What is the pixel pitch? 1.25mm, suited to close indoor viewing distances.

Does it support HDR? Yes, both HDR10 and HDR10 Pro are supported.
