Product Overview

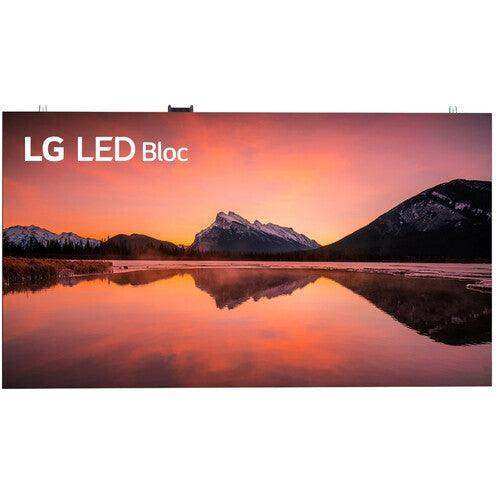

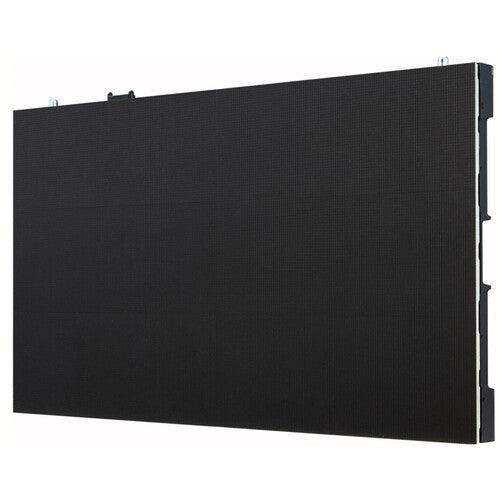

The LG LSAA012-QX6 is a main top cabinet with signal redundancy from LG's LSAA fine-pitch Direct View LED series. With a 1.25mm pixel pitch and a 480 x 270 cabinet resolution built from a 2x3 module array, it is a building block for high-resolution indoor video walls. The main top role positions it at the top of the wall to manage a redundant signal feed. It runs LG webOS 4.0 and is TAA compliant.
Product Description
The QX6 delivers high pixel density in a Direct View LED package, with a rated brightness of 1200 nit and a 9,000:1 dynamic contrast ratio. HDR10 and HDR10 Pro are supported for wider color and contrast, processed at 20-bit color depth. The cabinet runs LG webOS 4.0 with Wireless LAN for content and management, and accepts 120 or 230 V AC input. As a main top cabinet with signal redundancy, it provides a backup signal path within the wall. It carries RoHS environmental certification and is TAA compliant, finished in black at roughly 15.21 lb and 23.6 inches wide. It works together with main, secondary, and redundancy cabinets in the same series.
Key Features
- 1.25mm Pixel Pitch — Fine pitch for high-resolution indoor walls.
- Signal Redundancy — Backup signal path guards against a single point of failure.
- 480 x 270 Cabinet Resolution — Built from a 2x3 module array.
- webOS 4.0 — Built-in platform for content and management.
- HDR10 / HDR10 Pro, 20-bit — Wider color and contrast with deep processing.
- 9,000:1 Dynamic Contrast — Deep blacks and bright highlights.
- Wireless LAN — Network connectivity for management.
- TAA Compliant, RoHS — Meets procurement and environmental requirements.
Typical Applications
As a fine-pitch indoor cabinet with signal redundancy, the LSAA012-QX6 suits control rooms, broadcast studios, corporate lobbies, and command centers where image detail and signal continuity both matter.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LSAA012-QX6 |
| Cabinet Role | Main Top, Signal Redundancy |
| Pixel Pitch | 1.25mm |
| Cabinet Resolution | 480 x 270 |
| Modules per Cabinet | 2 x 3 |
| Brightness | 1200 nit |
| Dynamic Contrast Ratio | 9,000:1 |
| Color Depth | 20-bit |
| HDR | HDR10, HDR10 Pro |
| Operating System | webOS 4.0 |
| Input Voltage | 120 / 230 V AC |
| Backlight Technology | Direct View LED |
| Weight | 15.21 lb |
| TAA Compliant | Yes |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
What is the cabinet resolution? 480 x 270, built from a 2x3 module array.
Does it run a built-in platform? Yes, LG webOS 4.0.
What redundancy does it provide? Signal redundancy as a main top cabinet.
Is it TAA compliant? Yes, and it carries RoHS certification.
