Product Overview

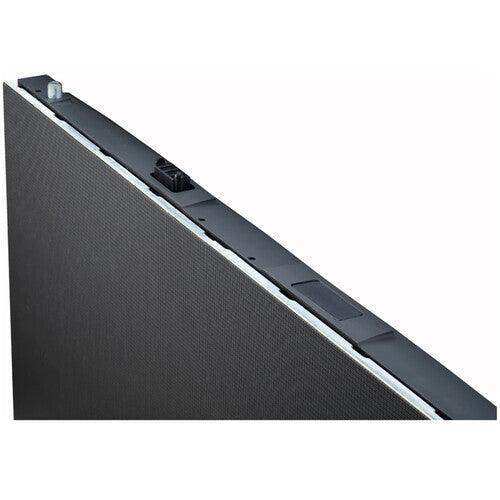

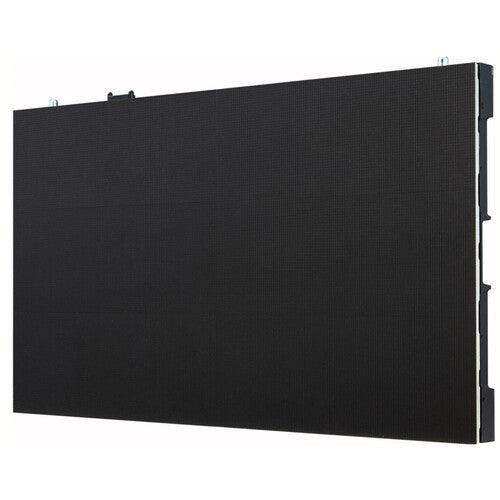

The LG LSAA012-QX5 is a main top cabinet with signal redundancy from LG's LSAA fine-pitch Direct View LED series. With a 1.25mm pixel pitch and a 4-in-1 IMD package, it is a building block for high-resolution indoor video walls. The main top role positions it at the top of the wall to manage a redundant signal feed. Cabinet dimensions are 600 x 337.5 x 44.9mm.
Product Description
The innovative LSAA series uses wireless transmission technology, so for resolutions up to UHD at a 16:9 ratio it does not require a cable connection between cabinets to supply signal and power. Its block-assembly design makes the LSAA012 straightforward to install. The QX5 adds signal redundancy on a main top cabinet, providing a backup signal path to protect against a single point of failure. It is built on a premium-grade 4-in-1 IMD LED package. The cabinet works together with main, secondary, and redundancy cabinets in the same wall to reach the required size. Cabinet dimensions are 600 x 337.5 x 44.9mm.
Key Features
- 1.25mm Pixel Pitch — Fine pitch for high-resolution indoor walls.
- Signal Redundancy — Backup signal path guards against a single point of failure.
- Main Top Role — Positioned at the top of the wall to manage the redundant feed.
- 4-in-1 IMD Package — Fine-pitch density and durability.
- Wireless / Cable-less Docking — Signal and power transfer without cabling between cabinets.
- Block Assembly Design — Repeatable, tool-light installation.
- Cabinet Size 600 x 337.5 x 44.9mm — Standard module for predictable layouts.
Typical Applications
As a fine-pitch indoor cabinet with signal redundancy, the LSAA012-QX5 suits control rooms, broadcast studios, corporate lobbies, and command centers where both image detail and signal continuity are priorities.
Technical Specifications
| Specification | Value |
|---|---|
| Model | LSAA012-QX5 |
| Cabinet Role | Main Top, Signal Redundancy |
| Pixel Pitch | 1.25mm |
| Pixel Configuration | 4-in-1 IMD |
| Backlight Technology | Direct View LED |
| Cabinet Dimensions | 600 x 337.5 x 44.9 mm |
| Transmission | Cable-less / Wireless docking |
| Grade | Premium |
| Brand | LG Electronics |
Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.
Frequently Asked Questions
What does signal redundancy provide? A backup signal path that keeps the wall displaying if a primary signal feed is lost.
Where does a main top cabinet go? At the top of the wall, where it manages the redundant signal feed.
Is this a complete display? No, it is a cabinet that tiles with other LSAA012 cabinets to build a wall.
What is the pixel pitch? 1.25mm.
