LG LSAA012-NX5 1.25mm LED Signage Display Cabinet Main Bottom Signal + Power Redundancy

Product Overview

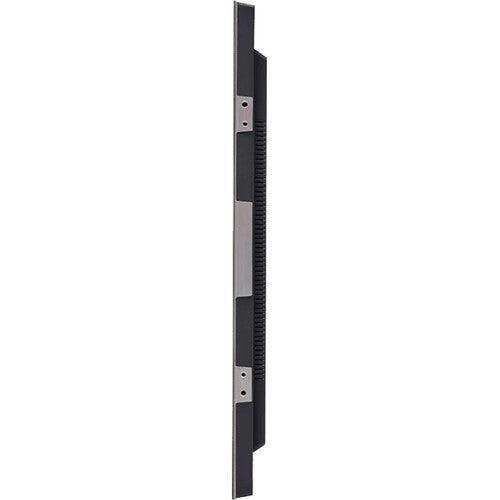

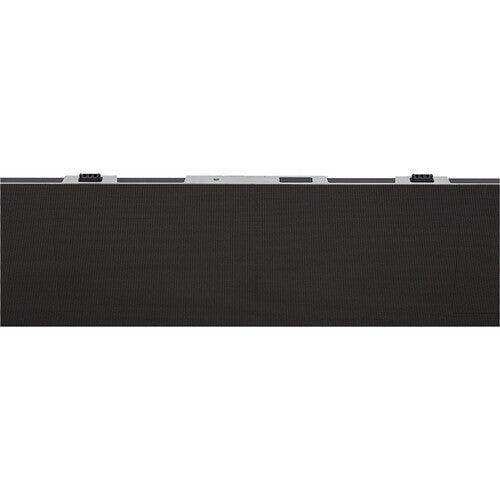

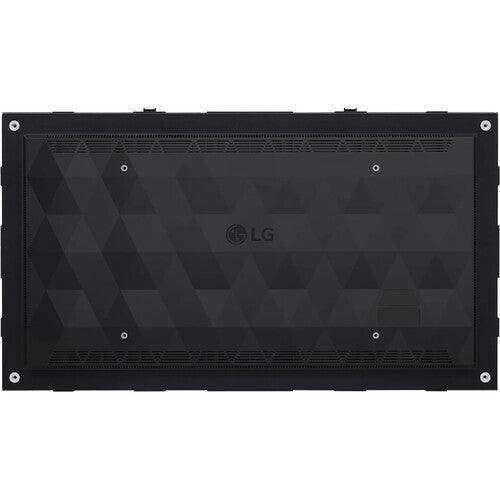

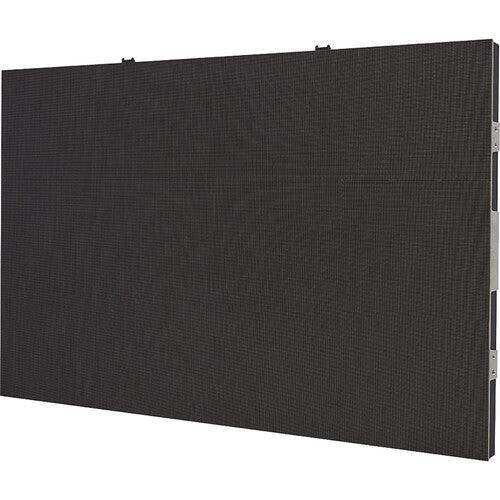

The LG LSAA012-NX5 is a main bottom cabinet with signal and power redundancy from LG's LSAA fine-pitch Direct View LED series. With a 1.25mm pixel pitch and a 4-in-1 IMD package, it serves as a building block for high-resolution indoor video walls. The main bottom redundancy role positions it at the base of the wall to carry redundant signal and power feeds. Cabinet dimensions are 600 x 337.5 x 44.9mm.

Product Description

The LSAA series uses cable-less transmission with non-connectors to pass signal and power between cabinets, supporting resolutions up to UHD at a 16:9 ratio, with a block-assembly design that simplifies installation. The NX5 adds power redundancy on a main bottom cabinet, providing a backup path so the wall keeps running if a primary feed is interrupted. It is built on a 4-in-1 IMD LED package at a premium grade with a rated brightness of 600 nit. The NX5 works together with main, secondary, and redundancy cabinets within the same wall. Cabinet dimensions are 600 x 337.5 x 44.9mm.

Key Features

• 1.25mm Pixel Pitch — Fine pitch for high-resolution indoor walls.
• Power Redundancy — Backup power path keeps the wall running if a feed fails.
• Main Bottom Role — Positioned at the wall base to manage redundant feeds.
• 4-in-1 IMD Package — Density and durability for fine-pitch builds.
• Cable-less Docking — Non-connector signal and power transmission between cabinets.
• 600 nit Brightness — Tuned for controlled indoor environments.
• Cabinet Size 600 x 337.5 x 44.9mm — Standard module for predictable layouts.

Typical Applications

As a fine-pitch indoor cabinet with redundancy, the LSAA012-NX5 suits mission-critical walls in control rooms, network operations centers, broadcast studios, and corporate lobbies where uptime and high pixel density are both required.

Technical Specifications

Specifications sourced from LG vendor data. Unlisted values are omitted rather than estimated.

Frequently Asked Questions

What does power redundancy provide? A backup power path so the wall continues operating if a primary feed is interrupted.

Where does a main bottom cabinet go? At the base of the wall, where it manages redundant signal and power feeds.

Is this a complete display? No, it is a cabinet that tiles with other LSAA012 cabinets to build a wall.

What is the pixel pitch? 1.25mm.
